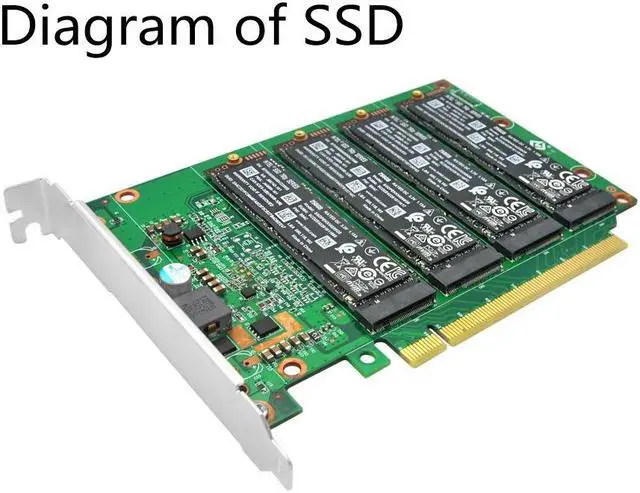

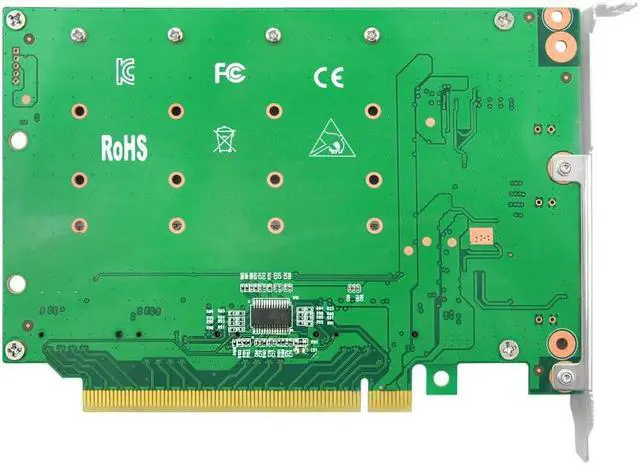

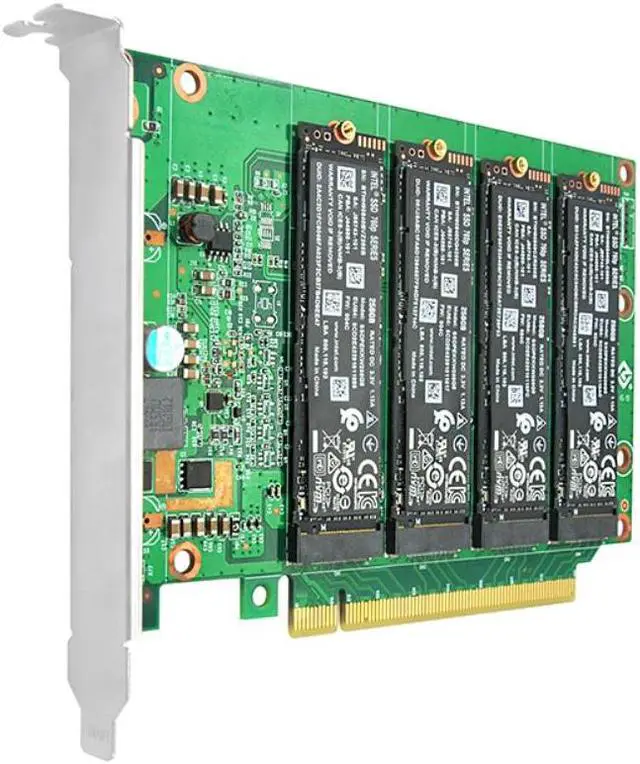

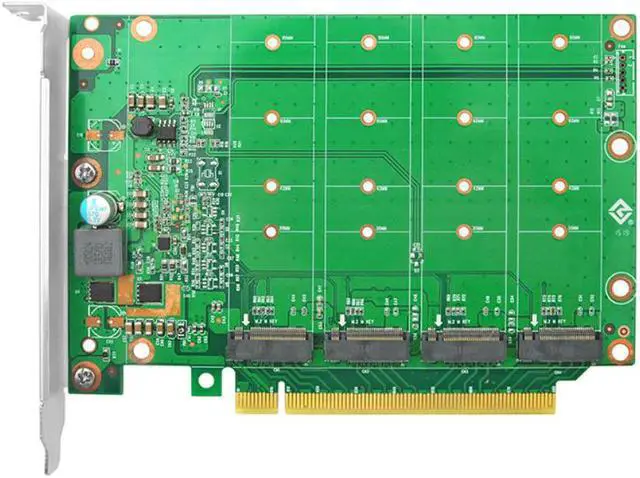

Linkreal Quad PCIe 4.0 x16 to M.2 NVMe Adapter PCIe Bifurcation with Heatsink, 4 X4 NVMe M.2 SSD in Size 2242/2260/2280-LRNV95NF

Certification:CE
Origin:CN(Origin)
Package:Yes
Model Number:LRNV95NF
Type:Add On Cards
Interface Type:PCI Express
Host Bus Type:PCIe 4.0 x16
Support:PCIe Bifurcation& Bios Bifurcation

Description
LRNV95NF is a series cards for PCIe 4.0 to M.2 M key connector. It connects to M.2 NVMe SSD. can make full use of the low delay characteristic of PCIE to improve the speed of SSD and increase the number of M.2 interfaces of host.
This card requires SPLIT PCIe on the motherboard to support two M.2 NVMe hard drives, and BIOS supports PCIe Slot bifurcation.
Spec.
Model: LRNV95NF
Bus Type: PCI Express
Number of Drives: 4 internal
Compatible Drive Types: M.2 (PCIe, AHCI, M-Key, NGFF)
Drive Connectors: 4* M.2 (PCIe, AHCI, M-Key, NGFF)
Host Connectors: PCI Express 4.0 x16
Humidity: 15% ~ 90%
Operating Temperature: 5°C to 50°C (41°F to 122°F)
Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Dimension: 150mm*106mm

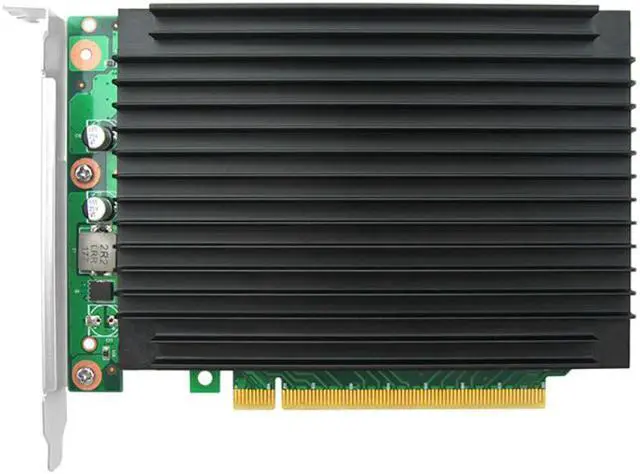

Heatsink Dimension: 134mm*94mm
Product Weight: 260g
Warranty: 2 Years
WHAT'S IN THE BOX
1 - Quad M.2 PCIe SSD Adapter(with Heatsink)
1 - high-profile bracket (installed)
4 - screws&nuts for ssd
1 - Warranty Card
