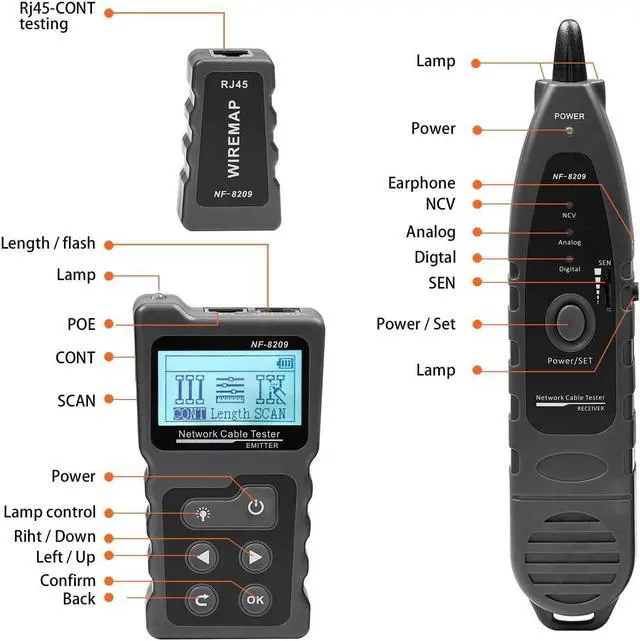

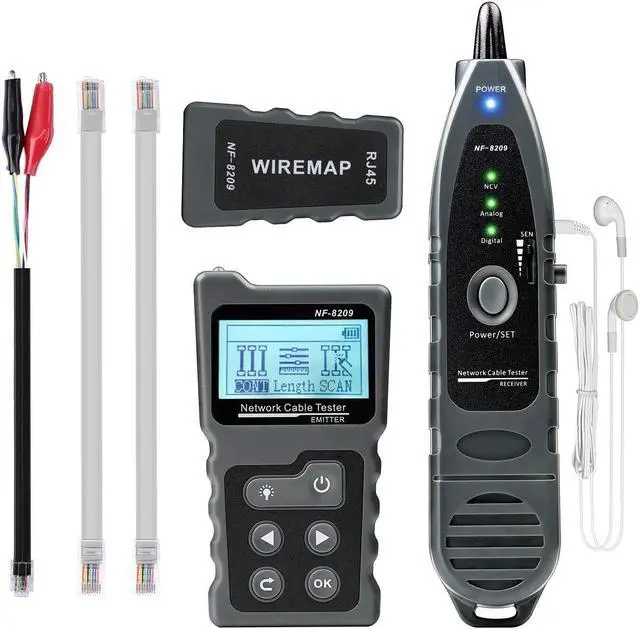

Network Cable Tester, Ethernet Wire Tr with NCV & Lamp for CAT5 CAT6, PoE Tester Detect Voltage Measure Fault Distance by TDR NF-8209
- Digital cable scanningNF-8209 lan cable tester is a new generation to offer AC filter and analog signaling all in one network toner and probe. It has three modes for options to track cable like AC filter mode, analog mode and PoE mode.
- Fault distance locationRj45 cable tester measure cable length and locate fault distance accurately for lan cable. the range is 200m.That means it's equipped with the most powerful cable location technologies for any work environment.

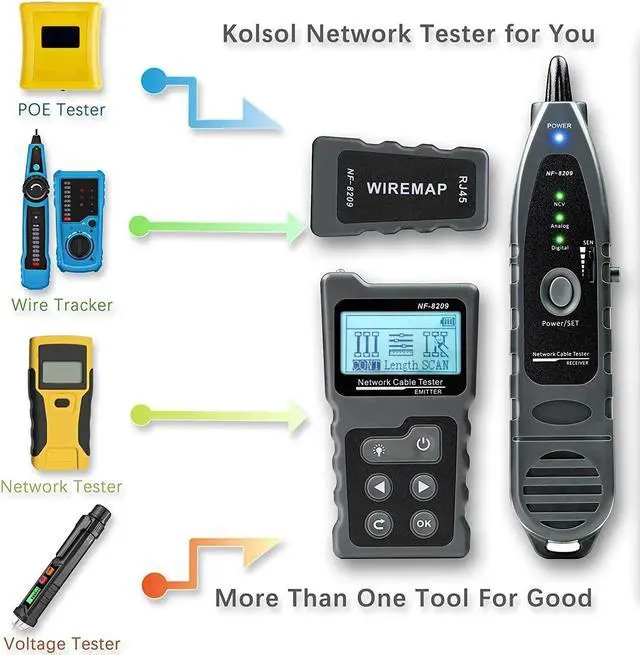

- Multi FunctionNetwork cable tester kit includes cable length measurement , cable faults testing, PoE testing, hub blink and NCV function, all these makes it a must-tool for cabling engineers.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PoE information testing & Hub blink Identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard). Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M Hub/ switch.
Cable continuity testing & NCVTest physical status for STP, UTP lan cable. Detect AC voltage presence (50V-1000V).
Product Description
Fault distance location and length measurement
Using TDR techonology and 98% accuracy.
The range should be 2.5 m~200m for high accuracy.

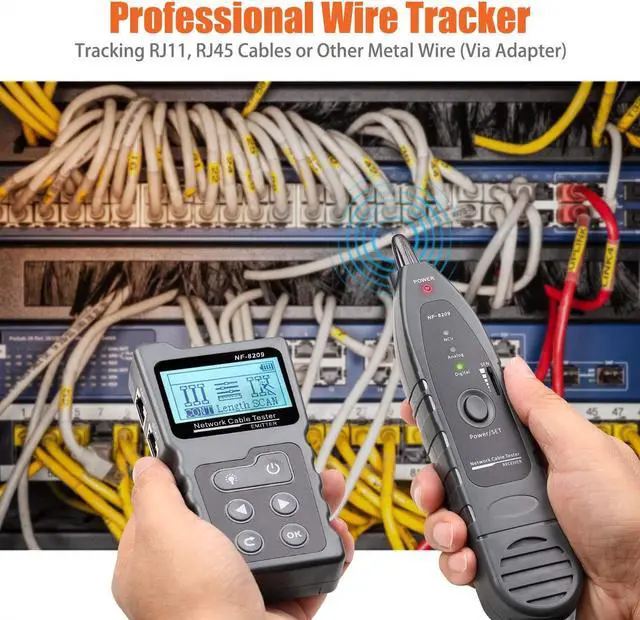

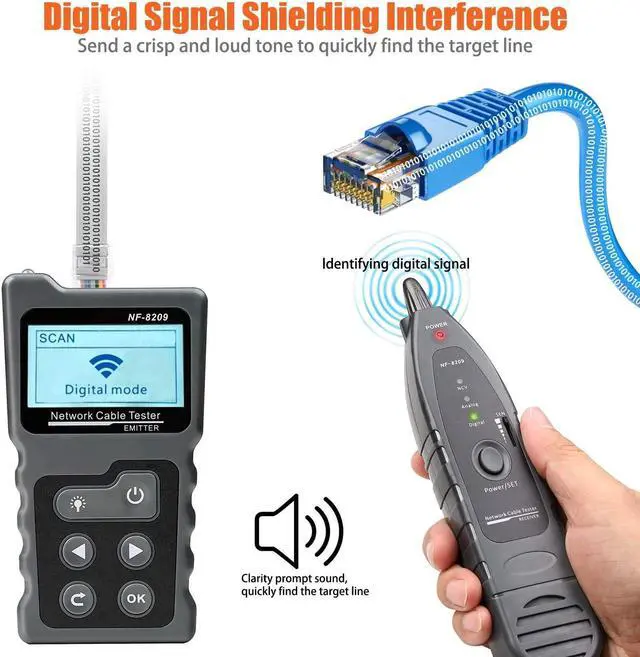

Digital Cable Scan
Three scan modes: Digital/Analog/PoE Swtich AC filter to tone trace cable easily

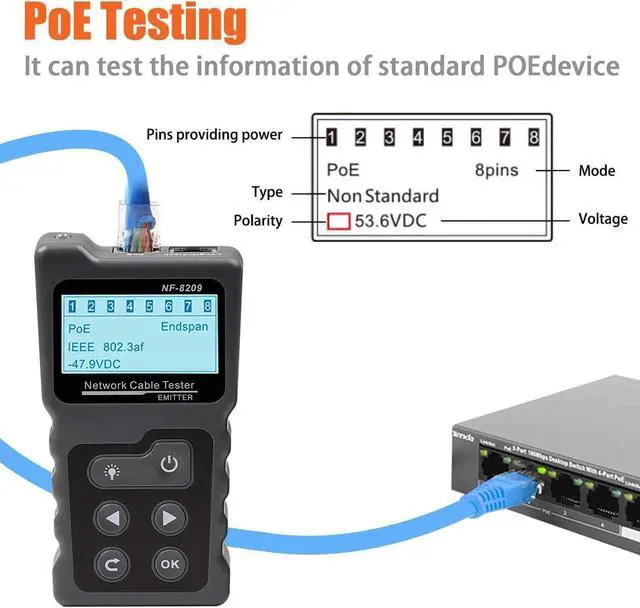

PoE Testing
Test the PoE information such as POE voltage, power supply polarity, power supply mode and the type of PSE (af or at standard).
Port Flash
Hub blink for locating network port by the flashing port light on a server/switch/hub/router port. Another easy way to locate lan cable by eyes.
The device can tell you the connected switch's information: Speed, Transmitting modes, Protocol.
Continuity Testing
Test open, short, cross, split pairs.
Cable types: Cat5e, Cat6, Cat6a, Cat7. (UTP & STP).

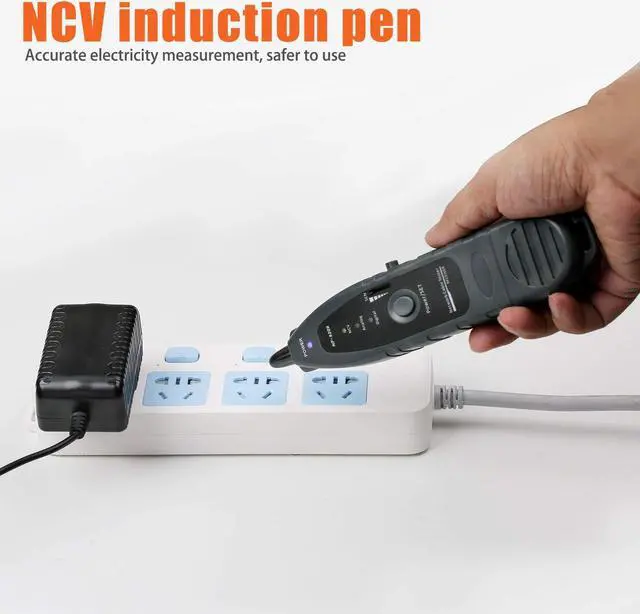

NCV Induction Pen
Receiver can also be used as voltage detector.
Accurate electricity measurement, Non-contact and safer to use.
Cable continuity testing & NCVTest physical status for STP, UTP lan cable. Detect AC voltage presence (50V-1000V).
Product Description
Fault distance location and length measurement
Using TDR techonology and 98% accuracy.
The range should be 2.5 m~200m for high accuracy.
Digital Cable Scan
Three scan modes: Digital/Analog/PoE Swtich AC filter to tone trace cable easily
PoE Testing
Test the PoE information such as POE voltage, power supply polarity, power supply mode and the type of PSE (af or at standard).
Port Flash
Hub blink for locating network port by the flashing port light on a server/switch/hub/router port. Another easy way to locate lan cable by eyes.
The device can tell you the connected switch's information: Speed, Transmitting modes, Protocol.
Continuity Testing
Test open, short, cross, split pairs.
Cable types: Cat5e, Cat6, Cat6a, Cat7. (UTP & STP).
NCV Induction Pen
Receiver can also be used as voltage detector.
Accurate electricity measurement, Non-contact and safer to use.
