100amp MPPT Solar Controller, 100V Input, LiFePO4 (Lead Acid AGM) Lithium Battery, Maximum Input Voltage 100V, Power 1300W / 2600w (12V / 24V), Automatic Identification (k100a)

Prevention: Overcharge, overdischarge, overload, overheat, reverse polarity, lightning strike and other protection functions; false12V system: PV Voc = 18v-96v; 24V system: PV Voc = 36v-96v; The solar controller is a professional product. If you have any questions before installation, please email us; we will answer as soon as possible; the professional technical team will guide the installation; worry-free after-sales guaranteefalse
This is a MPPT solar charge and discharge controller;
the charging efficiency is 15%-25% higher than that of ordinary ordinary solar controllers;
the MCU precisely controls the MOSFET switch to control the battery charge and discharge, effectively extending the battery life;




Rated charge current: 100A
12V battery system: open circuit voltage 48V (Voc) maximum.
PV input power: 1300W
24V battery system: Open circuit voltage 96V (Voc) maximum.
PV input power: 2600W
System nominal voltage: 12V/24VDC Auto identifying
Battery voltage range: 12V/24V
Max.
PV open circuit voltage: 96VDC
Power terminal: 8AWG

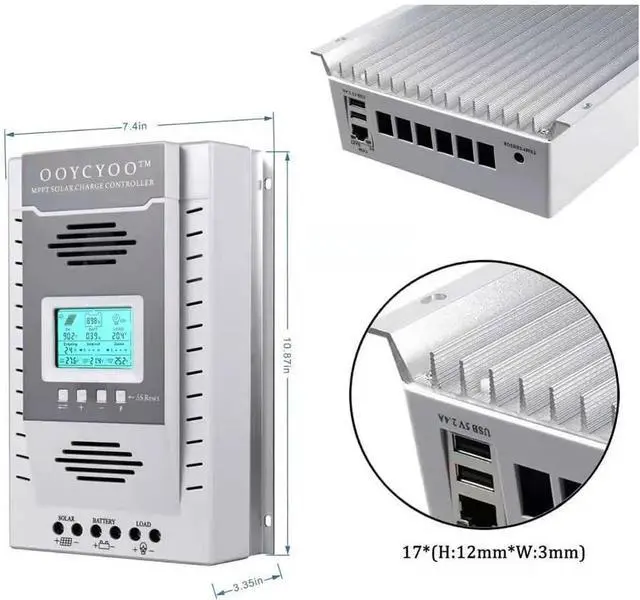

Dimensions: 11.8 * 7.87 * 3.95 (in)
Weight: 5.6 lb

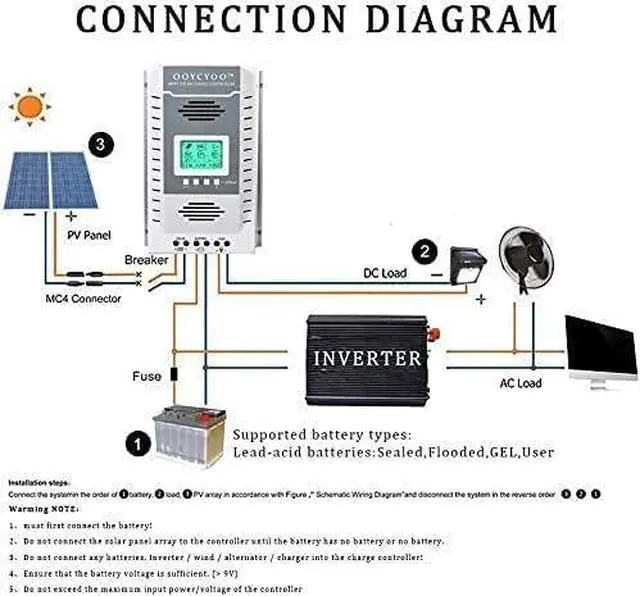

Battery must be connected first!
Never connect the solar panel array to the controller Without/Before a Battery.
Never connect any inverter/ wind/ Alternator/ Charger into the charge controller!
Ensure the battery voltage is enough. (>9V)
Never exceed the max input power/Voltage of your controller.

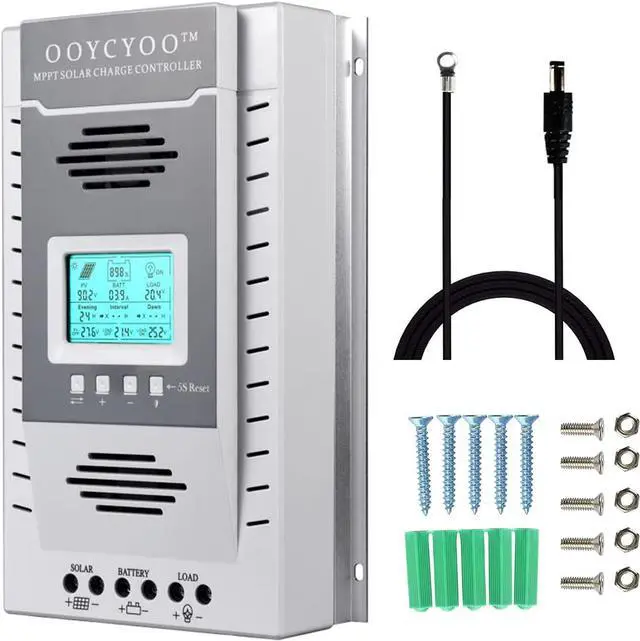

1 x 100A MPPT Solar Charge Controller K100A-new
1 x Temperature sensor
1 x User Manual (English)
1 x screw
The solar controller is a professional product. If you have any questions before installation, please email us; we will answer as soon as possible; the professional technical team will guide the installation; worry-free after-sales guarantee180-day worry-free warranty
- MPPT charge and discharge solar controller; 100Amp;
- Battery type: LiFePO4, lithium battery, agm battery, gel battery, lead acid battery is compatible with more battery charging;

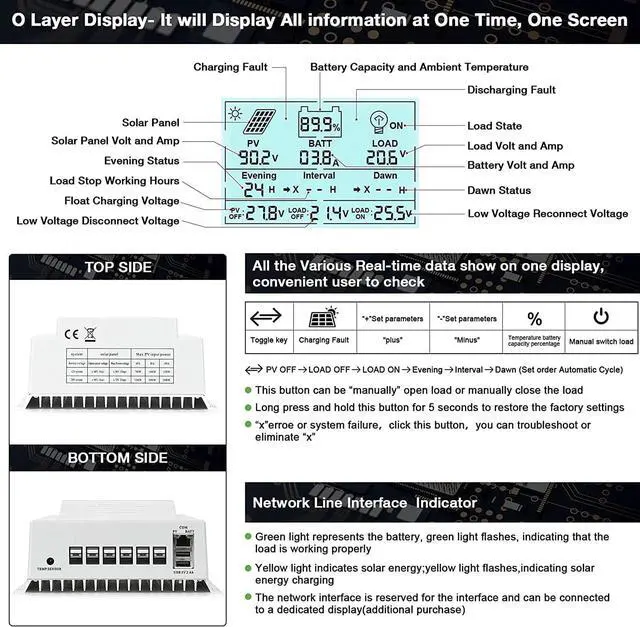

- LCD display (automatically switch to display more parameter information);
- Prevention: Overcharge, overdischarge, overload, overheat, reverse polarity, lightning strike and other protection functions;
- 12V system: PV Voc = 18v-96v; 24V system: PV Voc = 36v-96v; The solar controller is a professional product. If you have any questions before installation, please email us; we will answer as soon as possible; the professional technical team will guide the installation; worry-free after-sales guarant
