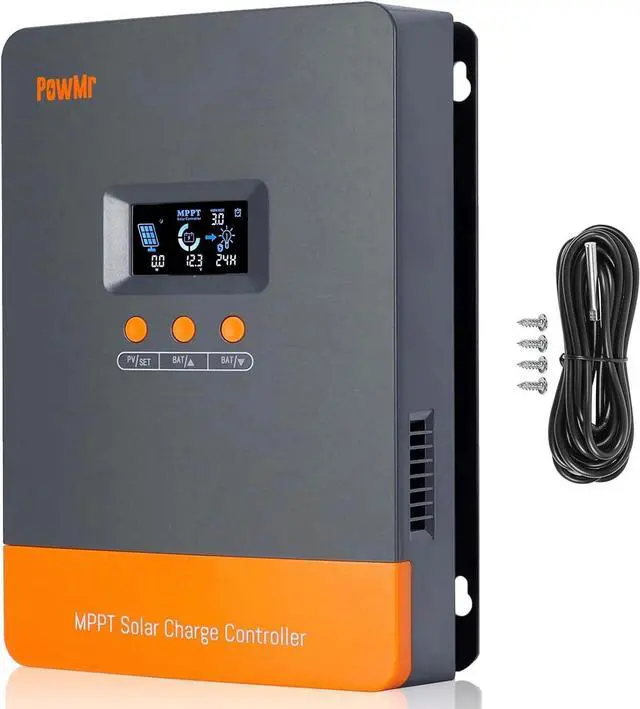

MPPT Solar Charge Controller 60A 12V/24V/36V/48V Auto, 60Amp Solar Regulator Charging Current Can be Set in Range of 2~60A, Support up to 12 Solar Controller in Parallel

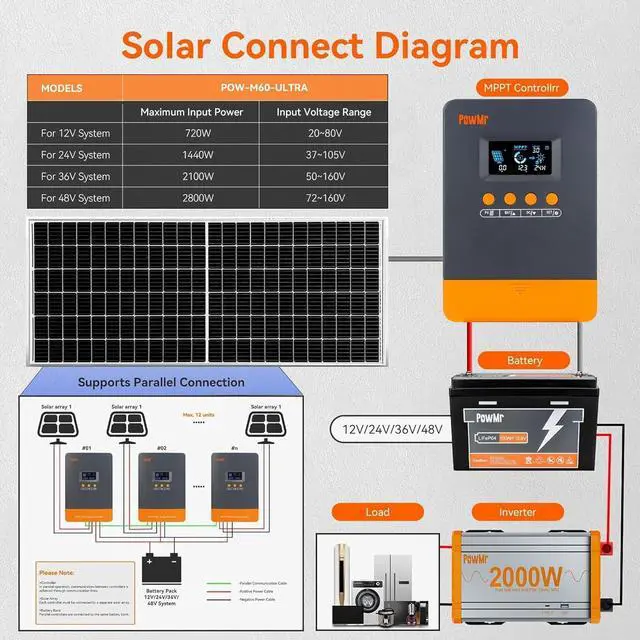

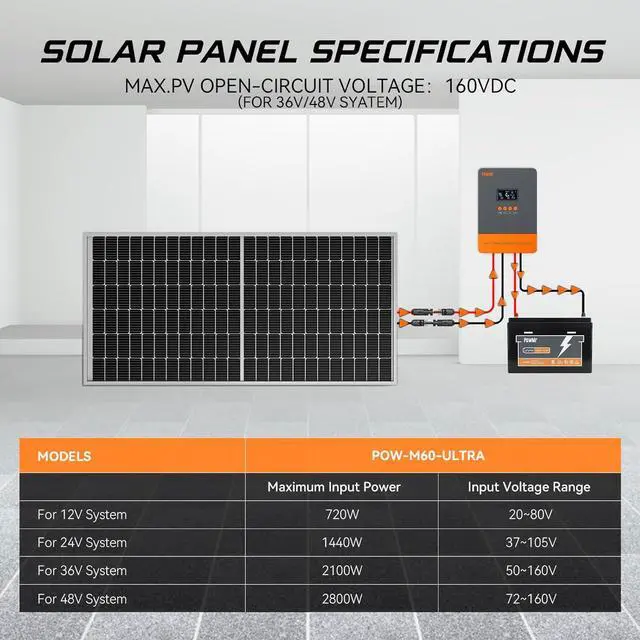

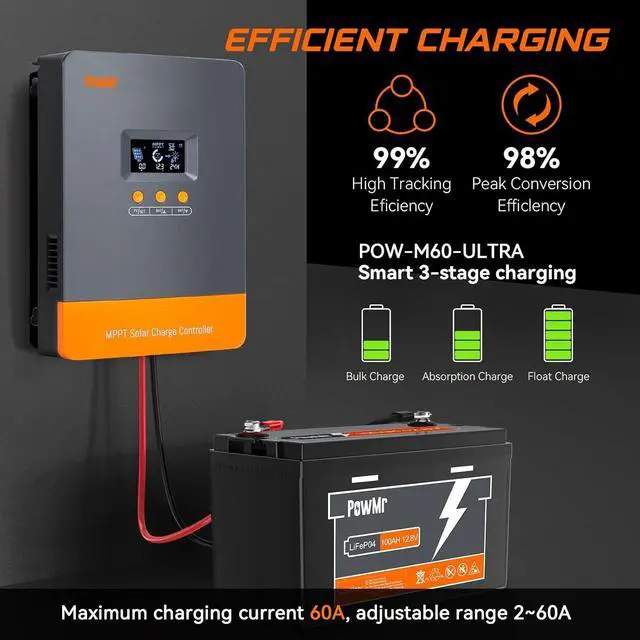

- Maximum 12 units in parallelThe maximum number of 60A mppt controllers that can be connected in parallel is 12 to increase the solar system's total capacity and improve its overall power output. This can better meet the needs of large solar systems while improving their reliability and stability. In addition, paralleling is also conducive to system maintenance and management, making the system operation more flexible and efficient.Customizable Charging Current LimitDifferent types of batteries have varying requirements for charging current. Customizing the charging current limit ensures the solar charge controller is compatible with multiple battery types. Rated Battery Charging Current: 60A, the configurable range for the charging current is 2 to 60A; Rated Load Output Current: 25A; When the battery is 12V system: Suggest the PV input power 720W, suggest pv input voltage range: DC20V~DC80V; 1440W 37~105V when in 24V; 2100W 50~160 when in 36V; 2800W 72-160V when in 48V
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

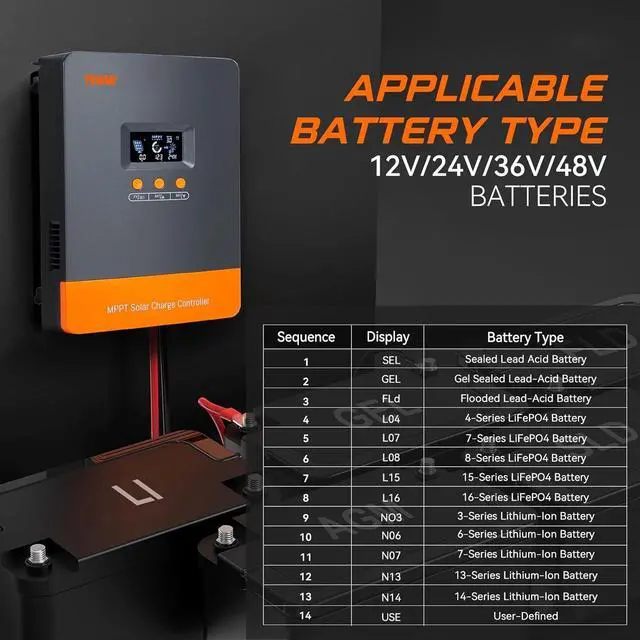

Dual Cooling, Efficient Heat DissipationThe 60amp mppt charge controller is constructed with die-cast aluminum, ensuring excellent heat dissipation and reduced power consumption. Additionally, it features a turbofan fan for efficient cooling (activates at temperatures >45°C and turns off <40°C). The upgraded turbofan fan cooling system is quieter and more effective, making it suitable for use in RVs, commercial vehicles, boats, yachts, and solar systems, and equipped with an external temperature probe configurationCompatible with Multiple Type BatteriesNegative grounding design solar controller safer, 60a charge controller compatible with a variety of 12/24/36/48V batteries(lead-acid and lithium, User customize); Sealed, Gel, Flooded and LI (LiFePO4 and Lithium-Ion) battery charging parameter pre-set, other battery can be customized charging parameter according to your need.
User-programmable Absorption Voltage / Float Voltage / Low Voltage Cutoff / Load TimerEnhanced Protection and Lithium Battery CompatibilityThe 60A solar controller provides comprehensive protection against various faults, including overcurrent, short circuit, reversed polarity, overvoltage, over-discharge, and over-temperature. It enhances precision in battery temperature monitoring through an external temperature probe configuration. The system is compatible with lithium batteries and adjusts charging cycles accordingly. It also activates lithium batteries with solar panel energy, with precautions to prevent overcharging, but please note that Do not charge lithium batteries when the temperature is below 0°C
User-programmable Absorption Voltage / Float Voltage / Low Voltage Cutoff / Load TimerEnhanced Protection and Lithium Battery CompatibilityThe 60A solar controller provides comprehensive protection against various faults, including overcurrent, short circuit, reversed polarity, overvoltage, over-discharge, and over-temperature. It enhances precision in battery temperature monitoring through an external temperature probe configuration. The system is compatible with lithium batteries and adjusts charging cycles accordingly. It also activates lithium batteries with solar panel energy, with precautions to prevent overcharging, but please note that Do not charge lithium batteries when the temperature is below 0°C
