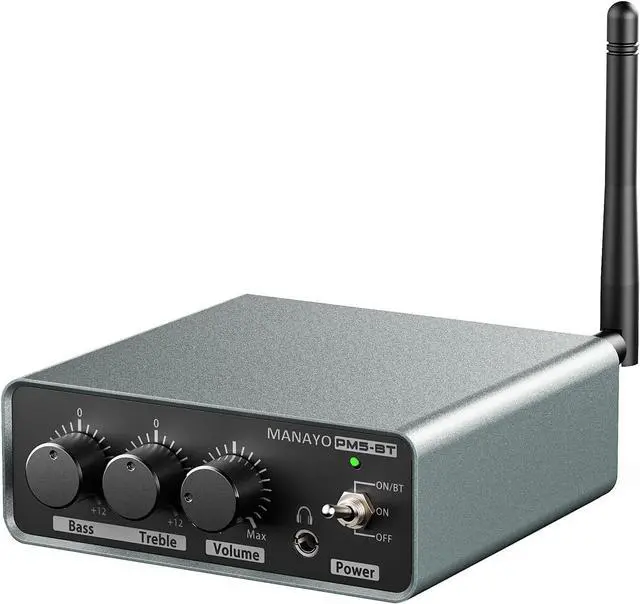

Bluetooth Phono Turntable Preamp, Phonograph Preamplifier with RCA Input, RCA/Bluetooth Output, Phono Preamp for Vinyl Record Player with Phono and Line Level Output Switch Audio Receiver
- Combination of simple design and practicalityRetro and simple switches and knobs, compact body and stylish gun gray color design, very suitable for use on desktop or bookshelf. This Bluetooth phono preamplifier does not have any tubes and other unnecessary complicated accessories, but can provide enough gain and better lossless sound quality for your MM turntables.

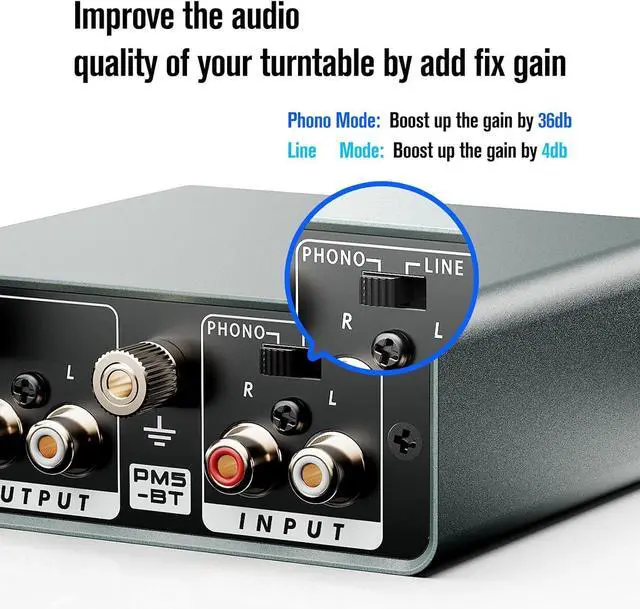

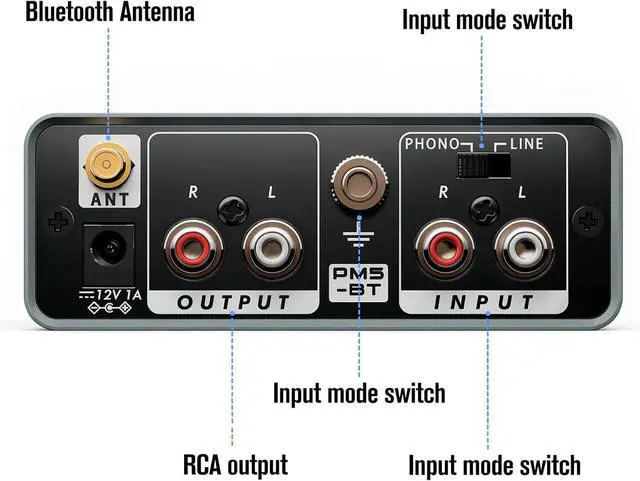

- Fixed Gain Design Reduces Operational ComplexityThis pream provides phono and line modes instead of complex ajustable gain functions. When your turntable is in phono mode, you only need to change the mode on the back of the preamp to phono, and it will provide your turntable with a fixed gain of 36db. Similarly, when your turntable is in line mode, you can select the corresponding line mode to provide a fixed gain of 4db. This design allows your turntable to maximize its potential, and all you need to do is adjust the appropriate volume through the volume knob.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Bluetooth 5.3 Version for Bluetooth transmissionThe phono preamp uses a high-version Bluetooth 5.3 chip, which can ensure long-term signal stability while maintaining lossless sound quality. Through the Bluetooth transmitter function, it can connect to your high-end Bluetooth speakers over a long distance without the constraints of complicated wires.

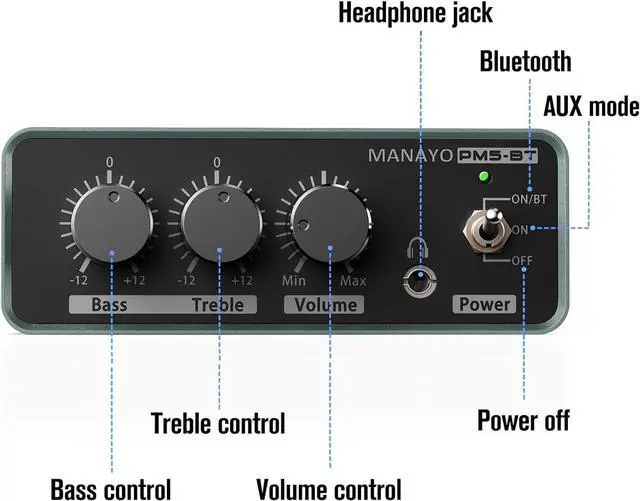

Bass and Treble DesignThe PM5BT is an upgrade of the PM5, adding adjustable bass and treble, through which you can choose the bass and treble that better suits you to meet your needs.
Cleaner Sound QualityAmazing 78db signal-to-noise ratio which meets stereo standards. A good preamp amplifies the signal but not the noiseBackground noise as quiet as a whisper makes your listening more comfortable and makes the music more cleaner.
Gain
Phono mode +36db, Line mode +4db
Power Adaptor Output
DC 12V 1A
Power Adaptor Input Voltage
AC 100-240V 50/60Hz
Input sensitivity
-24db
Output Voltage Level
6V
Load Impedance
Phono 2.7M Line30K
SNR
Phono -78db,
Line: -102db
THD
0.01 %
Frequency Response
20-20KHz
Product Dimensions
206*123*39mm
Product Weight
390g

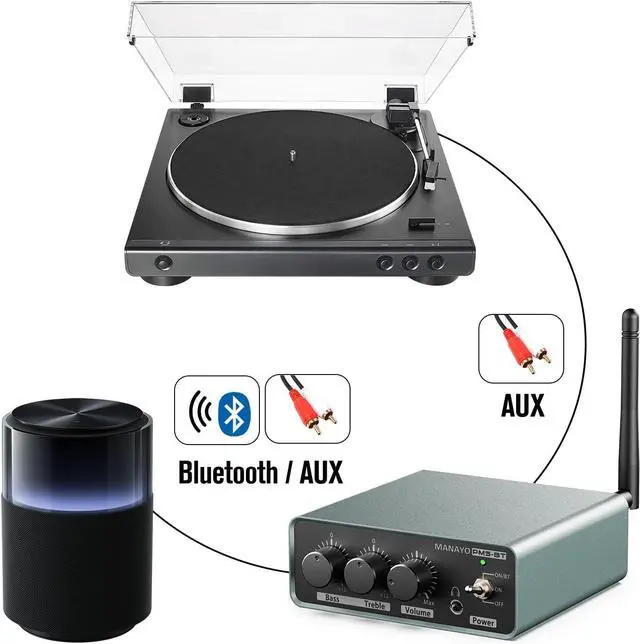

How to pair the PM5BT with the Bluetooth speaker for the first time? If you are pairing PM5BT with your Bluetooth speaker for the first time, please follow the steps below to ensure that you can quickly and correctly connect it to your
Bluetooth device:
Please connect the PM5BT to your turntable correctly and connect them to the power outlet firstly.
Turn on your speaker and switch it to Bluetooth mode to ensure that the speaker is on pairing.
Gently flip the PM5BT switch up twice to the "On/BT" position to turn on the power and the Bluetooth function at the same time. The indicator light flashes red and green indicating that it is on pairing.
Please wait patiently for a moment, the two devices will automatically pair successfully, and the PM5BT indicator light will turn green.
Note:
For the first pairing, please bring the two devices close together to ensure that the devices can be successfully paired. If you are using a RCA cable to connect the PM5BT with your speakers, just flip the switch up once to the "ON" position.
Bass and Treble DesignThe PM5BT is an upgrade of the PM5, adding adjustable bass and treble, through which you can choose the bass and treble that better suits you to meet your needs.
Cleaner Sound QualityAmazing 78db signal-to-noise ratio which meets stereo standards. A good preamp amplifies the signal but not the noiseBackground noise as quiet as a whisper makes your listening more comfortable and makes the music more cleaner.
Gain
Phono mode +36db, Line mode +4db
Power Adaptor Output
DC 12V 1A
Power Adaptor Input Voltage
AC 100-240V 50/60Hz
Input sensitivity
-24db
Output Voltage Level
6V
Load Impedance
Phono 2.7M Line30K
SNR
Phono -78db,
Line: -102db
THD
0.01 %
Frequency Response
20-20KHz
Product Dimensions
206*123*39mm
Product Weight
390g
How to pair the PM5BT with the Bluetooth speaker for the first time? If you are pairing PM5BT with your Bluetooth speaker for the first time, please follow the steps below to ensure that you can quickly and correctly connect it to your
Bluetooth device:
Please connect the PM5BT to your turntable correctly and connect them to the power outlet firstly.
Turn on your speaker and switch it to Bluetooth mode to ensure that the speaker is on pairing.
Gently flip the PM5BT switch up twice to the "On/BT" position to turn on the power and the Bluetooth function at the same time. The indicator light flashes red and green indicating that it is on pairing.
Please wait patiently for a moment, the two devices will automatically pair successfully, and the PM5BT indicator light will turn green.
Note:
For the first pairing, please bring the two devices close together to ensure that the devices can be successfully paired. If you are using a RCA cable to connect the PM5BT with your speakers, just flip the switch up once to the "ON" position.
