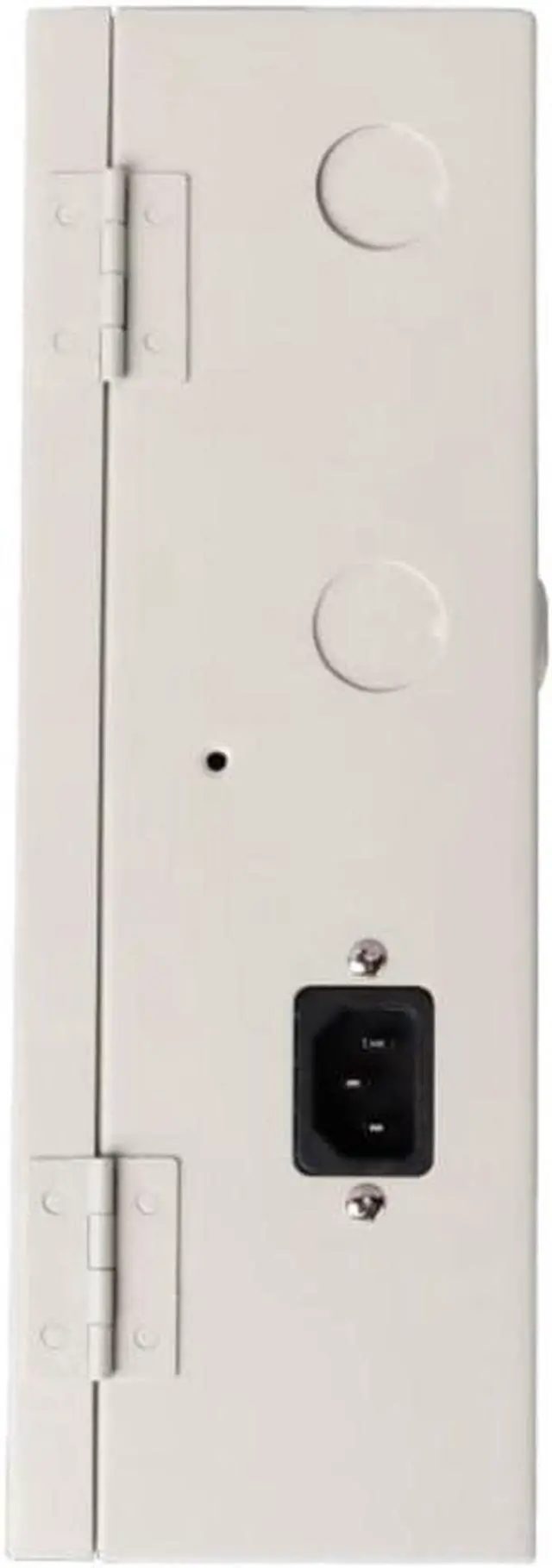

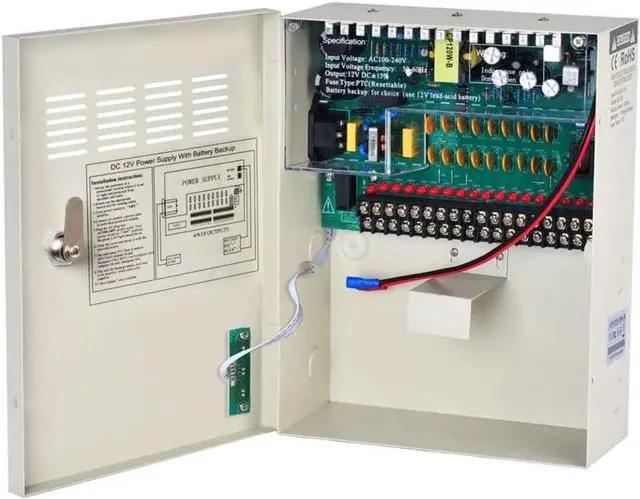

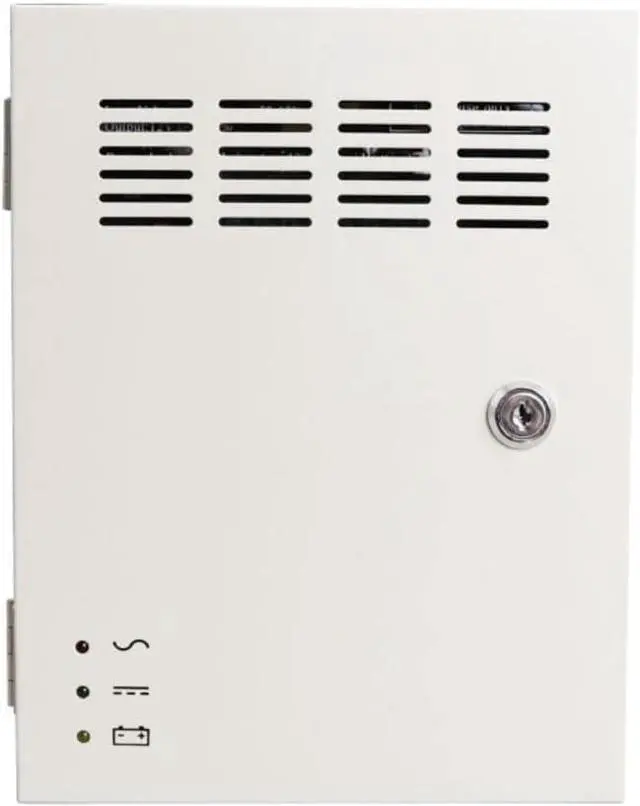

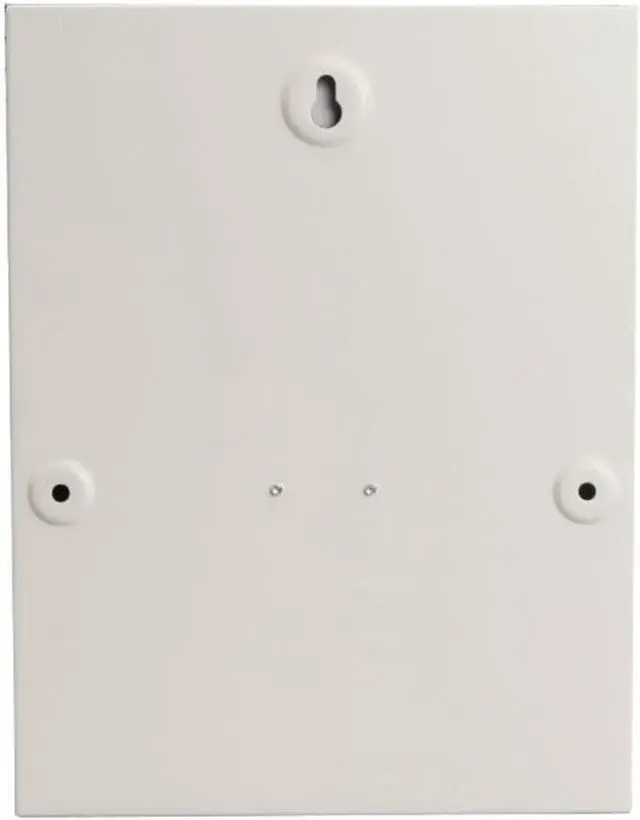

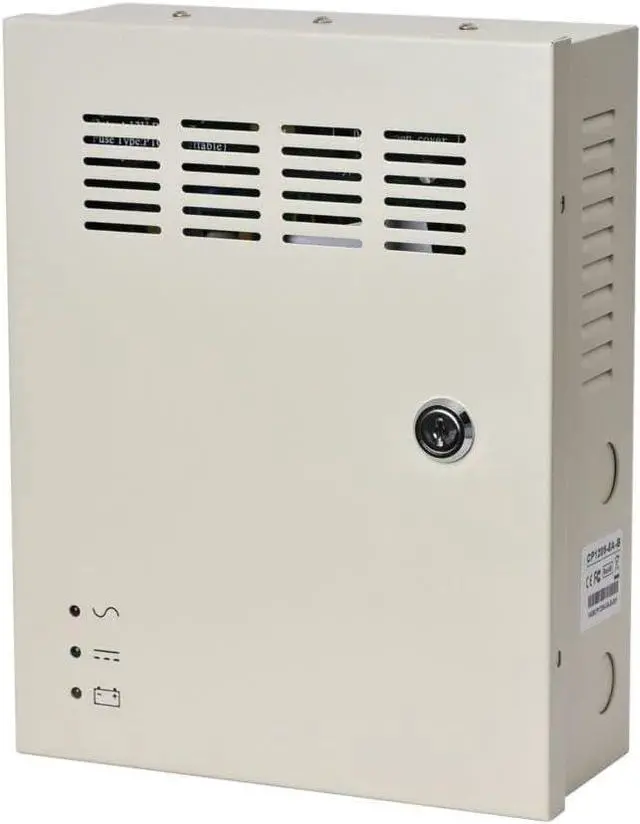

18 Channel 12V 10Amp DC Metal Boxed Cabinet Regulated UPS Power Supply Unit with Backup Battery Link for Burglar Alarms CCTV Cameras PTZ Access Control (Battery Not Included)

High voltage protection: When high voltage occurs, the surge protection will be hit through to protect the connected device;
Over Current protection: When over current occurs, the power supply will automatically switch to self-protection status, when it is removed, then it will return to normal state;



Features:
Uninterrupted Power Supply supports battery backup (Battery not included), Suitable for CCTV Camera, PTZ, IR Illuminators, Video Process, Access Control, etc.
Battery Backup: Use 12V Lead-acid battery (Not included)
General protection: each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working.
Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit, when condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.

Application CCTV Camera, PTZ, IR Illuminator, Video Processor Access Control, etc.
Packing Dimension 26.5 x 21.5 x 9.4CM
Net Weight 2.3K g


Specification:
Input Voltage AC 100-240V
Input Voltage Frequency 50/60Hz
Output Voltage DC 12V +/-5%
Total Output Current 10A
Total Outputs 18
Fuse Type PTC (Resetable)
Fuse Rating 1.1A
