for Raspberry Pi HQ Camera, 12MP IMX477 HQ Webcam with Audio, 6mm CS-Mount Lens, Metal Enclosure, Tripod and USB Cable
- An Extension Solution for raspberry pi hq camera: Break the application limit of IMX477 High Quality Camera, which can only connect the platform with CSI interface; UVC compliant makes it plug and play when working on the computer, laptop, and other OS devices with UVC.
- Ultra 4K Video Camera: This camera adopts a 1/2.3 12.3 Megapixel IMX477 sensor for sharp image, max. still resolution 4056(H) x 3040(V); Frame rates 10fps@12MP, 20fps@4K, 20fps@2K, 60fps@1080P; Dual microphones.

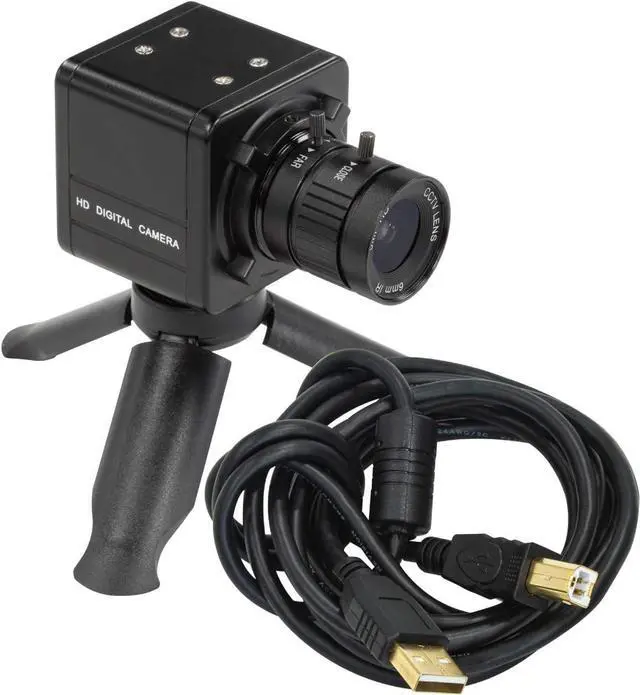

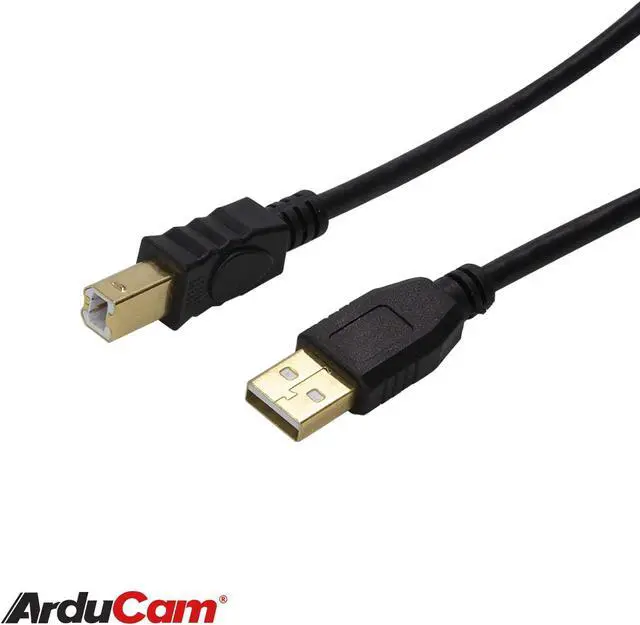

- No Hassle: The camera mounted in the customized industrial metal enclosure and assembled with a 6mm focal length CS lens, and comes with a 2ft USB2.0 cable and a mini tripod stand, no extra accessories needed.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Lens SPECS: 6mm focal length with manual focus and aperture ring, 65 degrees horizontal field of view (HFoV), 1/ 2.3 lens optical format, Max. F/ 1.2.
Applications: Highly recommended for monitoring Octoprint 3D Printer, video surveillance system, live streaming, record lesson and conference, and other vision applications demand high resolution and high frame rate.
6mm CS-Mount Lens
SPECS
Camera
Sensor: 1/ 2.3 IMX477
Resolution: 4032 (H) x 3040 (V) 12.3MP
Data Format: MJPG
Frame Rate: 10fps@4032x3040; 20fps@3840x2160; 30fps@2592x1944/2560x1440; 60fps@1080P
Lens
Field of View (FOV): 65°
Lens Mount: CS
Focal Length: 6mm
Back Focal Length: 7.53 mm
MOD: 0.2 m
Functionality and Compatibility
Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
System Compatibility: Windows, Linux, Mac, and Android with UVC
Power
Power Supply: USB powered 5V
Working Current: MAX 200mA
Physical
Operating Temp.: -4°F~158°F (-20°C~+70°C).
Dimension: 50mmx50mmx85mm
Cable Length: default 6.56 ft (2M)
Applications: Highly recommended for monitoring Octoprint 3D Printer, video surveillance system, live streaming, record lesson and conference, and other vision applications demand high resolution and high frame rate.
6mm CS-Mount Lens
SPECS
Camera
Sensor: 1/ 2.3 IMX477
Resolution: 4032 (H) x 3040 (V) 12.3MP
Data Format: MJPG
Frame Rate: 10fps@4032x3040; 20fps@3840x2160; 30fps@2592x1944/2560x1440; 60fps@1080P
Lens
Field of View (FOV): 65°
Lens Mount: CS
Focal Length: 6mm
Back Focal Length: 7.53 mm
MOD: 0.2 m
Functionality and Compatibility
Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
System Compatibility: Windows, Linux, Mac, and Android with UVC
Power
Power Supply: USB powered 5V
Working Current: MAX 200mA
Physical
Operating Temp.: -4°F~158°F (-20°C~+70°C).
Dimension: 50mmx50mmx85mm
Cable Length: default 6.56 ft (2M)
