8K KVM Switch 3 Monitors 3 Computers HDMI + DisplayPort, USB 3.0 DP KVM Switcher, 8K@30Hz/4k@144Hz Triple Monitor DP KVM for 3 PC Share 3 Display and 4 USB 3.0 Devices

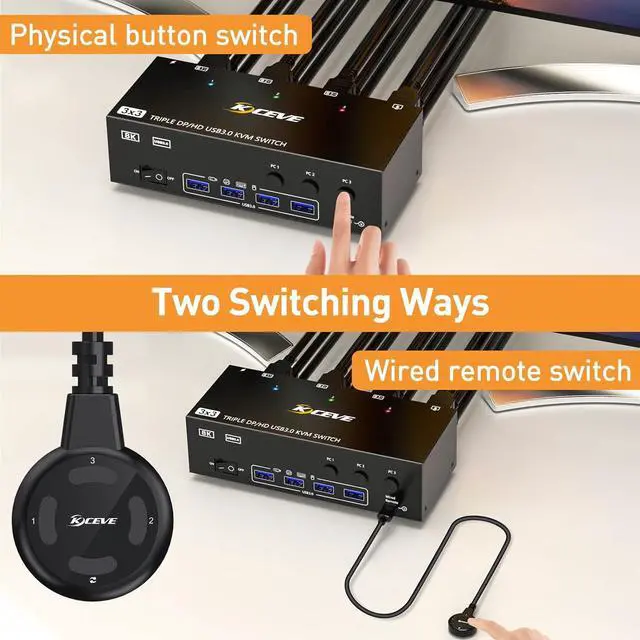

Triple monitors kvm switch support 2 switching modes, you can press the button on the panel or use the wired remote to select the computers. LED light indicates which computer is running.
DP HDMI KVM switch 3 monitors support many kinds of input devices, such as PC, Laptop, Apple TV, PS3/PS4, Xbox. This displayport HDMI KVM switch is widely applied for office, multimedia teaching, meeting room, etc.

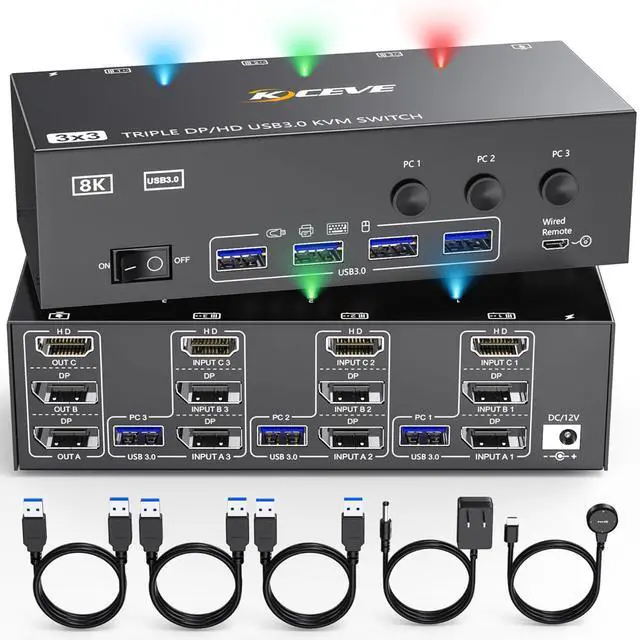

3 Monitor USB 3.0 HDMI+2 Displayport KVM Switch3 Computers Share 3 Monitors and 4 USB 3.0 Devices

This 2 Displayport+HDMI triple monitor KVM switch is perfect for 3 computers or laptops to share 3 monitors and 4 USB 3.0 devices (keyboard, mouse, printer, scanner and other USB devices.

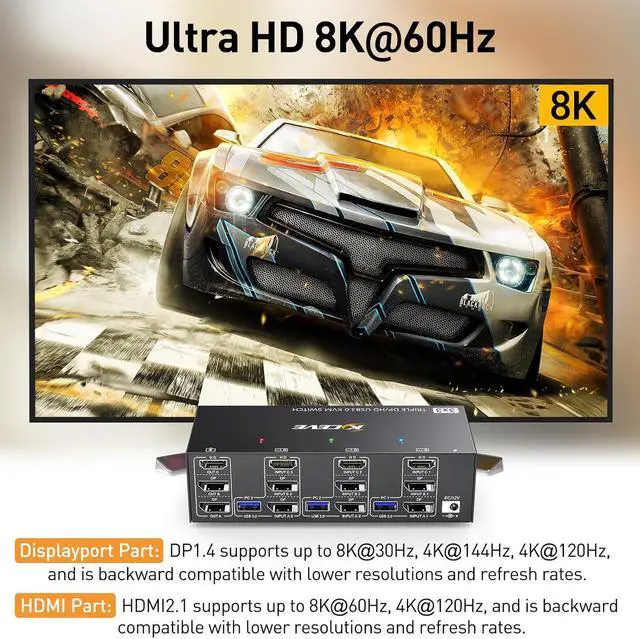

Ultra HD 8K@60HZ/4K@144Hz Visual Experience

This 3 in 3 out KVM switch output max resolution up to 8K@60Hz/4K@144Hz, each details can be displayed without any latency.
Displayport 1.4 support max resolution up to 8K@30Hz/4K@144Hz and backward compatible.
HDMI 2.1 supports max 8K@60Hz/4K@60Hz and down compatible with lower resolution.
Note: HDMI part does not support 4k@144Hz or 4K@120Hz

Important Note: The final resolution is subject to your graphics card, cables, monitors and adapters.

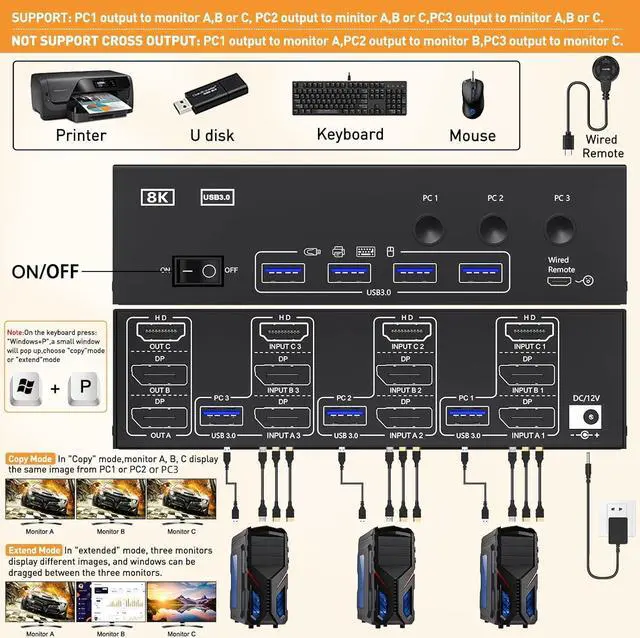

For input, each computers needs 2 DP + 1 HDMI connection, for output needs 2 DP monitors + 1 HDMI monitorTo make 3 monitors working, each computer will need 1 HDMI cable + 2 DP cables + 1 USB cable connect the KVM switch. Please buy good HDMI and DP cable yourself, if HDMI cable and DP cable is not good enough, the screen will flicker or unstable.

Step 1: Connect 1 HDMI cable + 2 DP cables + 1 USB cable to PC 1 and KVM switch (INPUT A1, INPUT B1, INPUT C1, USB 3.0 ).
Step 2. Connect 1 HDMI cable + 2 DP cables + 1 USB cable to PC 2 and KVM switch (INPUT A2, INPUT B2, INPUT C2, USB 3.0 ).
Step 3. Connect 1 HDMI cable + 2 DP cables + 1 USB cable to PC 3 and KVM switch (INPUT A2, INPUT B2, INPUT C2, USB 3.0 ).
Step 4. Connect 1 HDMI cable and 2 DP cables to the KVM switch (OUT A, OUT B, OUT C) and three monitors.

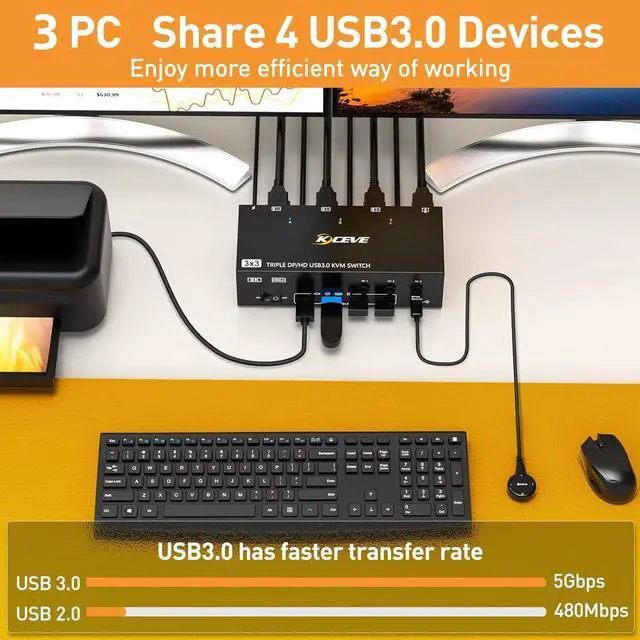

Step 5: Connect your USB device (keyboard and mouse) to the USB 3.0 port on the KVM switch. You can connect up to 4 USB 3.0 devices at the same time. Compatible with USB 2.0 / 1.1 devices.
Step 6. Connect the wired remote control

Note: Please connect the 12V DC power adapter to provide sufficient power. Using a shorter 8K HDMI + DP cable can make the KVM switch more stable.


Support 2 display modesIn COPY mode, 2 output monitors will output same image from PC1 or PC2.
In EXTEND mode, the working window from main screen can be dragged to seond output monitor. You can have the mouse across between 2 monitors.


3 LED light indicatorBlue light shows PC1 working
Green light shows PC2 working
Red light shows PC3 working
