Switch Multiport Extender - Use with Pi KVM V4 Plus, Pi KVM V3, V2, and Pi KVM V1
- A competitive & cost-effective solution A single Pi KVM can manage up to five chained switch units, enabling control of multiple targets while minimizing costs and maintenance efforts.
- Requires one supported and configured . List of supported s: V4 Plus, V3, V2, or V1 DIY models. (NOT compatible with Pi KVM V4 Mini)
- Switch functionality integrated into the interface Use the popular interface, now expanded to support the number of targets available through the connected switches.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Rapid switching With an advanced HDMI dummy plug function, you can switch between target computers significantly faster than competing solutions!
Automatic firmware updates with OS - Once Pi KVM is updated, the main switch update will simply deploy to its neighbors for version uniformity and improved stability. Video inputs feature dedicated EDID configuration and complete control over the connection state of each port.
Ready to use Includes a power supply, ATX adapters for power and AUX control, brackets, and all the cables needed to get started!

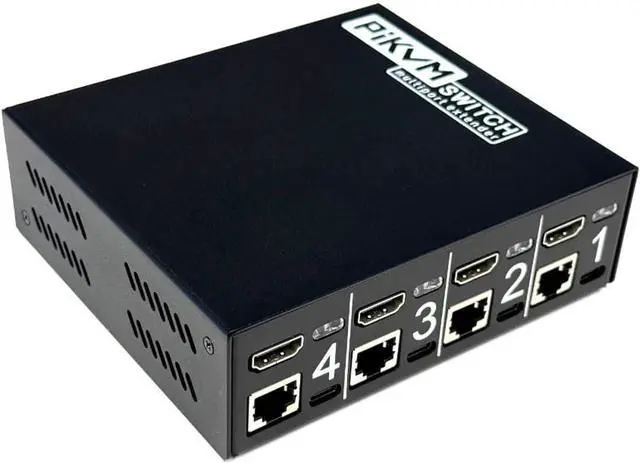

The team is excited to present its new Switch Multiport Extender - the most full-featured switch for devices. The Switch Multiport Extender enables one device to view and control multiple computer targets connected to each port from a web UI. Up to five Switch Multiport Extenders can be daisy-chained to provide 20 ports, allowing a single to control and manage one of 20 connected targets. ATX statuses and controls are available for all connected targets simultaneously. The Switch Multiport Extender is fully plug-and-play. It is compatible with models V4 Plus, V3, V2, and V1.
It is NOT compatible with V4 Mini.
Important Note: V4 Mini is NOT compatible due to the lack of available USB host ports. The Switch Multiport Extender MUST be operated via the interface, as the unit has no built-in controls. Features A competitive & cost-effective solution A single can manage up to five chained switch units, enabling control of multiple targets while minimizing costs and maintenance efforts. Each Switch Multiport Extender unit can control 4 targets. Switch functionality integrated into the interface Use the popular interface, now expanded to support the number of targets available through the connected switches. Operational insights with multifunctional status LEDs Monitor detected targets, selected ports, and the switch's overall status in real time. Rapid switching With an advanced HDMI dummy plug function, you can switch between target computers significantly faster than competing solutions! Automatic firmware updates with OS - Once is updated, the main switch update will simply deploy to its neighbors for version uniformity and improved stability. Video inputs feature dedicated EDID configuration and complete control over the connection state of each port. Ready to use Includes a power supply, ATX adapters for power and AUX control, brackets, and all the cables needed to get started!
Power Input: 12V, 0.5A DC, 5.5 x 2.1 mm (Power supply is included) -
Peak power consumption: Up to 6W ( 0.5A /12V) - Built-in watchdog circuitry

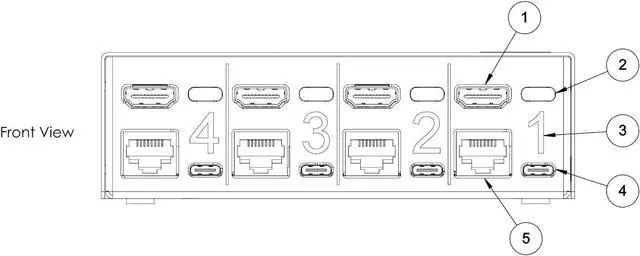

Connectivity/Interfaces: - 4x
HDMI input ports: Video source from the target computer - 4x USB-C 2.0
OTG: Keyboard and mouse emulation for the target computer - 4x
ATX RJ-45: Special port for target power control or AUX -

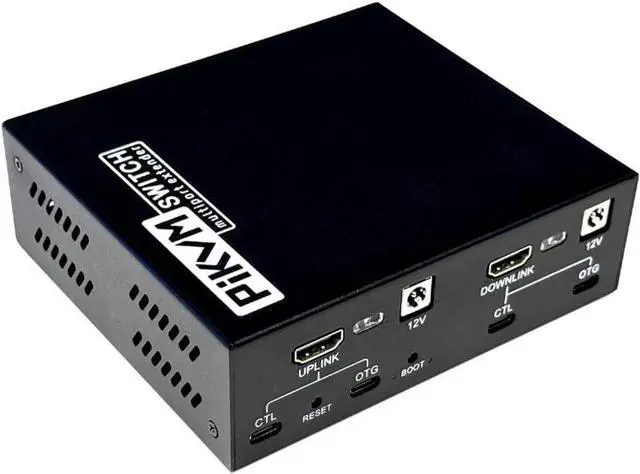

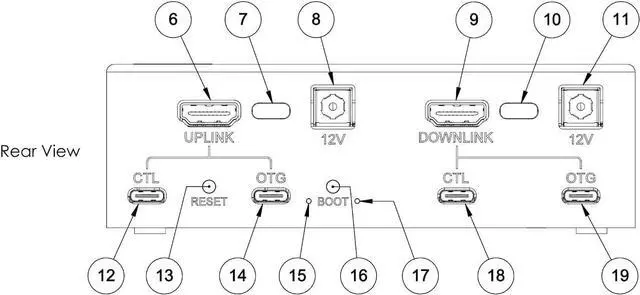

HDMI uplink/downlink: HDMI signal to unit or to daisy-chain multiple units - USB-C female
CTL: Switch management from - USB-C female
OTG: External device emulation/mass storage from
Video/Audio: -
Supported resolutions: up to 1920x1200@60Hz -
Audio capture mode: HDMI audio capture support
Environmental: -
Operating temperature range: 0°C to 50°C -
Storage temperature range: -20°C to 60°C
Dimensions: 121 x 137 x 44mm
Weight: 0.6 kg
Automatic firmware updates with OS - Once Pi KVM is updated, the main switch update will simply deploy to its neighbors for version uniformity and improved stability. Video inputs feature dedicated EDID configuration and complete control over the connection state of each port.
Ready to use Includes a power supply, ATX adapters for power and AUX control, brackets, and all the cables needed to get started!
The team is excited to present its new Switch Multiport Extender - the most full-featured switch for devices. The Switch Multiport Extender enables one device to view and control multiple computer targets connected to each port from a web UI. Up to five Switch Multiport Extenders can be daisy-chained to provide 20 ports, allowing a single to control and manage one of 20 connected targets. ATX statuses and controls are available for all connected targets simultaneously. The Switch Multiport Extender is fully plug-and-play. It is compatible with models V4 Plus, V3, V2, and V1.
It is NOT compatible with V4 Mini.
Important Note: V4 Mini is NOT compatible due to the lack of available USB host ports. The Switch Multiport Extender MUST be operated via the interface, as the unit has no built-in controls. Features A competitive & cost-effective solution A single can manage up to five chained switch units, enabling control of multiple targets while minimizing costs and maintenance efforts. Each Switch Multiport Extender unit can control 4 targets. Switch functionality integrated into the interface Use the popular interface, now expanded to support the number of targets available through the connected switches. Operational insights with multifunctional status LEDs Monitor detected targets, selected ports, and the switch's overall status in real time. Rapid switching With an advanced HDMI dummy plug function, you can switch between target computers significantly faster than competing solutions! Automatic firmware updates with OS - Once is updated, the main switch update will simply deploy to its neighbors for version uniformity and improved stability. Video inputs feature dedicated EDID configuration and complete control over the connection state of each port. Ready to use Includes a power supply, ATX adapters for power and AUX control, brackets, and all the cables needed to get started!
Specifications
Power: -Power Input: 12V, 0.5A DC, 5.5 x 2.1 mm (Power supply is included) -
Peak power consumption: Up to 6W ( 0.5A /12V) - Built-in watchdog circuitry
Connectivity/Interfaces: - 4x
HDMI input ports: Video source from the target computer - 4x USB-C 2.0
OTG: Keyboard and mouse emulation for the target computer - 4x
ATX RJ-45: Special port for target power control or AUX -
HDMI uplink/downlink: HDMI signal to unit or to daisy-chain multiple units - USB-C female
CTL: Switch management from - USB-C female
OTG: External device emulation/mass storage from
Video/Audio: -
Supported resolutions: up to 1920x1200@60Hz -
Audio capture mode: HDMI audio capture support
Environmental: -
Operating temperature range: 0°C to 50°C -
Storage temperature range: -20°C to 60°C
Dimensions: 121 x 137 x 44mm
Weight: 0.6 kg
