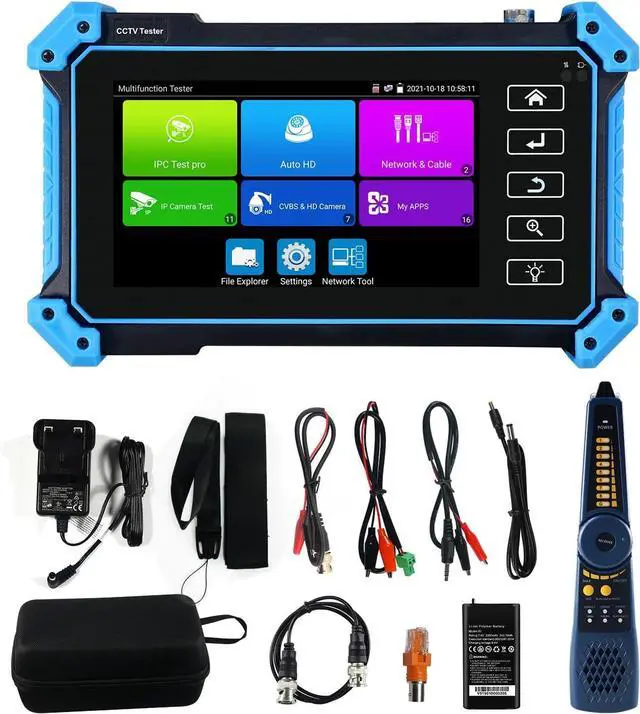

IP Camera Tester with PoE, CCTV Camera Tester CVI TVI AHD Analog 4K IP Camera Tester 5.4inch Touchscreen Cable Tracer RJ45 Cable TDR Tester RS485 HDMI in VGA in (IPC-5100C Plus)

[ Multifunctional Camera Tester ] 1 channel HDMI input, support 4K 30FPS; 1 channel VGA input. Support 48V PoE power output, max power 30W. Built-in 7.4V Li-ion battery, 3350mAh. DC12V/3A power output, supply temporarily power for the camera.
Network tools: Ping, IP scan, Port Flash, DHCP server, Trace Route. Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
[ Cable Tracer Cable Test ] Digital Cable tracer can search BNC cable, network cable and telephone cable from the mess of cables. Support test UTP cable connection status and display on the screen. RJ45 cable
TDR testing: test cable pair status, length, attenuation, reflectivity, impedance, skew
[ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours



Max 4K 12MP IP camera test
Support max 4K IP camera test, support IP Discovery/Quick OVIF/IPC test /RTSP play /Client APK. Rapid Video, auto view the video, create testing report. HIK/DH camera test tool, support modify HIK/DH camera's user name, password, IP parameters, etc.
CVBS
1 channel BNC input, NTSC/PAL (Auto adapt). PTZ control, Support RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as for PELCO-D/P, for Samsung, for Panasonic etc.

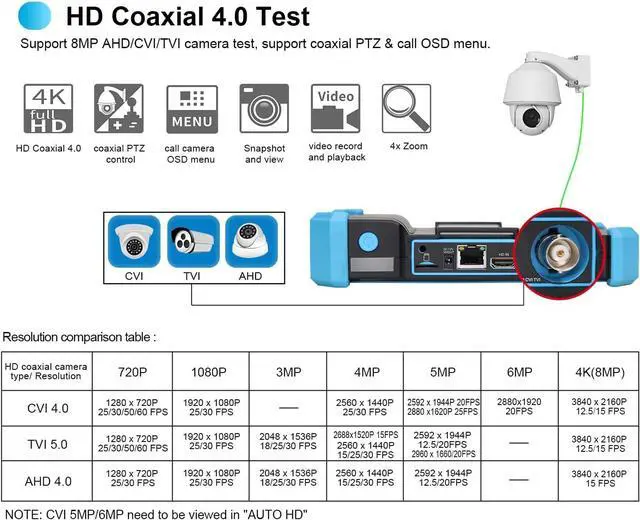

HD coaxial test
( Only TVI 5.0 support coaxial audio test) Support 8MP TVI/CVI/AHD camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu. Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu.

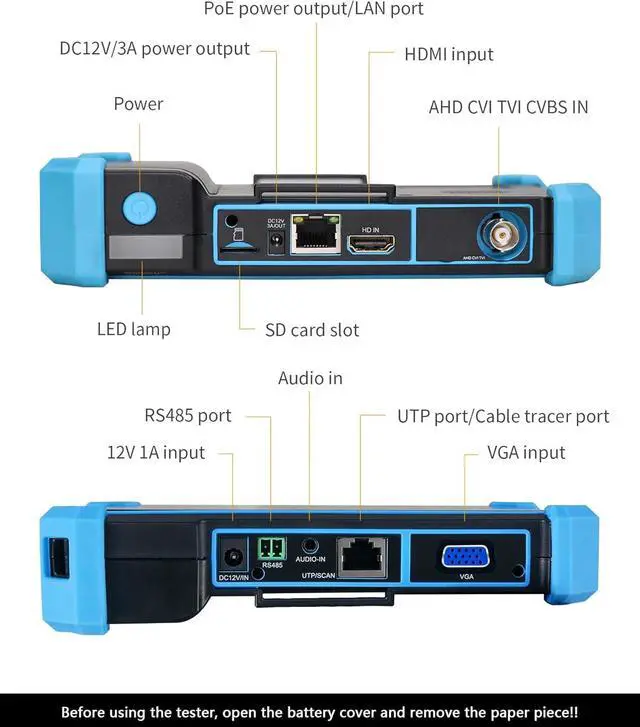

HDMI input & VGA input
Support 1 channel HDMI input, support 4K 30FPS. Support 1 channel VGA input, support 1920 x 1200P 60FPS.
PoE/Power input/Power output
PoE power output, 48V PoE power output, max power 25.5W. DC12V/1A power input. DC12V/3A power out, supply temporarily power for the camera.
Power management
Display DC 12V input & output voltage and power in real time.
Cable test
Cable Tracer: Searching for BNC cable, network cable and telephone cable from cluttered cables, also can search shield cables.

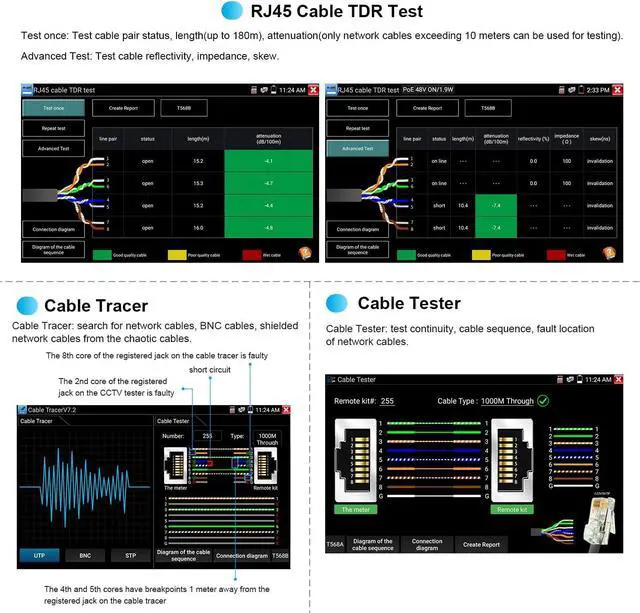

RJ45 Cable TDR Test: it can test cable pair status, length, attenuation, reflectivity, impedance, skew.
UTP Cable Tester: test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug.
Data monitor
Captures and analyzes the command data from controlling device, also can send hexadecimal.
Battery/Screen/CPU RAM EMMC
Built-in 7.4V Lithium-ion battery, 3350mAh, 27.79W h. 5.4 inches IPS touch screen. 1.2GH z 4-core CPU, 1GB RAM, 8GB FLASH (EMMC).
Wi-Fi
Built in WIFI, speeds 150M, display wireless camera image, support create WI-FI hotspot.
Audio test
1 channel audio signal input, test whether sound normal.
Network test tools
Trace route, Link monitor, DHCP server, port flashing, Ping test, IP scan
TesterPlay
Screen projection: tester, mobile phone and PC display at the same time (only for android version mobile phone)
Operation language
OSD menu language: English, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish Portuguese, Czech etc
Common tools
Built-in flashlight, calculator, audio recorder, audio player, vedio player, and other common tools.
Multiple Preview
Multi-preview APP supports synchronized preview of multiple cameras, playback of the camera 2 to 3 frames per second, up to 32 simultaneous preview.
