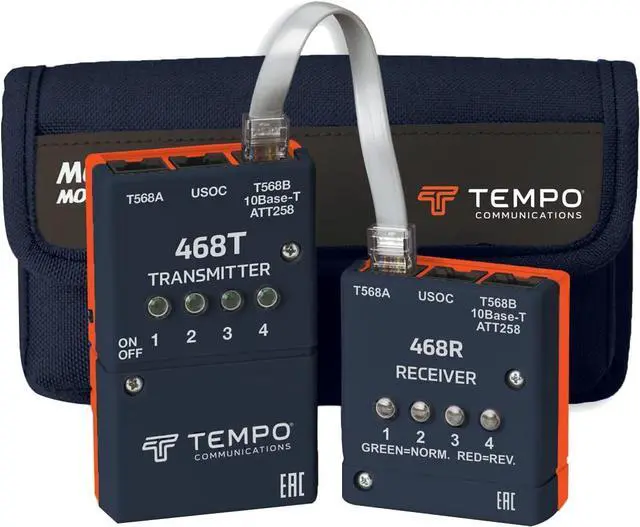

Communications 468 Wiremap Tester | LAN Network Cable Tester | Check Wiring Integrity of LAN, Telephone Patch Cords, Structured Cabling
- TEST T568A, T568B (AT&T 258A/10 Base T), and USOC wiring. Connect 8-pin mod plug to transmitter and receiver.
- IDENTIFY open, short, reversed, and transposed pairs. Send tone to identify cable at remote locations.
- TONE FREQUENCY: 850 and 950 Hz alternating nominal. Tone output: 9V p-p open circuit
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
VOLTAGE PROTECTION: Transmitter, 52 VDC 90V p-p (up to 10 minutes); Receiver, 52 VDC momentary.
POWER: One 9V battery, nominal life 2000 hrs (no load). Battery operated, 9V not included
From the Manufacturer
Quickly identifies opens, shorts, reversals and transposed pairs. Economical tester includes all the basic functions. Connecting the receiver unit automatically activates the test process. Sequencing red and green LEDs provide fast, accurate and simple-to-understand results. Alerts the technician if connected to an active circuit without harming the unit. Connect any eight-position modular plug to the appropriate jack on the transmitter and a sweeping tone signal is applied to all pairs. At the far end of the cable, use any inductive amplifier (probe) to locate the corresponding plug or jack. Battery operated, 9V not included.
POWER: One 9V battery, nominal life 2000 hrs (no load). Battery operated, 9V not included
From the Manufacturer
Quickly identifies opens, shorts, reversals and transposed pairs. Economical tester includes all the basic functions. Connecting the receiver unit automatically activates the test process. Sequencing red and green LEDs provide fast, accurate and simple-to-understand results. Alerts the technician if connected to an active circuit without harming the unit. Connect any eight-position modular plug to the appropriate jack on the transmitter and a sweeping tone signal is applied to all pairs. At the far end of the cable, use any inductive amplifier (probe) to locate the corresponding plug or jack. Battery operated, 9V not included.
