New Upgraded OTDR Optical Fiber Tester, Fiber Network Tester Support Event Map Optical Power Meter OLS(Loss Test) VFL LS(Light Source) Length Ping POE Test, IP Scan RJ45 Network Tools

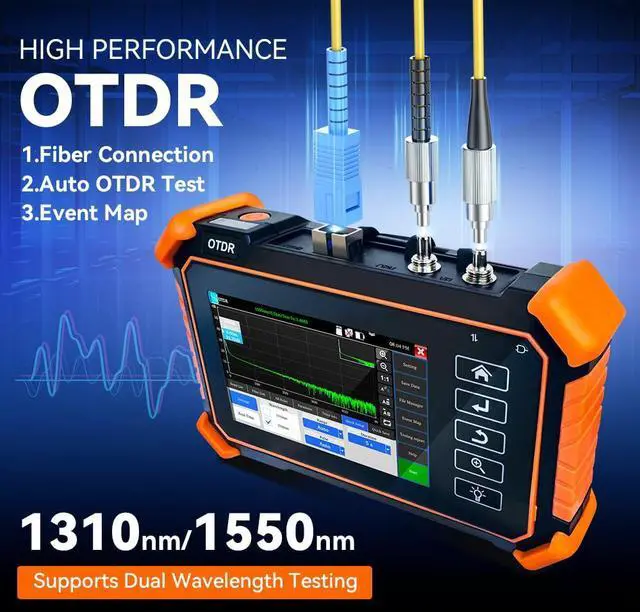

- OTDR Fiber Optic Tester OTDR test: wavelength 1310nm/1550nm, dynamic range 26dB/24dB. Quick Setup mode: quickly set wavelength, distance range, pulse width and measurement duration; Parameters Set mode: professional technicians can set the wavelength, distance range, pulse width, measurement mode, IOR, non-reflection threshold, end threshold and other parameters before testing, which will get more accurate curve results

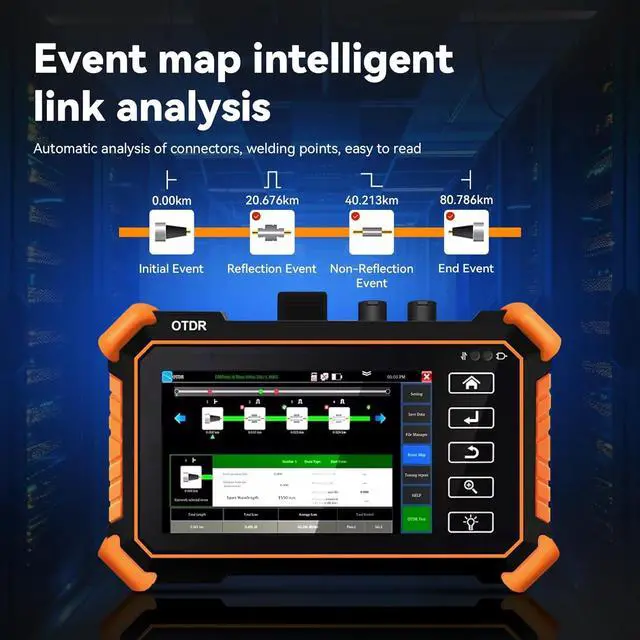

- Event Map & Data StorageFiber optic tools can visualize road problems and faults at a glance. Information such as the length of the fibre optic link, type of connector, fusion point or break point is presented in a graphical form that is easier to understand. Save and view the testing curves, support zoom and move curves, view details. (Event Blind Zone <1.6 m, Attenuation Blind Zone<8 m.) OTDR tester support create testing report, including curve trajectory graphs, parameter settings, fiber event information, and fiber link information.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
RJ45 Cable Tester & TDR Cable Length TestRJ45 CABLE Test: it can test cable pair status(open, cross, straight through, or shortcuirt); UTP Cable Tester can measure special shielded network cable (UTP/STP), support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug;
Cable Length Test: Measure the breakpoint position of (open circuit status) BNC cables, RJ45 network cables, RJ11 cables, test length max 3000 meters.
Network Test: IP address scan, PING test, LLDP, PPPOE, FTP file management, etc

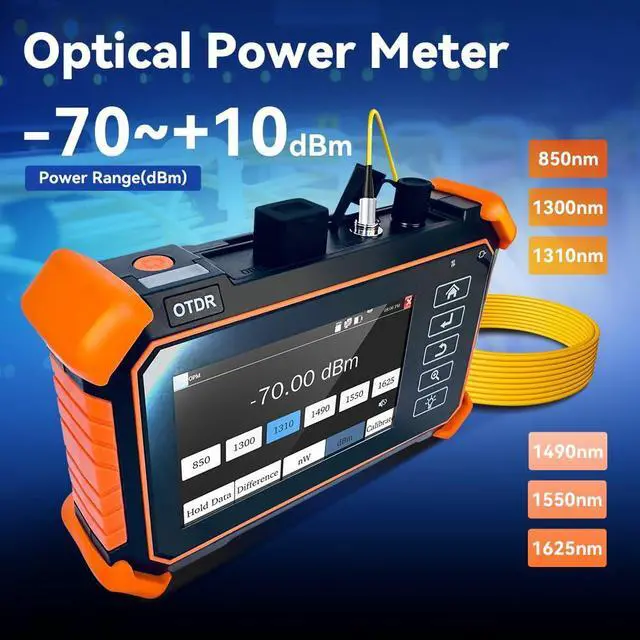

OPM VFL LS OLSNF-983 1550nm 24dB combines necessary fiber optic testing in one handheld device. OPM (Optical
Power Meter: Calibrated Wavelength 850/1300/1310/1490/1550/1625nm); VFL (Visual

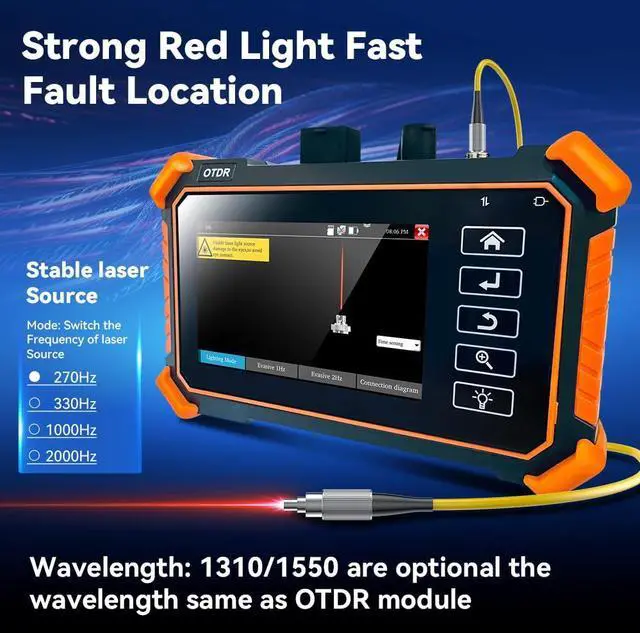

Fault Locator: 650nm wavelength, max test range 8 KM); LS (Light
Source: mode CW/270 Hz/330 Hz/1 kHz/2 kHz);

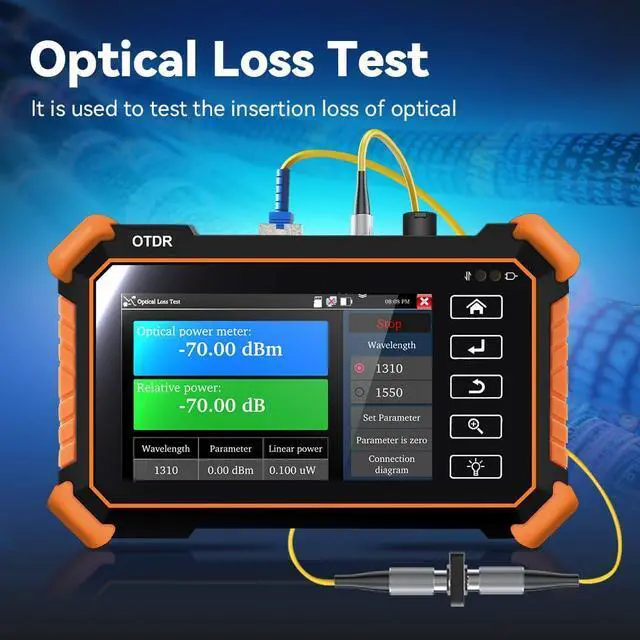

OLS(Optical Loss Test: It is used to test the insertion loss of optical passive devices)

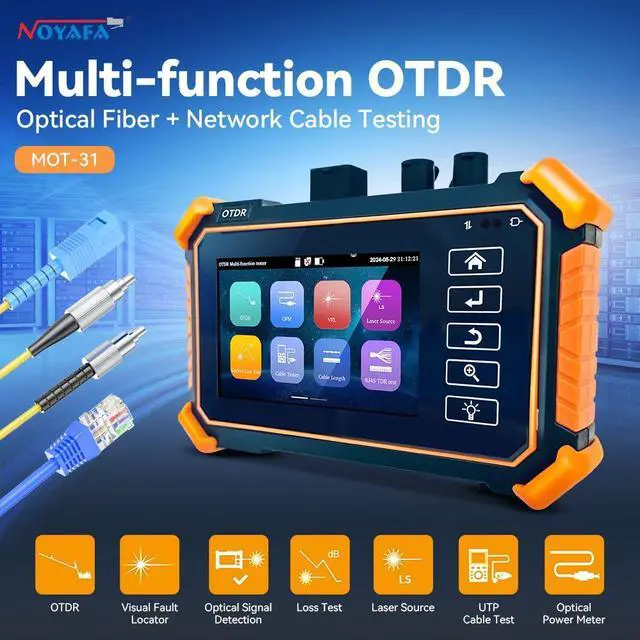

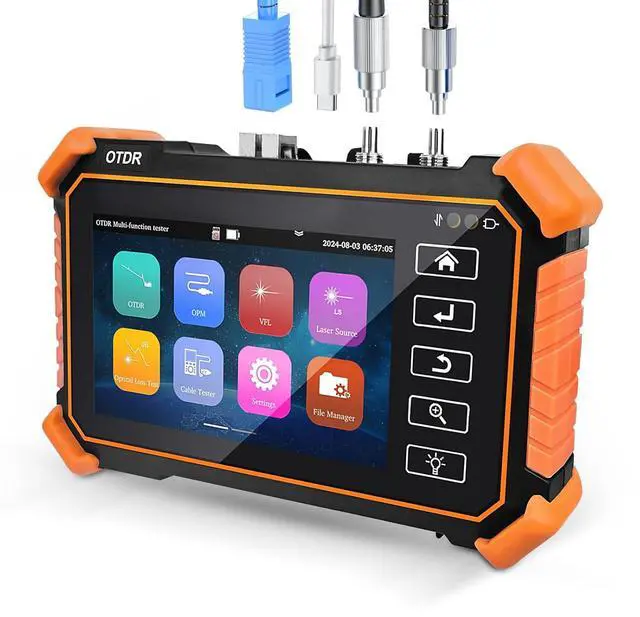

4 inches Intelligent and Multi-functional Fiber Optic Testercontaining expert OTDR, automatic OTDR, event map, 10G split-wave power meter, general optical power, end state verification, multi-core test, intelligent line diagnosis (optional), loss test, RJ45 line length/line sequence/seeking line, red light, stable light source, illumination. Touch screen and button double design, simple operation, friendly interface, is the optical cable construction installation, engineering acceptance and on-site repair of the right hand.
Battery and Quality AssuranceFiber light meter equipped with a new high-performance chip, smooth operation and accurate measurement. Built-in high-capacity 3.7V lithium polymer battery, 4000mAh, 14.8W h, with stable current and long-lasting battery life, which can guarantee your safety (standby time > 20 hours, measurement time > 12 hours). Fiber optic tester also adopts the mainstream type-c charging interface in the market, which can meet your different power supply needs. If you have any questions, please feel free to contact us.
1
Ultra-long battery life
2
Product parameters
3
TDR Length Test
Cable Length Test: Measure the breakpoint position of (open circuit status) BNC cables, RJ45 network cables, RJ11 cables, test length max 3000 meters.
Network Test: IP address scan, PING test, LLDP, PPPOE, FTP file management, etc
OPM VFL LS OLSNF-983 1550nm 24dB combines necessary fiber optic testing in one handheld device. OPM (Optical
Power Meter: Calibrated Wavelength 850/1300/1310/1490/1550/1625nm); VFL (Visual
Fault Locator: 650nm wavelength, max test range 8 KM); LS (Light
Source: mode CW/270 Hz/330 Hz/1 kHz/2 kHz);
OLS(Optical Loss Test: It is used to test the insertion loss of optical passive devices)
4 inches Intelligent and Multi-functional Fiber Optic Testercontaining expert OTDR, automatic OTDR, event map, 10G split-wave power meter, general optical power, end state verification, multi-core test, intelligent line diagnosis (optional), loss test, RJ45 line length/line sequence/seeking line, red light, stable light source, illumination. Touch screen and button double design, simple operation, friendly interface, is the optical cable construction installation, engineering acceptance and on-site repair of the right hand.
Battery and Quality AssuranceFiber light meter equipped with a new high-performance chip, smooth operation and accurate measurement. Built-in high-capacity 3.7V lithium polymer battery, 4000mAh, 14.8W h, with stable current and long-lasting battery life, which can guarantee your safety (standby time > 20 hours, measurement time > 12 hours). Fiber optic tester also adopts the mainstream type-c charging interface in the market, which can meet your different power supply needs. If you have any questions, please feel free to contact us.
1
Ultra-long battery life
2
Product parameters
3
TDR Length Test
