CCTV Tester Monitor Auto HD Coaxial Camera Tester 4K 8MP TVI/CVI/AHD/CVBS Analog Video Monitor 4.3 inch TFT-LCD Screen PTZ Control RS485 Call OSD Menu Audio DC12V Power Output

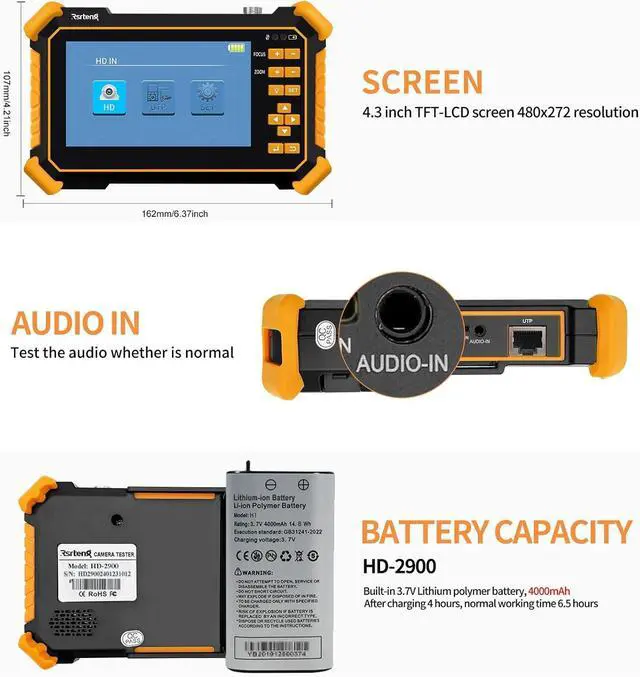

Audio input 4.3 inch TFT-LCD screen, 480* 272 resolution. 1 channel audio input, test the audio input from pickup devices. 5V/2A power input. LED light can work in dark environments.

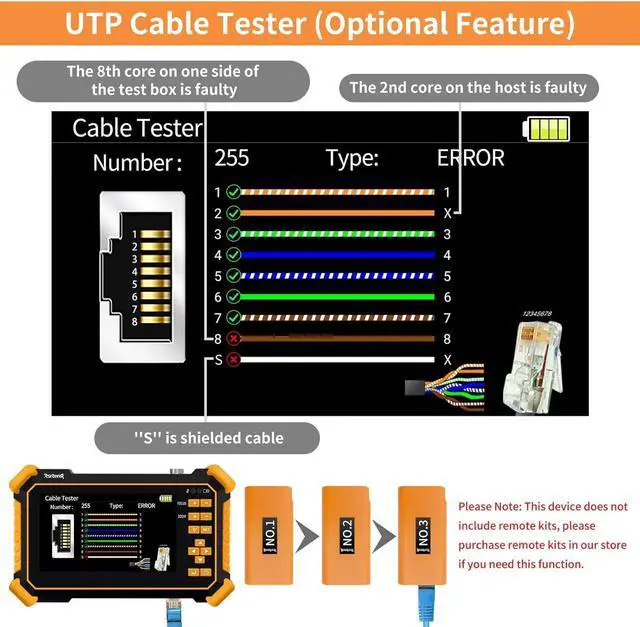

Friendly SeviceRJ45 cable tester is an optional feature, built-in Cable Tester app, cable tester remote kits are not included. If you need this feature, please purchase remote kites.
ASIN: B0D6W293S9, B0BN5N4XBG, B0BN5M9XVT, B0CWGWRDLY. OTDR Tester Dimension/Net weight 6.3 x 4.2 x 1.6 inch/ 0.88 lbs. We offer 24h technical support and 1 year warranty.

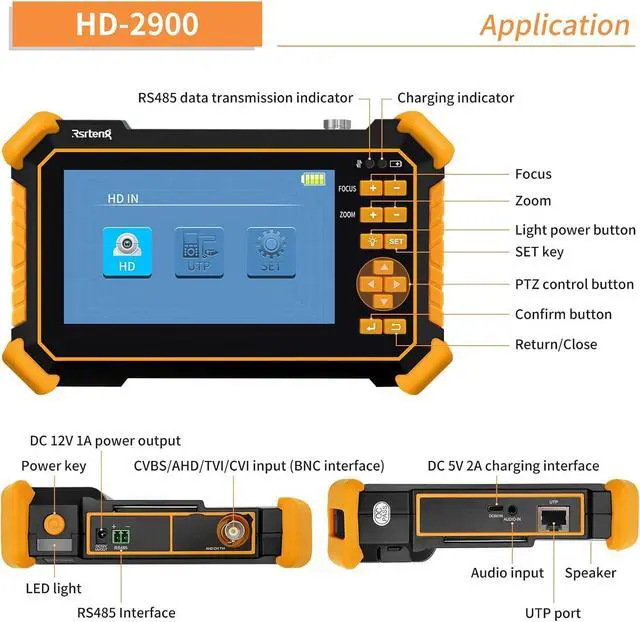

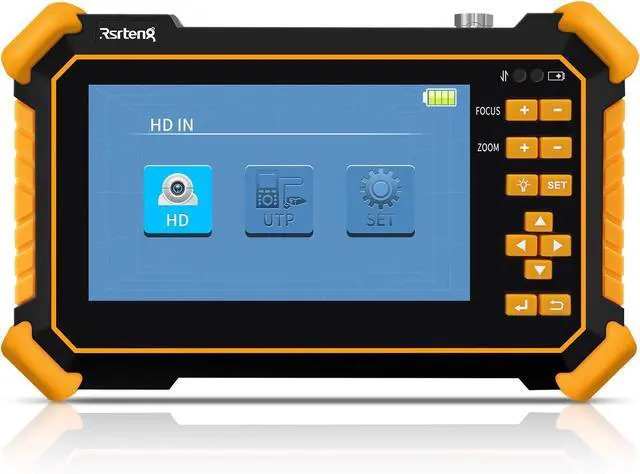

Auto HD TVI/CVI/AHD/CVBS Coaxial Camera TesterMini 4.3 inch TFT-LCD screen HD CCTV tester is designed for maintenance and installation of HD coaxial cameras. Easy to carry.
CCTV system installation and maintenance
TVI CVI AHD CVBS camera testing
UTC control Call OSD memu
PTZ controller RS485 control

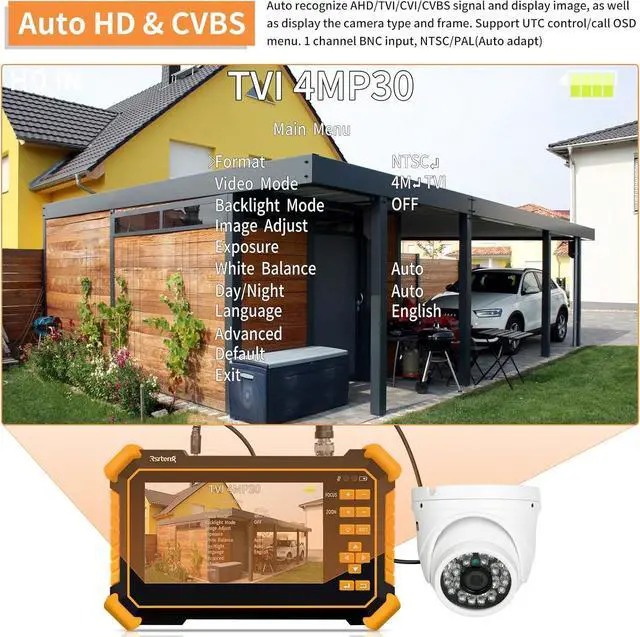

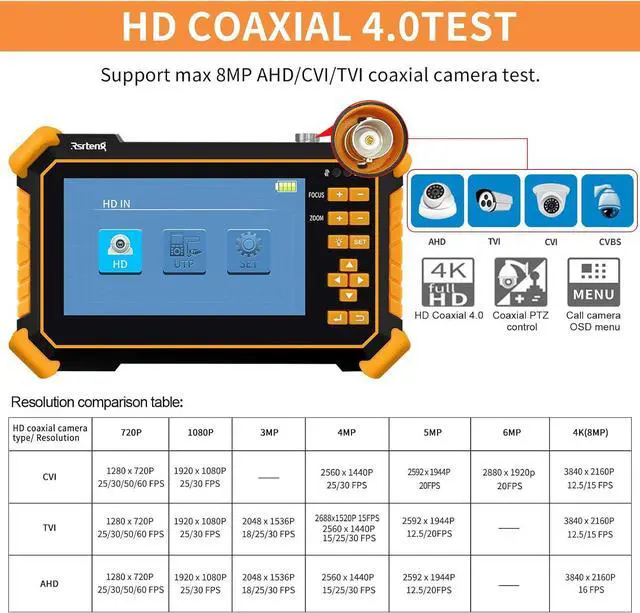

Auto recognize HD coax camera type and resolution. HD code stream coaxial monitoring support max 8MP TVI/AHD/CVI/camera test, 3840 x 2160P, support UTC control and call OSD menu. Press "zoom+" button to call OSD memu.
CVI coaxial camera test:

· 720P 1280 x 720P 25/30/50/60 FPS, · 1080P 1920 x 1080P 25/30 FPS, · 4MP 2560 x 1440P 25/30 FPS, · 5MP 2592x 1944P 20FPS, · 6MP 2880 x 1920P 20FPS, ·4K (8MP) 3840 x2160P 12.5 /15 FPS
TVI coaxial camera test:

· 720P 1280 x 720P 25/30/50/60 FPS, · 1080P 1920 x 1080P 25/30 FPS, · 3MP 2048 x 1536P 18/25/30 FPS, · 4MP 2688x1520P 15FPS2560 x 1440P 15/25/30 FPS, · 5MP 2592x 1944P 12.5 /20FPS, · 4K (8MP) 3840 x2160P 12.5 /15 FPS
AHD coaxial camera test:

· 720P 1280 x 720P 25/30/50/60 FPS, · 1080P 1920 x 1080P 25/30 FPS, · 3MP 2048 x 1536P 18/25/30 FPS, · 4MP 2560 x 1440P 15/25/30 FPS, · 5MP 2592x 1944P 12.5 /20FPS, ·4K (8MP) 3840 x2160P 15 FPS
CVBS analog camera test:

1 channel BNC input, NTSC/PAL (Auto adapt).
Support UTC control and call OSD menu. Press "zoom+" button to call OSD memu. Press and hold the menu button.

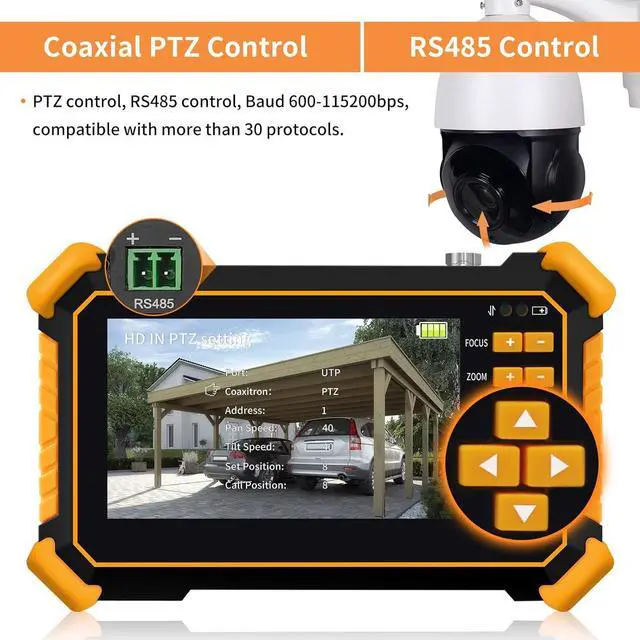

Support RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. Can set PTZ pan speed and tilt speed, can set preset position.
In the Auto HD/CVBS IN interface, press SET, can set RS485 protocol, port, baud, address, PTZ, etc.

Flashlight/Audio InputThe flashlight function of the tester can provide lighting for you in a dark working environment.
1 channel audio signal input, test whether sound normal.
Coaxial CCTV Monitor Parameters
