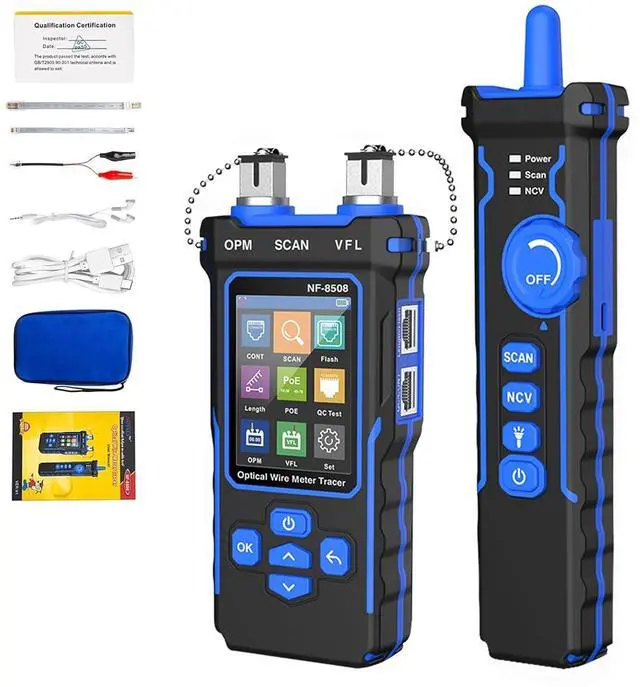

NF8508 Network Cable Tester with Optical Power Meter, Multifunctional Rechargeable Network Tool VFL, RJ11 RJ45/PoE Tester/CAT5 CAT6/NCV/10mw Visual Fault Locator/Length Measurement,Phone line Tracer

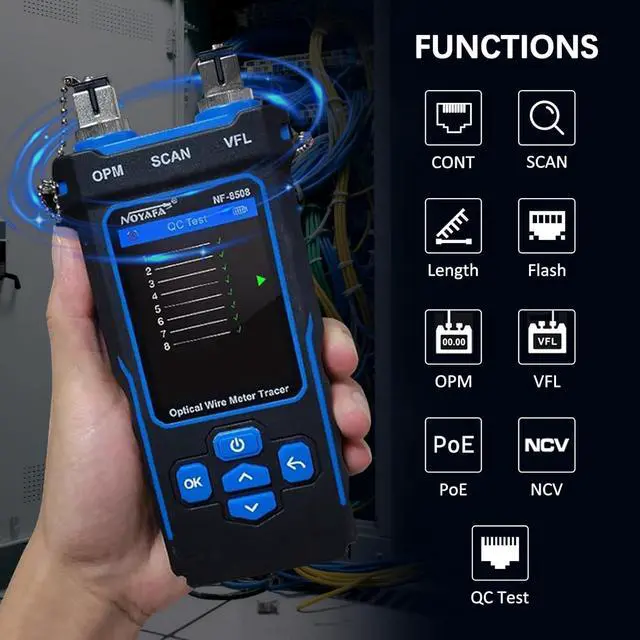

- 9 IN 1 NETWORK CABLE TESTER: NF8508 offers continuity testing, cable scan, port flash, length measurement, POE Test, QC testing, optical power meter, VFL function, and NVC function. Without complicated device configurations, you can efficiently perform a wide variety of connection tests with just a single press of a button.
- POE TEST: The NF8508 network cable tester has a POE power test function that detects power polarity, voltage, and power supply status of POE network switches. It can automatically switch to support 10M/100M/1000M modes. Additionally, the tester features an 8-core automatic identification of middle span/end span/power, as well as standard and non-standard equipment.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

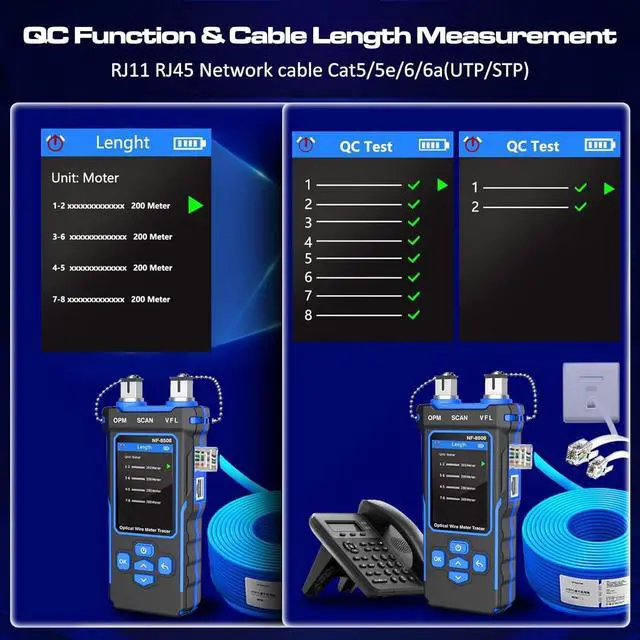

PORT FLASHING AND CABLE LENGTH TEST: The Port flash feature helps users quickly locate network cables and ports by flashing the indicator light, displaying port operating speed, duplex mode, and negotiation settings. The cable length test can accurately measure the range of 200 meters for network cables, telephone lines, and BNC cables.

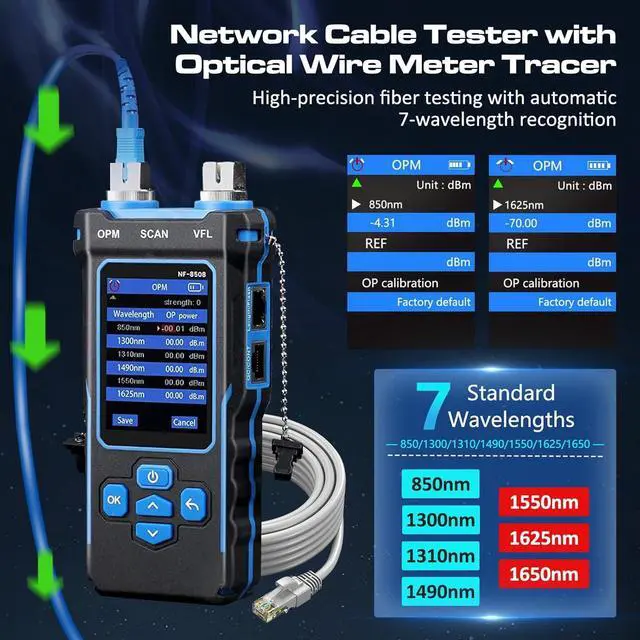

OPTICAL POWER METER TEST: The optical power meter test is capable of measuring 7 standard wavelengths (850/1300/1310/1490/1550/1625/1650) and has a power detection range of -70 to +10 dBm. This allows users to efficiently measure the signal strength of optical fibers and ensure the healthy operation of optical fiber links.

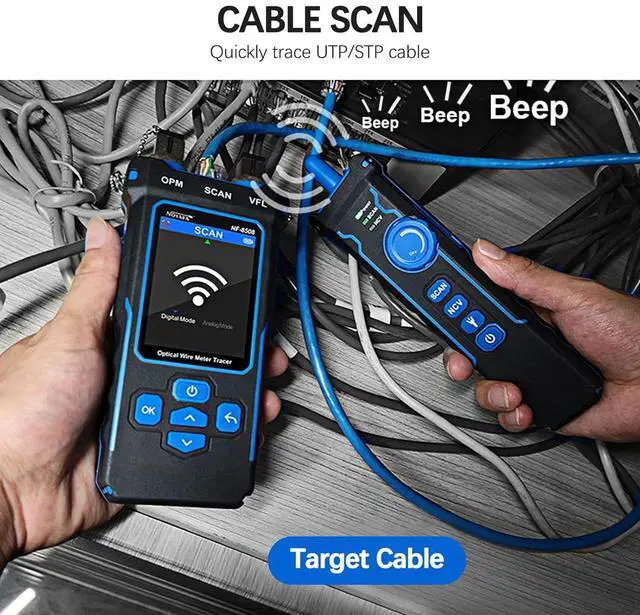

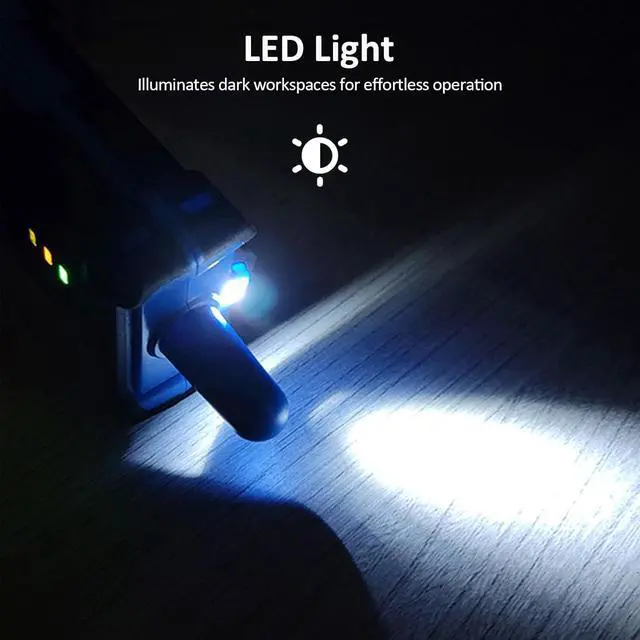

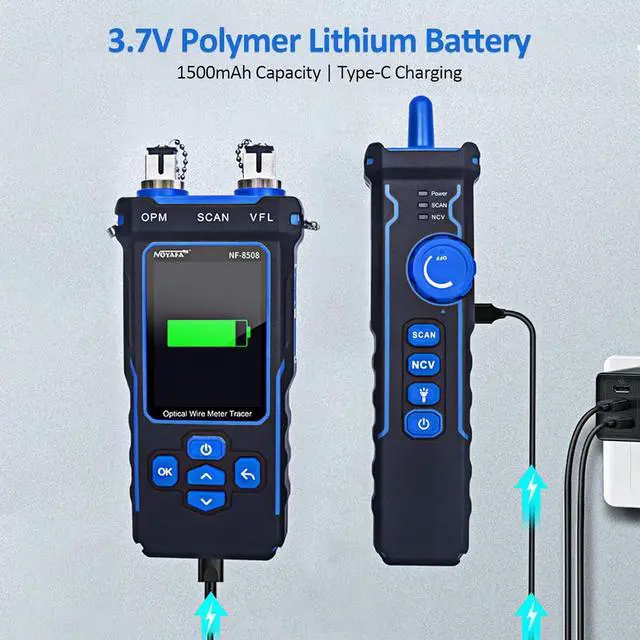

LED LIGHT AND NCV: This network cable tester is equipped with a convenient flashlight function, making it ideal for working in low light conditions. It comes with a rechargeable battery for long-lasting use. The tester also features NCV detection, allowing for non-contact voltage detection in household wires. It is essential for cable tracing, wire locating, and testing faults.
1
POE TESTING
2
CABLE LENGTH MEASUREMENT
3
PORT FLASH
4
QC TESTING
5
CONTINUITY TESTING
Technical Parameter Cable Type
CAT5/CAT6
Voltage Protection
60V
CONT-Wiremap Port
RJ45
CONT-MAX Range
300m
CONT-STP/NTP
Yes
Scan-Frequency
455KHz
VFL
10mW
POE-PSE Typ
IEEE 802.3 af/at
POE-Voltage Display
Yes
Length-Test Range
2-200m
Power meter-Standard Wavelenth
850, 1300, 1310, 1490, 1550, 1625, 1650nm
Sensitivity adjustable
Yes
Lower voltage warning
Yes
Digital mode and Analog mode
Yes
OPTICAL POWER METER TEST: The optical power meter test is capable of measuring 7 standard wavelengths (850/1300/1310/1490/1550/1625/1650) and has a power detection range of -70 to +10 dBm. This allows users to efficiently measure the signal strength of optical fibers and ensure the healthy operation of optical fiber links.
LED LIGHT AND NCV: This network cable tester is equipped with a convenient flashlight function, making it ideal for working in low light conditions. It comes with a rechargeable battery for long-lasting use. The tester also features NCV detection, allowing for non-contact voltage detection in household wires. It is essential for cable tracing, wire locating, and testing faults.
1
POE TESTING
2
CABLE LENGTH MEASUREMENT
3
PORT FLASH
4
QC TESTING
5
CONTINUITY TESTING
Technical Parameter Cable Type
CAT5/CAT6
Voltage Protection
60V
CONT-Wiremap Port
RJ45
CONT-MAX Range
300m
CONT-STP/NTP
Yes
Scan-Frequency
455KHz
VFL
10mW
POE-PSE Typ
IEEE 802.3 af/at
POE-Voltage Display
Yes
Length-Test Range
2-200m
Power meter-Standard Wavelenth
850, 1300, 1310, 1490, 1550, 1625, 1650nm
Sensitivity adjustable
Yes
Lower voltage warning
Yes
Digital mode and Analog mode
Yes
