NF-8508 Network Cable Tester with Optical Power Meter VFL, RJ11 RJ45/PoE Tester/CAT5 CAT6/length Measurement, Telephone line Trace Meter with Headset, Network Tools

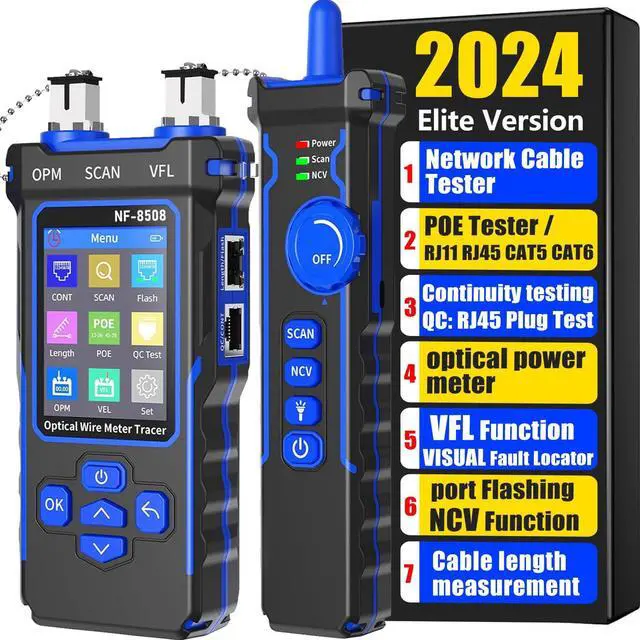

- 9functions of network cable tester: NF-8508 (transmitter) continuity test, cable scan, port flicker, cable length measurement, PoE test, crystal head QC test, OPM (optical power meter) and VFL (visual fault location) NVC function
- POE Test: 8 core automatic identification of the middle span / end span / power, automatic identification of standard and non-standard equipment, optical power meter: 850 / 1300 / 1310 / 1490 / 1550 / 1625nm, seven standard wavelength switch; unit switch for dBm, dB or mw, uw, nw; and REF switch, -70 ~ +10
- Cable Length Test: can measure the range of 200 meters, network cables, telephone lines and BNC cables, with visual fault location function, detect and locate fiber breaks, and poor connections, fiber bends or cracks, and other problems
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
CAT5 CAT6 Cable Toner: (receiver) sensitivity adjustment, 300m null shielded network cable/non-null shielded network cable, NCV detection, lighting function, etc.
Non-contact voltage detection: the receiver can be used to detect the AC voltage of household wires

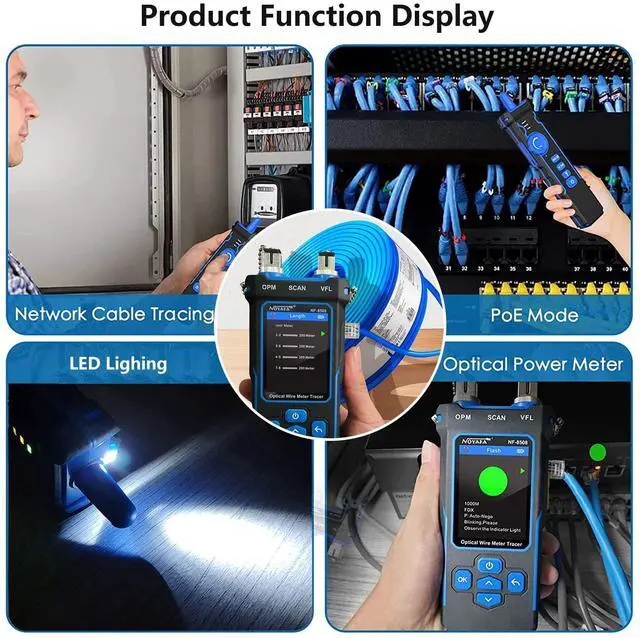

RJ45 RJ11 cable tester: cable tracking, wire locator and tests the faults ofLAN cable tester, for telecommunications, computers, engineering wiring, networking and home essential network tools

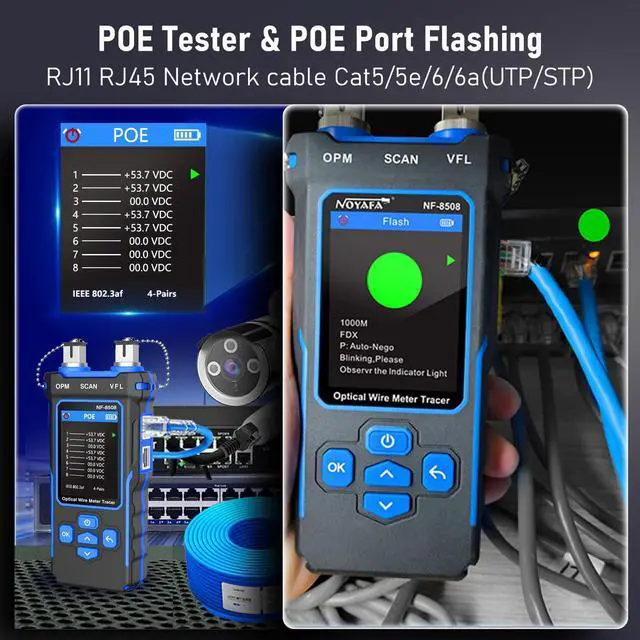

POE Test Functions RJ11 RJ45 Network cable
Cat5/5e/6/6a(UTP/STP)
Automatic scanning recognition
Port Flash Quickly & Exactly find out the target
cable port to improvework efficiency
Length Measurement Cable rangeis 2.5 m to 200m
Distance from cable break location

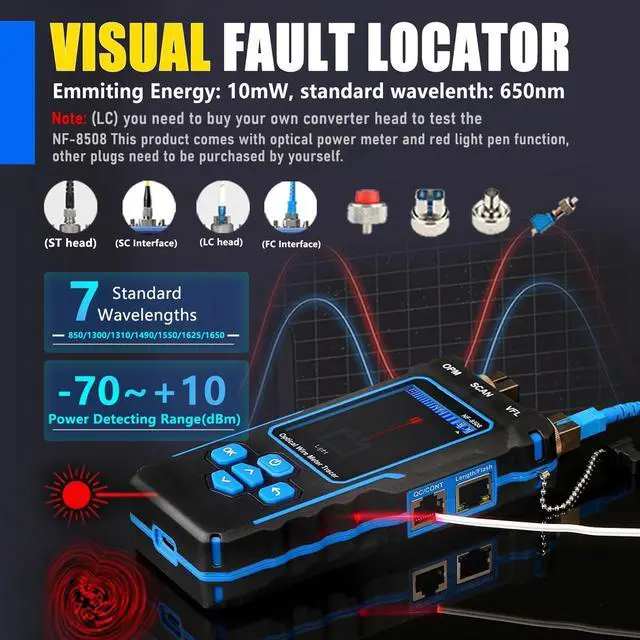

VFL Features

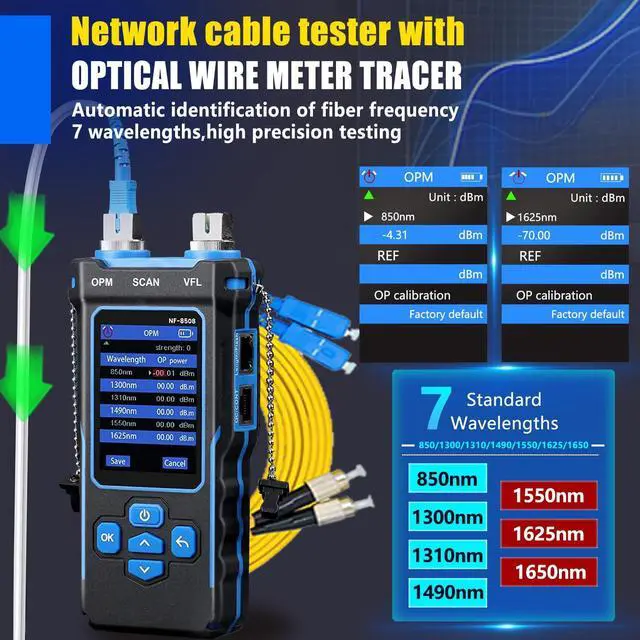

Optical Fiber Power Meter 7 wavelengths, fast flash, slow flash and
constant light 10mW, high accuracy
1
POE Testing
2
Port Flash
3
9 Functions
4
LENGTH MEASUREMENT
5
OPM & VFL
LED Light The flashlight solves the trouble of working in the dark
3.7V Polymer lithium battery 1500mah 3.7V lithium battery, running time of 10 hours, Type-C charging is more convenient.
Anti-interference Tester advanced digital/analog/POE mode, high sensitivity, less noise interference, widely used in engineering wiring, network and equipment maintenance

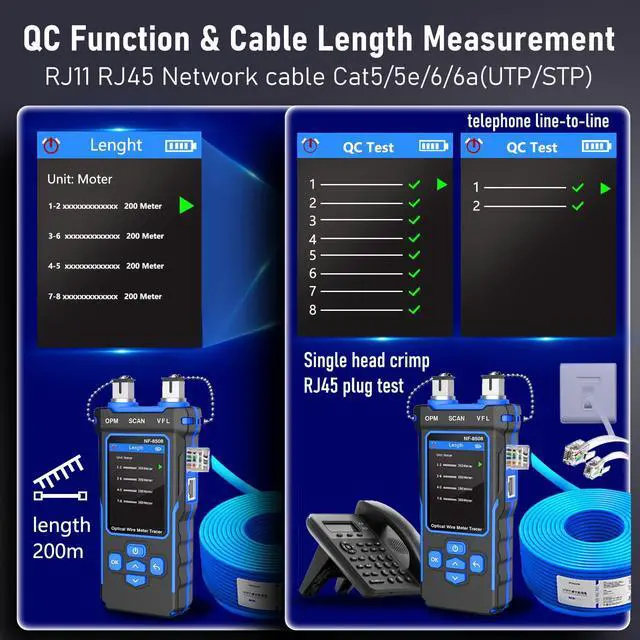

QC TESTING RJ11 RJ45 PLUG TEST
Test whether the RJ45 plug of the cable is okJust only one-end RJ45 plug can also tested
1
QC Functions
2
Multifunctional Tester
3
POE TEST
4
9 Functions
5

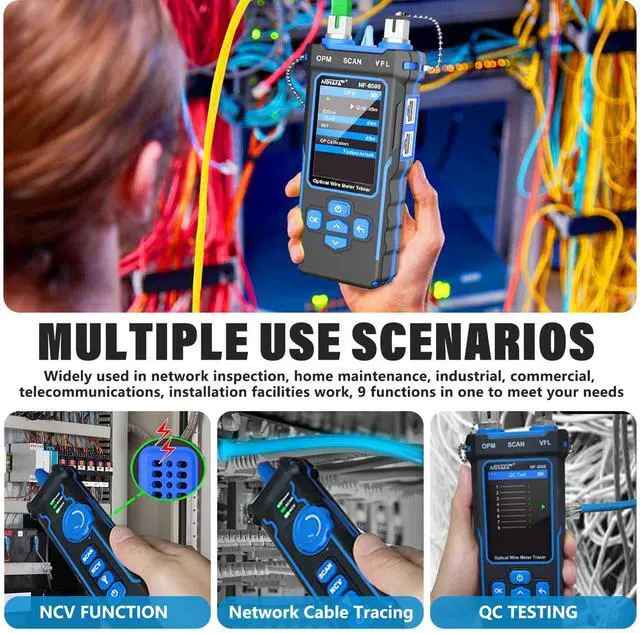

wide application
Wiremap-Cable Type
CAT5CAT6 (STP & UTP)
Wiremap-Test Switch Directly
Yes
Wiremap-Max Range
600m
POE-Test Range
DC 5~60V standard / non-standard PoE switch
POE-Voltage Display
Yes
POE-PSE Type
IEEE 802.3 af/at
Voltage Protection
DC48V 5mA
Length-Test Range
2-200m
Scan-AC Filter
Yes
PowerMeter-Detecting Range
-70 ~ +10 (dBm)
Power meter-Standard Wavelenth
850, 1300, 1310, 1490, 1550, 1625, 1650nm
Power meter-Display Resolution
0.01 dBm
VFL-Emmiting Energy
10mw
Power Meter-Probe
InGaAs
Power Meter-Detection Limit
1.0 mm
VFL-Emmiting Energy
10mw
Non-contact voltage detection: the receiver can be used to detect the AC voltage of household wires
RJ45 RJ11 cable tester: cable tracking, wire locator and tests the faults ofLAN cable tester, for telecommunications, computers, engineering wiring, networking and home essential network tools
POE Test Functions RJ11 RJ45 Network cable
Cat5/5e/6/6a(UTP/STP)
Automatic scanning recognition
Port Flash Quickly & Exactly find out the target
cable port to improvework efficiency
Length Measurement Cable rangeis 2.5 m to 200m
Distance from cable break location
VFL Features
Optical Fiber Power Meter 7 wavelengths, fast flash, slow flash and
constant light 10mW, high accuracy
1
POE Testing
2
Port Flash
3
9 Functions
4
LENGTH MEASUREMENT
5
OPM & VFL
LED Light The flashlight solves the trouble of working in the dark
3.7V Polymer lithium battery 1500mah 3.7V lithium battery, running time of 10 hours, Type-C charging is more convenient.
Anti-interference Tester advanced digital/analog/POE mode, high sensitivity, less noise interference, widely used in engineering wiring, network and equipment maintenance
QC TESTING RJ11 RJ45 PLUG TEST
Test whether the RJ45 plug of the cable is okJust only one-end RJ45 plug can also tested
1
QC Functions
2
Multifunctional Tester
3
POE TEST
4
9 Functions
5
wide application
Wiremap-Cable Type
CAT5CAT6 (STP & UTP)
Wiremap-Test Switch Directly
Yes
Wiremap-Max Range
600m
POE-Test Range
DC 5~60V standard / non-standard PoE switch
POE-Voltage Display
Yes
POE-PSE Type
IEEE 802.3 af/at
Voltage Protection
DC48V 5mA
Length-Test Range
2-200m
Scan-AC Filter
Yes
PowerMeter-Detecting Range
-70 ~ +10 (dBm)
Power meter-Standard Wavelenth
850, 1300, 1310, 1490, 1550, 1625, 1650nm
Power meter-Display Resolution
0.01 dBm
VFL-Emmiting Energy
10mw
Power Meter-Probe
InGaAs
Power Meter-Detection Limit
1.0 mm
VFL-Emmiting Energy
10mw
