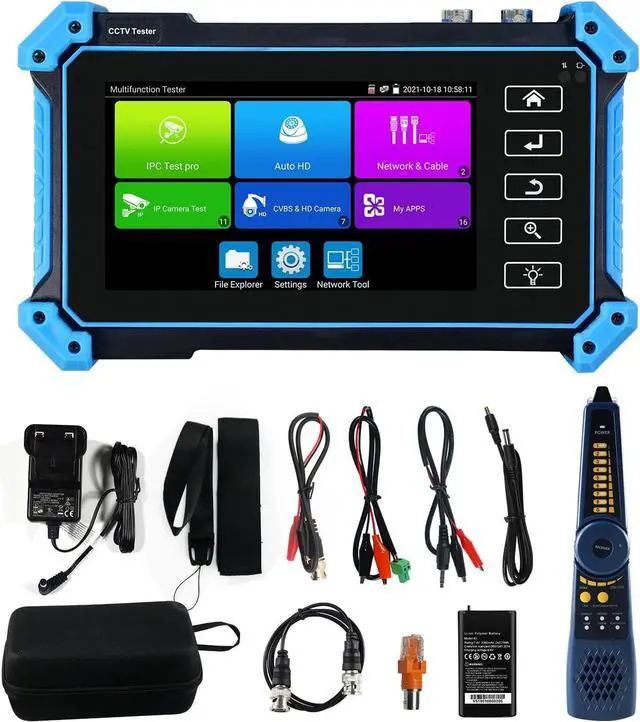

IP Camera Tester with PoE, CCTV Camera Test CVI TVI AHD SDI Analog Camera Test 5.4inch Touchscreen Cable Tracer RJ45 Cable TDR Test RS485 HDMI in VGA in (IPC-5200C Plus)

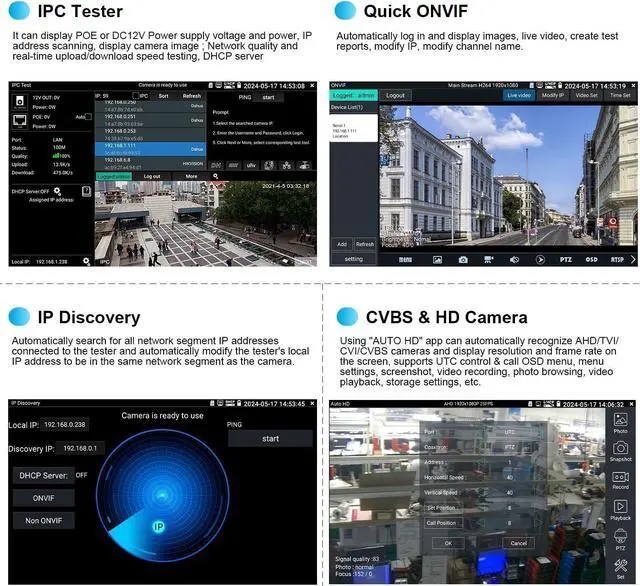

- [ IP Analog Camera Tester ] 5.4'' IPS touch screen,IP Discovery/Quick ONVF/IPC test /RTSP play /Client APK.Auto view the video, create testing report.Support batch activate Hik and DH cameras and modify IP address, modify password etc. Self-defined modify channel name. Supports CVBS analog camera test.1 channel BNC input, NTSC/PAL (Auto adapt); PTZ control, RS485 control,

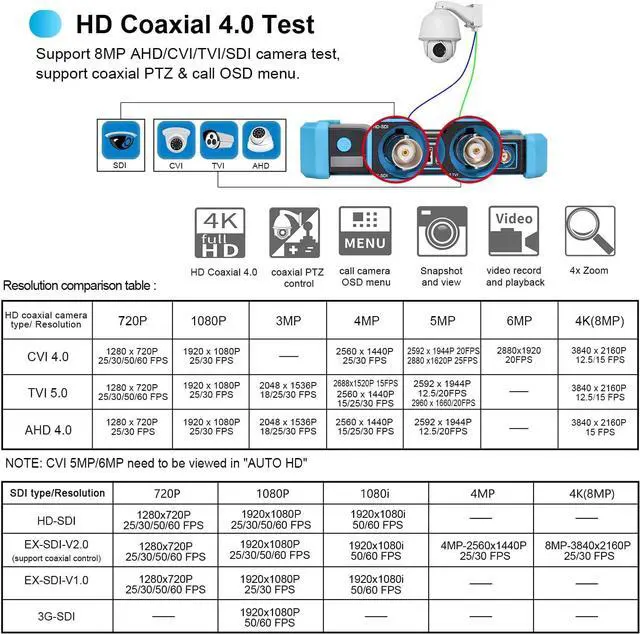

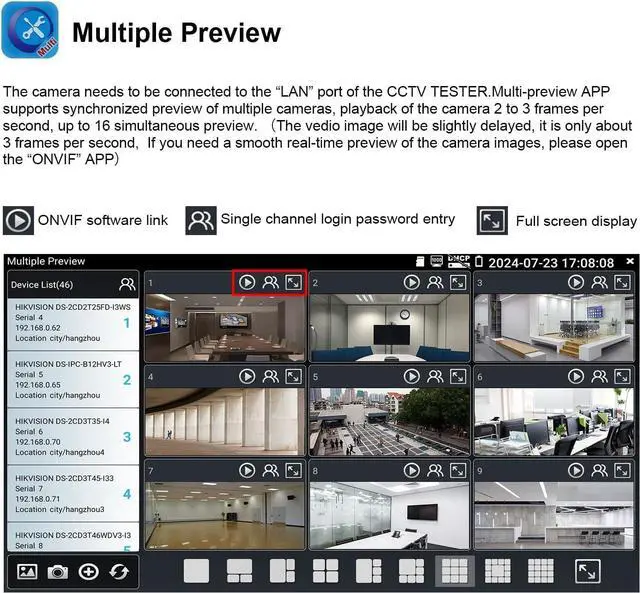

- [ TVI CVI AHD SDI Camera Tester ] CCTV monitor tester supports 8MP TVI / CVI / AHD / SDI camera testing and UTC control, and supports calling OSD menu. Auto HD -recognize the resolution and image display of Analog and HD cameras. Support coaxial PTZ and call OSD menu. Support CVBS and 8MP TVI/CVI/AHD cameras. Select relative function on the right side toolbar to operate, functions including ''Photos'', ''Snapshot'', ''Record'', ''Playback'', ''PTZ'', ''Set''. Multiple preview APP supports synchronized preview of multiple cameras, playback of the camera 2 to 3 frames per second, up to 32 simultaneous preview
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

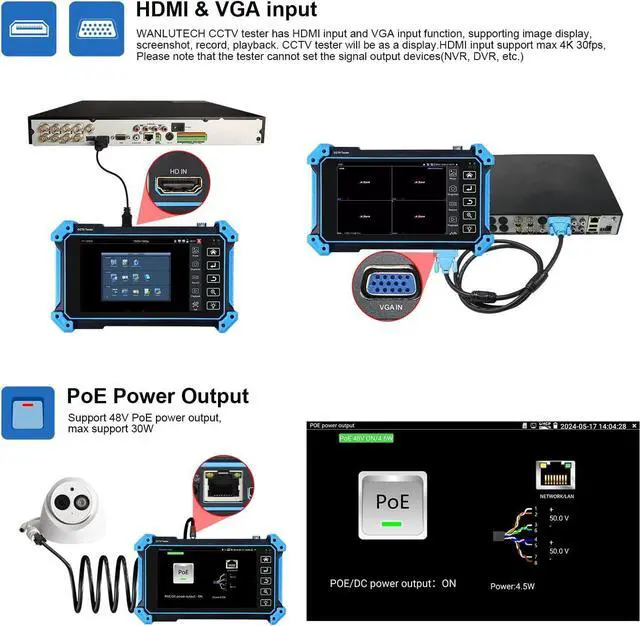

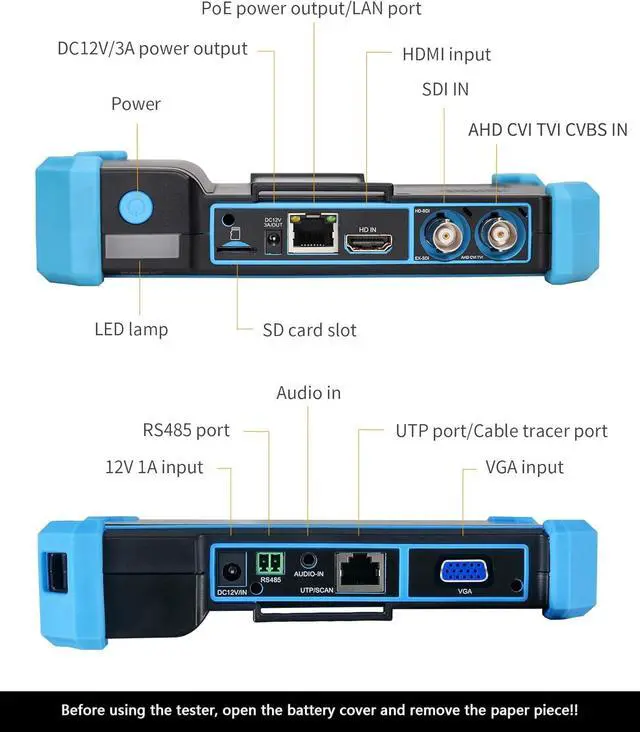

[ Multifunctional Camera Tester ] 1 channel HDMI input, support 4K 30FPS; 1 channel VGA input. Support 48V PoE power output, max power 30W. Built-in 7.4V Li-ion battery, 3350mAh. DC12V/3A power output, supply temporarily power for the camera.
Network tools: Ping, IP scan, Port Flash, DHCP server, Trace Route. Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

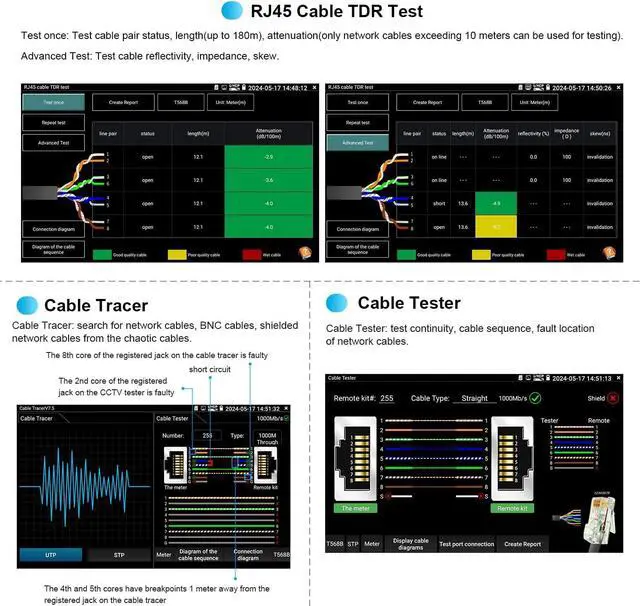

[ Cable Tracer Cable Test ] Digital Cable tracer can search BNC cable, network cable and telephone cable from the mess of cables. Support test UTP cable connection status and display on the screen. RJ45 cable
TDR testing: test cable pair status, length, attenuation, reflectivity, impedance, skew
[ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
Network tools: Ping, IP scan, Port Flash, DHCP server, Trace Route. Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
[ Cable Tracer Cable Test ] Digital Cable tracer can search BNC cable, network cable and telephone cable from the mess of cables. Support test UTP cable connection status and display on the screen. RJ45 cable
TDR testing: test cable pair status, length, attenuation, reflectivity, impedance, skew
[ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
