Emergency Backup Battery 20W, 120V-347VAC, Rechargeable UL Approved Backup Driver, Over 90mins Emergency Time, for LED troffer, LED Panels and Tubess
- SAFETY CERTIFIED - This series 20W LED Emergency Backup Battery is approved by UL, UL Certified products ensure better quality, safety and reliability

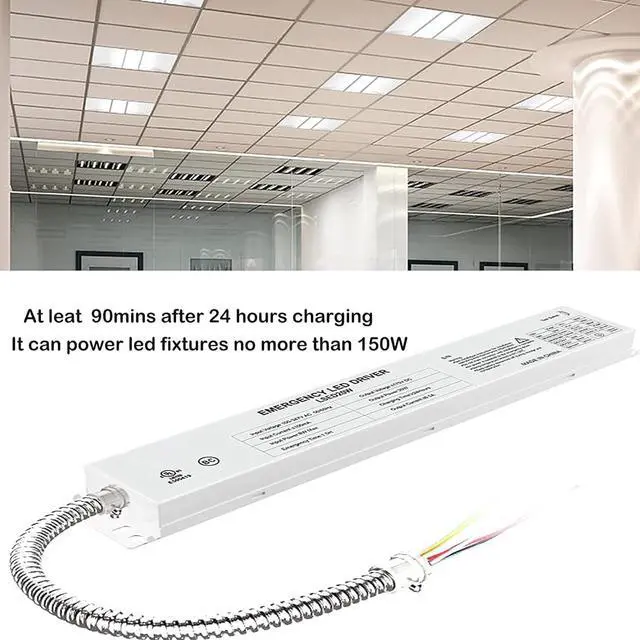

- LONG TIME EMERGENCY - In the event of a power failure, the LED Emergency backup battery will switch to the emergency mode and operates the existing fixture at least 90 minutes

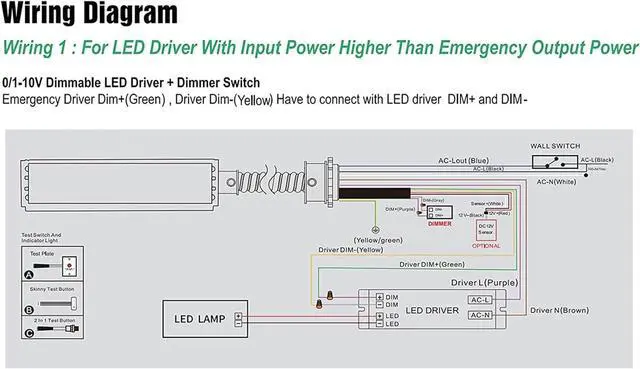

- APPLICATIONS - This 20W emergency backup battery is suitable for LED fixtures with 0/1-10V dimmable function if led lamps input power higher than 20W but less than 150W like led panels, led troffers, led downlight and etc. Also suitable for led fixtures without dimmable function if led lamps input power less than 20W, like led tubes.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES - This 20W emergency backup battery input voltage 100-347VAC, output voltage 175Vdc; input power 8W max. Output power 20W
BEST SUPPORT TEAM-- 5 Years Warranty for our LED Emergency drivers, easy and fast replacement is offered if any quality issue.
is a USA owned and operated commercial and industrial lighting manufacturer, focusing on giving customers excellent products. Emergency battery backups, also known as uninterruptible power supplies (UPS), are devices that provide temporary power during electrical outages or fluctuations. They can be used in various settings and situations to ensure uninterrupted power supply.
Here are some common applications:
Residential Use
Commercial and Industrial Use
Medical Facilities
Emergency Services
Security Systems
20W
Output Voltage
175VDC
Input Power
8W max
Input Voltage
100-347Vac, 50/60Hz
Emergency Time
90Minutes
Charging Time
24 Hours
Conduit length
17.7 inch (450mm)
Battery
Li-ion Battery
Ambient Temperature
0 to +5032 to 122 )
Dimension
12.91 X 1.9 X 0.94 inch
Important NoticeNot compatible with TRIAC dimmable (phase-cut) LED fixtures, like DOB technology LED downlights.
Use only with 0-10V dimmable or non-dimmable fixtures.
TRIAC dimmable LED fixtures can only operate on AC power (110V / 120V)
, working in coordination with a wall dimmer. However, our emergency battery typically outputs DC voltage (175V)
, which is not compatible
with drivers that require AC input, so if your LED fixtures, So if your fixture uses TRIAC dimming, then this emergency battery is not suitable for you.
BEST SUPPORT TEAM-- 5 Years Warranty for our LED Emergency drivers, easy and fast replacement is offered if any quality issue.
is a USA owned and operated commercial and industrial lighting manufacturer, focusing on giving customers excellent products. Emergency battery backups, also known as uninterruptible power supplies (UPS), are devices that provide temporary power during electrical outages or fluctuations. They can be used in various settings and situations to ensure uninterrupted power supply.
Here are some common applications:
Residential Use
Commercial and Industrial Use
Medical Facilities
Emergency Services
Security Systems
Specifications
of LED Emergency Backup Battery Output Power20W
Output Voltage
175VDC
Input Power
8W max
Input Voltage
100-347Vac, 50/60Hz
Emergency Time
90Minutes
Charging Time
24 Hours
Conduit length
17.7 inch (450mm)
Battery
Li-ion Battery
Ambient Temperature
0 to +5032 to 122 )
Dimension
12.91 X 1.9 X 0.94 inch
Important NoticeNot compatible with TRIAC dimmable (phase-cut) LED fixtures, like DOB technology LED downlights.
Use only with 0-10V dimmable or non-dimmable fixtures.
TRIAC dimmable LED fixtures can only operate on AC power (110V / 120V)
, working in coordination with a wall dimmer. However, our emergency battery typically outputs DC voltage (175V)
, which is not compatible
with drivers that require AC input, so if your LED fixtures, So if your fixture uses TRIAC dimming, then this emergency battery is not suitable for you.
