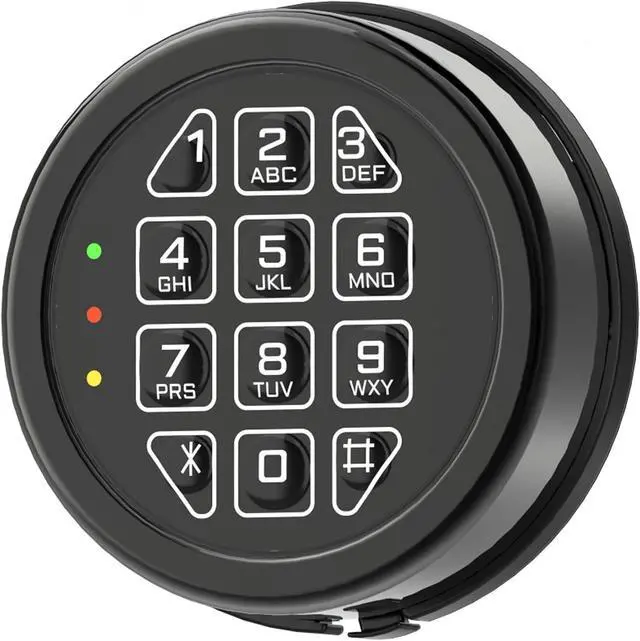

Electronic Safe Lock Replacement Keypad with Solenoid Lock, Gun Safe Lock with Programmable Electronic Keypad, Lock Fits High Security Safe Box and Security Cabinet

Versatile Applications: Designed as a safe with electronic keypad lock, ideal for home/gun/pistol/hotel safes with keypads. Prioritize size verification and bolt compatibility to ensure a proper fit
Note: If you are not a safe technician or professional locksmith, please do not attempt installation; if you have any questions or difficulties, please ask us for online installation instructions. Please note that our locks can only be used with alkaline batteries



Please check the dimensions of the panel and magnetic lock carefully before purchasing.

Specifications

:

1. 9V
Regulated Power Supply: 500mA (approx. )

2. Low voltage for the regulated power supply: 6.3V ± 0.2V. When the power supply is at 4.2V, the electromagnetic lock will not engage.

3. When the 9V battery static voltage is around 6.3V, and the working voltage is 3.67V, the electromagnetic lock can still operate.

4. When the 9V battery static voltage is around 6.1V, and the working voltage is 3.53V, the electromagnetic lock will not engage. (Note: The 9V battery can perform around 50 door openings with static voltage between 6.3V and 6.1V. )

Please note that alkaline batteries must be used for the safe lock to function properly!

APPLICATION

1All home safes & lock box, gun safes, pistol safes.
2watch winder, file cabinet safe and more.

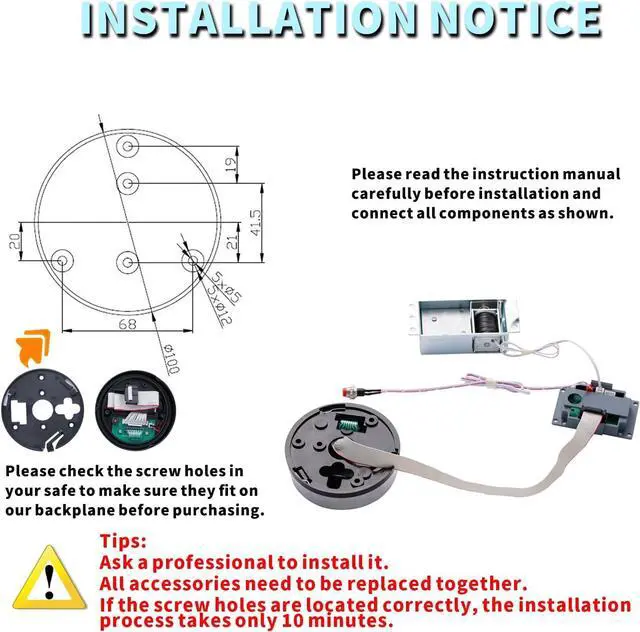

Before installing the safe lock, please check and determine if you have the same type solenoid lock mechanism on your safe. This lock will not work if you have other type boltwork such as deadbolt, swingbolt or other type.

Basic Functions

Power On
: Buzzer beeps once, yellow LED flashes (system ready).
Passwords
: 1 admin + 2 user codes (3-8 digits).
Default admin: 147
(change first; new code cannot be 147).
Low Battery
: Red LED on when door opens replace battery.


1. Change Admin Password

Enter 000000# Yellow light activates.
Input default code 147#
Red light activates.
Enter new 3-8 digit code + # Repeat the new code.
Success: Both lights turn off.
Failure: Red light flashes once + 3-second beep.


2. Set User Passwords

Enter 000000# Yellow light on.
Input new admin code + # Red light on.
Press 11*# (User 1) or 22*# (User 2) Enter new 3-8 digit code + # Repeat.
Success: Lights turn off.


3. Delete Passwords

Delete User 1: Enter 01*# 3-second beep + green light flashes 5x.
Delete User 2: Enter 02*# 3-second beep + green light flashes 5x.
Delete All Users: Enter 00*# 3-second beep + green light flashes 5x.


4. Factory Reset

Press and hold the reset button until red light flashes 3-second beep + green light flashes 5x.


5. Interference Code Support

Enter up to 20 digits. Door opens if 3-8 consecutive digits match the correct password (e. g., 1532**666666**398).
