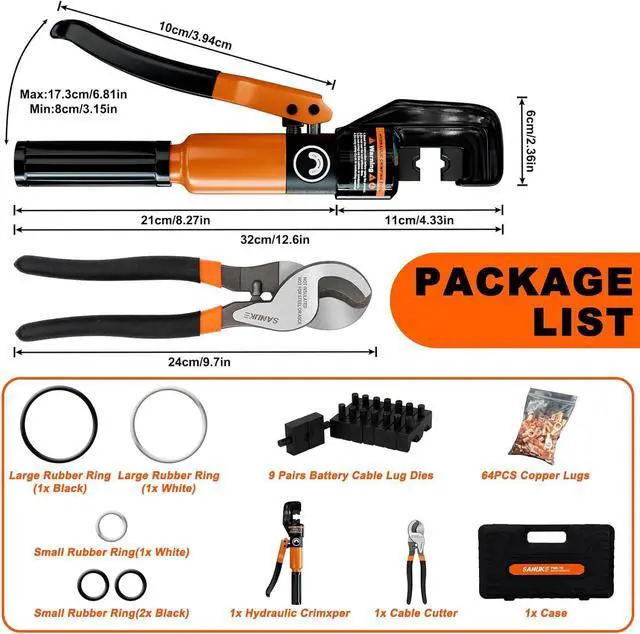

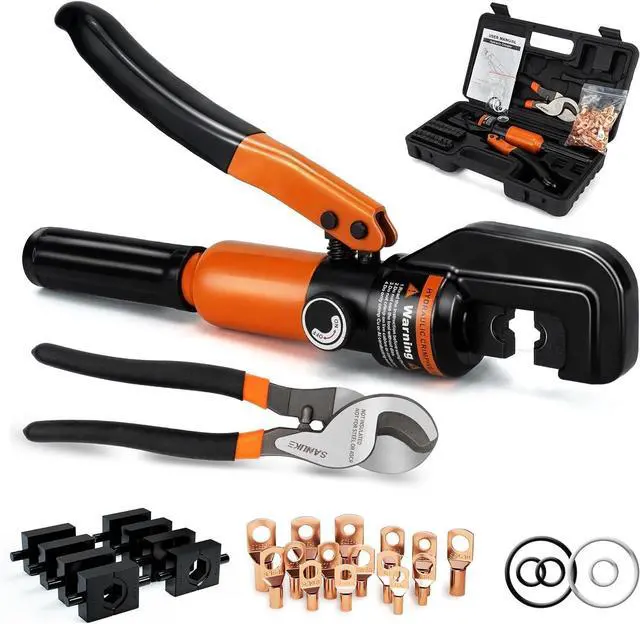

Hydraulic Crimping Tool and Cable Cutter, 12 AWG to 2/0 AWG, 10 Tons Electrical Terminal Cable Crimper Tool Kit with 9 Die Sets and 64PCS Copper Wire Lugs

Excellent QualityCombined with the overall quenching technology, the pliers head is strong and will not break. Vinyl-dipped grips offers comfortable and non-slip hold.

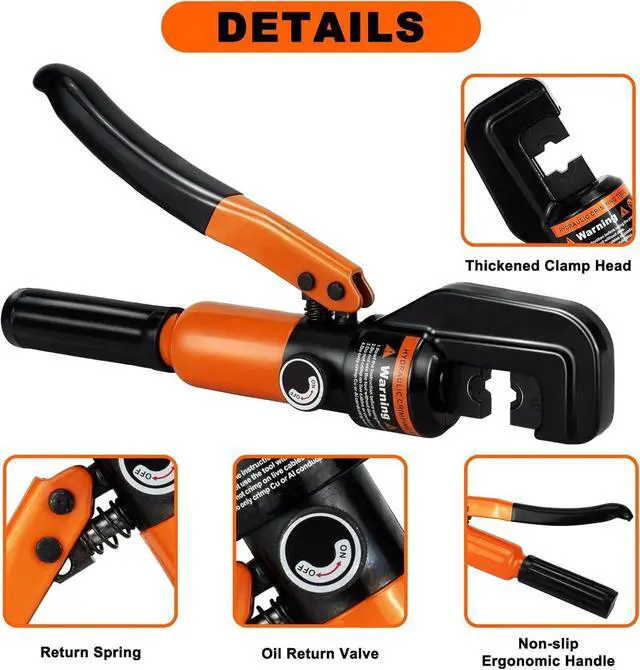

Easy OperationON/OFF control and handle return spring enable one-hand operation, tongs with guide rail make it easy to change the dies and effectively control the die.
Wide ApplicationThe wire crimping tool is ideal for battery and welding cables, power wires, electrical cables, cable railing hardware, a variety of home-use tasks. The hydraulic crimper's head can be rotated 180°freely for narrow space.

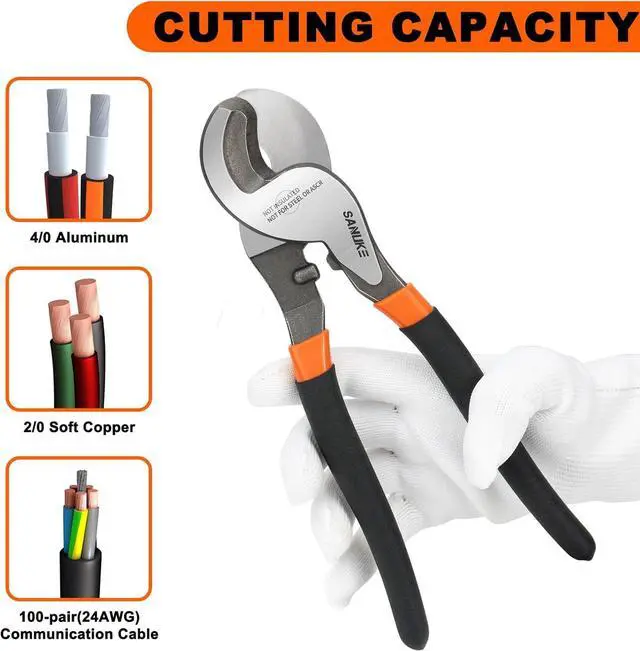

Battery Cable CutterThe 10" Cable Cutter is made of high-carbon steel, easily cuts for 4/0 aluminum, 2/0 copper, 24AWG communications cable and so on.

1
Collet Structure
2
Labor-Saving
3
High-Pressure Pump
4
Anti-Slip Handle


Install Crimping Die Insert the corresponding crimping dies into the upper and lower jaws
Close Valve Tighten valve clockwise
Press Handle Press the handle repeatedly to drive the piston

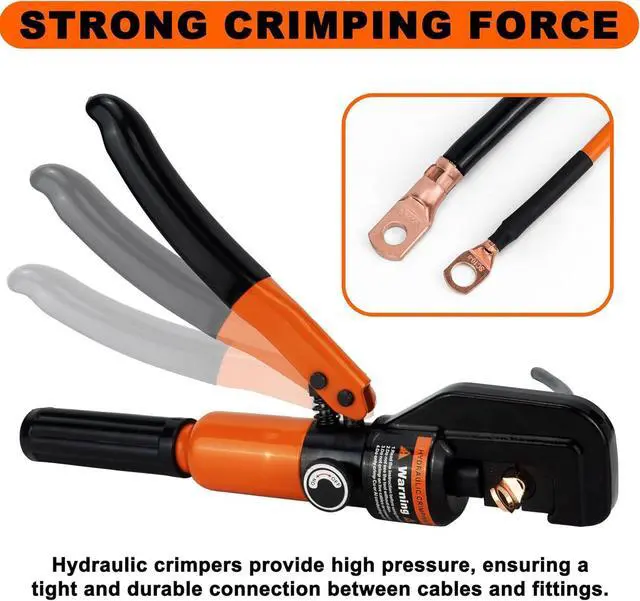

Crimp Terminal The piston advances and the terminal is pressed tightly
Reset After completing the crimping, turn the valve counterclockwise
INSTRUCTION
12 AWG-2/0 AWG for Electrical Cable

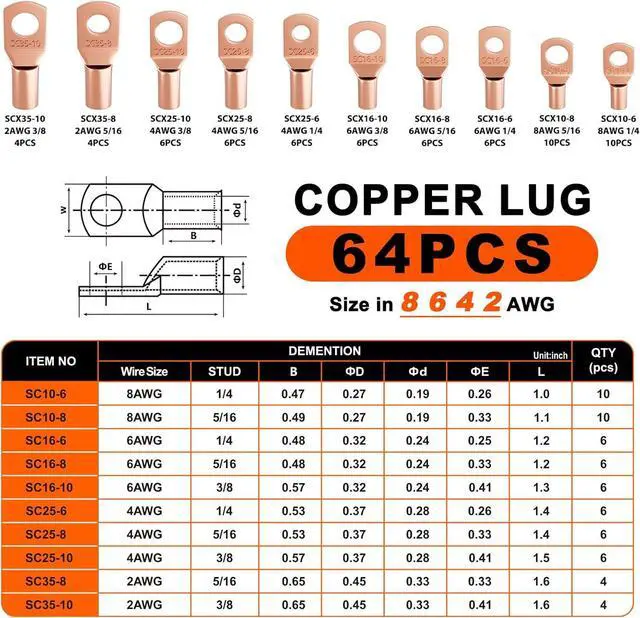

How many copper lugs included? 64pcs copper wire lugs in 10 size types
What is the crimping range? From 12AWG to 2/0AWG, including

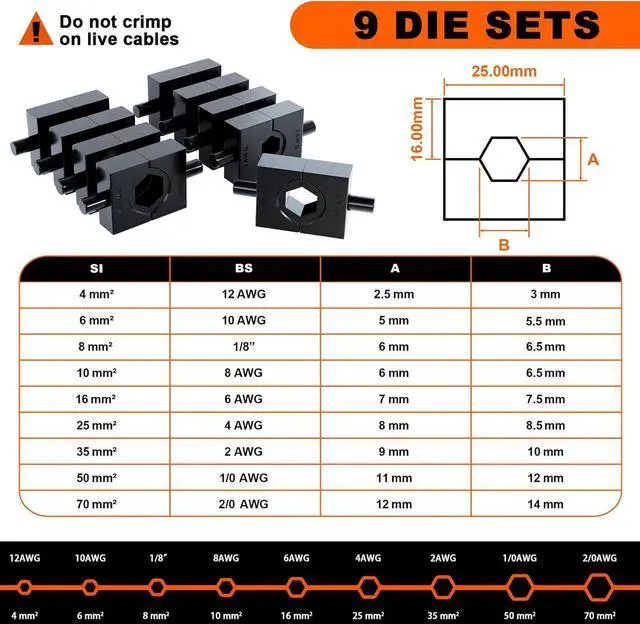

9 pairs of dies: 12AWG, 10 AWG, 8 AWG, 6 AWG, 4 AWG, 2 AWG, 1/0 AWG, 2/0 AWG, 1/8"
How to repair if the tool is leaking oil? 1. Replace of seals
2. Repair the sealing surface
Which die should I use to crimp 1/8" stainless steel wire? Use the 12AWG or 10AWG dies to crimp 1/8" stainless wire cable
Which die should I use to crimp 3/16" stainless steel wire? Use the 1/8" or 10AWG or 8AWG to crimp 3/16" stainless wire cable
