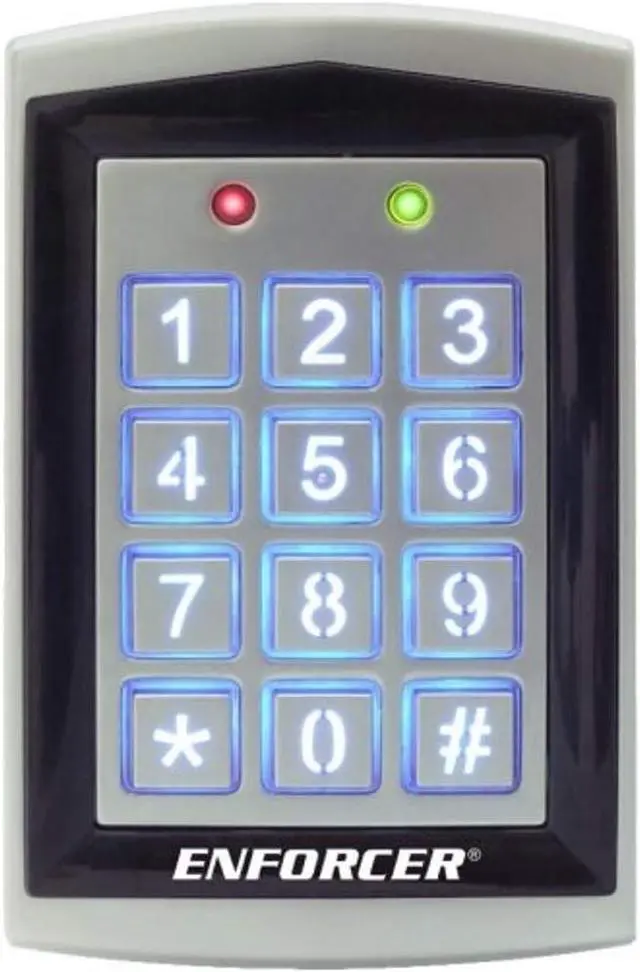

SK-1323-SPQ Sealed Housing Weatherproof Digital Access Keypad w/Built-in Proximity Reader

Each relay has programmable output time from 1~99 seconds or toggle.
Output #2 can be programmed for use with a doorbell.



The Weatherproof Outdoor Digital Access Keypad is standalone with a built-in proximity card reader. All keypad features are programmed directly from the keypad and it is able to mount to a single-gang back box. It is designed with backlit keys for easy night time use.
Built-in proximity card reader.
3 Programmable access modes for Output #1: Card Only, Card or Code, and Card with Code.
Output #2 may have either a card or a code programmed for each user.
12~24 VDC operation.
1, 010 Users (Output # 1: 1, 000 users, Output # 2: 10 users).
2 Form C relays, each rated 1 Amp @ 30VDC.
Each relay has programmable output time from 1~99 seconds or toggle.
Output #2 can be programmed for use with a doorbell.
2 Egress inputs and 1 door sensor input.
Backlit keys for easy nighttime use.
Two multi-colored status LEDs.
Able to mount to a single-gang back box.
All features are programmed directly from the keypad no need for an external programmer.
EEPROM memory protects programmed information in case of power loss.
Optical tamper for added security.
Circuitry is potted with epoxy for outdoor use.
IP65 weatherproof rating, rugged aluminum construction.
Technical

Details

MPN:
SK-1323-SPQ
UPC:
676544011071
Type:
Sealed Housing Weatherproof Outdoor Digital Access Keypad
Number of user codes:
Up to 1, 010
Operating voltage:
12~24 VDC
Current drain:
Stand-by: 40mA@12VDC
Active: 70mA@12VDC
Relay outputs (2): 1A@30VDC, Form C, NO/COM/NCEgress inputs:
2, N. O. Ground
Door sensor input:
N. C. Ground
Tamper sensor:
Optical
Operating temperature:
-4°~122° F (-20°~50° C)
Keypad LED life:
60, 000 hours (over 6.8 years)
Proximity reader frequency:
125kHz
Proximity reader distance:
1-15/16" (50mm)
Dimensions:
6"x1-3/4"x15/16" (152 x 44 x 24 mm)
Warranty:
1 Year
