BSIDE 20000 Counts Digital Multimeter 1500V/750V Rechargeable Infrared Thermometer 0.1A10V Resolution Amp Tester D:S=10:1 Measure NCV Diode Capacitance Resistance Hz
- High-precision Measurement: 20,000-word photovoltaic multimeter high-precision four-and-a-half-digit test. Min resolution of current 0.1A Min resolution of voltage 0.01mV. DC/AC voltage can be measured up to 1500V/750V.

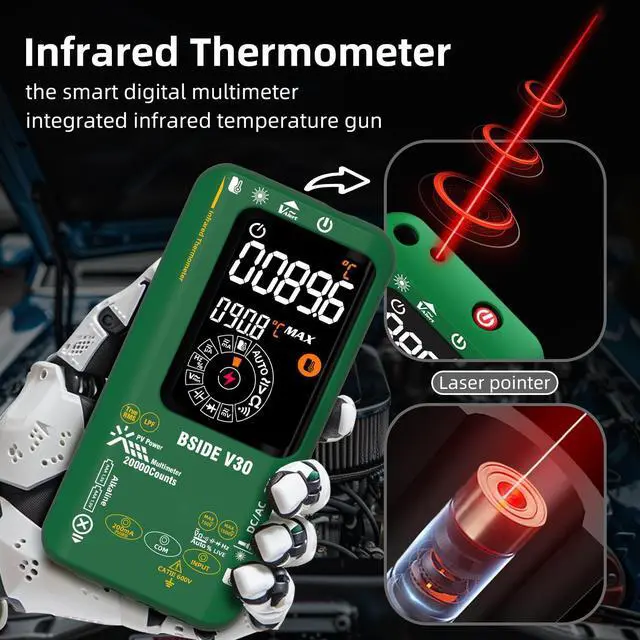

- Infrared Thermometer: The PV digital multimeter can also be used as infrared temperature gun. Uses an upgraded sensor for more accurate temperature measurement. It can show both the real-time temperature and MAX temperature at the same time, the laser pointer can be used as a target location point.

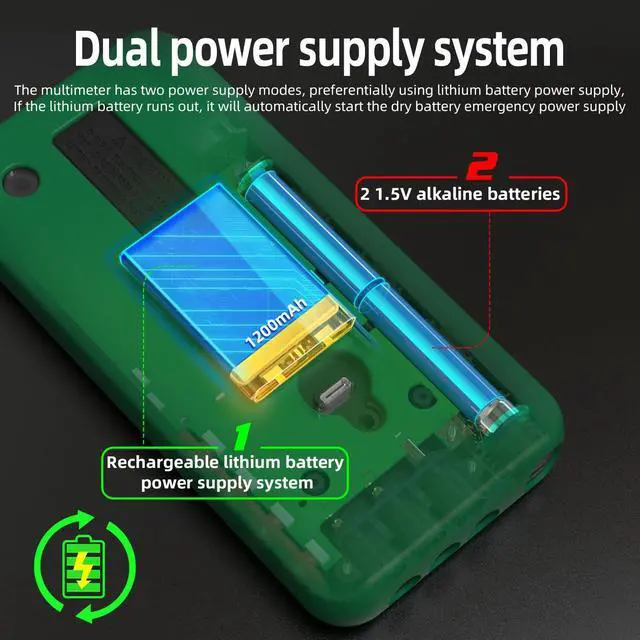

- Dual Mode Power System: The smart multimeter tester has 2 separated power systems, one is rechargeable lithium battery, the other is 2 alkaline batteries, you will never worry about no power problem.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Smart Mode: digital multimeter tester can automatically measure ac voltage, dc voltage, resistance and continuity with the best solution. All of this functions measurement can be done manually as well.
Amp Test Automatically Activation: Electrical Amp Tester with automatic activation of the DC AC current test function. Automatic selection of range measurement. (Test leads need to be inserted into the amp port)
Features:
20000 characters display High precision of 4 and a half digits
Digital Infrared Sensor High Distance to Object Ratio High Accuracy
With laser pointer function
Current resolution 0.1A Voltage resolution 10V
Large range: DC voltage 1500V AC voltage 750V
Dual battery supply: rechargeable lithium battery and dry battery

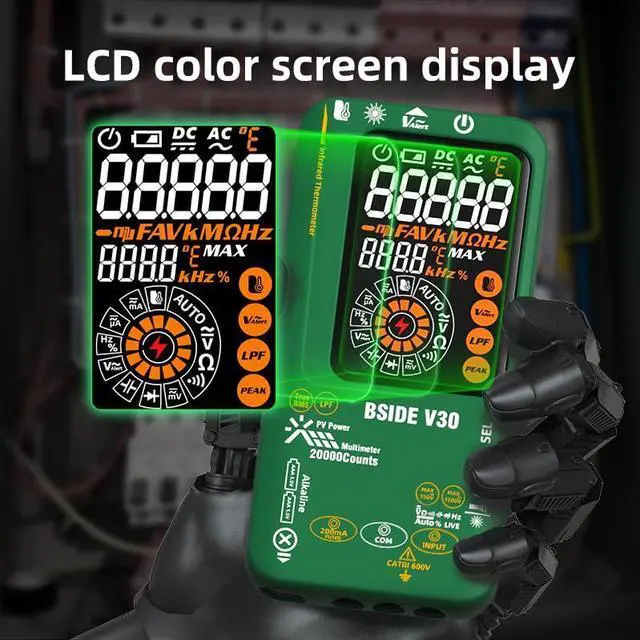

3.5 -inch large color display
Data retention Auto shutdown
With low-pass filtering function
Measurement of AC and DC current, AC and DC voltage, resistance, diode, on-off, frequency, duty cycle, non-contact infrared temperature measurement, laser level indicator, high-voltage diodes, voltage regulators, light-emitting diodes
Specification:

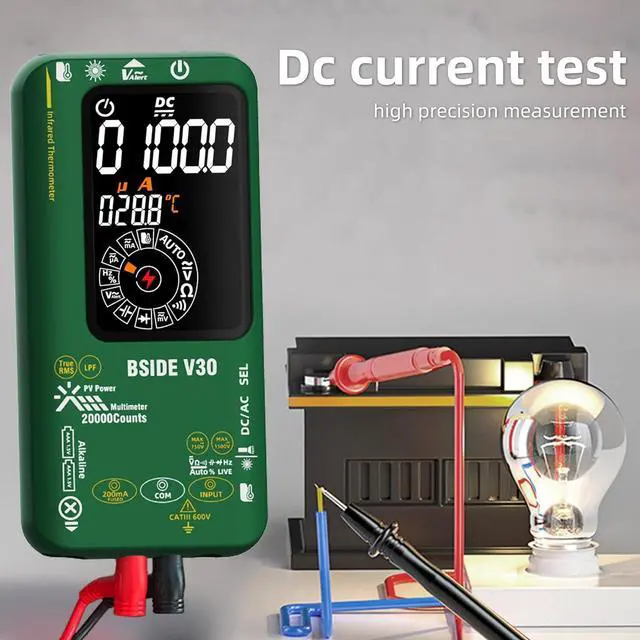

DC Current:
1.0A ~ 1999.9A 0.1A ±( 0.5 %+3)
2.0 mA~ 199.9 mA 0.1 mA ±( 0.5 %+3)
AC Current:
1.0A ~ 1999.9A 0.1A ±( 0.8 %+3)
2.0 mA~ 199.9 mA 0.1 mA ±( 0.8 %+3)
DC Voltage:
0.00 mV~ 199.99 mV 0.01 mV ±( 0.1 %+3)
0.2000V ~ 1.9999V 0.0001V ±( 0.05 %+3)
2.000V ~ 19.000V 0.001V ±( 0.05 %+3)
20.00V ~ 199.99V 0.01V ±( 0.05 %+3)
200.0V ~ 1499.9V 0.1V ±( 0.5 %+3)
AC Voltage:
0.00 mV~ 199.99 mV 0.01 mV ±( 0.5 %+3)
0.2000V ~ 1.9999V 0.0001V ±( 0.5 %+3)
2.000V ~ 19.000V 0.001V ±( 0.5 %+3)
20.00V ~ 199.99V 0.01V ±( 0.5 %+3)
200.0V ~ 749.9V 0.1V ±( 0.5 %+3)
Resistance:
0.0 ~ 199.9 0.1 ±( 0.5 %+3)
0.200K ~ 1.9999K 0.0001K ±( 0.2 %+3)
2.000K ~ 19.999K 0.001K ±( 0.2 %+3)
20.00K ~ 199.99K 0.01K ±( 0.2 %+3)
0.200M ~ 1.999M 0.001M ±(1%+3)
2.00M ~ 19.99M 0.01M ±(1%+3)
Infrared Temperature Measurement:
- 20.0 ~ 0.0 0.1 ±( 3.0 %+2)
0.1 ~ 380.0 0.1 ±( 2.5 %+3)
Capacitance:

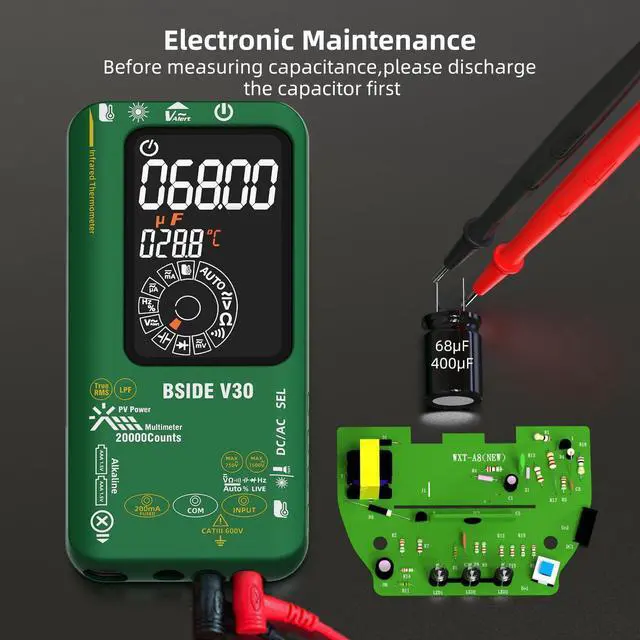

00.000 nF~ 9.999 nF 0.001 nF ±(5%+20)
10.00 nF~ 99.99 nF 0.01 nF ±(2%+5)
100.0 nF~ 999.9 nF 0.1 nF ±(2%+5)
1.000F ~ 9.999F 0.001F ±(2%+5)
10.00F ~ 99.99F 0.01F ±(2%+5)
100.0F ~ 999.9F 0.1F ±(5%+10)
1.000 mF~ 9.999 mF 0.001 mF ±(5%+10)
10.00 mF~ 19.99 mF 0.01 mF ±(5%+10)
Frequency (6Vrms ~20Vrms):
1.000H z~ 9.999H z 0.001H z ±( 2.0 %+10)
10.00H z~ 99.99H z 0.01H z ±( 2.0 %+10)
100.0H z~ 999.9H z 0.1H z ±( 2.0 %+10)
1.000KH z~ 9.999KH z 0.001KH z ±( 2.5 %+12)
10.00KH z~ 99.99KH z 0.01KH z ±( 2.5 %+12)
100.0KH z~ 199.9KH z 0.1KH z ±( 2.5 %+12)
Duty Cycle:
1.0 %~ 95.0 % 0.1 % ±3%
Size: 161*78*21mm
Weight: 204g
Package content:
Photovoltaic infrared temperature measurement multimeter
Multimeter pen
Charging cable
EVA storage bag
Adjustment lever
Instruction manual
Amp Test Automatically Activation: Electrical Amp Tester with automatic activation of the DC AC current test function. Automatic selection of range measurement. (Test leads need to be inserted into the amp port)
Features:
20000 characters display High precision of 4 and a half digits
Digital Infrared Sensor High Distance to Object Ratio High Accuracy
With laser pointer function
Current resolution 0.1A Voltage resolution 10V
Large range: DC voltage 1500V AC voltage 750V
Dual battery supply: rechargeable lithium battery and dry battery
3.5 -inch large color display
Data retention Auto shutdown
With low-pass filtering function
Measurement of AC and DC current, AC and DC voltage, resistance, diode, on-off, frequency, duty cycle, non-contact infrared temperature measurement, laser level indicator, high-voltage diodes, voltage regulators, light-emitting diodes
Specification:
DC Current:
1.0A ~ 1999.9A 0.1A ±( 0.5 %+3)
2.0 mA~ 199.9 mA 0.1 mA ±( 0.5 %+3)
AC Current:
1.0A ~ 1999.9A 0.1A ±( 0.8 %+3)
2.0 mA~ 199.9 mA 0.1 mA ±( 0.8 %+3)
DC Voltage:
0.00 mV~ 199.99 mV 0.01 mV ±( 0.1 %+3)
0.2000V ~ 1.9999V 0.0001V ±( 0.05 %+3)
2.000V ~ 19.000V 0.001V ±( 0.05 %+3)
20.00V ~ 199.99V 0.01V ±( 0.05 %+3)
200.0V ~ 1499.9V 0.1V ±( 0.5 %+3)
AC Voltage:
0.00 mV~ 199.99 mV 0.01 mV ±( 0.5 %+3)
0.2000V ~ 1.9999V 0.0001V ±( 0.5 %+3)
2.000V ~ 19.000V 0.001V ±( 0.5 %+3)
20.00V ~ 199.99V 0.01V ±( 0.5 %+3)
200.0V ~ 749.9V 0.1V ±( 0.5 %+3)
Resistance:
0.0 ~ 199.9 0.1 ±( 0.5 %+3)
0.200K ~ 1.9999K 0.0001K ±( 0.2 %+3)
2.000K ~ 19.999K 0.001K ±( 0.2 %+3)
20.00K ~ 199.99K 0.01K ±( 0.2 %+3)
0.200M ~ 1.999M 0.001M ±(1%+3)
2.00M ~ 19.99M 0.01M ±(1%+3)
Infrared Temperature Measurement:
- 20.0 ~ 0.0 0.1 ±( 3.0 %+2)
0.1 ~ 380.0 0.1 ±( 2.5 %+3)
Capacitance:
00.000 nF~ 9.999 nF 0.001 nF ±(5%+20)
10.00 nF~ 99.99 nF 0.01 nF ±(2%+5)
100.0 nF~ 999.9 nF 0.1 nF ±(2%+5)
1.000F ~ 9.999F 0.001F ±(2%+5)
10.00F ~ 99.99F 0.01F ±(2%+5)
100.0F ~ 999.9F 0.1F ±(5%+10)
1.000 mF~ 9.999 mF 0.001 mF ±(5%+10)
10.00 mF~ 19.99 mF 0.01 mF ±(5%+10)
Frequency (6Vrms ~20Vrms):
1.000H z~ 9.999H z 0.001H z ±( 2.0 %+10)
10.00H z~ 99.99H z 0.01H z ±( 2.0 %+10)
100.0H z~ 999.9H z 0.1H z ±( 2.0 %+10)
1.000KH z~ 9.999KH z 0.001KH z ±( 2.5 %+12)
10.00KH z~ 99.99KH z 0.01KH z ±( 2.5 %+12)
100.0KH z~ 199.9KH z 0.1KH z ±( 2.5 %+12)
Duty Cycle:
1.0 %~ 95.0 % 0.1 % ±3%
Size: 161*78*21mm
Weight: 204g
Package content:
Photovoltaic infrared temperature measurement multimeter
Multimeter pen
Charging cable
EVA storage bag
Adjustment lever
Instruction manual
