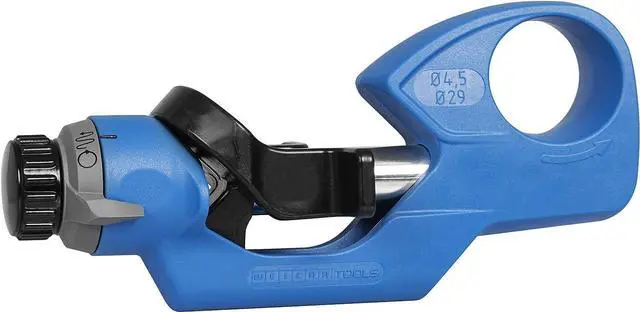

Cable Stripper No. 4-29 Spiral | For Thick Cables | Round, Longitudinal & Spiral Cut | Outer Diameter range 0.177-1.142 Inch (4.5-29 mm) | Up to 4/0 AWG | Cutting Depth up to 0.118 Inch

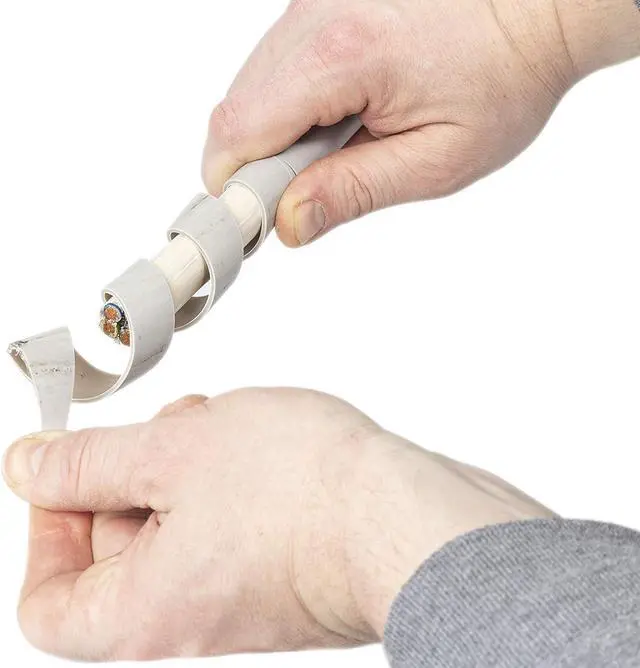

- SPIRAL CUT - The cable knife was specially developed for cables with an outer diameter of up to 29 mm. Thanks to the spiral cut function, even difficult insulation can be easily removed.
- VERSATILE USE - In addition to the spiral cut, the cable knife can be used to make round and longitudinal cuts.
- DETAILS - Stripping work of cables with an outer diameter of 4.5mm-29mm is possible. The blade depth can be adjusted from 0-3 mm in 0.1mm steps by means of a lockable knob. Inner layers are undamaged.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SAFETY - The ergonomic electrician's tool has a blocking system that prevents the longitudinal cut setting from opening and thus the blade from breaking off.
QUALITY - The tool was developed with work safety in mind. The blades are made of high-quality knife steel and have a special grind for clean removal of the outer sheath.
TOOLS Cable Knife No. 4-29 Spiral | Stripping Tool for Spiral Cut | Round Cut |

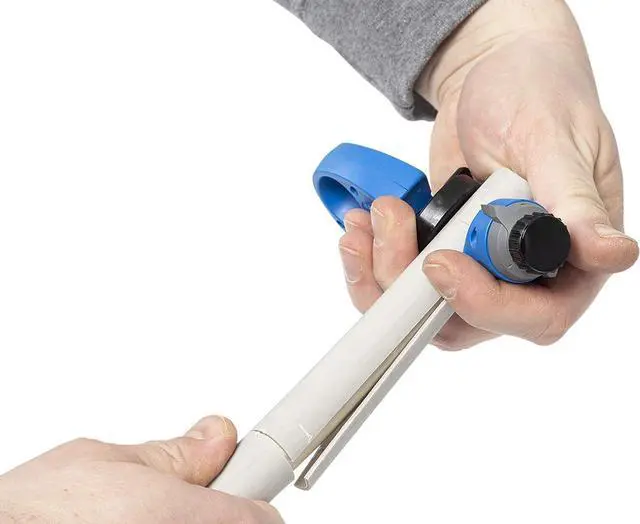

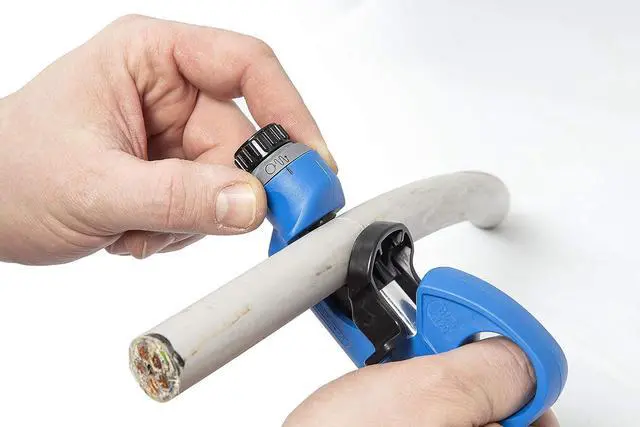

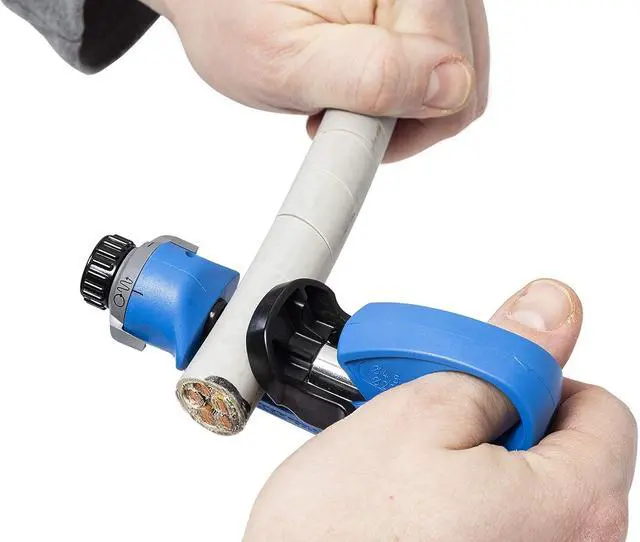

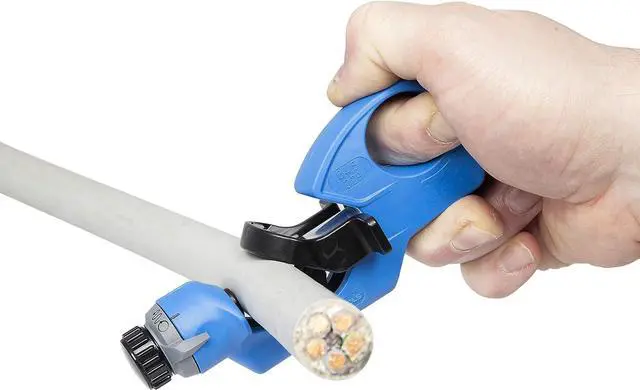

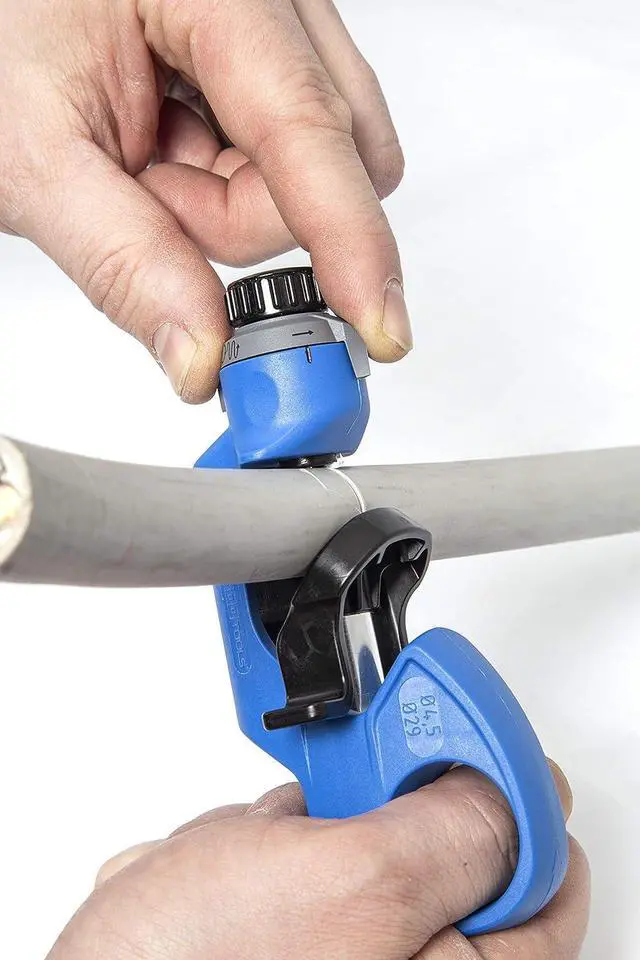

Longitudinal Cut Application: - Unlock the stripping tool by turning the adjusting ring to the symbol round cut - clamp the tool to the cable by means of spring force - Adjust the blade cutting depth by turning the knob clockwise. - Place the tool on the marking of the stripping length and make the circular cut. - Change the setting ring to the spiral cut symbol and perform the operation - for longitudinal cut: set the adjusting ring to the symbol longitudinal cut and pull the tool axially in longitudinal direction. - ready!
Technical data: Cable
type: cable with an outer sheath thickness of up to 3 mm
Range of application: Outer diameter 4.5 - 29 mm; round, longitudinal and spiral cut
Inner blade: adjustable in steps of 0.1 mm + exchangeable
Features: The cable knife was specially developed for cables with an outer diameter of up to 29 mm. It is especially suitable for spiral cutting. The spiral cut makes it easy to remove even difficult insulation. In addition to the spiral cut, the cable knife can be used to make circular and longitudinal cuts. Stripping work on cables with an outer diameter of 4.5 mm - 29 mm is possible. The blade depth can be comfortably and precisely adjusted from 0 to 3 mm in 0.1 mm steps by means of a lockable rotary knob. Underlying layers are not damaged. The ergonomic electrician's tool has a blocking system that prevents the longitudinal cut setting from opening and thus the blade from breaking off. Special sliding properties of the tool on the contact surface guarantee resistance-free work on a wide range of cable types. The tool is used in electrical engineering | industry | handicrafts | DIY.
Safety and health: Working with stripping tools is only permitted on potential-free, non-energised cables and wires.
QUALITY - The tool was developed with work safety in mind. The blades are made of high-quality knife steel and have a special grind for clean removal of the outer sheath.
TOOLS Cable Knife No. 4-29 Spiral | Stripping Tool for Spiral Cut | Round Cut |
Longitudinal Cut Application: - Unlock the stripping tool by turning the adjusting ring to the symbol round cut - clamp the tool to the cable by means of spring force - Adjust the blade cutting depth by turning the knob clockwise. - Place the tool on the marking of the stripping length and make the circular cut. - Change the setting ring to the spiral cut symbol and perform the operation - for longitudinal cut: set the adjusting ring to the symbol longitudinal cut and pull the tool axially in longitudinal direction. - ready!
Technical data: Cable
type: cable with an outer sheath thickness of up to 3 mm
Range of application: Outer diameter 4.5 - 29 mm; round, longitudinal and spiral cut
Inner blade: adjustable in steps of 0.1 mm + exchangeable
Features: The cable knife was specially developed for cables with an outer diameter of up to 29 mm. It is especially suitable for spiral cutting. The spiral cut makes it easy to remove even difficult insulation. In addition to the spiral cut, the cable knife can be used to make circular and longitudinal cuts. Stripping work on cables with an outer diameter of 4.5 mm - 29 mm is possible. The blade depth can be comfortably and precisely adjusted from 0 to 3 mm in 0.1 mm steps by means of a lockable rotary knob. Underlying layers are not damaged. The ergonomic electrician's tool has a blocking system that prevents the longitudinal cut setting from opening and thus the blade from breaking off. Special sliding properties of the tool on the contact surface guarantee resistance-free work on a wide range of cable types. The tool is used in electrical engineering | industry | handicrafts | DIY.
Safety and health: Working with stripping tools is only permitted on potential-free, non-energised cables and wires.
