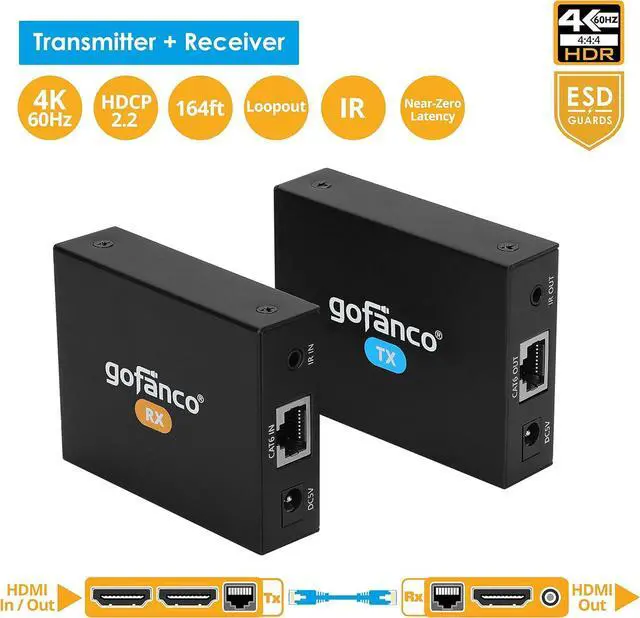

4K HDMI Extender Balun Over CAT6/7 164ft @4K, 230ft @1080p, 4K @60Hz YUV 4:4:4, HDR, 18Gbps, HDCP 2.2, Loopout, IR Passthrough, 5.1ch Audio, Near Zero Latency (HD20Ext-BSC)

ADVANCED FEATURES IR passthrough, near-zero latency, Lightning/Surge/ESD protection
SIMPLE INSTALLATION No software is required. Surface mountable metal housing provides durability and higher level of RF/EMI shielding; FCC, CE & RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, visit our website or click on our name in the buy box and select "Ask a Question"



4K@60Hz HDMI EXTENDER

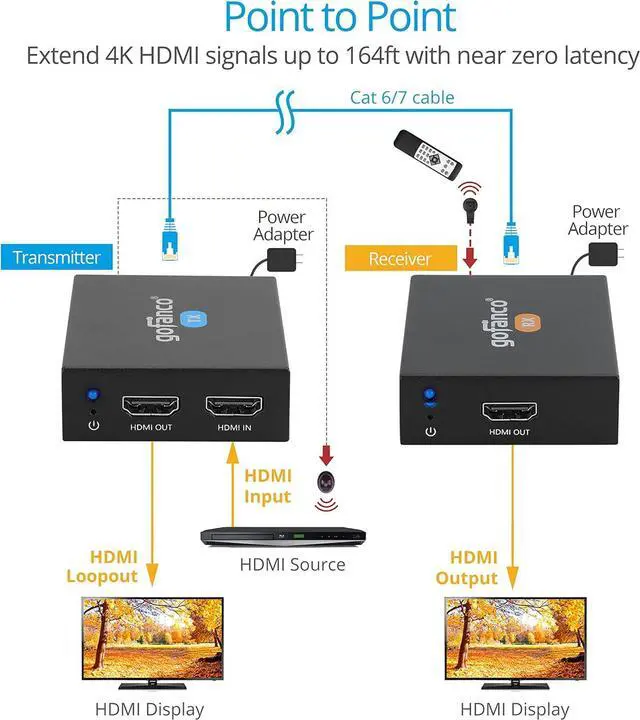

Extends HDMI audio/video signals over one cost effective CAT6/7 cable at near zero latency.
HDMI audio formats: Supports Dolby Digital 5.1 ch/Dolby Atmos/ DTS Audio/DTS-HD/LPCM HDMI LOOPOUT

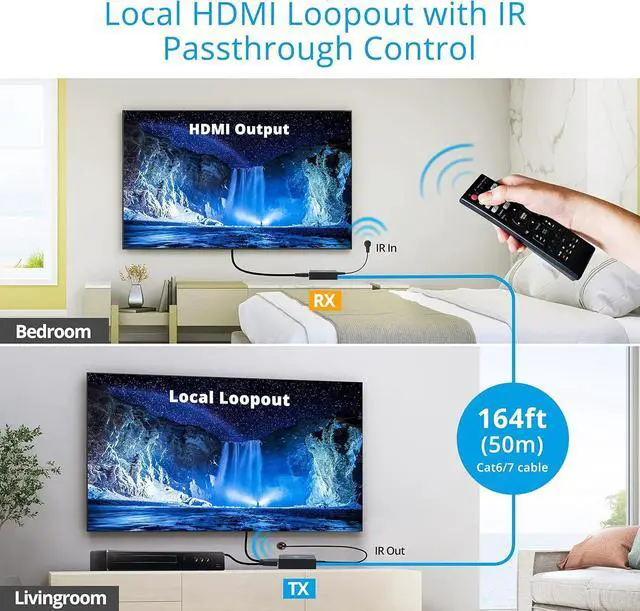

Additional HDMI output on the Transmitter to connect to a local display for monitoring of the extended display; One-way IR passthrough
-
Allow remote control of the device RESOLUTION & TRANSMISSION
Supports up to 4K @60Hz YUV 4:4: 4, HDR10, HDCP 2.2, 18Gbps. Extends up to 164ft (50m) at 4K/60Hz & 230ft (70m) at 1080p over
CAT6/7. *Note:
HDR10+ and Dolby Vision are NOT supported AUTO DOWNSCALING

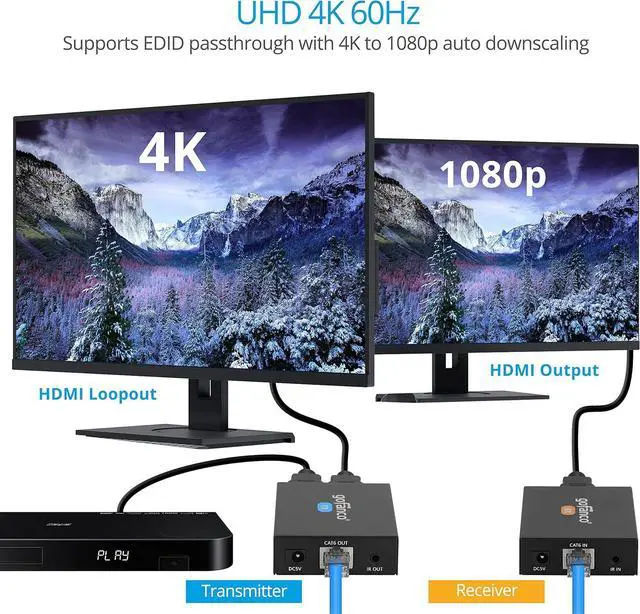

- Support EDID passthrough, simultaneous 4K (on TX) & 1080p (on RX) outputs via downscale
SpecificationsHDMI 2.0 compliant, HDCP 2.2
Bandwidth: 18Gbps, Supports
4K @60Hz ( 4:4: 4 8-bit)
Supports HDR10 4K @60Hz (
4:2: 0 10-bit)
HDMI audio formats: Supports Dolby Digital 5.1 ch/Dolby Atmos/ DTS Audio/DTS-HD/LPCM
Transmission range: 164ft (50m) at 4K/60Hz & 230ft (70m) at 1080p
One-way IR passthrough

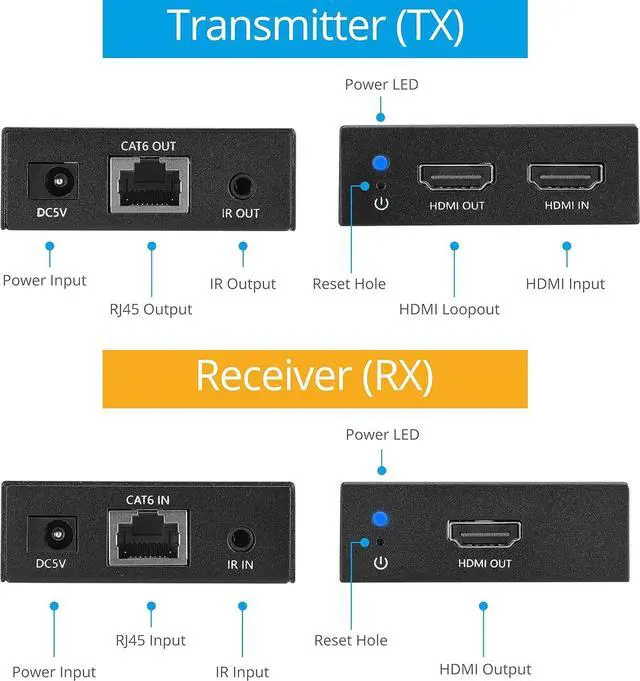

Additional HDMI output on the Transmitter (loopout) to connect to a local display for monitoring of the extended display
Lightning/Surge/ESD protection
SIMPLE INSTALLATION

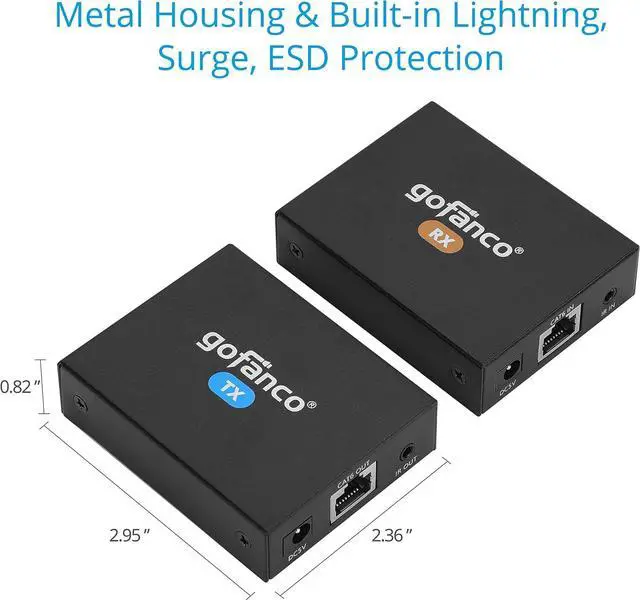

No software is required. Surface mountable metal housing provides durability and higher level of RF/EMI shielding, Built-in Lightning/Surge/ESD protection
