TRMS 20000 Counting Digital Voltmeter with NCV Function, Auto Multimeter Tester, Measurement of Voltage, Current, Resistance, Diode, Temperature, Car Dwell Angle, Engine Speed, Pulse Width
- Multifunctional Multimeter Tester - With a sampling speed of 2/s, the digital multimeter can accurately measure 10A AC/DC, 750V AC voltage, 1000V DC voltage, 60M resistance, capacitance, diode, continuity, live line identification and temperature and automotive pulse width, dwell angle, engine speed, all on one device.
- Non-Contact Voltage Test - Completely safe non-contact voltage test (NCV) with audible alarm. No test leads are required to measure voltage, making circuit troubleshooting easier and safer. You can also use a voltage tester as a backup.

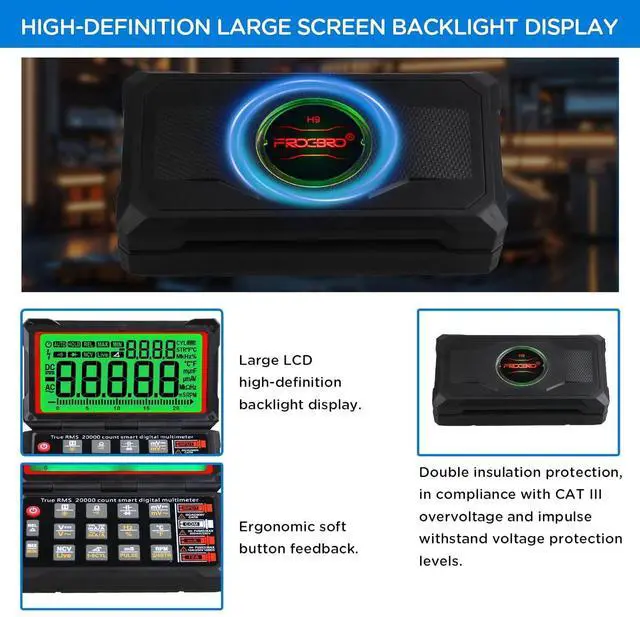

- No Fear of Dim Environment - The backlit high-definition large LCD screen ensures easy use in dimly lit areas. The voltmeter also supports data hold, auto shutoff, low battery indicator, and maximum value, all these convenient features make measurement work easier and more accurate.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Safe & Durable - IEC-rated CAT III 1000V, CE certified, FROGBO true 20000 RMS multimeter tester has full range overload protection, anti-burn double ceramic fuse and thermistor protection circuit, double insulation device, safer and more reliable. The silicone protective shell prevents the voltage tester from falling damage and electric shock.
Wide Application - A digital multimeter tester is designed for solving household, industrial, automotive, or other electrical problems. Whether you are a DIY enthusiast, amateur, or professional, this multimeter is a great assistant for home or commercial improvements. (Note: When testing the continuity of the circuit, you should make sure that the circuit power is disconnected and the capacitors on the circuit are fully discharged)

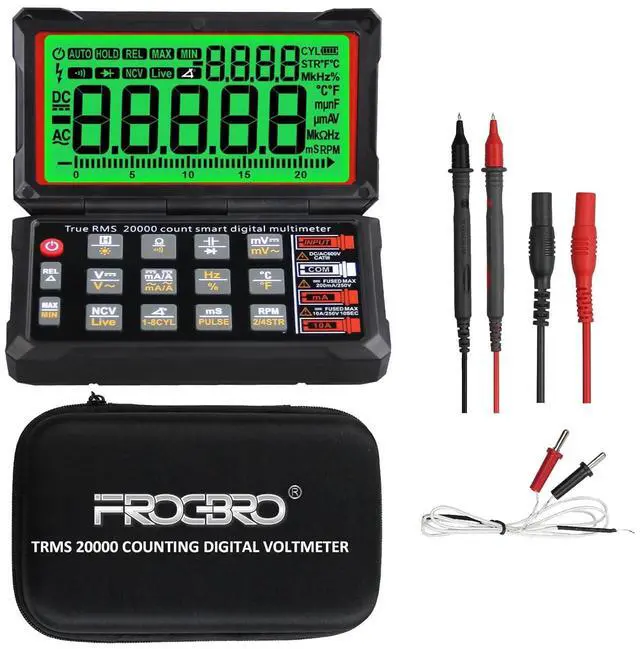

Satisfaction Guarantee - provides 24 months after-sales service and lifetime technical support, even if it exceeds the return time. If you have any questions, please feel free to contact us. The package contains a multimeter, test leads, temperature probe, storage bag, and user manual.
Three major measurement tools MULTI-PURPOSE 20000-COUNT MULTIMETERTemperature, Conventional circuit, Automotive circuit
Supports non-contact voltage measurement
CONVENTIONAL CIRCUIT, TEMPERATURE, AUTOMOTIVE DATA DETECTION

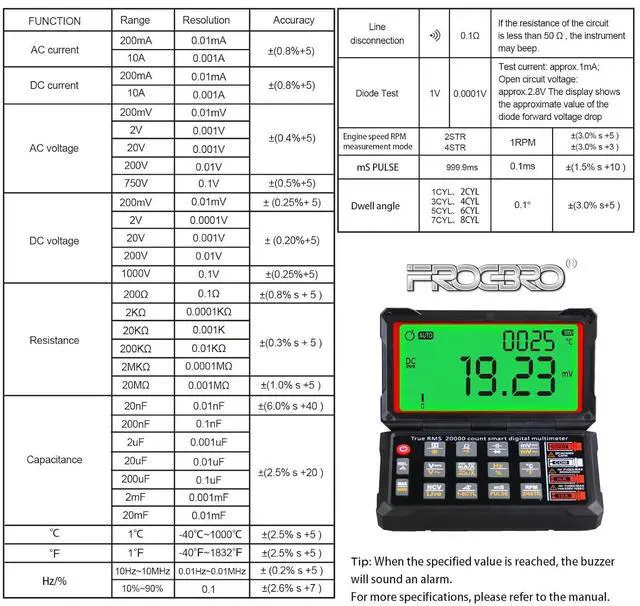

DETAILED PARAMETER SUPPORT
PRECAUTIONS Note:
1. When the current is unknown, measure it in the 10A range first. If it is less than 200mA, measure it in the mA range to avoid damaging the meter.
2.
DC/AC mV measurement mode: When the measured signal is <200mV, the meter will display the current measured DC voltage value. When the measured signal is > 200mV, the meter will display "OL".
3. the LCD will display "OL" over-range status when the input is open.
4. If measuring resistance above 10M, the meter may take a few seconds to stabilize the reading, which is normal for high resistance readings.
(For more parameters, please read the instructions carefully)
NOTE: DON'T USE THE DEVICE WHILE CHARGINGDisplay
Backlight/Primary color
Usage Scenarios
Conventional circuits/Hazardous live conductors
Protection Level
Double insulation protection (Class II)
License
IEC-61010-1 (installation) Class II
Implementation Standards
Conforms to EU standards.
Test Lead Rating
1000V 10A
Wide Application - A digital multimeter tester is designed for solving household, industrial, automotive, or other electrical problems. Whether you are a DIY enthusiast, amateur, or professional, this multimeter is a great assistant for home or commercial improvements. (Note: When testing the continuity of the circuit, you should make sure that the circuit power is disconnected and the capacitors on the circuit are fully discharged)
Satisfaction Guarantee - provides 24 months after-sales service and lifetime technical support, even if it exceeds the return time. If you have any questions, please feel free to contact us. The package contains a multimeter, test leads, temperature probe, storage bag, and user manual.
Three major measurement tools MULTI-PURPOSE 20000-COUNT MULTIMETERTemperature, Conventional circuit, Automotive circuit
Supports non-contact voltage measurement
CONVENTIONAL CIRCUIT, TEMPERATURE, AUTOMOTIVE DATA DETECTION
DETAILED PARAMETER SUPPORT
PRECAUTIONS Note:
1. When the current is unknown, measure it in the 10A range first. If it is less than 200mA, measure it in the mA range to avoid damaging the meter.
2.
DC/AC mV measurement mode: When the measured signal is <200mV, the meter will display the current measured DC voltage value. When the measured signal is > 200mV, the meter will display "OL".
3. the LCD will display "OL" over-range status when the input is open.
4. If measuring resistance above 10M, the meter may take a few seconds to stabilize the reading, which is normal for high resistance readings.
(For more parameters, please read the instructions carefully)
NOTE: DON'T USE THE DEVICE WHILE CHARGINGDisplay
Backlight/Primary color
Usage Scenarios
Conventional circuits/Hazardous live conductors
Protection Level
Double insulation protection (Class II)
License
IEC-61010-1 (installation) Class II
Implementation Standards
Conforms to EU standards.
Test Lead Rating
1000V 10A
