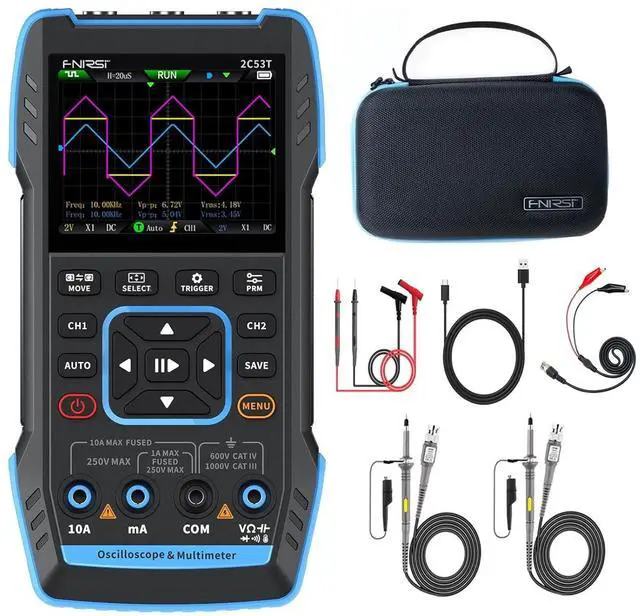

FNRSI Newest Upgraded 2C53T with 2 P6100 Probe 3In1 Oscilloscope/Multimeter/DDS Signal Generator 50MHz Bandwidth 250MS Sampling Rate 20000 Count RMS for Voltage, Current, Capacitor, Resistor, Diode
- LATEST VERSION OF FNIRSI FAMILYAmong all the combined 3in1 oscilloscopes of FNIRSI family, the 2C53T is the newest and most advanced version. It has upgraded from 2C23t and has not only improved its bandwith from 10Mhz to 50Mhz, but also improved the sampling rate from 50MS/s to 250MS/s.

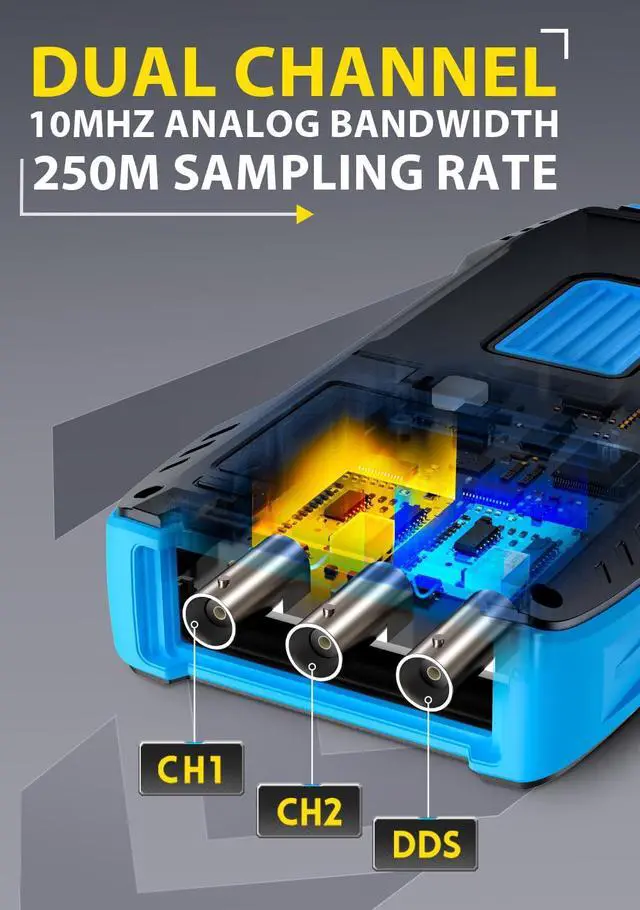

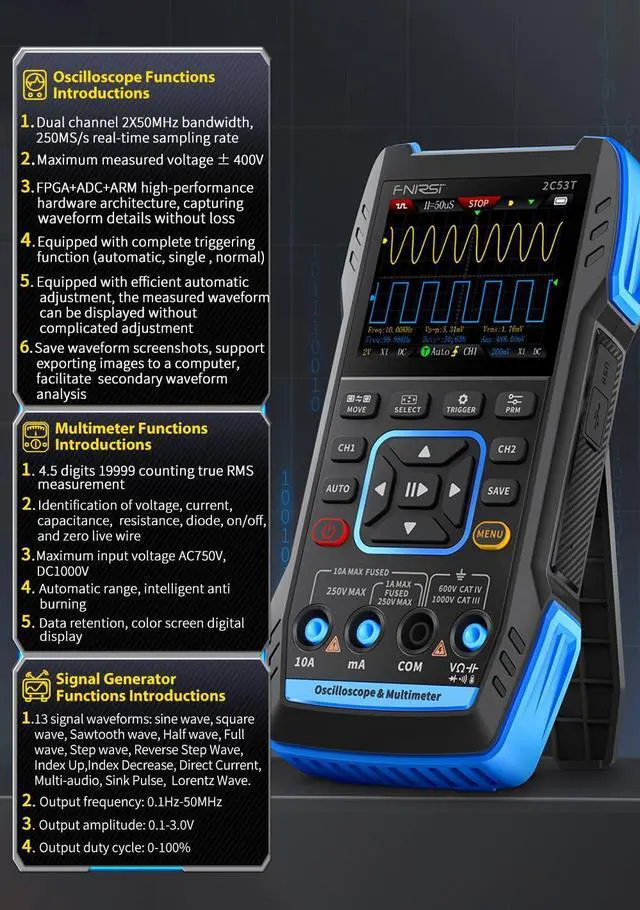

- DUAL CHANNEL OSCILLOSCOPE MODE50 MHz bandwidth, 250 MSa/s sampling rate, 1 Kpts record depth, automatic measurement function, vertical sensitivity 10mV/div-10V/div. The FNIRSI 2C53T supports peak voltage measurements up to ±400V and also supports waveform image storage and export.

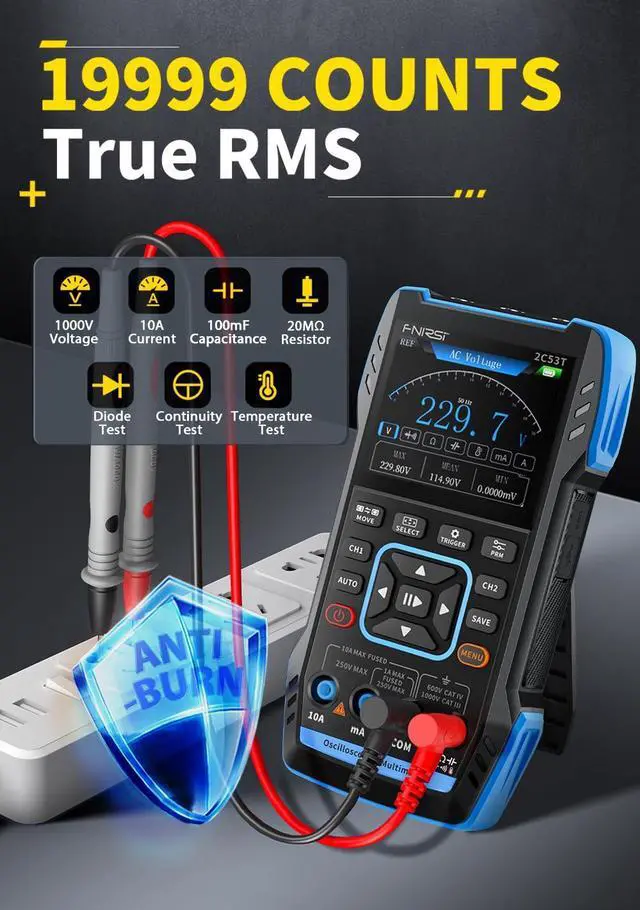

- 4.5-Digit 19999 COUNTS DIGITAL MULTIMETER MODEThe multimeter mode is good enough for professionals. It offers 4.5 digits with 19999 counts true RMS, supporting AC/DC voltage and current measurements, as well as capacitance, resistance, diode, and continuity measurements. AC Voltage: 0-750 V, DC Voltage: 0-999.9 V, DC/AC Current: 0-9.999 A, Resistance: 0-19.99 M, Capacitance: 0-99.99 mF.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

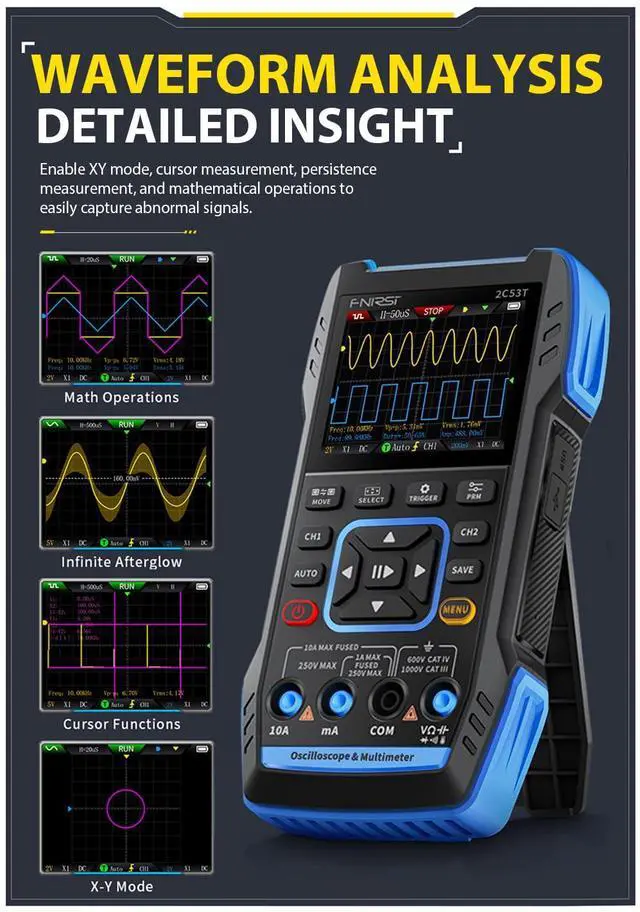

DDS SIGNAL GENERATOR MODE The built-in DDS function signal generator can output 13 types of function signals, with a maximum output frequency of 50KHz and a step size of 1Hz. The output frequency, amplitude, and duty cycle are adjustable. It supports advanced functions such as XY mode, cursor measurement, persistence measurement, mathematical operations, etc., making it easy to capture abnormal signals.

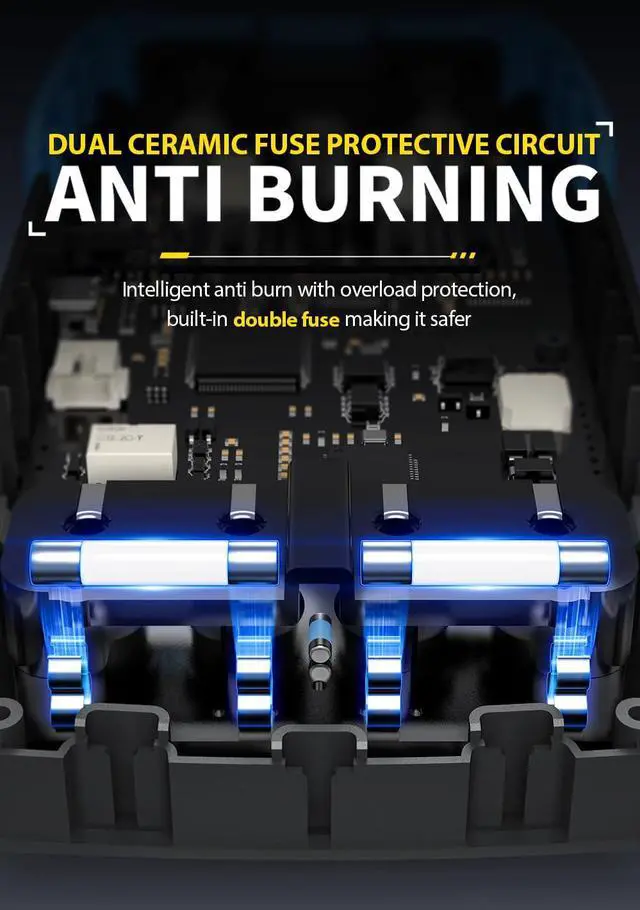

EXQUISITE DESIGN WITH LARGE CAPACITY BATTERYThe 2C53T adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, adopts 2.8 inch LCD display, built-in 3000mAh battery. It can be used for 6 hours after fully charged.
2C53T ISPOWERED BY FNIRSI AND IS THE LATEST AND MOST ADVANCED NON-TOUCH -SCREEN OSCILLOSCOPEAMONG FNIRSI FAMILY
UPGRADED FROM 2C23T, THE 2C53T HAS IMPROVED ITS FUNCTIONS IN ALL ASPECTS
MATH OPERATIONS
CURSOR FUNCTIONS
INFINITE AFTER GLOW
X-Y MODE
PWM PULSE MEASUREMENT
POWER SUPPLY RIPPLE MEASUREMENT
CRYSTAL OSCILLATOR MEASUREMENT
MAINS POWER MEASUREMENT
THE FNIRSI 2C53T HAS DDS SIGNAL GENERATOR, SUPPORTING OUTPUTING 13TYPES OF FUNCTION SIGNALS, WITH A MAXIMUM OUTPUT FREQUENCY OF 50kHZ AND A STEP SIZE OF 1HZ.
THE 2C53T CAN BE USED FOR TESTING AC, DC VOLTAGE, SMALLHIGH CURRENT, RESISTANCE, CAPACITANCE, DIODE, TEMPERATURE, ETC
EXQUISITE DESIGN WITH LARGE CAPACITY BATTERYThe 2C53T adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, adopts 2.8 inch LCD display, built-in 3000mAh battery. It can be used for 6 hours after fully charged.
2C53T ISPOWERED BY FNIRSI AND IS THE LATEST AND MOST ADVANCED NON-TOUCH -SCREEN OSCILLOSCOPEAMONG FNIRSI FAMILY
UPGRADED FROM 2C23T, THE 2C53T HAS IMPROVED ITS FUNCTIONS IN ALL ASPECTS
MATH OPERATIONS
CURSOR FUNCTIONS
INFINITE AFTER GLOW
X-Y MODE
PWM PULSE MEASUREMENT
POWER SUPPLY RIPPLE MEASUREMENT
CRYSTAL OSCILLATOR MEASUREMENT
MAINS POWER MEASUREMENT
THE FNIRSI 2C53T HAS DDS SIGNAL GENERATOR, SUPPORTING OUTPUTING 13TYPES OF FUNCTION SIGNALS, WITH A MAXIMUM OUTPUT FREQUENCY OF 50kHZ AND A STEP SIZE OF 1HZ.
THE 2C53T CAN BE USED FOR TESTING AC, DC VOLTAGE, SMALLHIGH CURRENT, RESISTANCE, CAPACITANCE, DIODE, TEMPERATURE, ETC
