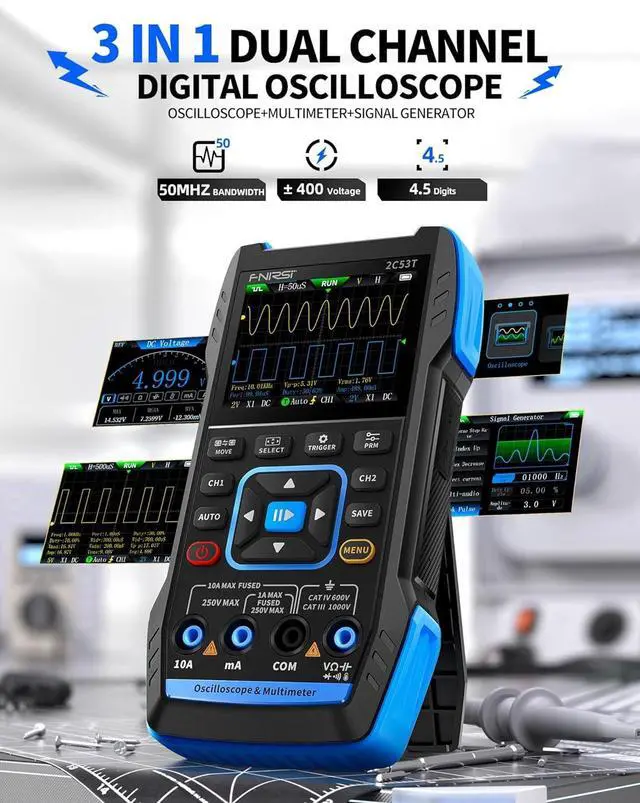

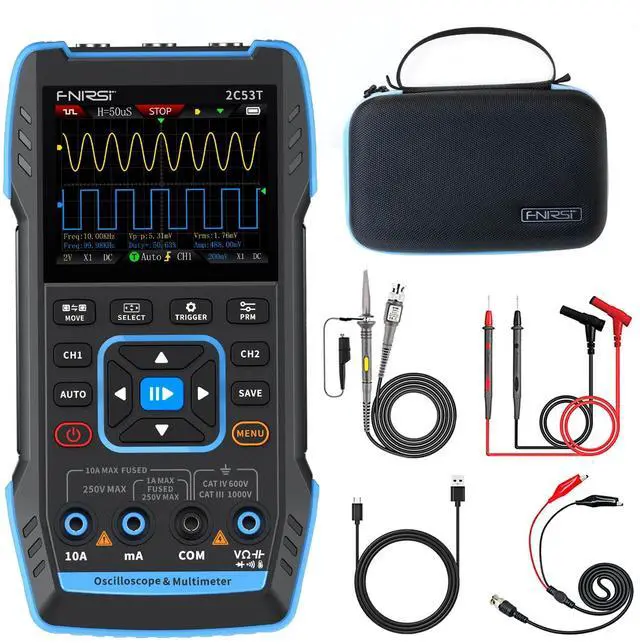

2C53T Upgraded Handheld Oscilloscope, 50MHz Bandwidth, 250MS/s Sampling Rate, 20000 Counts, 3IN1 Digital Oscilloscope Multimeter DDS Generator, Voltage, Current, Capacitor, Resistor, Diode Test

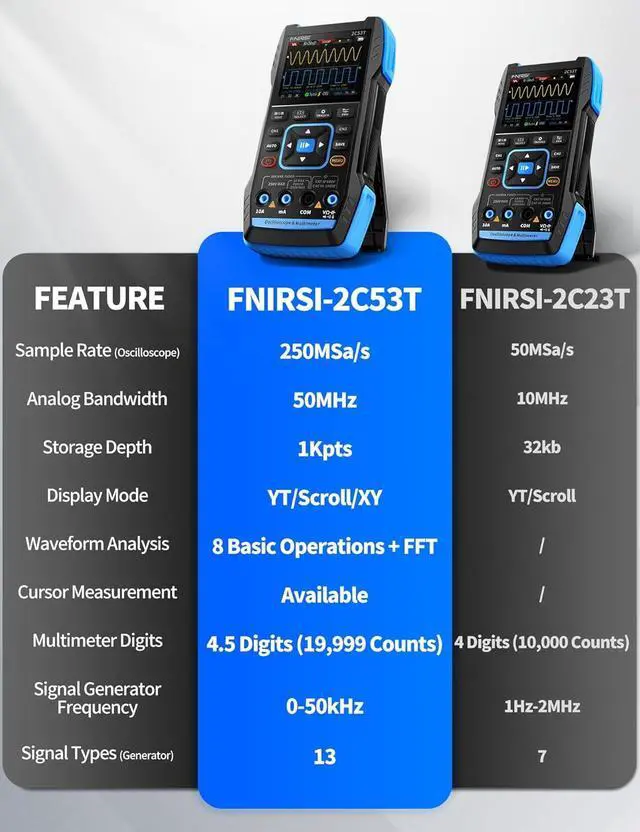

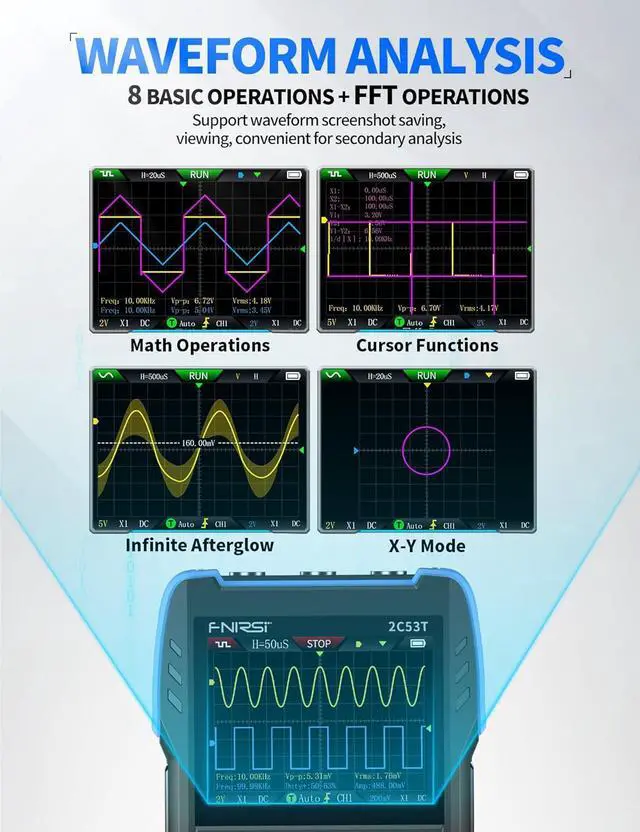

- Newly VersionThe 2C53T is an upgraded version of the 2C23T, which improves the measuring range and adds math operationcursor measurementpersistence modeXY mode features

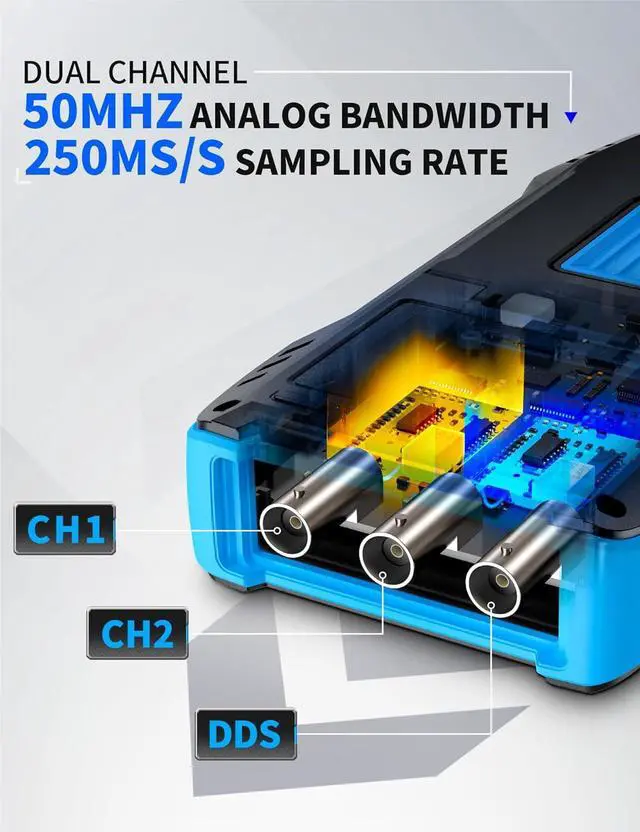

- 2 Channel Oscilloscope50 MHz bandwidth, 250 MSa/s sampling rate, 1 Kpts record depth, automatic measurement function, max voltage 400 V, vertical sensitivity 10mV/div-10V/div , support waveform image storage and export

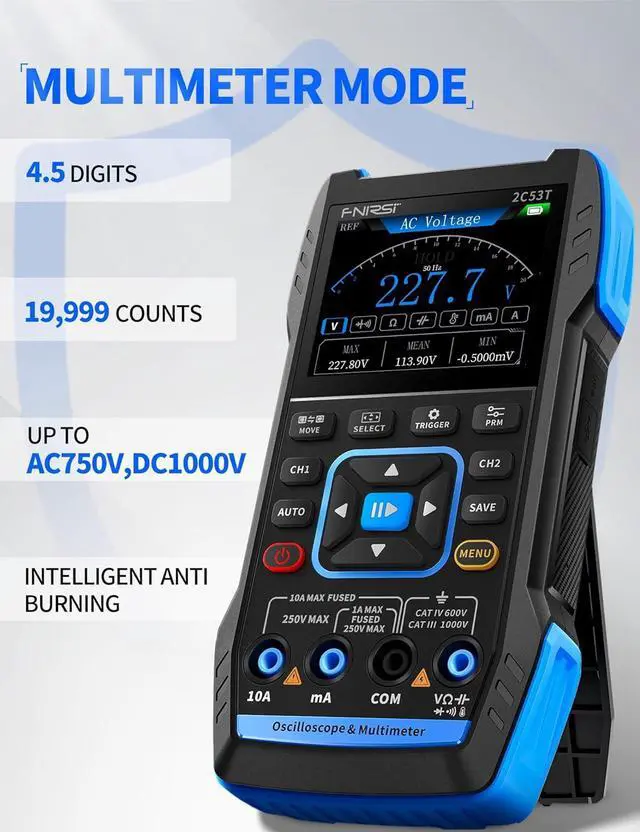

- 4.5-Digit 20000 Counts MultimeterAC Voltage: 0-750 V, DC Voltage: 0-999.9 V, DC/AC Current: 0-9.999 A, Resistance: 0-19.99 M, Capacitance: 0-99.99 mF, Continuity Measurement. Multi-function meter for professionals, schools and hobbyists
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

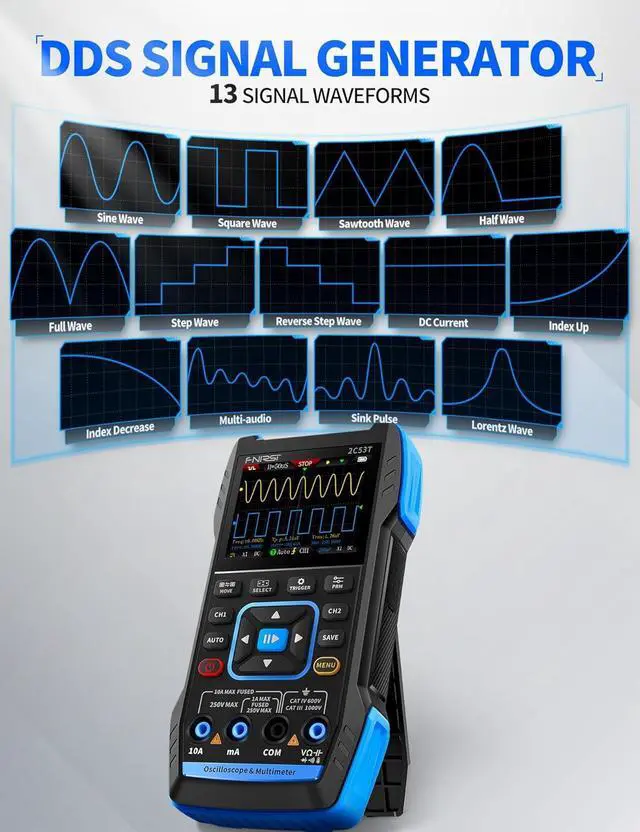

Signal GeneratorThe maximum waveform output frequency can reach 50 kHz and a step of 1 Hz, and can output 13 waveforms
Save functionone-click save, screening function. You can upload the saved image by connecting to PC via Type-C. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen
Excellent DesignThe Oscilloscope adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, adopts 2.8 inch LCD display, built-in 3000 mAh Li-ion battery, standby time up to 6 H, Type-C interface supports 5 V/1 A charging
2C53T Oscilloscope Kit Merchant Video
2C53T Oscilloscope
Save functionone-click save, screening function. You can upload the saved image by connecting to PC via Type-C. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen
Excellent DesignThe Oscilloscope adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, adopts 2.8 inch LCD display, built-in 3000 mAh Li-ion battery, standby time up to 6 H, Type-C interface supports 5 V/1 A charging
2C53T Oscilloscope Kit Merchant Video
2C53T Oscilloscope
