    DC Clamp Meter 1mA Current True RMS Auto-Ranging 6000 Counts Digital Multimeter Hz Temp Cap Ohm Live Check V-Alert Low Impedance Voltage Tester with Back Clip

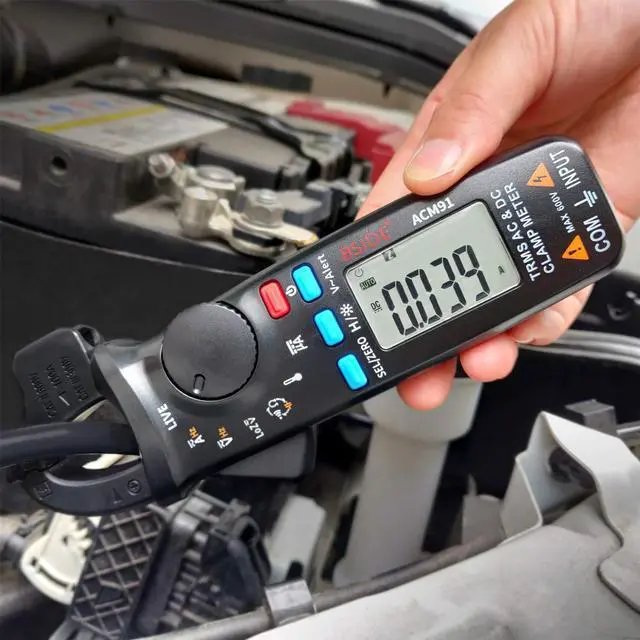

    • [1mA Resolution]: Delivers 1mA AC/DC resolution and sensitivity, which make it a great a tool for measuring such as parasitic draws.

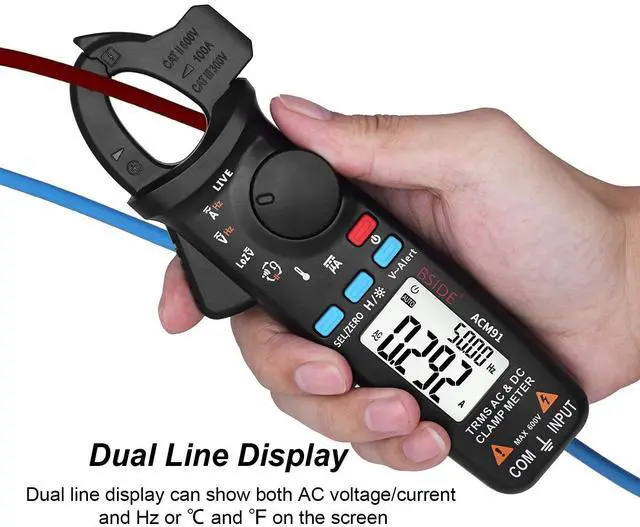

    • [Dual Line Display]: Dual line display can show both AC voltage/current and frequency or Celsius and Fahrenheit on the screen.
    • [Low Impedance Mode]: Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    [Activate V-Alert at

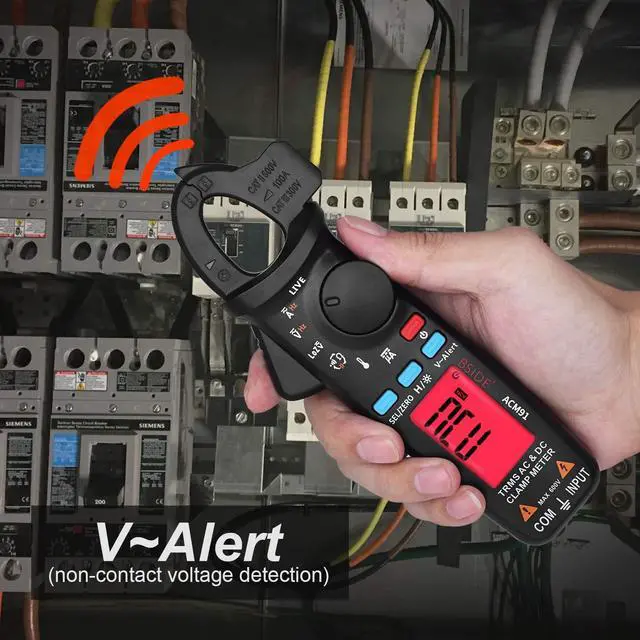

    Any Function]: V-Alert function can be activated at any function not only greatly enhance testing experience, but also let you not worry voltage detector consumes too much space.
    [Back Clip]: Back clip make it more portable, hang on your belt or pocket.
    The readings will be influenced by earth's magnetic field because the clamp meter is use the Hall effect sensor to detect dc currents. We suggest you measure dc current as the follow suggestions. 1) Zero out the readings before each measurement. 2) Once you zero out the meter, hold the meter in the same orientation when taking readings. Don't tilt it, twist it, or rotate it. Otherwise, changing the orientation of the meter can give false readings due to different magnetic field strengths of the earth when the meter is oriented differently after it's been zeroed. 3) Measures the dc current within 3 seconds, and you will get a accurate results.


    Features:
    Measure AC/DC current (minimum 1mA by jaws)
    Measure microamps A (minumum 0.1A by terminals)
    Measure AC/DC voltage

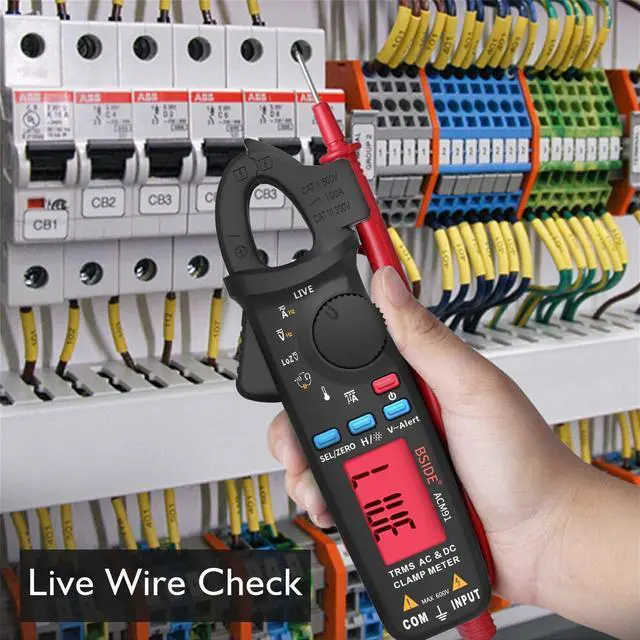

    V-alert measurement, live-wire check
    Measure frequency, temperature, resistance, continuity and capacitance
    Low impedance voltage measurement
    Clamp on frequency function
    Auto range, Auto power off, data hold, low battery indication with backlight
    Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards
    Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree II



    Specifications

    :
    Display: 6000 counts
    DC current: 6A/60A/100A 0.001A / 0.01A / 0.1A ±( 3.0 %+5counts)
    DC current (A): 0-200A 0.1A ±( 0.8 %+5counts)
    AC current: 6A/60A/100A 0.001A / 0.01A / 0.1A ±( 2.5 %+5counts)
    DC voltage: 6V/60V/600V 0.001V / 0.01V / 0.1V ±( 1.0 %+3counts)
    AC voltage: 6V/60V/600V 0.001V / 0.01V / 0.1V ±( 1.0 %+3counts)
    Low impedance LOZ: Max 600V Resolution 0.1V
    Resistance:
    600/6k/60k/600k/6M 0.1 / 0.001K / 0.01K / 0.1K / 0.001M ±( 1.0 %+3counts)
    60M 0.01M ±( 1.2 %+20counts)
    Capacitance: 600µF/6000µF 0.1 µF/1µF ±( 4.0 %+3counts)
    Frequency: 60Hz/1000Hz 0.1H z/1Hz ±( 1.0 %+5counts)
    Frequency (by jaws): 60Hz/1000Hz 0.1H z/1Hz ±( 1.0 %+5counts)
    Buzzer: If the resistance is less than 30, the continuity beeper sounds
    Temperature: -20~500 1/2 ±( 2.0 %+2counts)
    Jaw Capacity: 20mm
    Power: 1.5V (AAA) x 2
    Size: 179 x 67 x 36 mm
    Weight: 137g

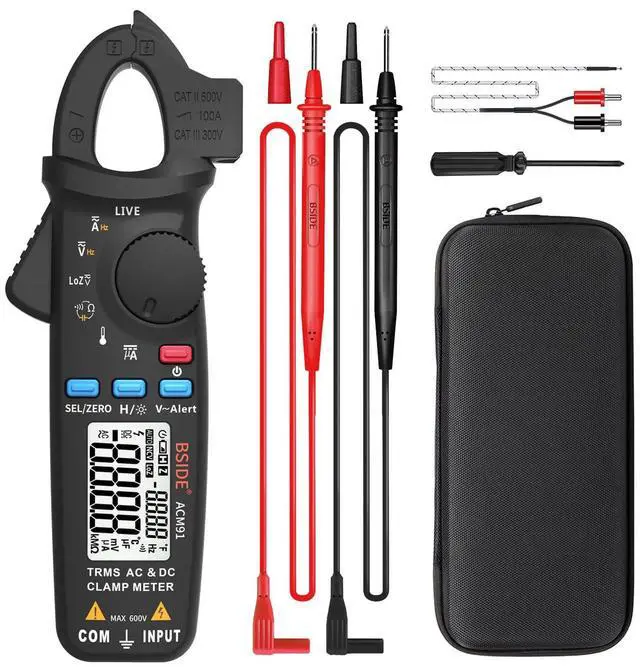

    Package Includes:
    1 x Clamp Meter
    1 x Test Leads
    1 x Thermocouple
    1 x Carrying Case
    1 x Screwdriver
    1 x User Manual

    Note:
    The batteries are not included in the package due to Aviation Security Check
