BSIDE Thermal Imaging Camera Multimeter 320×320 Resolution With 20000 Words Multimeter Function 3.98'' Touchscreen 25Hz Infrared Thermal Camera (-20-1300) 15 Thermal Palettes TRMS Auto-Ranging Tester

20,000 Word Multimeter: Digital multimeter features a high precision four and a half digit with spike mode. Flexible operation, can be used in a variety of measurement scenarios. Real-time measure AC and DC voltage 750V/1000V resistance capacitance diode temperature and all support stopping or recalculating the max and min average values.
With Macro Lens: We have added a macro lens to this SH7 to get a clearer view of close circuit boards and more. With a macro lens is more suitable for circuit board repair.



Features:

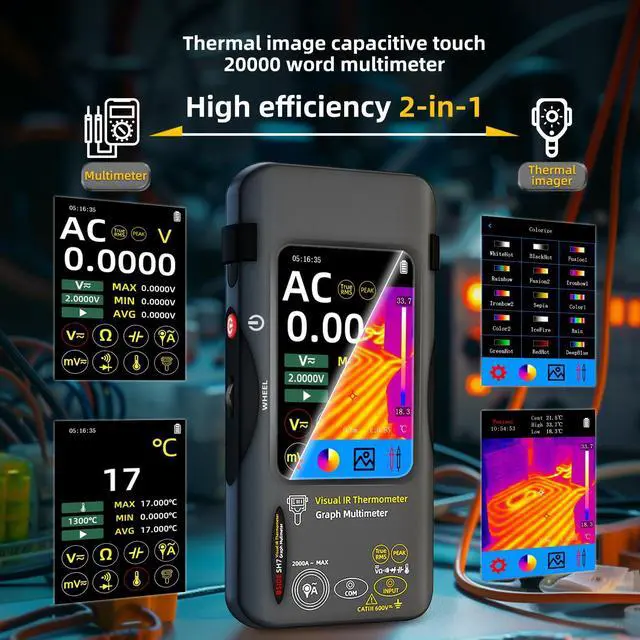

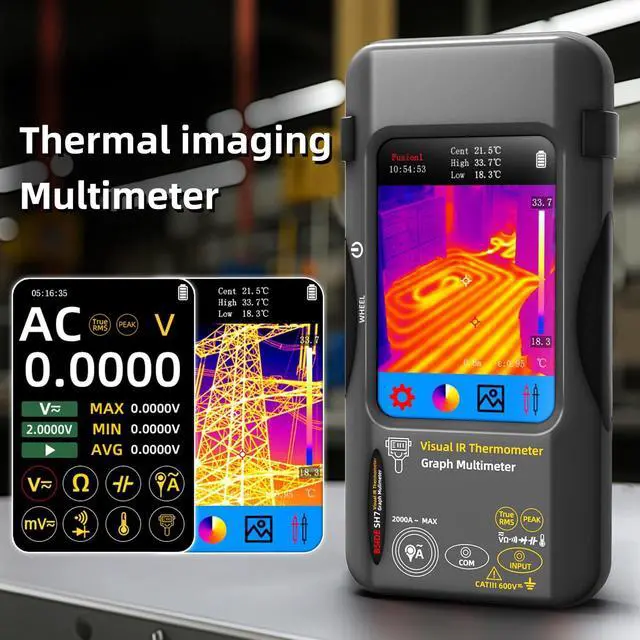

2-in-1 thermal imaging camera multimeter:
320×320 Infrared Thermal Camera

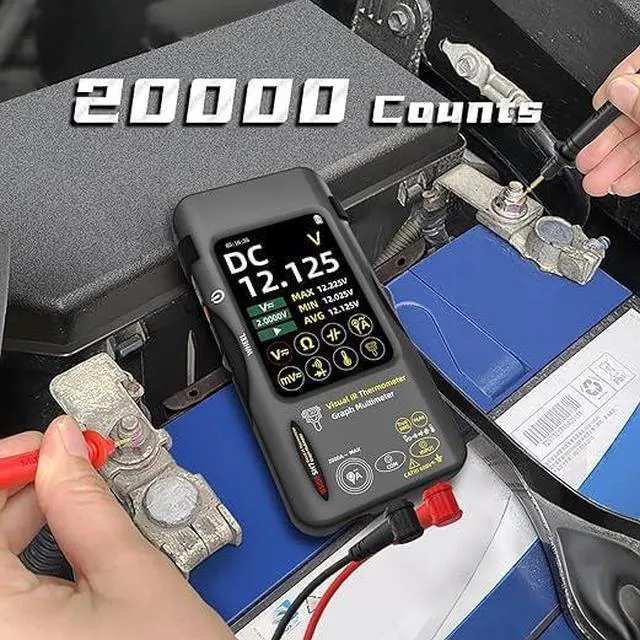

20000 Count Digital Multimeter
Comes with a macro lens for a clearer view of board details.

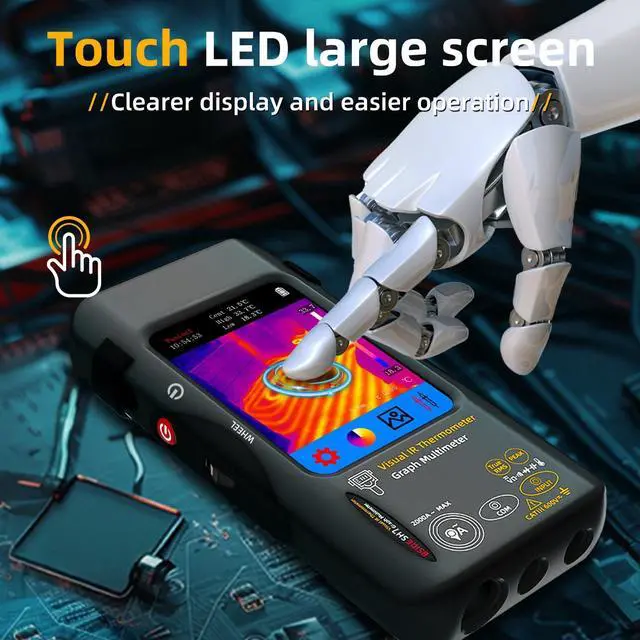

3.98-inch full viewing angle visual touch screen
Display the high/low/center temperature
Temperature alarm/warning thresholds can be set, font color alarms
7 language settings: Chinese, English, Japanese, German, Spanish, French, Italian (Russian can be added)
Adjustable emissivity, adjustable backlight, adjustable time and date
Adjustable auto shut-off time, adjustable temperature measurement unit //K
With 15 Thermal Palettes, 2500mAh rechargeable Li-ion battery
Can be used with a flexible current coil to test 2000A AC current.
Thermal imaging camera and multimeter interface can be screenshotted and data can be transferred to a PC for analysis


Specification:
Thermal Camera Mode:

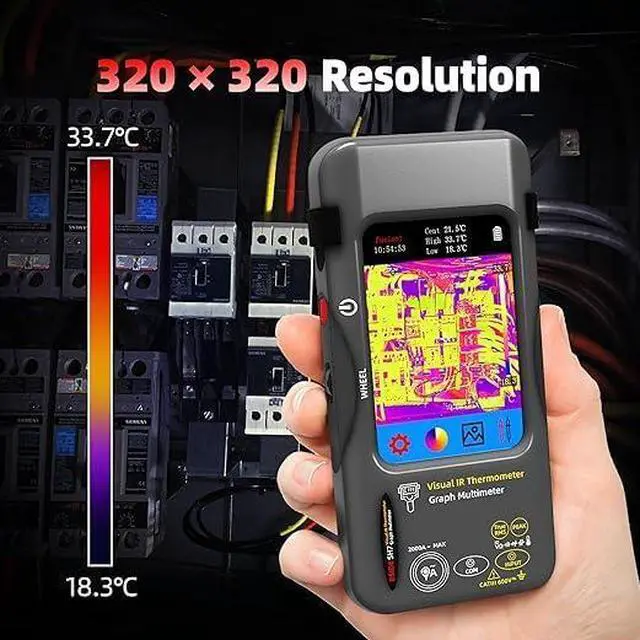

Thermal Image:320x320 Resolution
Sensor Type: Vanadium Oxide (VOx) Microbolometer
Response Band: 8-14pm
Noise Equivalent Temperature Difference (NETD): 60mK(@25,F#1.0)
Spatial resolution (IFOV): 8.89mrad
Frame rate: 25Hz
Imaging lens focal length: 1.35mm
Temperature measurement resolution: 0.1
Temperature measurement focal length: 0.3m-3m adjustable
Temperature range: -20~1300(-4°~2372°F)/0.1.
Temperature measurement unit: degrees Celsius, degrees Fahrenheit, Kelvin
15 kinds of color palettes: white heat, black heat, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, sepia, color 1, color 2, ice and fire, rain, green heat, red heat, dark blue
Display resolution: 320*320
Image storage: 30000 pictures
Multimeter mode:
DC Voltage (V):
2.0000V/0.0001V/±(0.05%+3)
20.000V/0.001V/±(0.05%+3)
200.00V/0.01V/±(0.5%+3)
1000V/0.1V/±(0.5%+3)
DC Voltage (mV):
20.000mV/0.001mV/±(0.1%+3)
200.00mV/0.01mV/±(0.1%+3)
AC Voltage (V):
2.0000V/0.0001V/±(0.5%+3)
20.000V/0.001V/±(0.5%+3)
200.00V/0.01V/±(0.5%+3)
750V/0.1V/±(0.5%+3)
AC Voltage (mV):
20.000mV/0.001mV/±(0.5%+3)
200.00mV/0.01mV/±(0.5%+3)
Resistances:
200.00/0.01/±(0.5%+3)
2.0000k/0.0001k/±(0.2%+3)
20.000k/0.001k/±(0.2%+3)
200.00k/0.01k/±(0.2%+3)
2.0000M/0.0001M/±(1.0%+3)
20.000M/0.001M/±(1.0%+3)
200.00M/0.01M/±(5.0%+5)
Capacitors:
999.99nF/0.01nF/±(5.0%+5)
9.999uF/0.001F/±(2.0%+5)
999.99uF/0.01F/±(2.0%+5)
99.999mF/0.001mF/±(5.0%+10)
Flexible Current Clamp AC Current:
200.0A/0.1A
2000A/1A
Temperature:
(-20~1300)/1/±(2.0%+5)
(-4~2372)/1/±(2.0%+5)
Diodes: Yes
Continuity: Yes

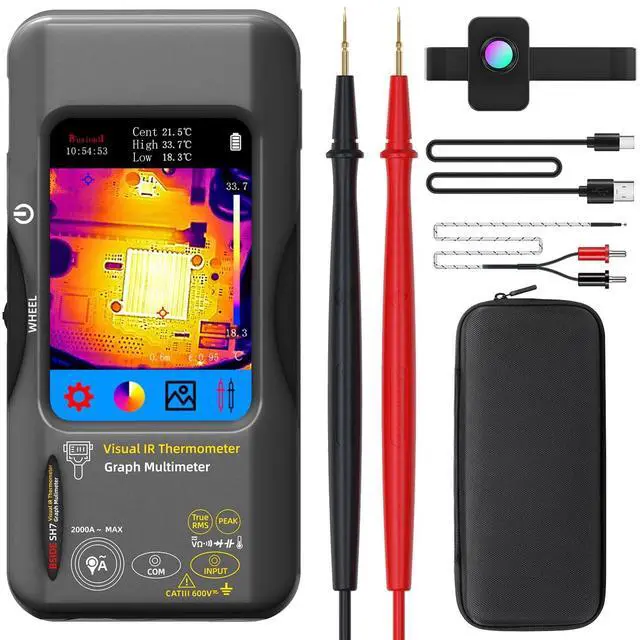

Package content:
1×Thermal imaging camera multimeter
1×Macro Lens
1 x thermocouple
1×Test Leads
1×Storage bag
1 x Charging Cable
1×User's Manual
