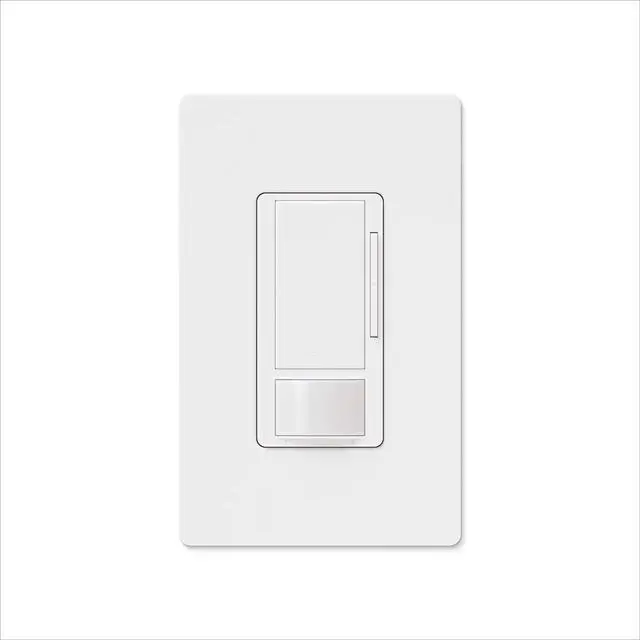

Maestro 0-10-Volt Dimmer Sensor Switch, 8A, 120-277-Volt/Single-Pole or 3-Way, Neutral Wire Optional, MS-Z101-WH, White

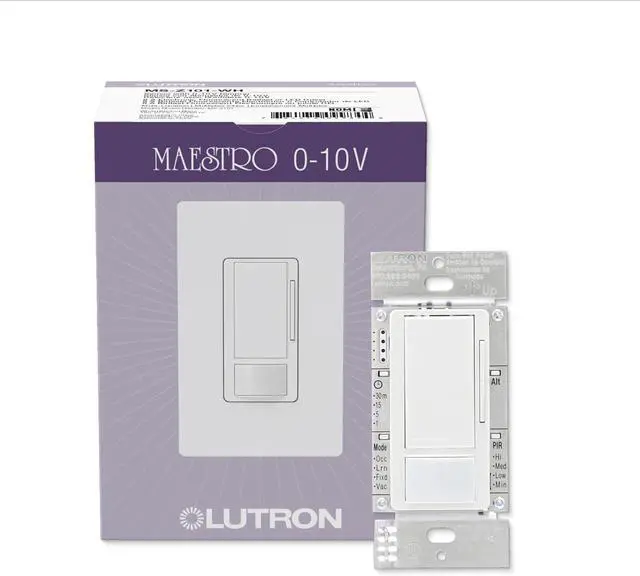

- Includes (1) maestro 0-10-Volt motion sensor/dimmer switch
- Motion sensor dimmer switch automatically turns on the lights when you enter the room and off when you leave; 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage)
- Features XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Smart ambient light detection senses daylight in the room and learns your preferred light level over time, so your lights stay off if it already bright
Customize both dimmer and sensor functions for a personalized experience adjust the sensor timeout, the dimmer low-end trim and sensor sensitivity
Single-pole/multi-location switching with maestro companion switches (ma-as) compatible with an existing mechanical 3-way switch
Can be programmed as a vacancy-only sensor to meet title 24 requirements
Rated for all drivers; up to 8A LED/ 4.4A Fan (1/6 HP) with a 50mA max sink current neutral optional
The Maestro 0-10-Volt Motion Sensor/Dimmer Switch works just like a Maestro dimmer with the addition of 's advanced motion sensing technology. The passive infrared (PIR) sensor, covered by a tamper resistant lens, detects heat from occupants moving and has a 180° field of view (900 sq. ft. major motion & 400 sq. ft. minor motion coverage. Unlike other manufacturers, sensors use Cross Correlation Technology (XCT) to also detect fine motion, such as typing at a desk or reading a book - ensuring lights won't turn off when you're still in the room.
Use the raise/lower buttons to adjust the light level for any activity or set the preset level to ensure lights always turn on to your desired light level automatically. Easily program your dimmer sensor for customization of both the dimmer and the sensor's functions, such as timeout, low-end trim and sensor sensitivity. sensors have an adjustable timeout (1, 5, 15 or 30 minutes) to control how long the lights stay on after leaving the room. The 0-10-Volt Motion Sensor/Dimmer Switch is rated to work with all drivers, up to 8 Amp LED drivers/ 4.4 Amp Fan (1/6 HP) with a 50mA max sink current.
Install in a single pole, 3-way with existing switch or with Maestro companion switches (MA-AS/MSC-AS) to switch from up to 9 locations. Available in 10+ colors. Pairs perfectly with Claro wall plates for consistent color matching (sold separately).
Customize both dimmer and sensor functions for a personalized experience adjust the sensor timeout, the dimmer low-end trim and sensor sensitivity
Single-pole/multi-location switching with maestro companion switches (ma-as) compatible with an existing mechanical 3-way switch
Can be programmed as a vacancy-only sensor to meet title 24 requirements
Rated for all drivers; up to 8A LED/ 4.4A Fan (1/6 HP) with a 50mA max sink current neutral optional
The Maestro 0-10-Volt Motion Sensor/Dimmer Switch works just like a Maestro dimmer with the addition of 's advanced motion sensing technology. The passive infrared (PIR) sensor, covered by a tamper resistant lens, detects heat from occupants moving and has a 180° field of view (900 sq. ft. major motion & 400 sq. ft. minor motion coverage. Unlike other manufacturers, sensors use Cross Correlation Technology (XCT) to also detect fine motion, such as typing at a desk or reading a book - ensuring lights won't turn off when you're still in the room.
Use the raise/lower buttons to adjust the light level for any activity or set the preset level to ensure lights always turn on to your desired light level automatically. Easily program your dimmer sensor for customization of both the dimmer and the sensor's functions, such as timeout, low-end trim and sensor sensitivity. sensors have an adjustable timeout (1, 5, 15 or 30 minutes) to control how long the lights stay on after leaving the room. The 0-10-Volt Motion Sensor/Dimmer Switch is rated to work with all drivers, up to 8 Amp LED drivers/ 4.4 Amp Fan (1/6 HP) with a 50mA max sink current.
Install in a single pole, 3-way with existing switch or with Maestro companion switches (MA-AS/MSC-AS) to switch from up to 9 locations. Available in 10+ colors. Pairs perfectly with Claro wall plates for consistent color matching (sold separately).
