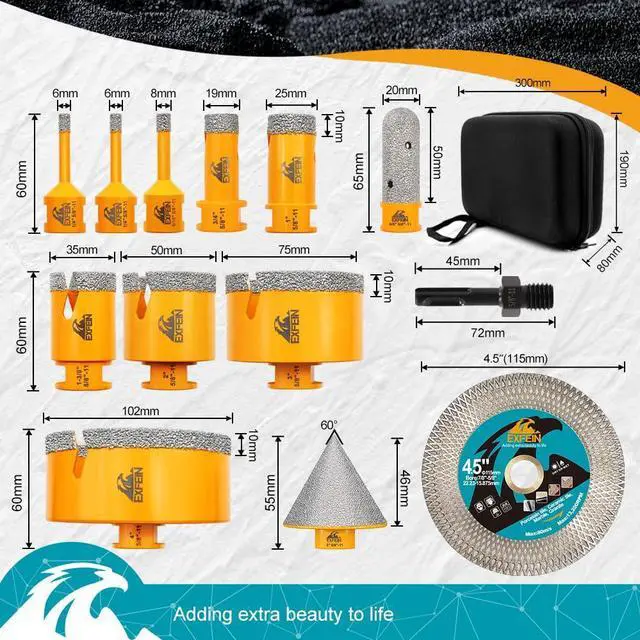

Tile Hole Saw Kit 13pcs - 6/6/8/19/25/35/50/75/102mm Diamond Core Drill Bits, 4/5 Inch Milling Bit + 2 Inch Chamfer Bit + Adapter + 4.5 Inch Grinding & Cutting Disc for Tile Marble Granite

Durability-- Vacuum Brazed technology combines a high-quality steel matrix with diamonds in a scientific ratio and provides high efficient working performance and longer service life.
Fast drilling--Lightning teeth has wide chip removal slots, dust can be quickly discharged when drilling, not easy to be clogged.
Note -- Dry or wet use. If you want to be dust-free or prolong work life, please add water to cool during working. For porcelain tiles, marble, granite, etc. Please wear safety gear when using tools.


for 5/8"-11 Thread drill bits
Recommended MachinePlease wear protective gear to protect your eyes, hands, etc. when operating.
OperationStep 11. Fix it on the angle grinder tightly with a wrench. Turn on the grinder, let the bits rotating in the air to check if there is a balance problem.
Step 22. Place the drill at a about 45-degree angle, it will help position. Hold the machine very steadily and give gentle pressure to start drilling.
Step 33. When you feel the drill bit has cut into the material ( one edge of the hole is about to form), slowly stand the drill bit upwards to 90°.
Step 44. Keep drilling vertically until the hole has been completely formed. Can shake slightly to help remove chips and dissipate heat. Dont greatly sway. The kit contains the hex adapterYou can use these tile bits on your hand drill with the hex adapter.
Do not use impact or hammer mode.
Recommended RPMMake sure the speed is higher than 2000 RPM
. Typical hand drills are 2000-5000 RPM. Within this range, the faster the drill speed, the longer it will last. So we don't recommend for a cordless drill. The lithium drill has a lower RPM, about 1000 RPM. Function instruction1. Drilling holesWith different sizes diamond core drill bits (6/6/8/19/25/35/50/75/102mm).
2. Enlarge/trim/repair holesWith diamond chamfer bit or finger/miling bit.
3. Make curved rounded cornersWith diamond finger/milling bit.
Good Work EffectApplicable Material: Dry or wet use for porcelain ceramic tile marble granite, etc.

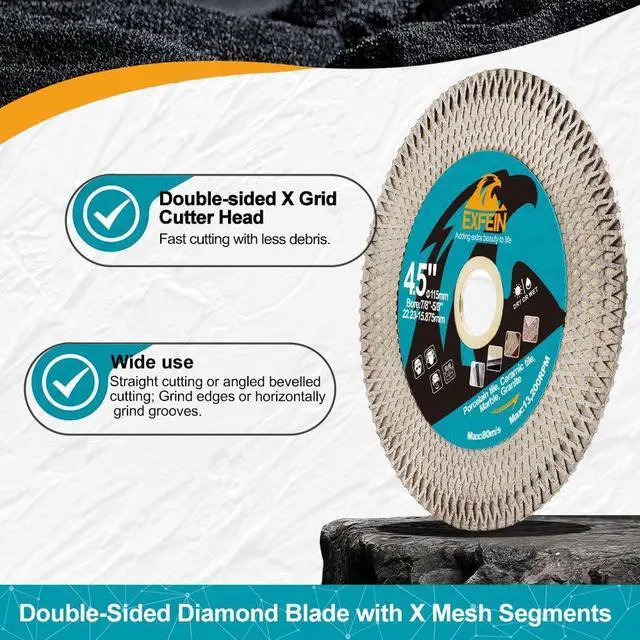

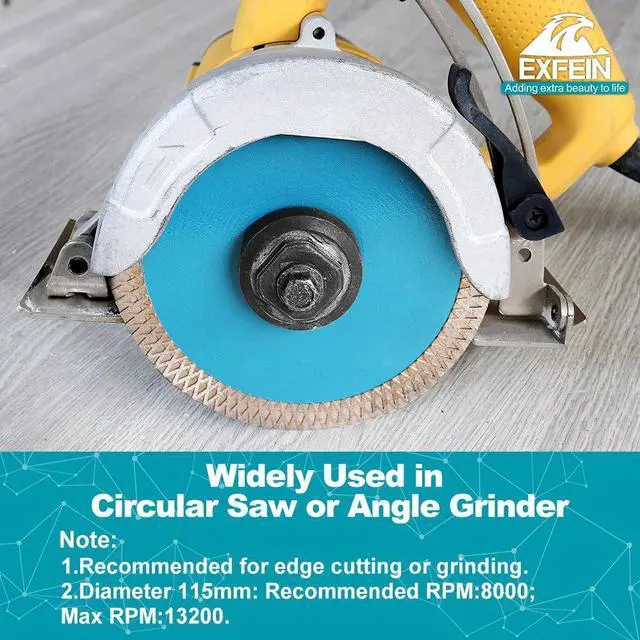

X mesh Double- Sided Saw Blade Applicable MachineHandheld circular saws are more recommended for smooth cutting and safer operation.
Angle grinders are also finePlease wear protective gear when operating them. For safety, do not operate with the guard removed. ApplicationDiamond Segments HeightOne side of the cutterhead is 20mm high; the other side of the cutterhead is 10mm high.
Straight CuttingLess dust and longer life if wet use.
Grinding EdgesGrinding Corners
