LUT7S PRO 7 Inch 2200nit 3D LUT Touch Screen DSLR Camera Field Monitor with F970 External Kit Install for Power The Wireless Transmission Waveform Vectorscope 4K HDMI SDI Input DC Output
- 2200nit Ultra Bright and Automatic Brightness AdjustmentThe 7" 1920 x 1200 monitor has the high bright 2200nit. This make it easy for outdoor shooting in bright daylight without a hood! The monitor has an ambient light sensor, Increasing the screen brightness compensates for bright sunlight when used outdoors, while a dimmer screen is more comfortable on the eyes when viewing in the dark. The Backlight (1100) can be adjusted manually.

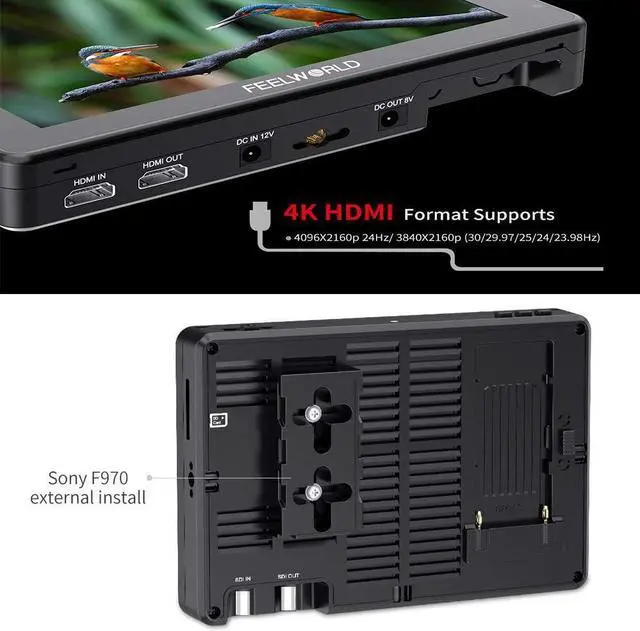

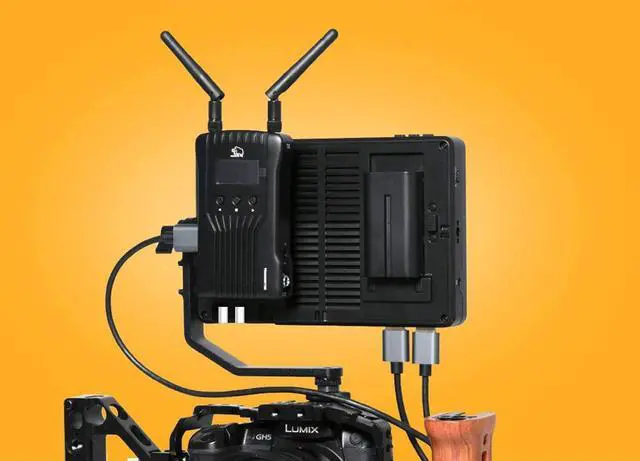

- Install Power External Equipment EasilyA Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmitter, LED light, video converter and others which can be powered by Sony F970 battery, greatly saving the space occupied by the equipment and reducing the weight of photography equipment.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Widely Compatible for Camera / Flexible PowerThe LUT7S PRO includes 4K HDMI and 3G-SDI, you can connect any DSLR, camcorders or professional camera. With F970 battery plate, the power kit and 8.4V DC output, flexible choice of power supply.
Easy Touch Controls and 3D LUT The innovative touchscreen LCD user interface provides incredible control. Get rid of complicated Buttons! All of the functions are at your fingertips. Plus you can load custom 3D LUT.

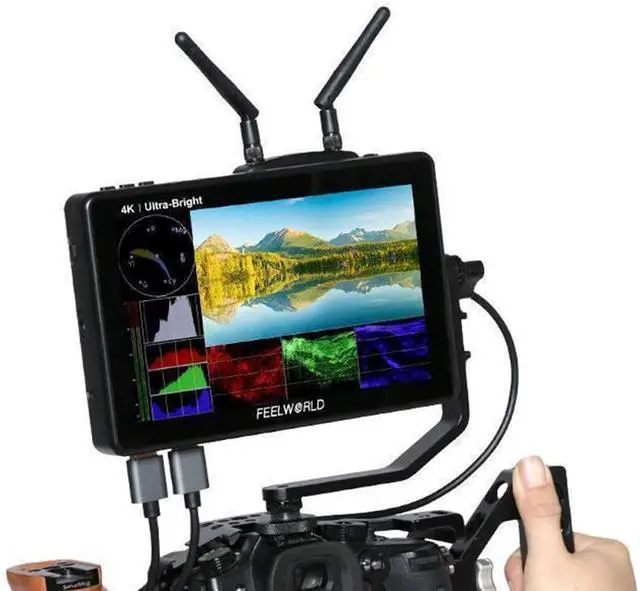

Trust What You See The professional tools are extremely helpful to your filming, like waveform, RGB parade, vectorscope, RGB histogram, histogram, audio meter, focus peaking, zoom, zebra, false color, frame guides, safe area, etc. Scopes for accurate exposure and focus.
Resolution: 1920x1200 pixels
Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
Aspect Ratio: 16:10
Brightness: 2200cd/m² (Light Sensor)
Contrast Ratio: 1200:1
Backlight: LED
Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
Input
1 X BNC: 3G-SDI
1 X HDMI: HDMI
Output
1 X BNC: 3G-SDI
1 X HDMI: HDMI
1 X DC Barrel ( 3.5 mm outer, 1.1 mm inner) barrel output for powering cameras via camera specific adaptor.
Audio
Audio 3.5 mm Stereo Headphone
HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/ 59.94 /50)
720p (60/ 59.94 /50/30/ 29.97 /25/24/ 23.98 )
1080p (60/ 59.94 /50/30/ 29.97 /25/24/ 23.98 )
4K UHD 3840×2160p (30/ 29.97 /25/24/ 23.98H z), 4096×2160p (24Hz)
General
Input Voltage DC724V
Power Consumption 16W
Working Temperature -20°C~50°C
Storage Temperature -30°C~60°C
Install Way 1/4"-20 Thread Socket (Left, Right, Bottom)

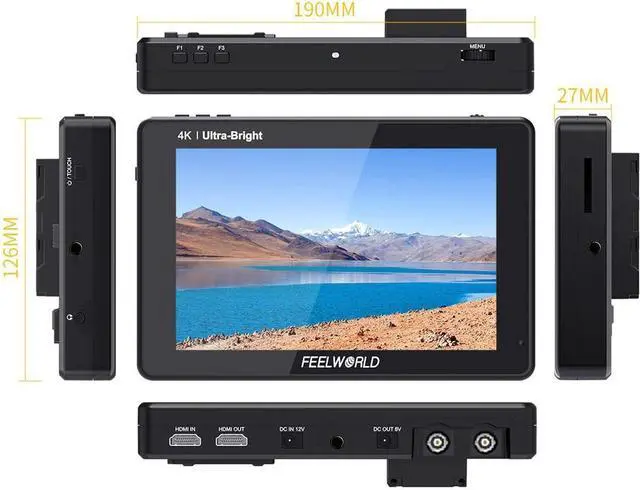

Unit Size 190Lx126Hx27D (mm)
Unit Weight 450g
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.
Advanced Features

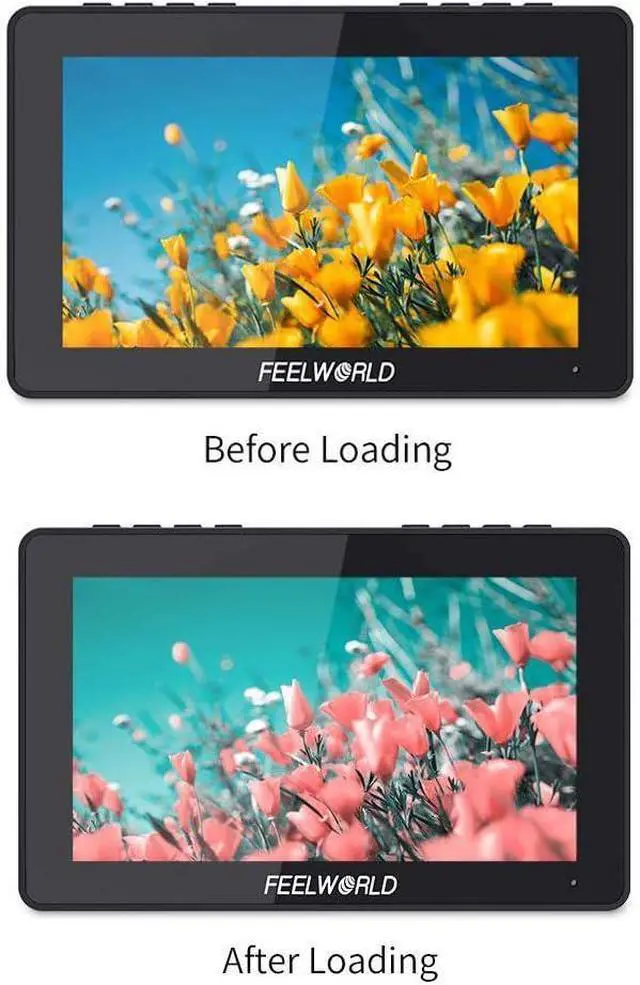

*Support 3D LUT Log to Rec. 709, user 3D LUT Upload
* Support Touch Menu
*Parade (RGB, YUV, Y)
*All Waves
*Vector
*RGB Histogram
*Brightness Histogram
*Embedded Audio
*Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
*False Colors
*Zebra Exposure (1%~100% adjustable)
*Check Field (Red, Green, Blue, Gray)
*Scan Mode (Under Scan, Over Scan)
*Anamorphic Mode ( 1.25 x, 1.33 x, 1.5 x, 2.0 x, 2.0 x mag)
*Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85: 1, 2.35: 1)
* Ratio Marker ( 16:9, 16:10, 4:3, 1.85: 1, 2.35: 1)
* Marker Color (red, green, blue, white, black, yellow)
* Color Temperature Adjustment
* Nine Grid
* Zoom (100%~300%)
* Aspect Ratio
* Pixel to Pixel
Easy Touch Controls and 3D LUT The innovative touchscreen LCD user interface provides incredible control. Get rid of complicated Buttons! All of the functions are at your fingertips. Plus you can load custom 3D LUT.
Trust What You See The professional tools are extremely helpful to your filming, like waveform, RGB parade, vectorscope, RGB histogram, histogram, audio meter, focus peaking, zoom, zebra, false color, frame guides, safe area, etc. Scopes for accurate exposure and focus.
Resolution: 1920x1200 pixels
Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
Aspect Ratio: 16:10
Brightness: 2200cd/m² (Light Sensor)
Contrast Ratio: 1200:1
Backlight: LED
Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
Input
1 X BNC: 3G-SDI
1 X HDMI: HDMI
Output
1 X BNC: 3G-SDI
1 X HDMI: HDMI
1 X DC Barrel ( 3.5 mm outer, 1.1 mm inner) barrel output for powering cameras via camera specific adaptor.
Audio
Audio 3.5 mm Stereo Headphone
HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/ 59.94 /50)
720p (60/ 59.94 /50/30/ 29.97 /25/24/ 23.98 )
1080p (60/ 59.94 /50/30/ 29.97 /25/24/ 23.98 )
4K UHD 3840×2160p (30/ 29.97 /25/24/ 23.98H z), 4096×2160p (24Hz)
General
Input Voltage DC724V
Power Consumption 16W
Working Temperature -20°C~50°C
Storage Temperature -30°C~60°C
Install Way 1/4"-20 Thread Socket (Left, Right, Bottom)
Unit Size 190Lx126Hx27D (mm)
Unit Weight 450g
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.
Advanced Features
*Support 3D LUT Log to Rec. 709, user 3D LUT Upload
* Support Touch Menu
*Parade (RGB, YUV, Y)
*All Waves
*Vector
*RGB Histogram
*Brightness Histogram
*Embedded Audio
*Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
*False Colors
*Zebra Exposure (1%~100% adjustable)
*Check Field (Red, Green, Blue, Gray)
*Scan Mode (Under Scan, Over Scan)
*Anamorphic Mode ( 1.25 x, 1.33 x, 1.5 x, 2.0 x, 2.0 x mag)
*Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85: 1, 2.35: 1)
* Ratio Marker ( 16:9, 16:10, 4:3, 1.85: 1, 2.35: 1)
* Marker Color (red, green, blue, white, black, yellow)
* Color Temperature Adjustment
* Nine Grid
* Zoom (100%~300%)
* Aspect Ratio
* Pixel to Pixel
