HDMI Audio Embedder Inserter Digital Analog + DVI to Support TOSLINK Optical 3.5mm Jack AUX Sound Input 4K60Hz 18Gbps HDR HDCP2.2

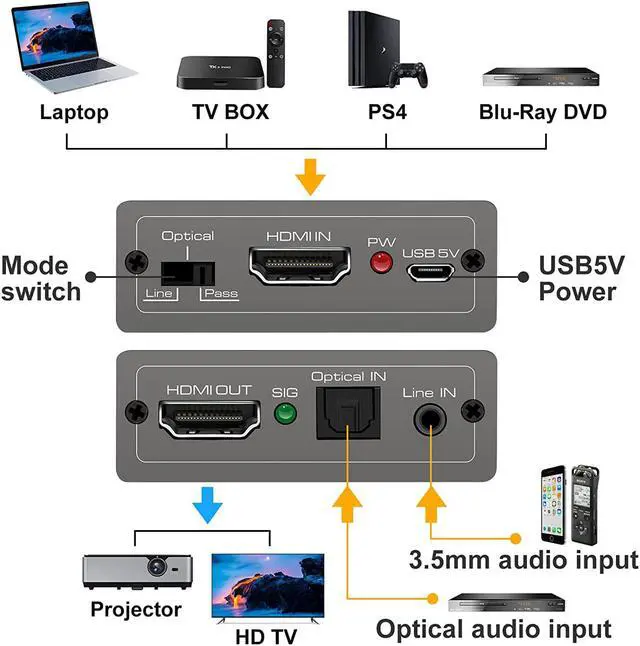

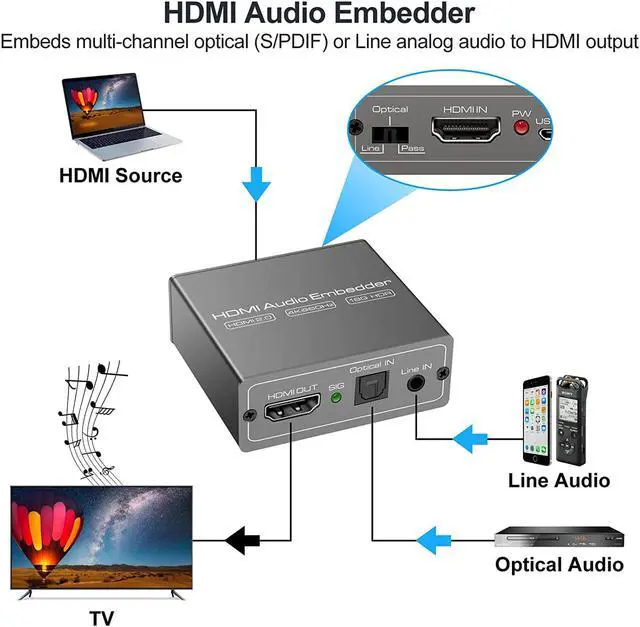

- Digtal/Analog audio to HDMI embedder inserterUse external audio from either digital (optical---TOSLINK/SPDIF) or analog (3.5mm/line) sources to replace the audio from an HDMI signal(Note that the original HDMI sound is replaced, not mixed with the original HDMI sound.). Flip a switch and choose which source youll hear on your HDMI display without moving cables.

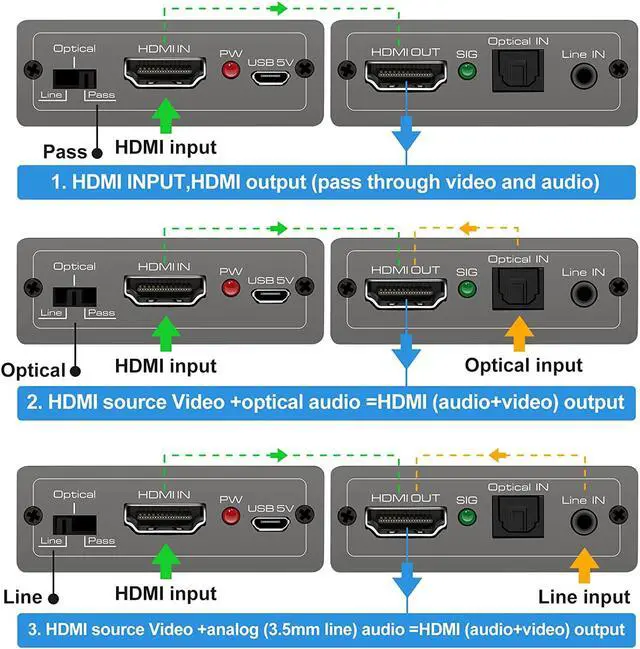

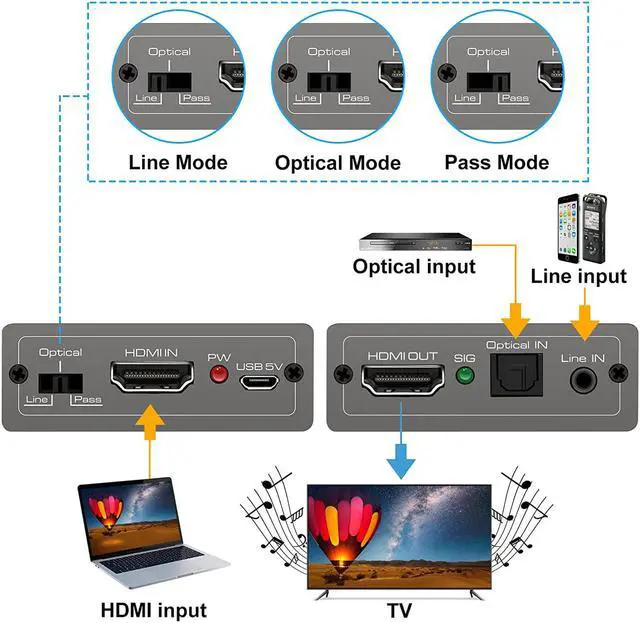

- Audio formats The HDMI port will pass through all digital/analog audio such as PCM, LPCM, Dolby and DTS. The optical audio input supports Dolby DTS and PCM. The 3.5mm audio input supports 2 channel stereo audio like PCM.Note: Only the audio output port can be converted, and the audio format cannot be changed. For example, if the 3.5mm port is a two-channel audio input, the audio output via the HDMI port after conversion will still be two-channel.The audio input channels corresponding to the dipswitch positions are as follows: "Line" means the audio uses the 3.5mm port
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
High-level functions HDMI 2.0 Versions 10bit High Dynamic Range (HDR), DOLBY Vision, HDCP 2.2 / 1.4 compliant.
Easy to usePlug and play, no software installation required. Suitable for a variety of HDMI images and sound need to match. 12 months maintenance service, professional technical team provides 24-hour after-sales support.
Note: The USB power cable must be connected to supply power to the extractor. A DC 5V charging head can be used, and fast charging is not supported.
High resolution Resolution up to 18GBPS 4K@60Hz 4:4: 4; also supports 1080p, 720p. Supports the use of DVI to HDMI cables to fuse DVI signals and audio signals into HDMI signals.
Note: Only the video signals from the HDMI port or DVI port can be input. The video signals from other ports, such as DP and VGA, do not support the use of conversion cables. When there is no HDMI input signal connected, connecting the HDMI OUT to a monitor will display the original colored lines. This displayed screen serves as a prompt that no HDMI input signal has been detected.
Easy to usePlug and play, no software installation required. Suitable for a variety of HDMI images and sound need to match. 12 months maintenance service, professional technical team provides 24-hour after-sales support.
Note: The USB power cable must be connected to supply power to the extractor. A DC 5V charging head can be used, and fast charging is not supported.
High resolution Resolution up to 18GBPS 4K@60Hz 4:4: 4; also supports 1080p, 720p. Supports the use of DVI to HDMI cables to fuse DVI signals and audio signals into HDMI signals.
Note: Only the video signals from the HDMI port or DVI port can be input. The video signals from other ports, such as DP and VGA, do not support the use of conversion cables. When there is no HDMI input signal connected, connecting the HDMI OUT to a monitor will display the original colored lines. This displayed screen serves as a prompt that no HDMI input signal has been detected.
