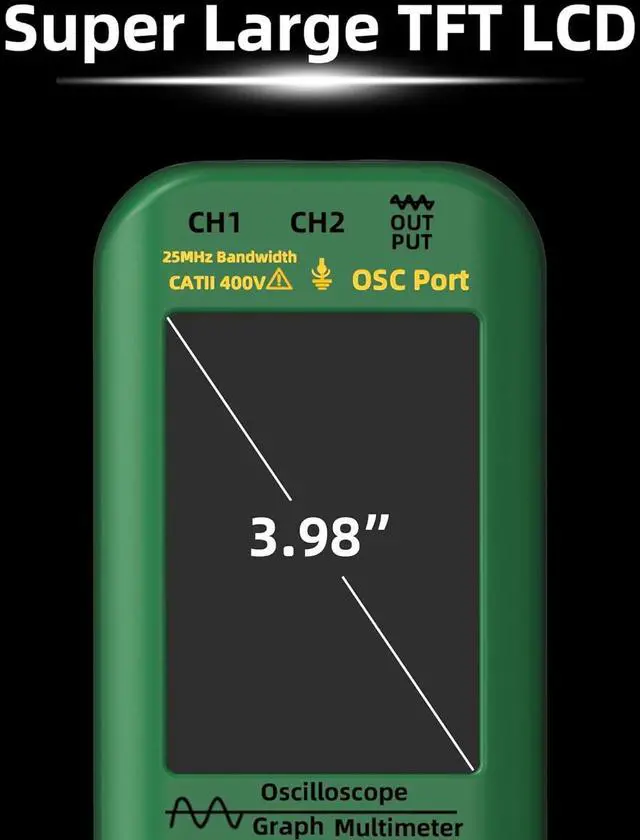

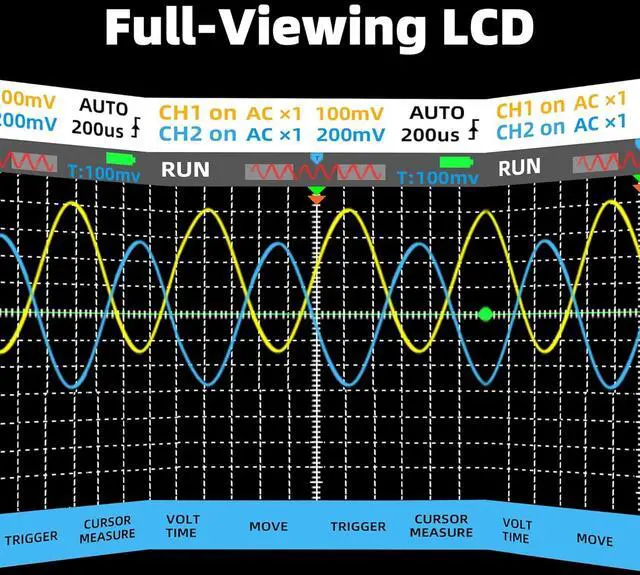

Dual Channel Oscilloscope Multimeter, 25MHz Bandwidth 3.98" Full-Viewing TFT LCD DDS Generator, Measure Flexible AC Current Clamp, Temperature Cap Diode Amp Ohm Voltage Tester with Carrying Case

[Flexible
AC Current Clamp Measurement]: Smart digital multimeter measures flexible ac current clamp accurately up to 6000A. The flexible clamp wire were not included.
[5000mAh Rechargeable Battery]: O7 oscilloscope multimeter comes with rechargeable 5000mAh rechargeable battery, ensuring that you never have to worry about running out of power during your measurements.

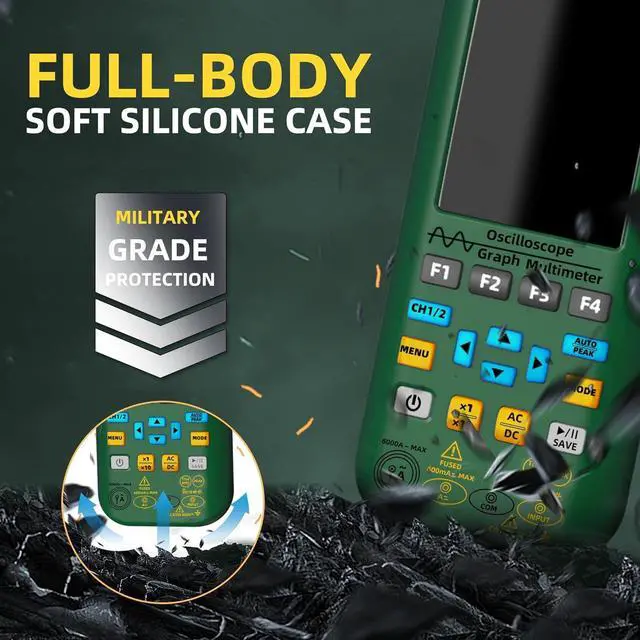

[Soft Silicone Protective Case]: Automotive oscilloscope multimeter equipped with full-body soft silicone case that provides a comfortable feel and protection against shocks, friction & bumps.




Features: Dual channel oscilloscope multimeter Handheld color display voltmeter 3-in-1 automotive oscilloscope 25MHz bandwidth graph scope tester True RMS rechargeable smart multimeter tester Measures ac and dc current, capacitance and diode Measures ac and dc voltage, resistance, a-alert and continuity Measures flexible ac current clamp, temperature and live wire check Tested data can be saved and exported to your computer Rechargeable intelligent digital voltmeter with low battery indication

Specifications

: MAX
Display: 6000 counts
Bandwidth: 25MHz

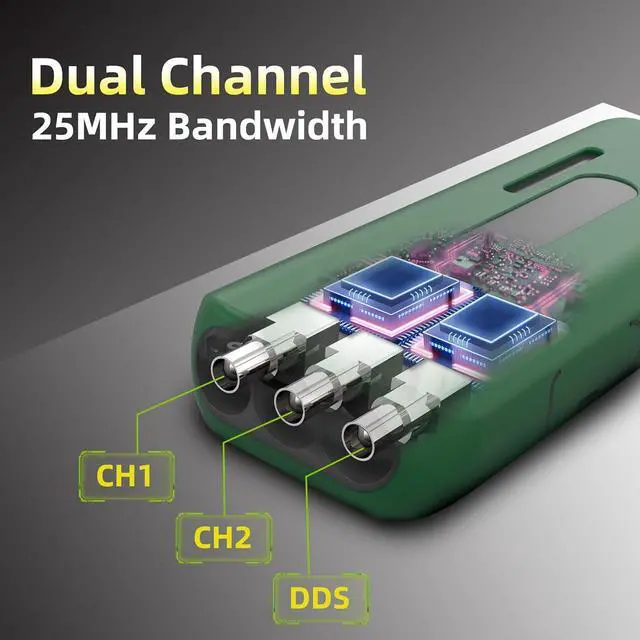

Channels: 2
Real-time sample rate: 208MSa/s
Input Impedance: 1M, @16pf
Maximum input voltage: 300V (DC+AC peak)
Horizontal SEC range: 100ns/div -20s/div
Vertical sensitivity: 20mV/div -100V/div
DC voltage: 60mV 0.01 mV (1%+5); 600mV/6V/60V 0.1 mV/ 0.001V / 0.01V / ( 0.8 %+3); 600V/1000V 0.1V (1%+5)
AC voltage: 60mV 0.01 mV ( 1.2 %+5); 600mV/6V/60V 0.1 mV/ 0.001V / 0.01V / (1%+3); 600V/750V 0.1V /1V ( 1.2 %+5)
DC current: 60mA/600mA 0.01 mA/ 0.1 mA (1%+3)
AC current: 60mA/600mA 0.01 mA/ 0.1 mA ( 1.2 %+5)
Flexible AC Current: 600A/6000A 0.1A /1A ( 1.0 %+5)
Resistance: 600 0.1 ( 1.2 %+5); 6k/60K/600K 0.001K / 0.01K / 0.1K ( 1.0 %+3); 6M 0.001M ( 1.2 %+5); 60M 0.01M ( 1.5 %+5)
Capacitance: 999.9 nF 0.1 nF (5%+20); 9.999 µF/ 999.9 µF 0.001 µF/ 0.1 µF ( 4.5 %+5); 99.99 mF 0.01 mF ( 5.0 %+10)
Temperature: -201000/-4-1832 1/1 ( 2.5 %+5)
Diode: Yes
Continuity: Yes
Output Waveforms: sine wave, square wave, triangle wave, full wave, half wave, sawtooth wave, dc wave
Frequency range: 0-2MHz
Output Amplitude: 0.1 -3V
Square Wave Duty Cycle: 1%-99%
Power: 2* Rechargeable Li-ion battery
Size: 216.6 x 84.5 x 36 mm
Weight: 384g

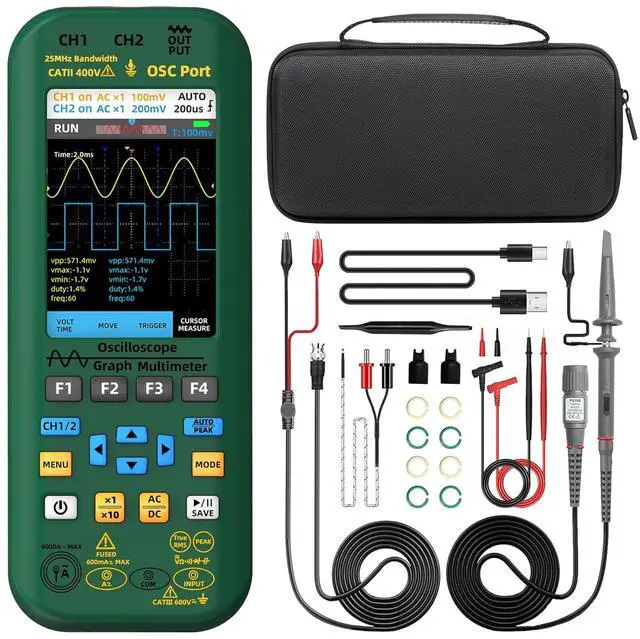

Package Includes: 1 x Portable Oscilloscope Multimeter 1 x Oscilloscope Probe 1 x BNC to Double-Headed Alligator Clip Test Leads 1 x Test Leads 1 x Thermocouple 1 x Carrying Case 1 x Charging Cable 8 x Marker Rings 1 x Adjustment Tool 2 x IC Test Protection Caps 1 x
User Manual Note: The flexible ac current clamp are not included in the package
