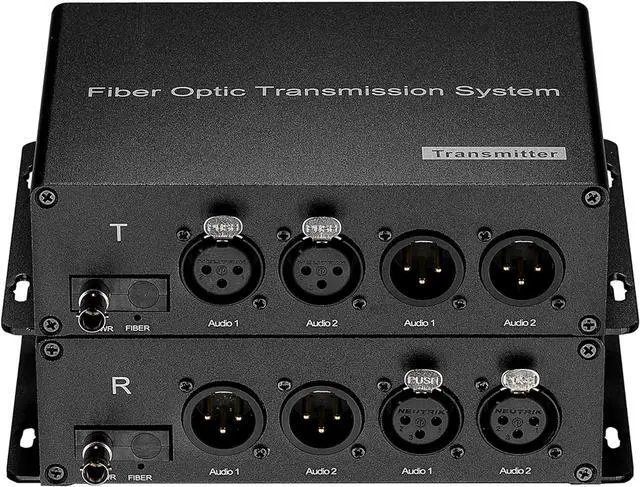

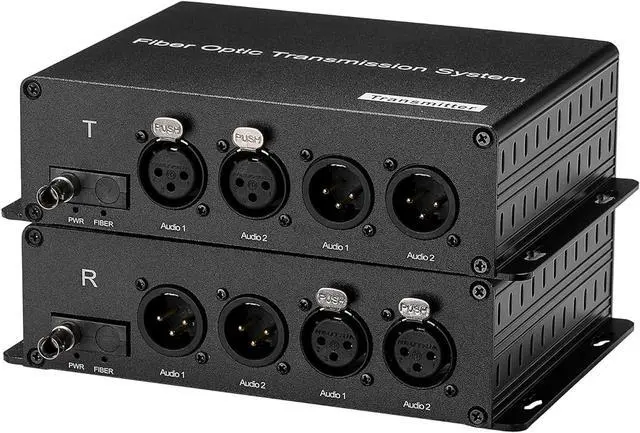

BIDI 2 XLR Audio Fiber Converter,Broadcast Grade Balanced Audio Over Fiber Optic Extender-Singlemode 20Km,Multimode 500m,ST Optical Professional Crystal Clear Sound A Pair

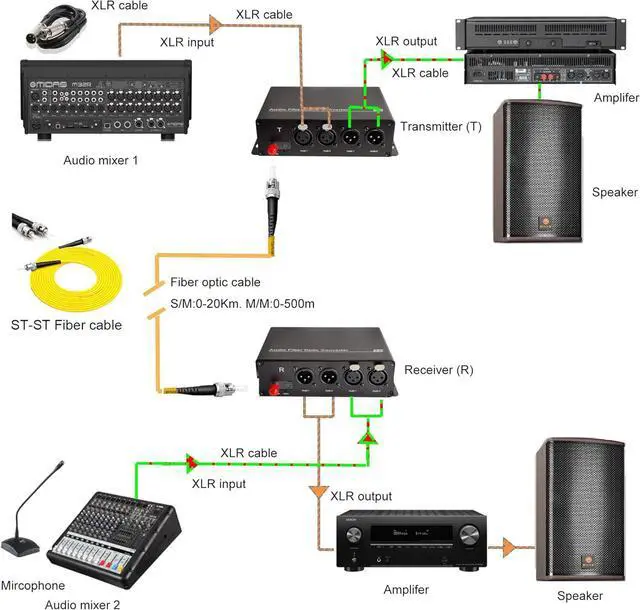

- This unit can extend 2 bi-directional balanced 3pin XLR Audio over an optical fiber c to far end. It allows 2 XLR audio device synchronous transmission, No debugging required. 2 XLR Audio signal is transmitted from T (TX) in the direction of R (RX), other 2 XLR Audio signal is transmitted in rrse direction
- The unit can work on both single-mode and multimode fiber c. Long transmission distance: Single mode up to 12.4 miles (20Km), Mutlimode single fiber up to 0.31 miles(500meters)
- Crystal clear sound, No Loss, No Delay Professional quality ,Pure and Clean fiber optic audio signal transmission
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Wide ApplicationsTypically used in applications for Staging, Theaters, Stadiums, Parks, Broadcast, studio audio and professional AV applications, etc., and are avail for stand-alone and desktop type, or wall mounted, installations
Plug and PlayNo need to set up, Simply plug in an Optical ST port and XLR audio connectors at TX and RX sides, it will have crystal clear sound instantly
Optical Port:
Optical connector: ST
Wavelength: 1310nm/1550nm.
Transmitting optical power: more than -7db.
Receiving sensitivity: more than -24db
Fiber: single fiber multimode (MM) or single mode (SM).
Transmission range: 0-20km for SM, 0-500m for MM.
Optical fiber type: universal 9/125u single mode, 50/125u or 62.5 /125u multimode.

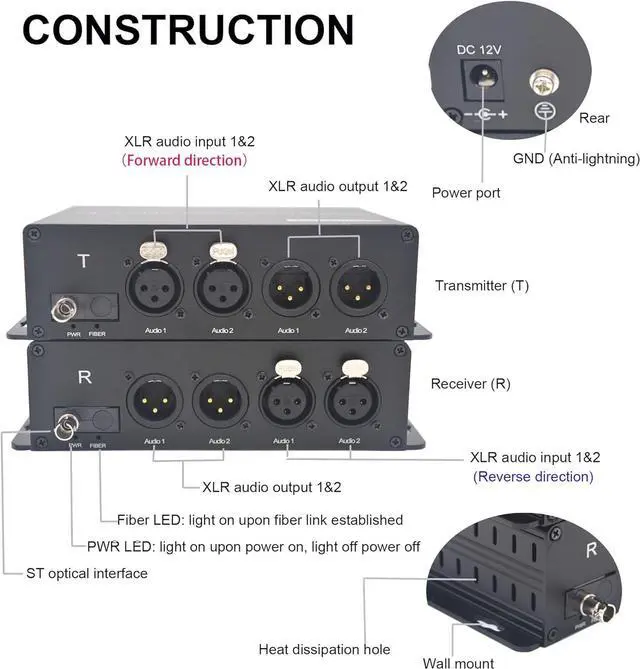

XLR Audio Ports:
Number of Channels: 2 bi-directional
Input Connector: XLR (Female).
Output Connector: XLR (Male).
Pin wi diagram: "1" Shield, "2" MIC AUDIO (+), "3" MIC AUDIO (-)
Input / Output Impedance: 600 Ohm.
Max input/output voltage: 4.0V p-p.
Signal ll: 0.5 -4Vp-p.
Sampling frequency: 192 KHz.
Audio A/D sampling: 24 Bit
SNR: 100dB.
Audio interface ll III lightning protection, reaching IEC61000-4-5 (8/20 s)
Differential mode: 6KV.
General Spec:
Power Consumption: 8W.
Working temperature: -20°C ~ +70°C.
Relative Hdity: 0% ~ 95% (non-condensing).
MTBF: >100, 000 hours.
Installation: stand-alone.

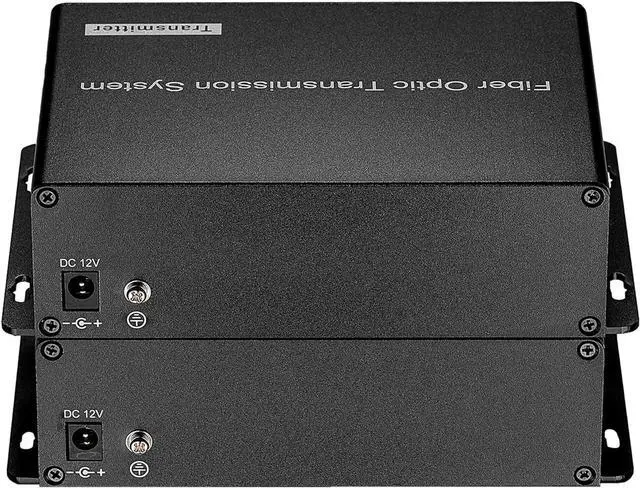

Support wide range working Voltage: AC100-240V 50/60Hz, DC12V
Power plugUS/EU/UK/AU standard is optional.
Dimension: 167mm (L) ×114mm (W) ×45mm (H).

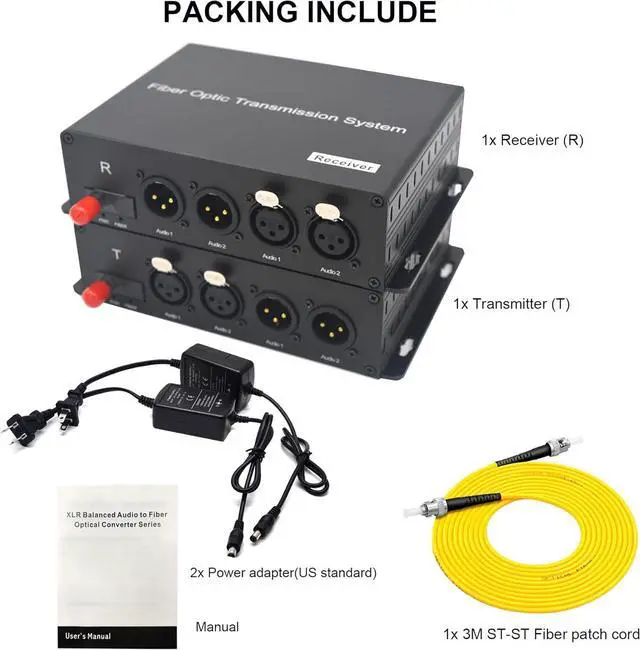

Package include:
1x Balanced XLR Audio Fiber Transmitter
1x Balanced XLR Audio Fiber Receiver
2x Power supply adapter (US standard)
1x FREE 3M ST-ST Fiber patch cord
1x Manual.
Plug and PlayNo need to set up, Simply plug in an Optical ST port and XLR audio connectors at TX and RX sides, it will have crystal clear sound instantly
Optical Port:
Optical connector: ST
Wavelength: 1310nm/1550nm.
Transmitting optical power: more than -7db.
Receiving sensitivity: more than -24db
Fiber: single fiber multimode (MM) or single mode (SM).
Transmission range: 0-20km for SM, 0-500m for MM.
Optical fiber type: universal 9/125u single mode, 50/125u or 62.5 /125u multimode.
XLR Audio Ports:
Number of Channels: 2 bi-directional
Input Connector: XLR (Female).
Output Connector: XLR (Male).
Pin wi diagram: "1" Shield, "2" MIC AUDIO (+), "3" MIC AUDIO (-)
Input / Output Impedance: 600 Ohm.
Max input/output voltage: 4.0V p-p.
Signal ll: 0.5 -4Vp-p.
Sampling frequency: 192 KHz.
Audio A/D sampling: 24 Bit
SNR: 100dB.
Audio interface ll III lightning protection, reaching IEC61000-4-5 (8/20 s)
Differential mode: 6KV.
General Spec:
Power Consumption: 8W.
Working temperature: -20°C ~ +70°C.
Relative Hdity: 0% ~ 95% (non-condensing).
MTBF: >100, 000 hours.
Installation: stand-alone.
Support wide range working Voltage: AC100-240V 50/60Hz, DC12V
Power plugUS/EU/UK/AU standard is optional.
Dimension: 167mm (L) ×114mm (W) ×45mm (H).
Package include:
1x Balanced XLR Audio Fiber Transmitter
1x Balanced XLR Audio Fiber Receiver
2x Power supply adapter (US standard)
1x FREE 3M ST-ST Fiber patch cord
1x Manual.
