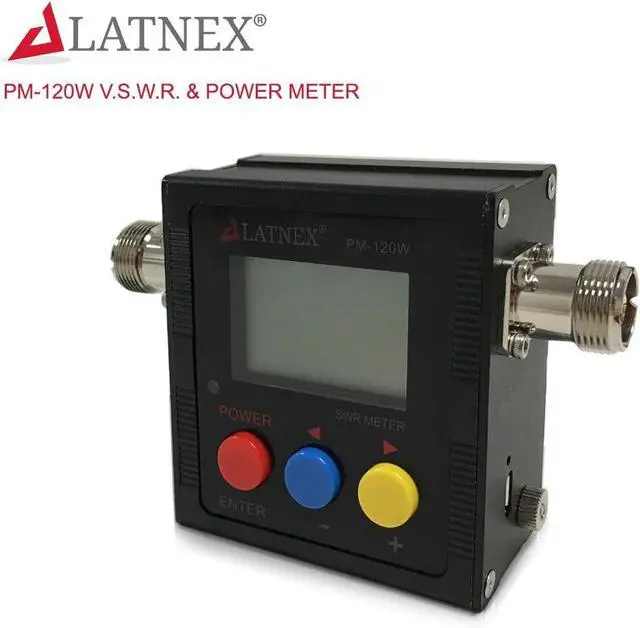

PM-120W Digital VHF UHF 125-525Mhz Power SWR Meter and Frequen Counter - HF RF Meter HAM Two-Way Radio SO239 Connector
- VSWR with SO239 connector. Forward and reflected power direct digital readout, without any calibration. NOTE: NOT compatible with Digital Radio
- Maximum measurable power range up to 120W
- Low insertion loss (0.3 decibels or less) structure allows it to be permanently connected
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Build in Frequen counter. Interface (in and out ): SO239
Frequen range: 125 - 525MHz.
Version: 2.7
Features:
VSWR. Forward and reflected power direct digital readout, without any calibration.
Maximum measurable power range up to 120W.
low insertion loss ( 0.3 decibels or less) structure allows it to be permanently connected.
Build in Frequen counter.

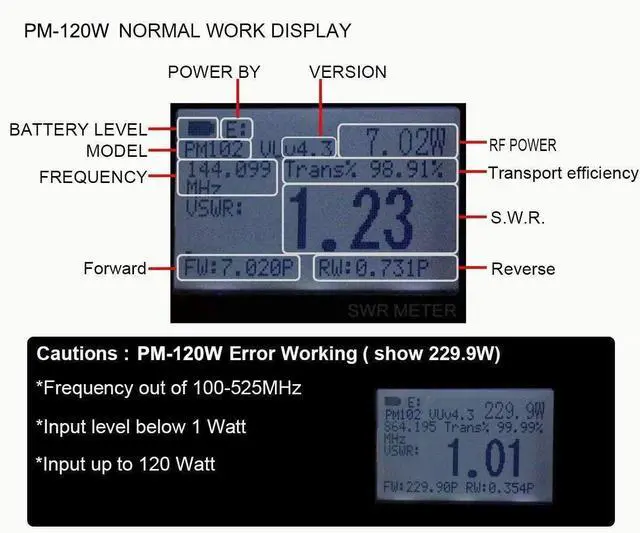

All function display (Frequen, Power, SWR, FW, RW, Battery Level)
Specications:
Frequen range: 1025 - 525MHz
Measurable power range: 1 - 120W(+- 0.5 %)
Input Frequen counter (min 0.5 W input)
Maximum power: 120W
Impedance: 50
Size: W 76 X H 77 X D35 mm.
Weight: Frequen
counter: Yes ( TX input must be minimum 0.5W + - 0.5 %)
Battery Voltage Display: Yes
Battery Build-in: 3.7V 900MAH (14500 Li-ion Rechargeable)
Auto Power Off: 1-9 mins
Size: 66*68*37 (mm)
Charger in: 5V (micro usb)
Backlight: AUTO OFF 1-9 mins
Interface (in and out ): SO239
Weight: 220g (including battery)
* Not compatible with DMR digital radio
Frequen range: 125 - 525MHz.
Version: 2.7
Features:
VSWR. Forward and reflected power direct digital readout, without any calibration.
Maximum measurable power range up to 120W.
low insertion loss ( 0.3 decibels or less) structure allows it to be permanently connected.
Build in Frequen counter.
All function display (Frequen, Power, SWR, FW, RW, Battery Level)
Specications:
Frequen range: 1025 - 525MHz
Measurable power range: 1 - 120W(+- 0.5 %)
Input Frequen counter (min 0.5 W input)
Maximum power: 120W
Impedance: 50
Size: W 76 X H 77 X D35 mm.
Weight: Frequen
counter: Yes ( TX input must be minimum 0.5W + - 0.5 %)
Battery Voltage Display: Yes
Battery Build-in: 3.7V 900MAH (14500 Li-ion Rechargeable)
Auto Power Off: 1-9 mins
Size: 66*68*37 (mm)
Charger in: 5V (micro usb)
Backlight: AUTO OFF 1-9 mins
Interface (in and out ): SO239
Weight: 220g (including battery)
* Not compatible with DMR digital radio
