Table Pop up Power Date Center Connection Box with Outlet Network HDMI for Conference desk - Silver

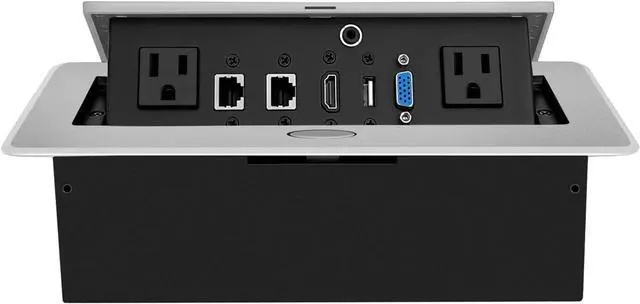

- Configuration: US power, 2 RJ45, 1 HDMI, 1 USB data, 1 VGA and 1 x 3.5 mm audio
- The connectivity box outlet with smooth panel made of aluminium alloy.

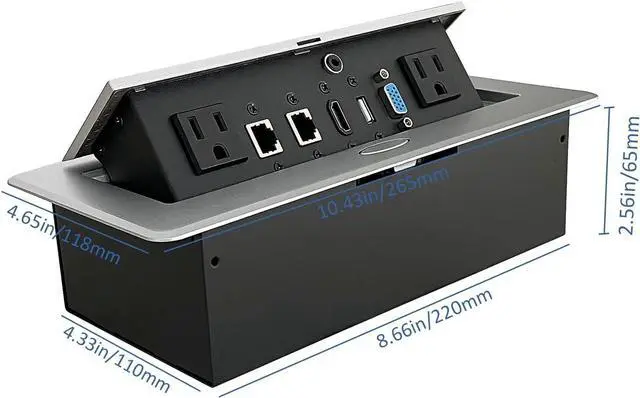

- Panel size: 10.5" x 4.6" (266 x 117mm), suggested hole cut size: 8.9" x 4.33" (225 x 110mm).
- The hole in the bottom box has a rubber ring to protect the cables, avoid damage to the cable caused by the iron box.
- This product can be installed in many places, sofa, bedside table, conference room, hotel.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Color: Black
Material:
lid: zinc-aluminum (ZA) alloys, recessed
part: iron
Color: black

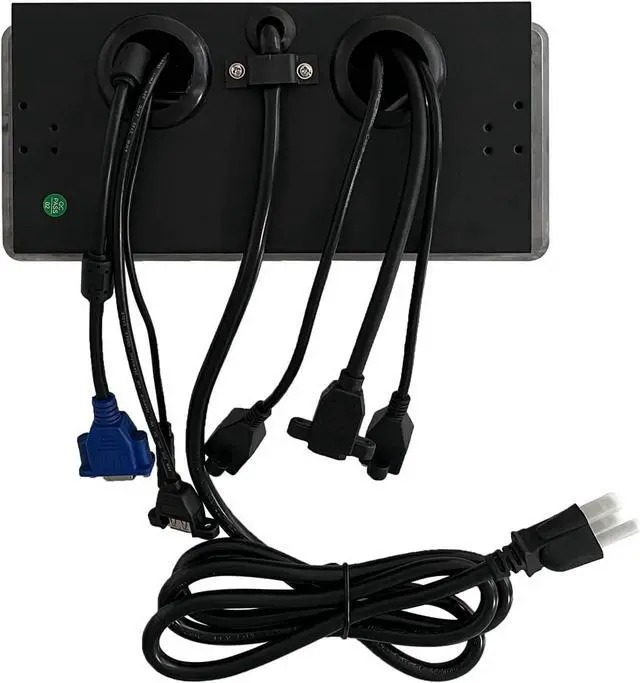

Outlet configuration: - 2 x independent AC Power US Type (UL listed) - 2 x RJ45 (support speeds associated with Category 5e-cable) - 1 x HDMI - 1 x USB 2.0 port for the data transfer - 1 x VGA - Comes WITH 1 x 0.35 m power cord. - All connections are female to female. Installation suggestion (A manual which will come with the connection box): Panel
size: 10.5" x 4.6" (266 x 117mm).

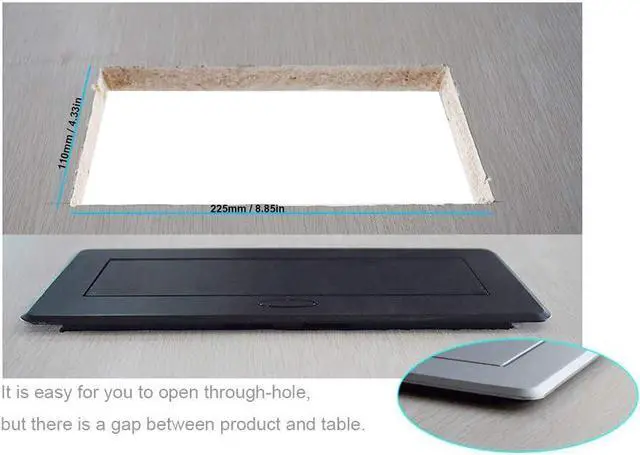

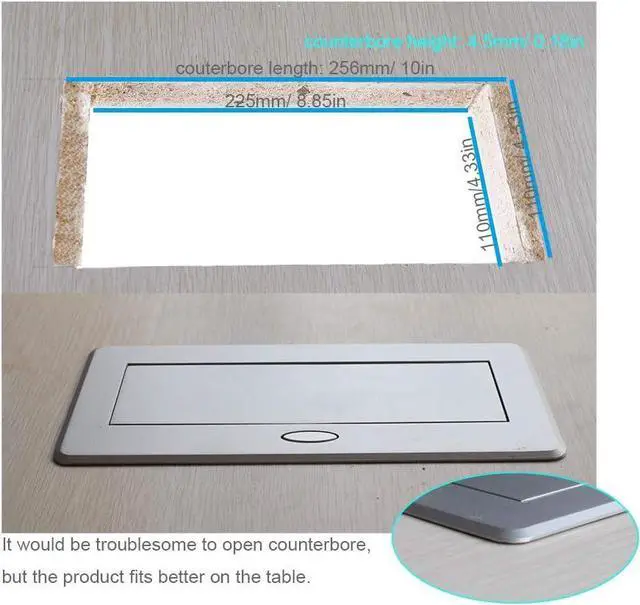

Suggested hole cut size: 8.9" x 4.33" (225 x 110mm). For better fix the socket into the hole, we suggest drilling four 0.6" x 0.6" (15 x 15mm) small holes depth 0.18" ( 4.5 mm) on the hole, or fabricating a 10" x 4.33" (256 x 110mm) counterbored hole depth 0.18" ( 4.5 mm).
Tips: If you use 4.92 ft ( 1.5 meters) male to female cable to plug into the HDMI outlet, the wire gauge should be 28 AWG. 16.4 - 32.8 ft long cable (5-10 meters) - 26 AWG wire 32.8 - 39.4 ft long cable (10-12 meters) - 24 AWG wire 39.4 - 49.2 ft long cable (12-15 meters) - 22 AWG wire If the cable length is longer than 50ft, we suggest you to use a HDMI signal amplifier to increase the signal strength.
Specifications
:Material:
lid: zinc-aluminum (ZA) alloys, recessed
part: iron
Color: black
Outlet configuration: - 2 x independent AC Power US Type (UL listed) - 2 x RJ45 (support speeds associated with Category 5e-cable) - 1 x HDMI - 1 x USB 2.0 port for the data transfer - 1 x VGA - Comes WITH 1 x 0.35 m power cord. - All connections are female to female. Installation suggestion (A manual which will come with the connection box): Panel
size: 10.5" x 4.6" (266 x 117mm).
Suggested hole cut size: 8.9" x 4.33" (225 x 110mm). For better fix the socket into the hole, we suggest drilling four 0.6" x 0.6" (15 x 15mm) small holes depth 0.18" ( 4.5 mm) on the hole, or fabricating a 10" x 4.33" (256 x 110mm) counterbored hole depth 0.18" ( 4.5 mm).
Tips: If you use 4.92 ft ( 1.5 meters) male to female cable to plug into the HDMI outlet, the wire gauge should be 28 AWG. 16.4 - 32.8 ft long cable (5-10 meters) - 26 AWG wire 32.8 - 39.4 ft long cable (10-12 meters) - 24 AWG wire 39.4 - 49.2 ft long cable (12-15 meters) - 22 AWG wire If the cable length is longer than 50ft, we suggest you to use a HDMI signal amplifier to increase the signal strength.
