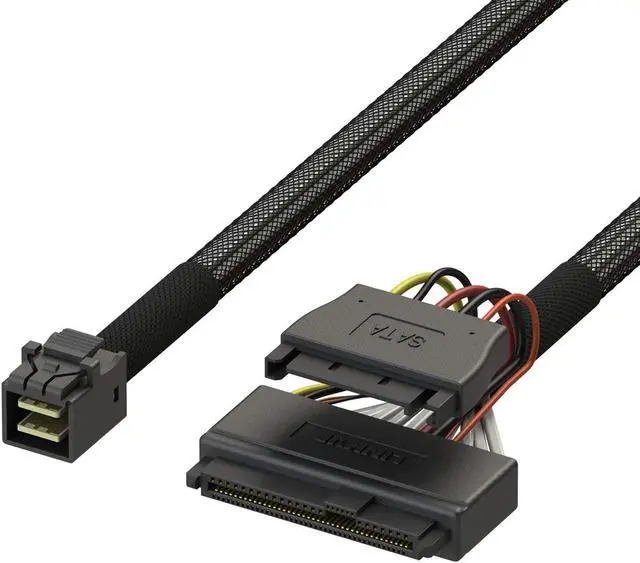

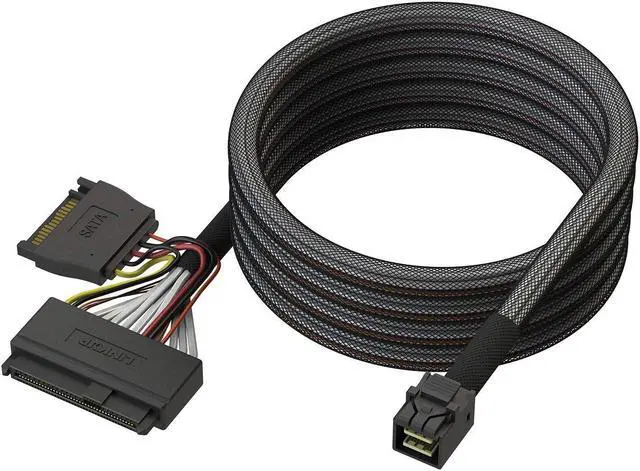

Internal 16G U.2 Cable (85 85ohm PCIe Gen 4 Mini SAS HD to U.2/SFF-8643 to SFF-8639 Cable) with SATA Power - 1.5 Meters/5 feet

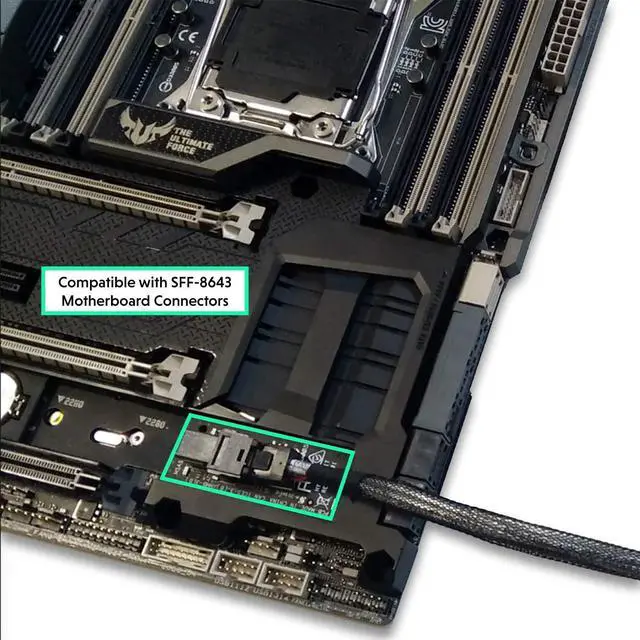

- True NVMe SpeedBlazing fast 16G NVMe SSD speeds made possible with LINKUP SFF 8643 to SFF 8639 cables. Specifically designed to connect a high performance NVMe SSD to an onboard SFF-8643 Mini-SAS HD port or to a M.2 to U.2 Add-On card; a perfect solution when a PCIe slot is unavailable.
- Quality Construction85 impedance twinaxial SAS cables offer PCIe 4.0 (3.0 backward compatible) specifications for true M.2 NVMe and U.2 SSD (16G) speeds. Flexible braided heavy-duty cable with 18AWG wires and individual laneway shielding allow for the best versatile connections.
- SATA PoweredIntegrated SATA power connects U.2 PCIe 4.0 (3.0 backward compatible), 4-Lane connection to the computer power supply to power the NVMe SSD with 3.3V 12V.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

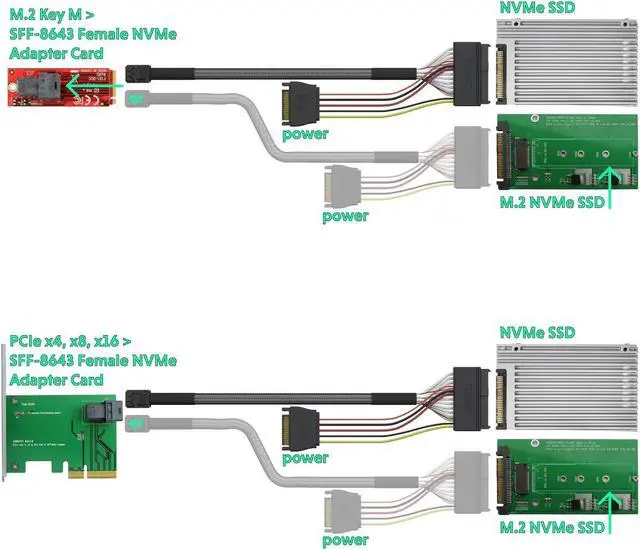

CompatibilityAdapt an M.2 SSD with adapters such as Ableconn M.2 NVMe SSD to U.2 SSD Adapter. Compatible with U.2 Add-On card. Compatible with M.2 to U.2-Mini-SAS Add-In Card. Compatible with Accessory Hyper Kit Expansion Card M.2 to Mini SAS HD.
LINKUP Cares!Backed by a LINKUP Limited 1-Year Warranty and complimentary premium online support. Available in 2ft, 3ft, 4ft, and 5ft lengths.
Connect and Perform
The LINKUP Internal SAS SFF-8643 to U.2 SFF-8639 with SATA Power Cable makes it possible to
Upgrade a computer to U.2 NVMe SSD speeds. Capable of performing 5x faster than its SATA SSD.
Counterparts, these cables allow the connection of U.2 NVMe SSDs even when a U.2 port is not
Available
Heavy-duty flexible cables with mesh sheath and the high-quality individual laneway shielding
Provides secure, reliable connections.

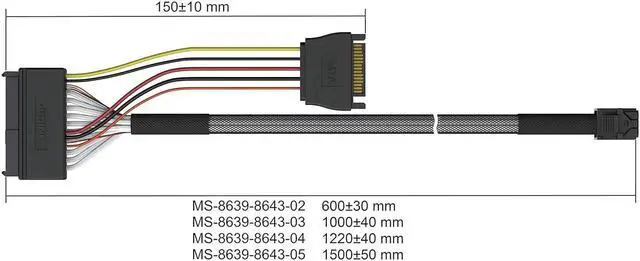

Available in 2ft, 3ft, 4ft, and 5ft lengths.
Note

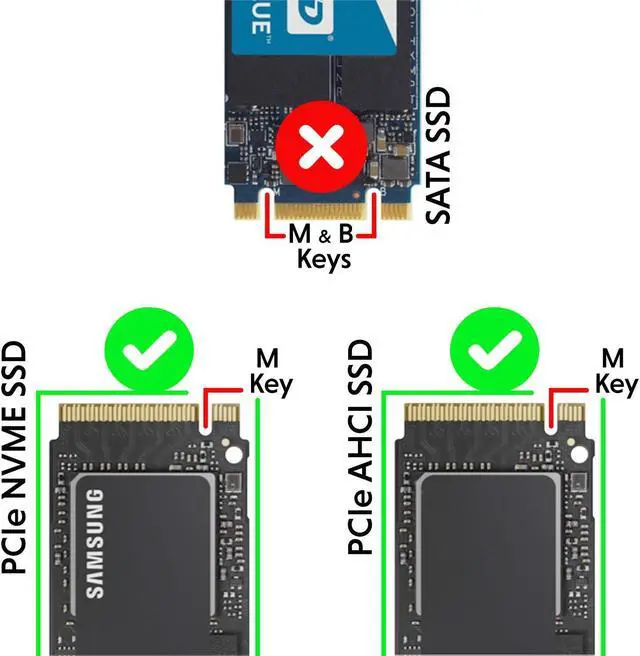

- M.2 to U.2 adapter required to use a M.2 SSD.

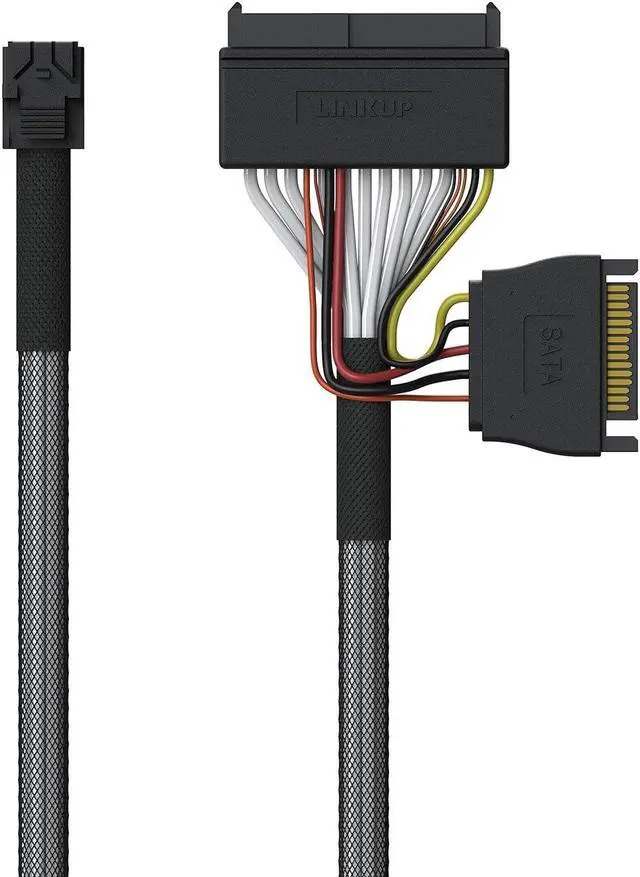

Cable Specifications
- Internal connector A: 1 x 36-pin HD Mini-SAS SFF-8643 male with latch.
- Internal Connector B: 1 x 68-pin U.2 SFF-8639 male
- Power Connector: 15-pin SATA receptacle.
- RoHS compliant
Warranty
Limited 1-Year Warranty and premium online support.
LINKUP Cares!Backed by a LINKUP Limited 1-Year Warranty and complimentary premium online support. Available in 2ft, 3ft, 4ft, and 5ft lengths.
Connect and Perform
The LINKUP Internal SAS SFF-8643 to U.2 SFF-8639 with SATA Power Cable makes it possible to
Upgrade a computer to U.2 NVMe SSD speeds. Capable of performing 5x faster than its SATA SSD.
Counterparts, these cables allow the connection of U.2 NVMe SSDs even when a U.2 port is not
Available
Heavy-duty flexible cables with mesh sheath and the high-quality individual laneway shielding
Provides secure, reliable connections.
Available in 2ft, 3ft, 4ft, and 5ft lengths.
Note
- M.2 to U.2 adapter required to use a M.2 SSD.
Cable Specifications
- Internal connector A: 1 x 36-pin HD Mini-SAS SFF-8643 male with latch.
- Internal Connector B: 1 x 68-pin U.2 SFF-8639 male
- Power Connector: 15-pin SATA receptacle.
- RoHS compliant
Warranty
Limited 1-Year Warranty and premium online support.
