OBD2 Breakout Box Auto OBDII Protocol Detector 16-Pin CAN Bus Test Breakout Box with LCD Display for OBDII Protocol Communication Detection/ECU Tool

Digital display and 16-pin interface design Auto 16 pin dlc breakout box an LED display design is added to first eliminate the voltage problem of the OBD port and easily determine whether the cable and the car OBD port are connected correctly. The port is designed with a 16-pin interface, when the OBD2 scanner communicates with the vehicle, it can easily connect all 16 pins of the OBDII junction box for more tests quickly and intuitively.
4mm banana plug & 128cm extension cord The OTC Can test box has a safety banana socket that accepts all types of 4mm banana plugs. You can connect a multimeter or oscilloscope to the banana socket to detect the detailed signal information of the corresponding lit port. The cable length of the obd ii breakout testing box is 128cm, which makes device connection more convenient and you don't have to operate in a narrow space in the car.
Strong safety performance This Auto ECU Breakout Box can prevent the power supply from being reversed, and the KW308 will sound an alarm when reversed connection occurs. It can protect the diagnostic tool from damage such as power short circuit. The product comes with a small flashlight to help plug the OBD port into the car when the light is low. (Do not jumper pins together without understanding the circuits. )
Product Description

ECU car fault diagnosis tool, OBDII protocol detection instrument, can detect car/boat/motorcycle/Other


1.
Work voltage: DC 8v-30v


2.
Maximum Load: Up to 5.0 amp

3. OBD cable
Lenth: 1.5 m

Digital Voltmeter

4mm Socket and Led indicator

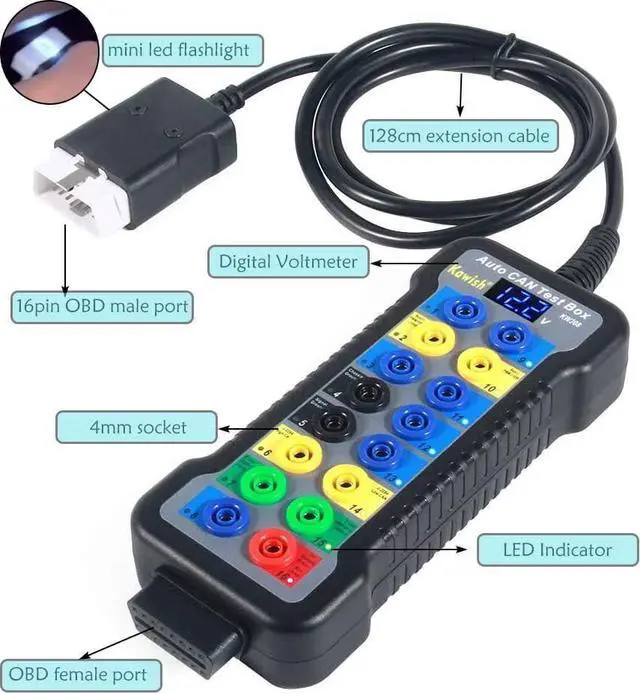

Standard OBD Male Port with Flashlight

With flashlight function of OBD Connector

Standard OBD Female

When the car breaks down, use our OBD2 Breakout Box, the signal light will prompt you where the problem is.

ALL OBD signal breakout with 4mm Banana socket: Sixteen high-quality 4mm banana sockets breakout all OBD signal for easy tdetailMore multimeter or oscilloscope for detailed signal analysis.

Multiple protections, protection against overheating, short circuit and current.

OBD Signal Detects: Sixteen Led lights detect the OBD signal. Leds at pin-out display signal detection, Flashing Leds for ECU activity, the led can Detect PWM (J1850) VPW (J1850) ISO 9141-2, DIS/ISO 14230-4 (12V car and 24V diesel) CAN bus (J-2284) (SAEJ1939) Power signal and ground signal.

Battery voltage monitor: 3-digit blue
LED (resolution: 0.1 V) Voltmeter can Continuous numeric display of voltage, Measuring range from 8-30V. So the Breakout Box not only can detect car signal but also can detect some of diesel signal for example the diesel of K-line L-line and CAN bus (SAEJ1939)
