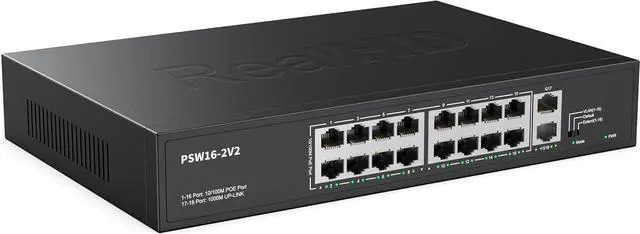

Real HD 16 Port PoE Switch, High Power 300W, 16 PoE+ 100Mbps Ports with 2 Gigabit Uplink Ethernet Ports, Unmanaged Plug and Play, Each Port Up to 30W, 802.3af/at Compliant, Rack Mount

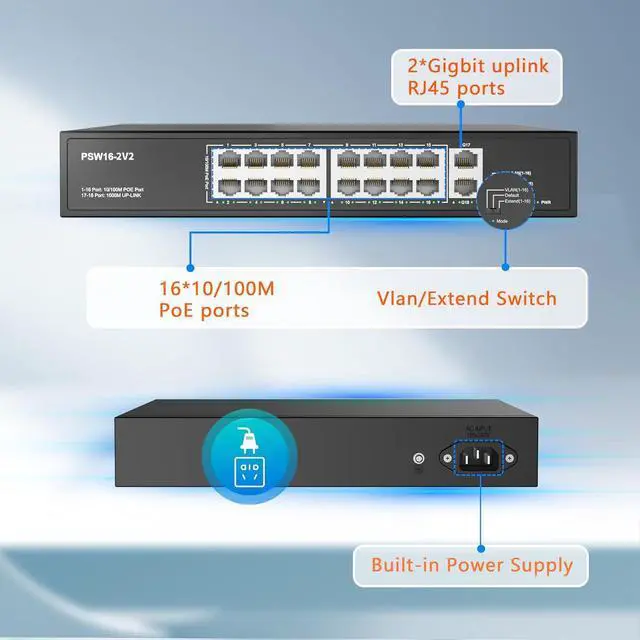

- Poe switch with 802.3af/at compliant16-Ports 10/100 switch with 4 PoE ports and 2 Uplink Ethernet, providing up to 30W per port and total PoE power budget of 300W. The 2 uplink ports can be connected to different networks or devices, such as routers, NVRs
- Unmanaged Plug and PlayEasy setup with no software installation or configuration needed,support power detection function, automatically detect devices, will not burned non-stantard PoE device or standard PoE switch

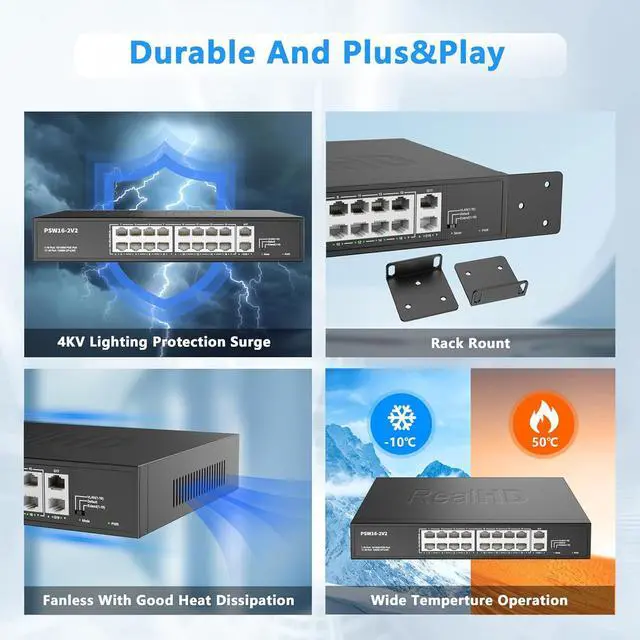

- Sturdy and QuietEngineered for compact convenience, it durable metal case that is easily positioned on your desktop or a wall. The fan-less design quietly integrates with your office environment and featured with good heat dissipationsafe to use in different environments from temperature -20 to 50
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

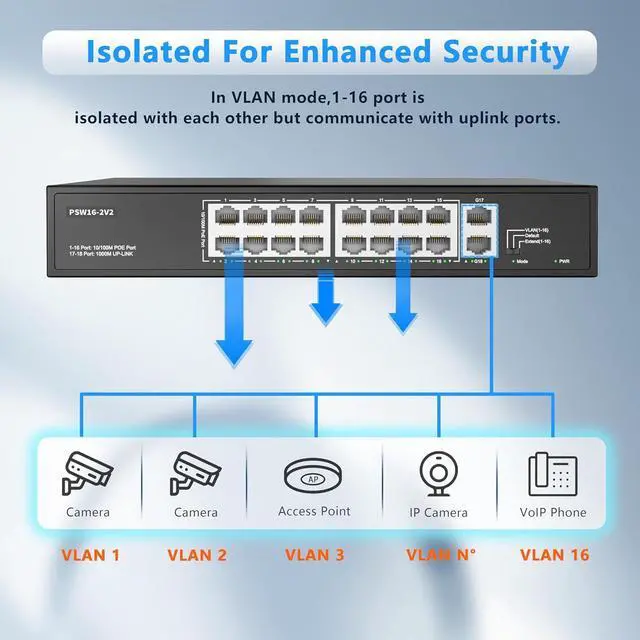

Extend and VLAN FunctionUp to 250m data and power PoE transmission range under Extend Mode, ideal for surveillance system (Speed will be reduced if extend function is operating). Port-Based VLAN When you enable VLAN mode, the PoE port is isolated with each other, but communcate with uplink ports, improve network performance.

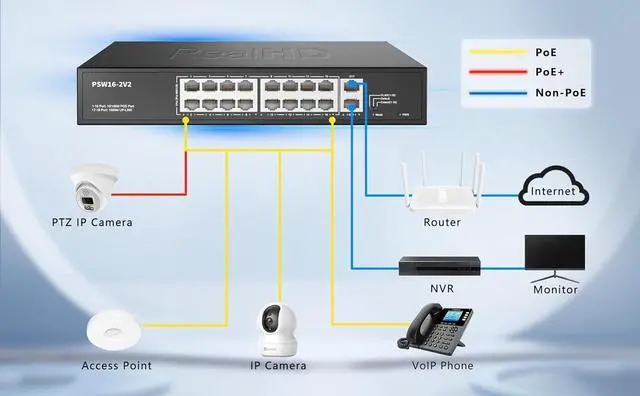

Widely Used: Built-in Industrial Power Supply. Durable Metal housing. LED indicator lights. Widely used in IP cameras, Wireless Access Point, Computer Networks devices, etc.
Product Description
FAQs
Q: The ports on the switch is 100mbps instead of 1000mbit.
A: Yes this 16 port poe switch is 100mbps, if you need gigabit poe switch please search for asin: B0BHQ5RWKB
Q: What kind of cameras can be connected to the POE switch?
A: All POE cameras that support IEEE 802.3AF /AT can be supported. If it is not a POE camera, a POE splitter can be added to connect the switch and the camera.
Q: What situation is suitable for extend mode?
A: The extend mode can be turned on when the distance exceeds 100 meters. The image transmission to be stuck because of camera signal is interfered or signal is not enough, it can be turned on.
Q: The distance is 50 meters, camera is normal during the day, but there is no image at night.
A: Insufficient power supply. Please make sure that the network cable that meets the international standard or above. It is recommended to use a multimeter to test cable resistance.
Note: Real HD active POE switchs support passive & non poe devices, but when the switch is directly connected to passive poe devices or non-poe devices, the switch can only transmit data and cannot power the device, so the device needs to be powered separately. Or use an active poe splitter between the switch and your passive poe or non-poe device, in this time switch can transmit data and power at the same time.
Real HD CCTV wholesaler provide a various of cctv products, for monitor please search for Asin B09T269QB4, and NVR search for B0B5S8RNCF
Technical
Widely Used: Built-in Industrial Power Supply. Durable Metal housing. LED indicator lights. Widely used in IP cameras, Wireless Access Point, Computer Networks devices, etc.
Product Description
FAQs
Q: The ports on the switch is 100mbps instead of 1000mbit.
A: Yes this 16 port poe switch is 100mbps, if you need gigabit poe switch please search for asin: B0BHQ5RWKB
Q: What kind of cameras can be connected to the POE switch?
A: All POE cameras that support IEEE 802.3AF /AT can be supported. If it is not a POE camera, a POE splitter can be added to connect the switch and the camera.
Q: What situation is suitable for extend mode?
A: The extend mode can be turned on when the distance exceeds 100 meters. The image transmission to be stuck because of camera signal is interfered or signal is not enough, it can be turned on.
Q: The distance is 50 meters, camera is normal during the day, but there is no image at night.
A: Insufficient power supply. Please make sure that the network cable that meets the international standard or above. It is recommended to use a multimeter to test cable resistance.
Note: Real HD active POE switchs support passive & non poe devices, but when the switch is directly connected to passive poe devices or non-poe devices, the switch can only transmit data and cannot power the device, so the device needs to be powered separately. Or use an active poe splitter between the switch and your passive poe or non-poe device, in this time switch can transmit data and power at the same time.
Real HD CCTV wholesaler provide a various of cctv products, for monitor please search for Asin B09T269QB4, and NVR search for B0B5S8RNCF
Technical
Specifications
