Laser Engraver Module, 10W (10000mW) Optical Power Laser Engraver Module w/Air Assist, Built-in FAC, Double Ultra-Fine Compressed Spot Higher Accuracy Laser Head Class 4,24V

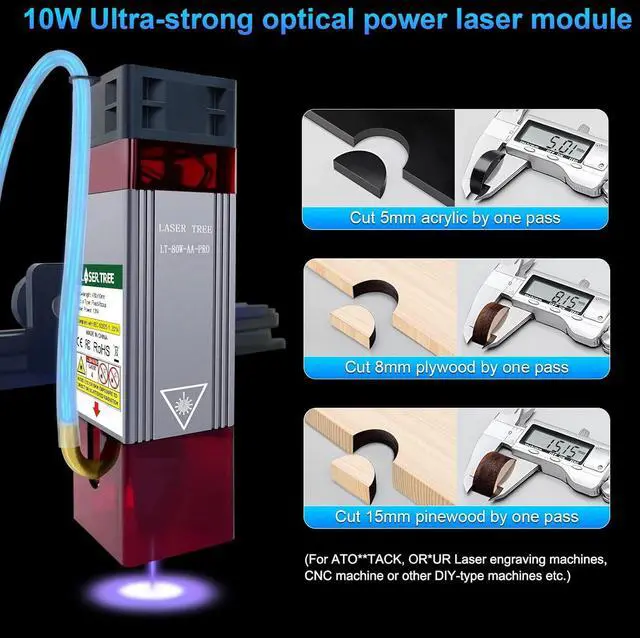

- REAL 10W(10000mW) LASER MODULE - This laser module has 80W machine power and real 10W(10000mW) optical laser power output. Dual compressed spot enabling finer laser engraving 0.08*0.08mm; Engraves 304 stainless steel up to 300mm/s at a 45mm focus length. The laser cutting module ability to cut through 8mm thick plywood, 15mm pinewood, and 5mm thick dark acrylic in one pass. Max 30mm cutting thickness.Laser Level: Class 1

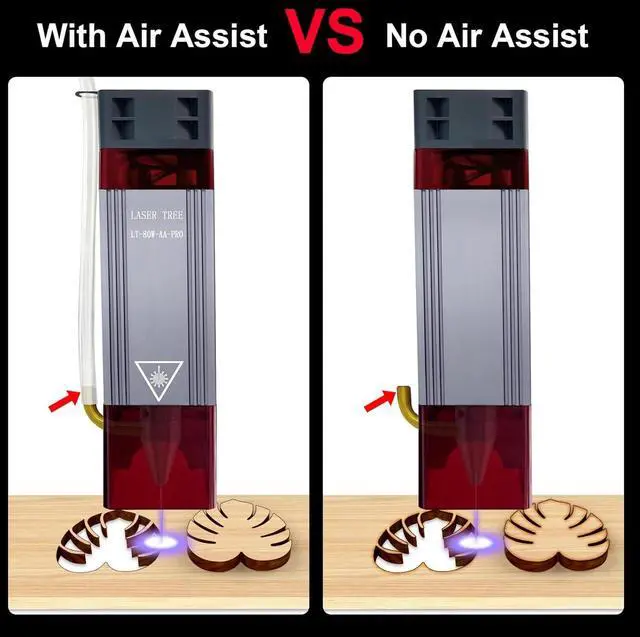

- UPGRADED LASER MODULE- Laser Tree 10000mW laser module has been upgraded to allow the use of an air assist device in conjunction with magnetic removable eye protection that protects the eyes while allowing better use of air pressure, which greatly improves cutting penetration and cutting efficiency. No need to wear glasses when cutting and engraving.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

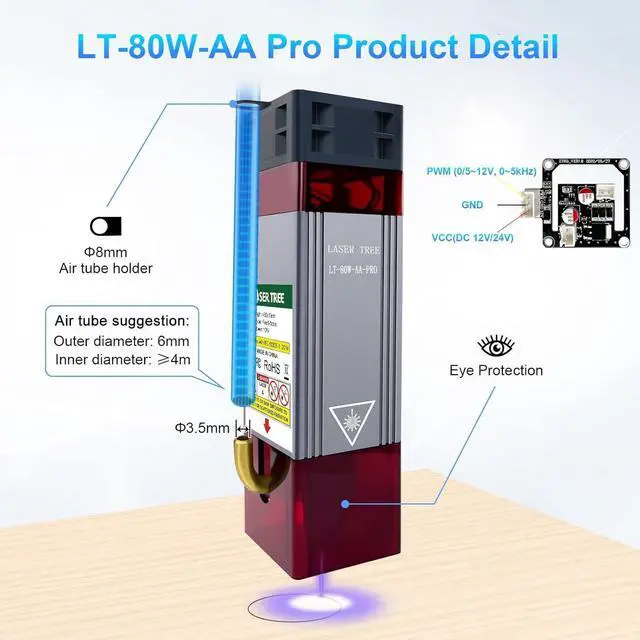

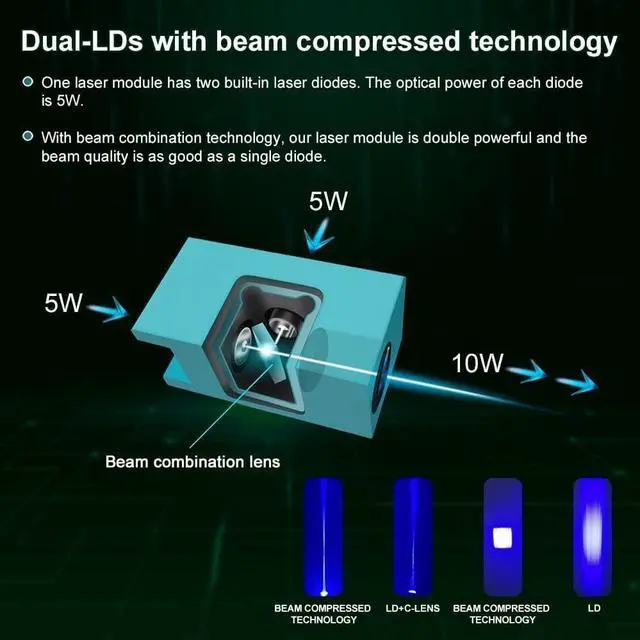

LASER MODULE PERFORMANCE - Built-in FAC to make the beam size much smaller at focus ( 0.08 * 0.08 ).
Power adjustable: supports 5 V PWM modulation;
Laser wavelength: 450nm;
Input: DC 24V 1.7 -2A;
Input: XH 2.54 -3P socket;
Simple control line installation method: Pluggable. Excellent compatibility with 3D printer, DIY engraving machine, laser engraving machine, laser cutting machine, and CNC routers.
Note: The cable sequence may vary from machine to machine. Please contact us for any questions
WIDE RANGE of APPLICATIONS - Widely used in plywood, Pine board, wood, stone, bamboo, coated glass, Brushed /Mirror stainless steel, black acrylic, plastic, leather, aluminum oxide, non-reflective electroplating layer, and lacquered metal, after blackening
Utility knife etc. (Note: Unable to engrave blue/purple/white/transparent material and aluminum without oxide layer) You can create exquisite Christmas cards, commercial signs, miniature cutting, greeting cards, engraved drawings, etc.

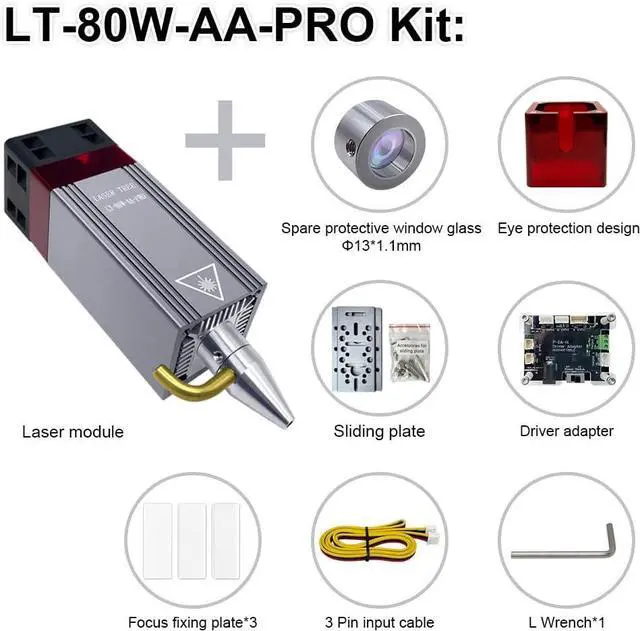

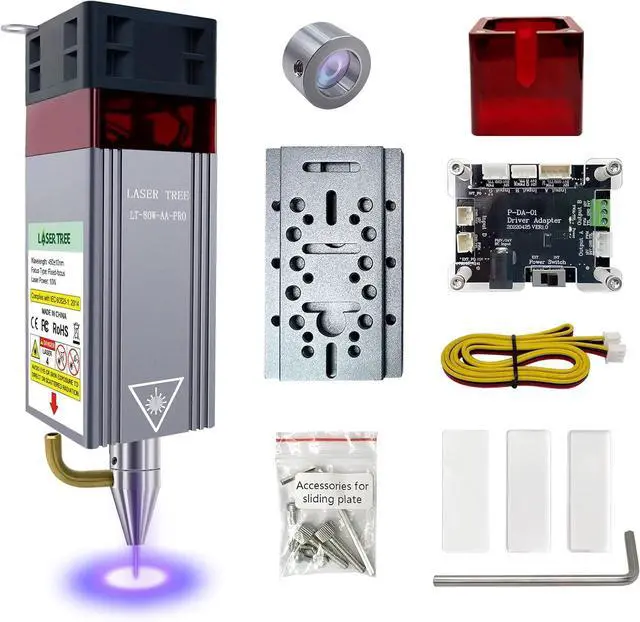

TECHNICAL SUPPORT & AFTER SERVICE - Please choose the 12V or 24V laser module according to the DC of your machine motherboard. The laser engraver head KIT package includes 1* Laser module; 1* Driver adapter; 1*Eye protection cover; 1*Spare protective window glass; 1*3 Pin input cable; 1* L Wrench; 3*Focus fixing plate. If you have any questions, visit or the website and get professional technical support in time.
Power adjustable: supports 5 V PWM modulation;
Laser wavelength: 450nm;
Input: DC 24V 1.7 -2A;
Input: XH 2.54 -3P socket;
Simple control line installation method: Pluggable. Excellent compatibility with 3D printer, DIY engraving machine, laser engraving machine, laser cutting machine, and CNC routers.
Note: The cable sequence may vary from machine to machine. Please contact us for any questions
WIDE RANGE of APPLICATIONS - Widely used in plywood, Pine board, wood, stone, bamboo, coated glass, Brushed /Mirror stainless steel, black acrylic, plastic, leather, aluminum oxide, non-reflective electroplating layer, and lacquered metal, after blackening
Utility knife etc. (Note: Unable to engrave blue/purple/white/transparent material and aluminum without oxide layer) You can create exquisite Christmas cards, commercial signs, miniature cutting, greeting cards, engraved drawings, etc.
TECHNICAL SUPPORT & AFTER SERVICE - Please choose the 12V or 24V laser module according to the DC of your machine motherboard. The laser engraver head KIT package includes 1* Laser module; 1* Driver adapter; 1*Eye protection cover; 1*Spare protective window glass; 1*3 Pin input cable; 1* L Wrench; 3*Focus fixing plate. If you have any questions, visit or the website and get professional technical support in time.
