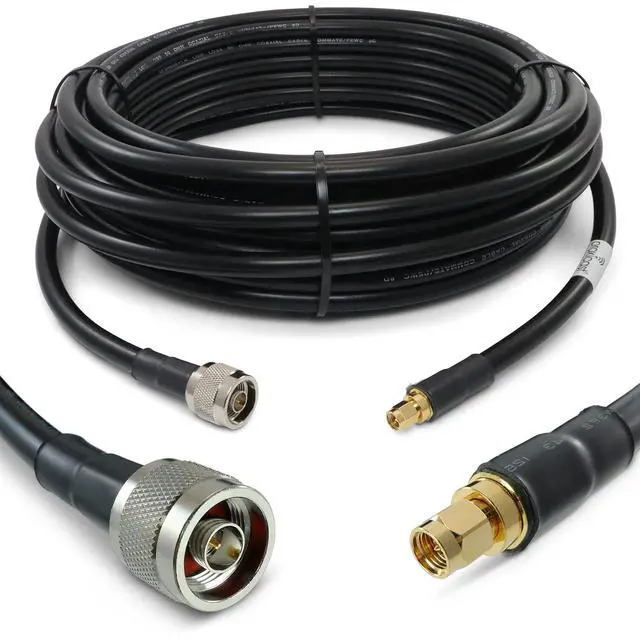

50 ft SMA Male to N Male Premium 400 Series Low-Loss Coax Cable (50 Ohm) for 4G LTE, 5G Modems/Routers, Ham, ADS-B, GPS to Antenna or Surge Arrester Use (Not for TV or WiFi) (ANT-140-020-50)

LESS SIGNAL LOSS than RG8, RG213 and 5d-fb N to SMA Cables
PRO-GRADE QUALITY - Gold Plated Signal Pins - Heat Shrink on Both Ends
Product Description

SMA Male to N Male Antenna Coax Jumper Cable for Modems, Routers, Amplifiers & Other Radio Devices

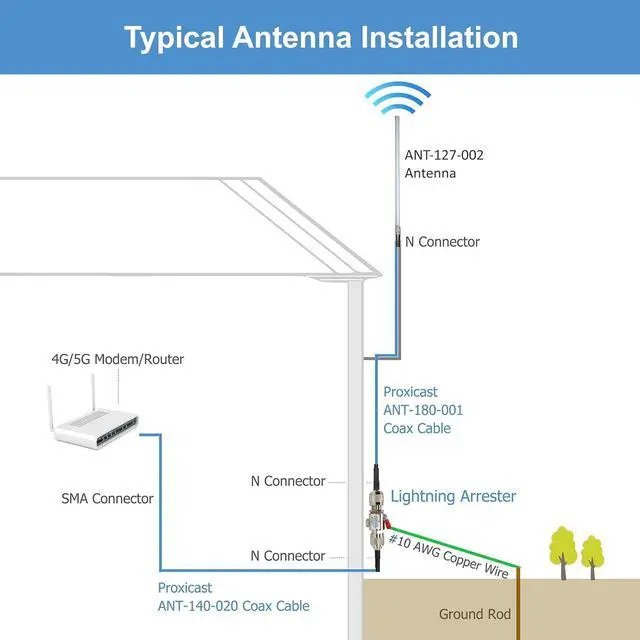

This premium low-loss coax cable is used to connect an N-Female antenna to the SMA Female external antenna jack on a radio device. Compatible devices include 4G/LTE/5G modems, routers, hotspots, boosters, GPS receivers, HAM radios, and ADS-B receivers. Compatible brands include Cisco, Cradlepoint, Digi, FlightAware, MoFi, Pepwave and Sierra Wireless. The cable can also be used to connect to an inline lightning arrester.

Full PDF spec sheets available under "Technical Specification" on this product listing.

Proxicast's coax extension cable assemblies are constructed with top quality extremely low-loss solid copper core cable and gold plated connectors and fully tested.

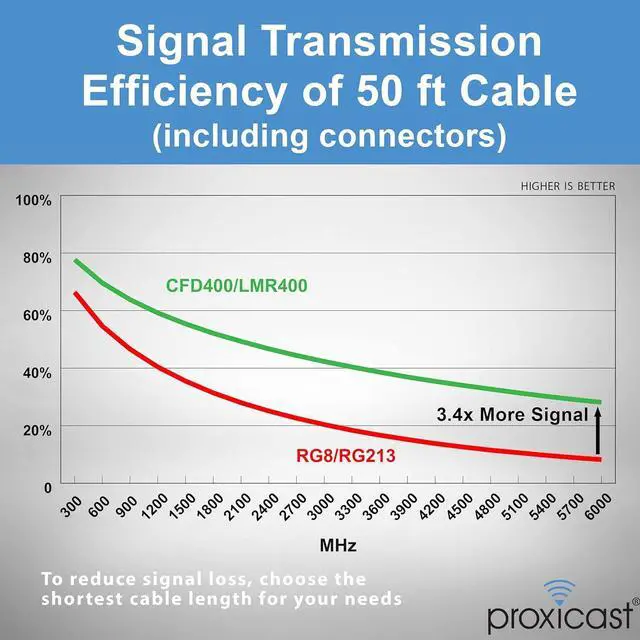

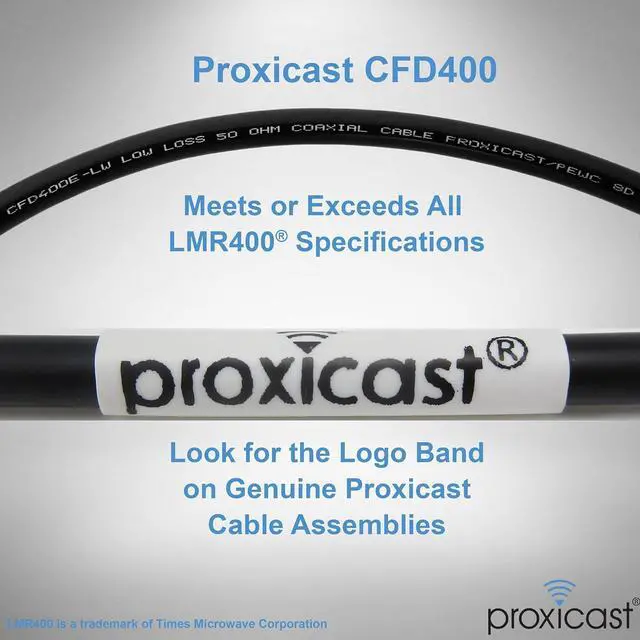

CFD400 is the same diameter as RG8 but has far superior performance characteristics, matching or exceeding LMR400.

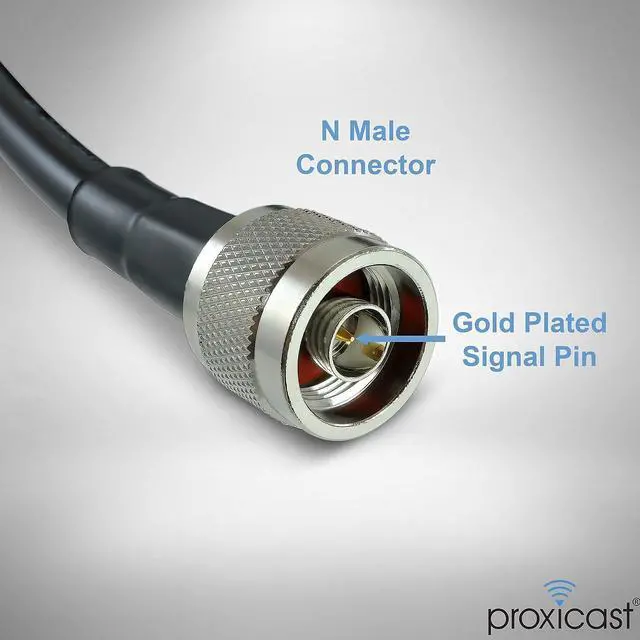

Connector 1: SMA Male

Connector 2: N Male

Coax: Low-loss CFD-400 ( 0.400" dia)

Impedance: 50 Ohm

Op Temp: -40 to +185F

Min Bend Radius: 1"

Use Proxicast's ultra low-loss 50 Ohm coax cable for maximum RF reception and transmission at common wireless frequencies. Significantly outperforms RG coax cables.

Solid copper-clad aluminum core and gold-plated signal pins provide top-quality, high-performance conductivity.

Commercial-grade components ensure maximum toughness and durability. Cable is assembled, inspected and 100% tested by our qualified technicians.

Polyethylene jacket withstands abrasions and provides excellent moisture resistance for outdoor use (not rated for direct burial or plenum applications).
