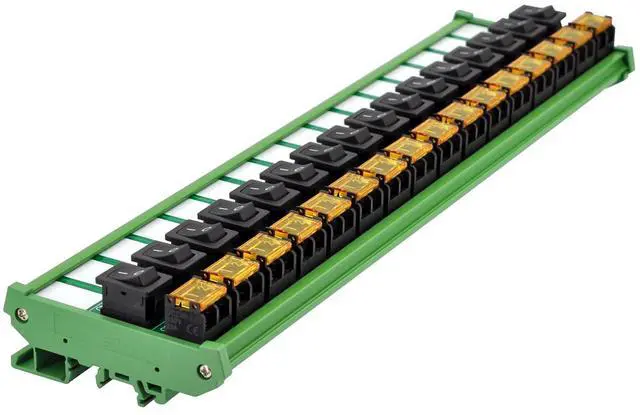

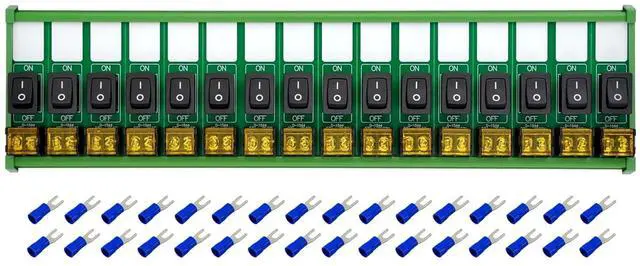

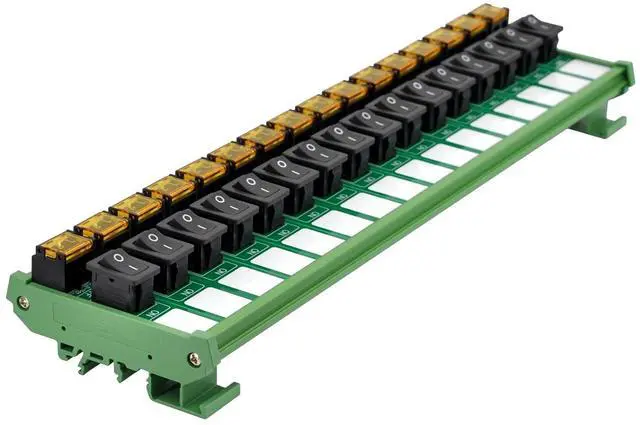

DIN Rail Mount Rocker Switch Module, 10Amp 250VAC/50VDC (16 Channel)
- Rated voltage: 250VAC or 50VDC. Rated current 10 Amp (for per channel).falseON-OFF rocker switch.false
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Terminals pitch 7.62 mm/ 0.3", removable cover, Metric M3 screw. With vinyl-insulated spade connectors, can support cable 16 - 14AWG / conductor cross section 1.5 - 2.5 square millimeters. falseHigh quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail. falseUL CE certified fireproof nylon material housing carrier. UL 94-V0 certified FR-4 fiberglass PCB. CE CQC certified terminal blocks. false1, Rated
voltage: 250VAC or 50VDC. Rated current 10 Amp (for per channel).
2, ON-OFF rocker switch.

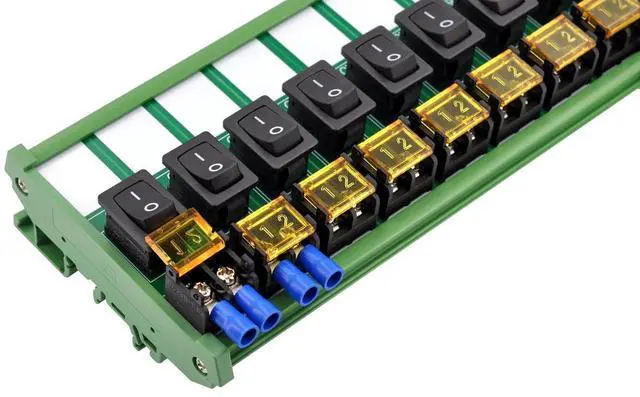

3, Terminals pitch 7.62 mm/ 0.3", removable cover, Metric M3 screw. With vinyl-insulated spade connectors, can support cable 16 - 14AWG / conductor cross section 1.5 - 2.5 square millimeters.
4, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail.
5, UL CE certified fireproof nylon material housing carrier. UL 94-V0 certified FR-4 fiberglass PCB. CE CQC certified terminal blocks.
- Rated voltage: 250VAC or 50VDC. Rated current 10 Amp (for per channel).
- ON-OFF rocker switch.
- Terminals pitch 7.62 mm/ 0.3", removable cover, Metric M3 screw. With vinyl-insulated spade connectors, can support cable 16 - 14AWG / conductor cross section 1.5 - 2.5 square millimeters.
- High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail.
- UL CE certified fireproof nylon material housing carrier. UL 94-V0 certified FR-4 fiberglass PCB. CE CQC certified terminal block
voltage: 250VAC or 50VDC. Rated current 10 Amp (for per channel).
2, ON-OFF rocker switch.
3, Terminals pitch 7.62 mm/ 0.3", removable cover, Metric M3 screw. With vinyl-insulated spade connectors, can support cable 16 - 14AWG / conductor cross section 1.5 - 2.5 square millimeters.
4, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail.
5, UL CE certified fireproof nylon material housing carrier. UL 94-V0 certified FR-4 fiberglass PCB. CE CQC certified terminal blocks.
- Rated voltage: 250VAC or 50VDC. Rated current 10 Amp (for per channel).
- ON-OFF rocker switch.
- Terminals pitch 7.62 mm/ 0.3", removable cover, Metric M3 screw. With vinyl-insulated spade connectors, can support cable 16 - 14AWG / conductor cross section 1.5 - 2.5 square millimeters.
- High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail.
- UL CE certified fireproof nylon material housing carrier. UL 94-V0 certified FR-4 fiberglass PCB. CE CQC certified terminal block
