Displayport 1.2 EDID Emulator 4K PRO (Model: DPH-EW2), Support EDID Copy and Emulation, HDMI Output, 14 PreSET EDID Values

Headless operation supported; no monitor connection needed. Powered by the Displayport source device; no external power supply needed. This emulator can only connect to a DP (DisplayPort) source and display on an HDMI monitor; the reverse configuration will not work. falseThis is ideal for resolving signal handshake issues between a source and a display. If the monitor's EDID can't be copied, please try another monitor or use internal EDID for testing. The emulator is wider than a regular DP (DisplayPort) connector, so you might need to purchase a short DP extension cable for better space management.

false- To Prevent EDID Loss: Supports copying and emulating EDID when connecting devices such as splitters, switchers, and extenders.

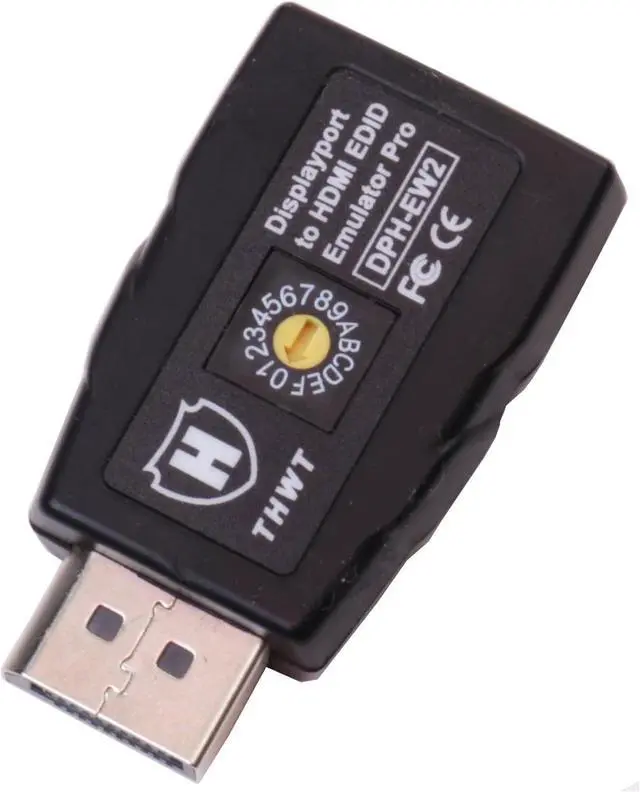

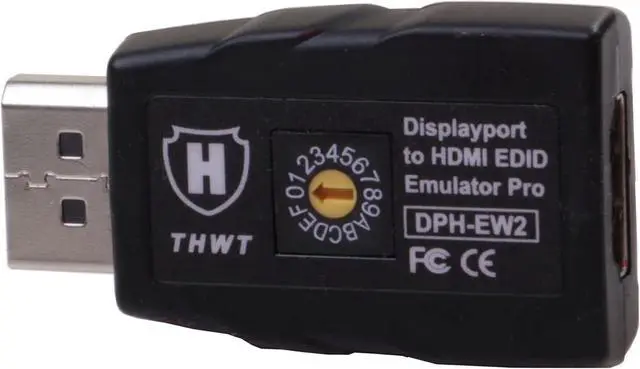

- Easy Setup: Built in rotary switch, supports 14 preset EDID values (internal EDID) and EDID Copy function to emulate the latest external monitors EDID (external EDID).
- HDMI 2.0 and DP 1.2 compliance: This is a uni-directional adapter that allows you to connect your DisplayPort source device to a HDMI display using Parade PS176 chipset. It supports DisplayPort 1.2 and 4 lanes, compliant with DisplayPort 1.2 a standard, data rate up to 21.6 Gbps ( 5.4 Gbps per lane).
- Headless operation supported; no monitor connection needed. Powered by the Displayport source device; no external power supply needed. This emulator can only connect to a DP (DisplayPort) source and display on an HDMI monitor; the reverse configuration will not work.

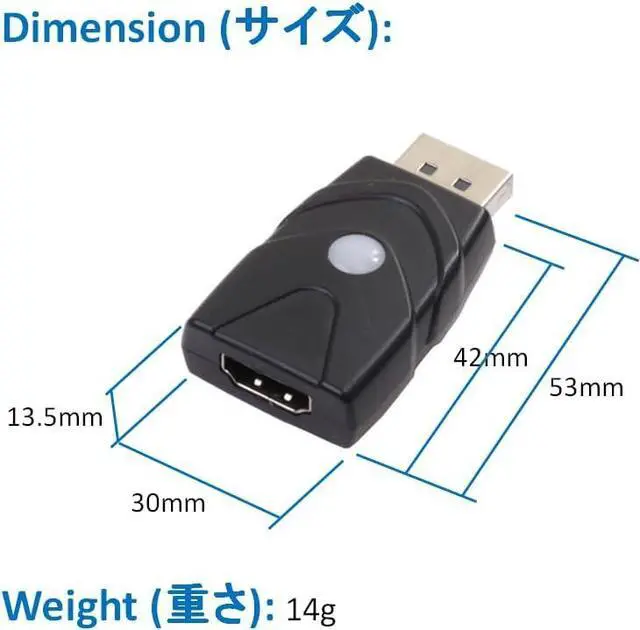

- This is ideal for resolving signal handshake issues between a source and a display. If the monitor's EDID can't be copied, please try another monitor or use internal EDID for testing. The emulator is wider than a regular DP (DisplayPort) connector, so you might need to purchase a short DP extension cable for better space managemen
