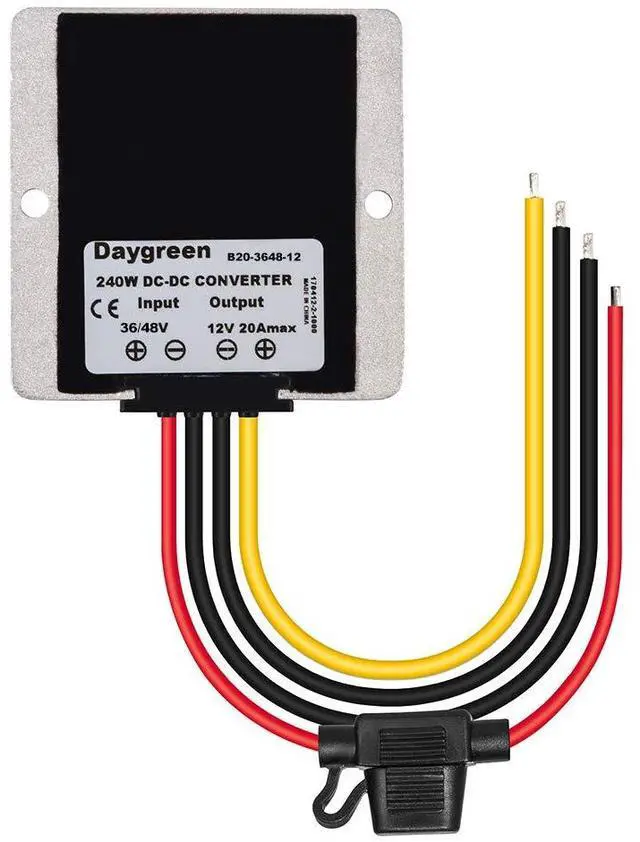

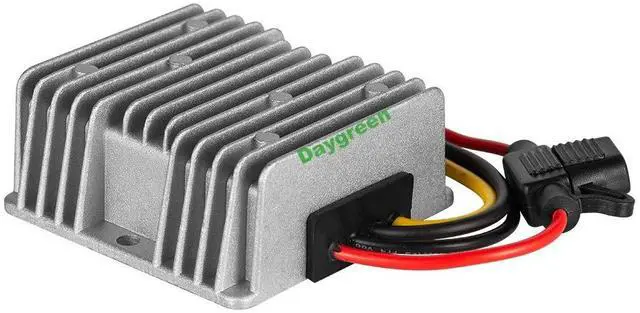

Voltage Regulator DC 36V 48V Step Down to DC 12V 20A 240W Buck Transformer Converter (36V/48V to 12V 20A)

Low Power Consumption: It has a low no-load consumption of less than 0.04A, ensuring minimal energy usage when not in active operation. falseRobust
Protection: The product is fully sealed and rated IP68 to provide protection against water, dust, and vibration. Additionally, it features multiple protections like low voltage, output over voltage, overload, and over-temperature protection. false

Daygreen P/N: A4D13R8C30
Efficiency: 95%
Input Voltage: 30-60V DC
Output Voltage: 13.8VDC
Output Current: 30A
No-load current: <0.1V
Ripple: 200mVp
Line Regulation: ± 0.2 %
Load Regulation: ± 0.2 %
Voltage Accuracy: ± 1.5 %
Enclosures: IP68
Dimension: 113*103*35mm
Net Weight: 0.68 kg
Case Operating Temperature: -40~85°C
Certificates: CE Rohs
Warranty: 3 years
MTBF: 100, 000 hours

Application:
36V/48V battery of vehicles as input power to 13.8VDC appliances as output load.

How to choose the correct current for loads?
For example, if the max current of your load device is 10A, then choose 10A/ 0.7 = 14.28A at least for resistive loads according to international standard.
If the load device is motor or compressor, then you may choose 10A/ 0.5 =20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.
- Stable Output Voltage: This product provides a stable output voltage of 13.8V for reliable performance.
- Wide Input Voltage Range: The device accepts a wide range of input voltages, allowing it to be used in various applications.
- High Efficiency: With a maximum efficiency of up to 95%, this product is designed to minimize energy waste and optimize power usage.
- Low Power Consumption: It has a low no-load consumption of less than 0.04A, ensuring minimal energy usage when not in active operation.
- Robust Protection: The product is fully sealed and rated IP68 to provide protection against water, dust, and vibration. Additionally, it features multiple protections like low voltage, output over voltage, overload, and over-temperature protectio
