SMD Quite 37+ Modes Light Controller Sequencer Board 3 Channel AC Voltage 100-240VAC 50HZ 60HZ RED Green Yellow RYG AC Light Control NO Coding Required

System ram type: eepromfalseHard
disk size: 1.0 MBfalseEASY programming with DISPLAY. Tons of mode for every kind of need. 3CH Traffic Light Controller for Manual Programming Our 3 Channel Traffic Light Controller is the perfect solution for all of your traffic signal needs. After unplug the power, it remembers the last mode it was on. Accepting standard 120VAC and 240VAC line voltage, this controller provides 500 Watts per channel and will drive full-sized non-dimmable LEDs and incandescent traffic lights (this includes all household incandescent and LED bulbs). This board is based with the latest solid state relays. Solid state relays technology means quiet, effortless switching for many years. Now is very simple to programming all traffic lights timings. There are 37+ custom sequences packed into our controller, which are easily changed with the push of a encoder (button). -

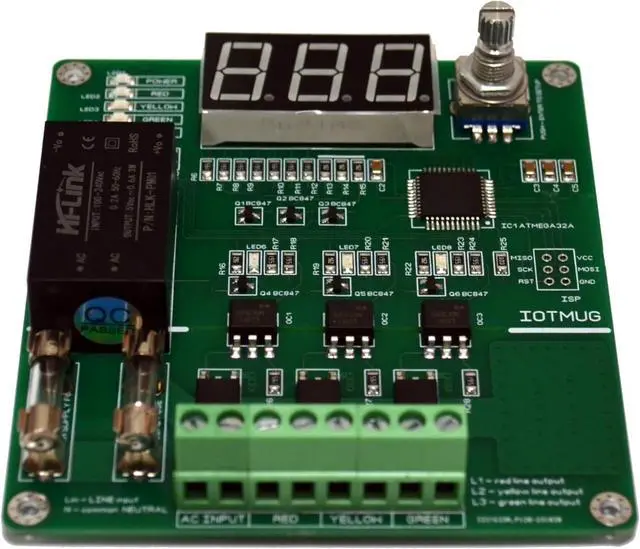

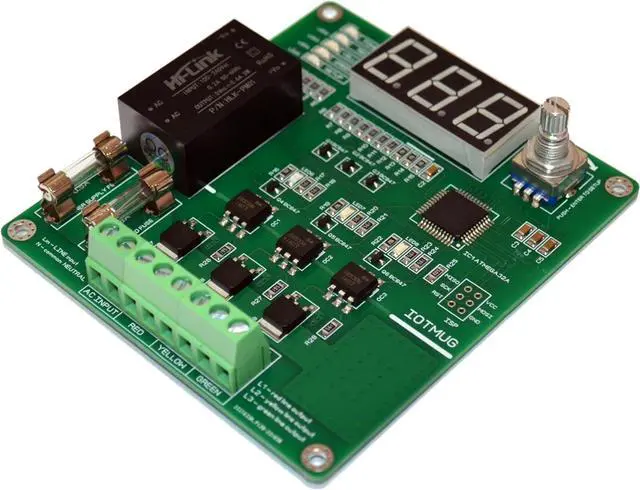

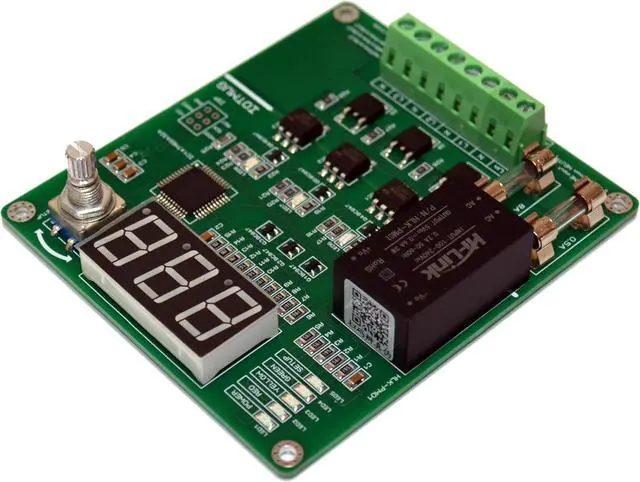

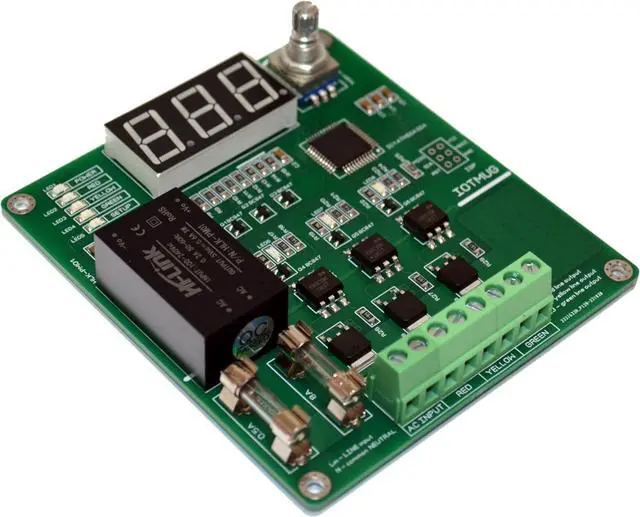

Device specification: - PCB board dimension 90mm x 100mm - PCB Board Material 1.6 mm FR-4, with solder mask & silk screen. -
Supply Voltage: 100VAC to 240VAC (50Hz60Hz). -
Delay Range: 0 255 seconds for each color (RED, YELLOW and GREEN), depends on mode. - Input Connector 14-26AWG, 250VAC @ 16A screw terminals. - Output Connectors 14-26AWG, 250VAC @ 16A screw terminals. - Safety fuse 8A. -
Unit Weight: 50 gramms.

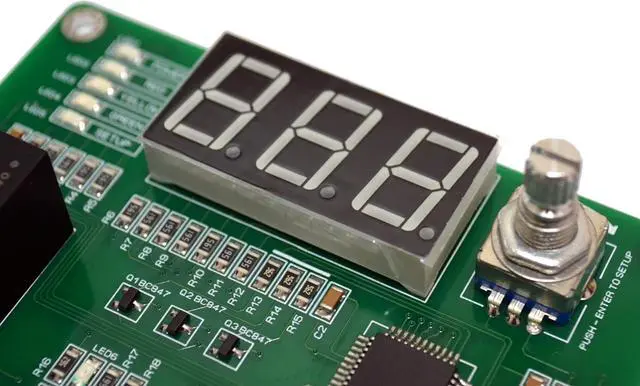

- and #128678; Easy to program mode selection with pushbutton control (encoder) and DISPLAY. Supply input
Voltage: 80VAC to 240VAC (50Hz and 60Hz). Output Voltage is same as input AC voltage 80V t0 240V AC

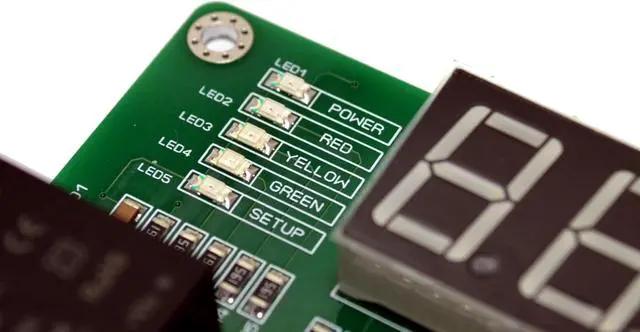

- and #128678; Separate digital control for each of RED, YELLOW and GREEN allows for realistic operation User selectable duration from 0 second to 255 seconds (determined by mode). It can be used as 3 Channel or 2 Channel for RAILROADS or 1 Channel depends on your application.
- Operating system: Arduino
- System ram type: eeprom
- Hard disk size: 1.0
