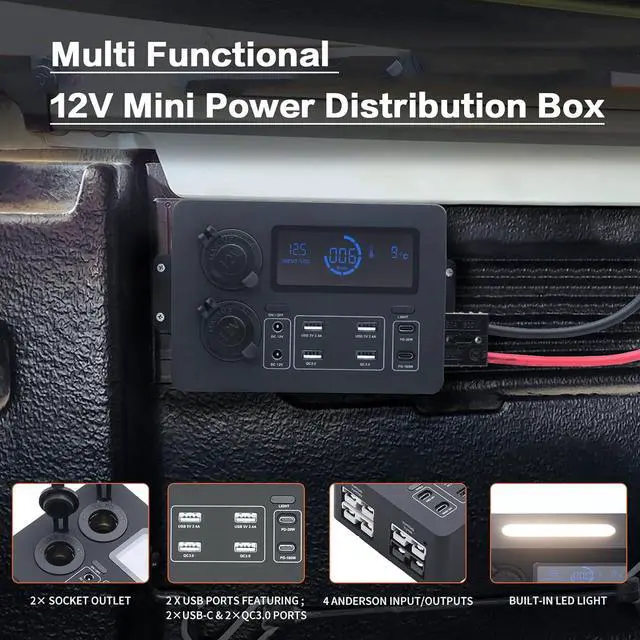

12-24 V Power Outlet Hub Distribution Box 13 Output Sockets Quick Plug+PD20W/100W+QC3.0 USB+CIG Power Sockets Plug-and-Play with LCD Display LED Light Suitable for All Deep-cycle Type
- Multifunctional:This POWER plug-and-play 12-24 V DC Mini Power Distribution Box allows you to easily distribute 12&24 V power from your auxiliary battery;13 different types of power distribution output ports,LCD display screen,LED light sources
- Power Multiple Products at Once:built with 4 usb ports,2 PD quick charger ports,2 female power outlet sockets,2 DC 12 V/10 A output and 4 anderson input/output plugs,so you can power your phones tablets fridge oven and other at the same time

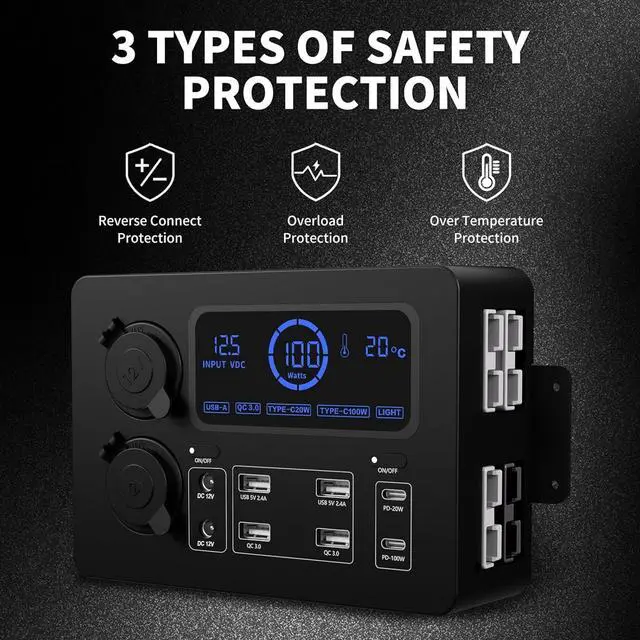

- Features:The box is constructed of durable ABS plastic and meeting the ul 94v-0 standard for flammability of plastic products,has multiple circuit protection functions reverse connect protection,overload protection,over temperature protection
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Widely Application: The box use with any dual battery, it is suitable for all deep-cycle battery types including agm, lithium, wet, gel and calcium; perfect for solar, boondocking, camping and long distance travel; stay powered no matter where you are

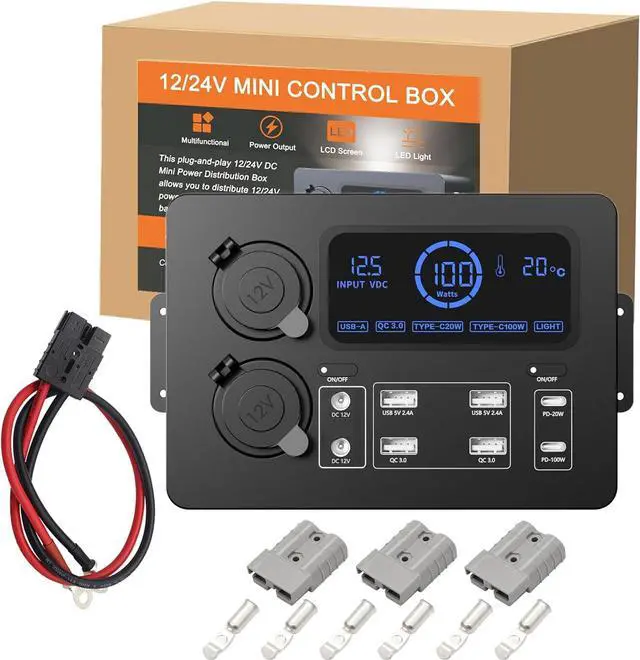

Easy Installation: Just use the included installation bracket to secure it in the place you need; Build your 12/24 V camping power system now, your ultimate DC Power box
Adapt to your power connector
13 types of power distribution output portsThis plug-and-play 12/24V DC Mini Power Distribution Box allows you to easily distribute 12&24V power from your auxiliary battery. Using its wide range of ports, youcan run or charge up to 13 appliances simultaneously. It is suitable for all deep-cyclebattery types including AGM, Lithium, Wet, Gel and Calcium
Materials
ABS plastic
Box dimensions
170mm (L) × 120mm (W) x 64mm (H)
Suitable battery types
(Lithium, AGM, Calcium, Wet, Gel)
USB Port (EACH)
5V 2.4A 12w)
USB QC 3.0 (EACH)
5V/3A 9V/2A 12V/ 1.5A (18W)

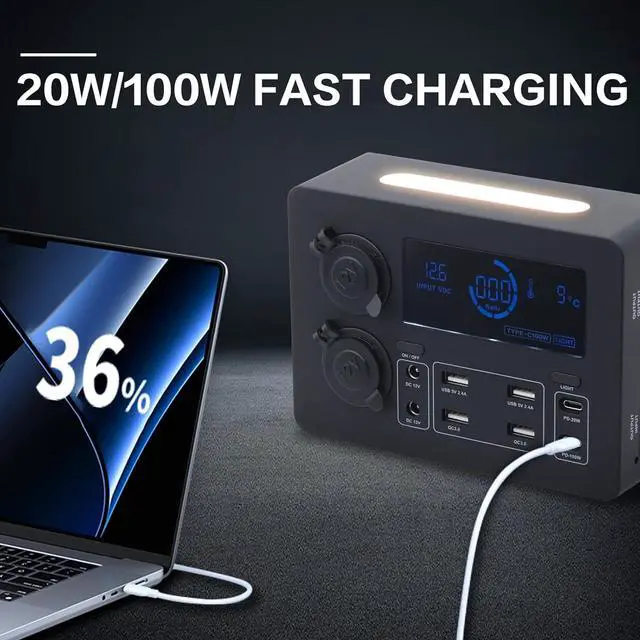

Type-C Port (100W)
PD 3.0 5V/3A 9V/3A 12V/3A15V/3A 20V/5A
Type-C Port (20W)
PD 3.0 5V/3A 9v/ 2.22A 12V/ 1.67APPS 3.3 -11V/2A
Clg Socket
DC 12v 20A/ DC 24V 10A
DC 5521
DC 12V 10A
Quick Connect Plug
50A 600V 4-50A Anderson-style outlets. 1 of these is used to connect the power box to the battery and 3 other can be used as an output
Circuit Breaker For Plug
Auto Reset 50A
Operating Temperature
-5-55 Built in temperature sensor to monitor the working environment temperature
Weight
600g

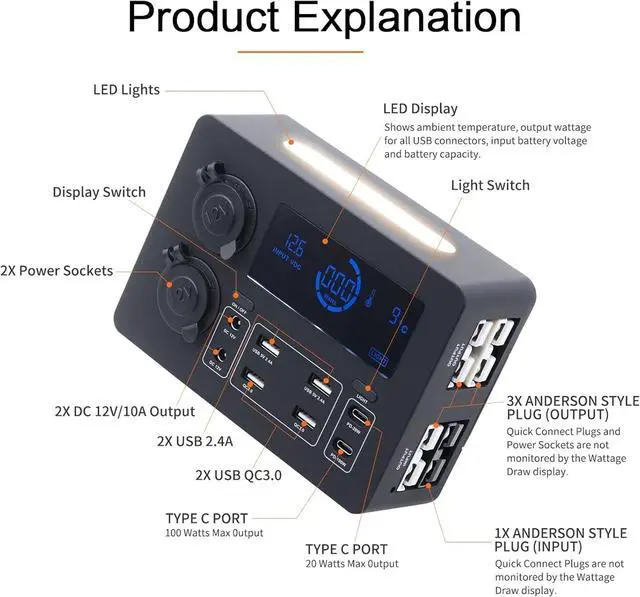

FEATURES-1

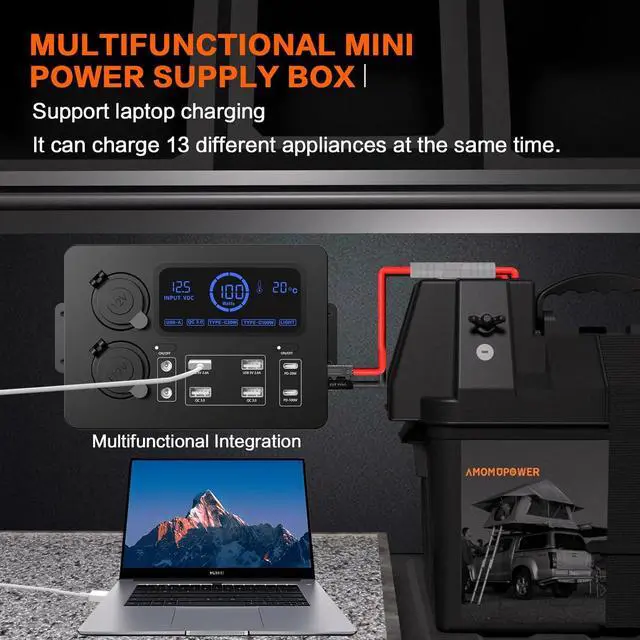

The MINI Control Hub is perfect for wiring up your canopy, van or motorhome
FEATURES-2

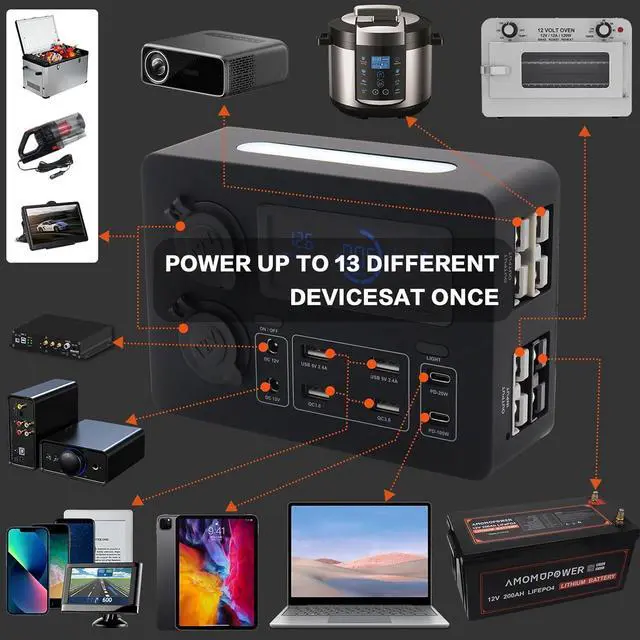

Power up to 13 different appliances at oncel Featuring more connections than any other control hub on the marketThe Mini Control Hub can power up the whole family.
FEATURES-3
All of the Anderson outlets are recessed into the body to minimise the possibility of damage from knocks,
Easy Installation: Just use the included installation bracket to secure it in the place you need; Build your 12/24 V camping power system now, your ultimate DC Power box
Adapt to your power connector
13 types of power distribution output portsThis plug-and-play 12/24V DC Mini Power Distribution Box allows you to easily distribute 12&24V power from your auxiliary battery. Using its wide range of ports, youcan run or charge up to 13 appliances simultaneously. It is suitable for all deep-cyclebattery types including AGM, Lithium, Wet, Gel and Calcium
Materials
ABS plastic
Box dimensions
170mm (L) × 120mm (W) x 64mm (H)
Suitable battery types
(Lithium, AGM, Calcium, Wet, Gel)
USB Port (EACH)
5V 2.4A 12w)
USB QC 3.0 (EACH)
5V/3A 9V/2A 12V/ 1.5A (18W)
Type-C Port (100W)
PD 3.0 5V/3A 9V/3A 12V/3A15V/3A 20V/5A
Type-C Port (20W)
PD 3.0 5V/3A 9v/ 2.22A 12V/ 1.67APPS 3.3 -11V/2A
Clg Socket
DC 12v 20A/ DC 24V 10A
DC 5521
DC 12V 10A
Quick Connect Plug
50A 600V 4-50A Anderson-style outlets. 1 of these is used to connect the power box to the battery and 3 other can be used as an output
Circuit Breaker For Plug
Auto Reset 50A
Operating Temperature
-5-55 Built in temperature sensor to monitor the working environment temperature
Weight
600g
FEATURES-1
The MINI Control Hub is perfect for wiring up your canopy, van or motorhome
FEATURES-2
Power up to 13 different appliances at oncel Featuring more connections than any other control hub on the marketThe Mini Control Hub can power up the whole family.
FEATURES-3
All of the Anderson outlets are recessed into the body to minimise the possibility of damage from knocks,
