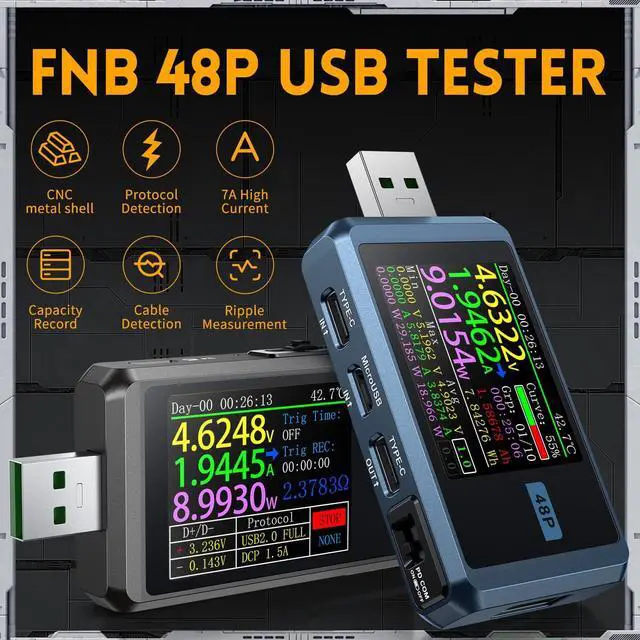

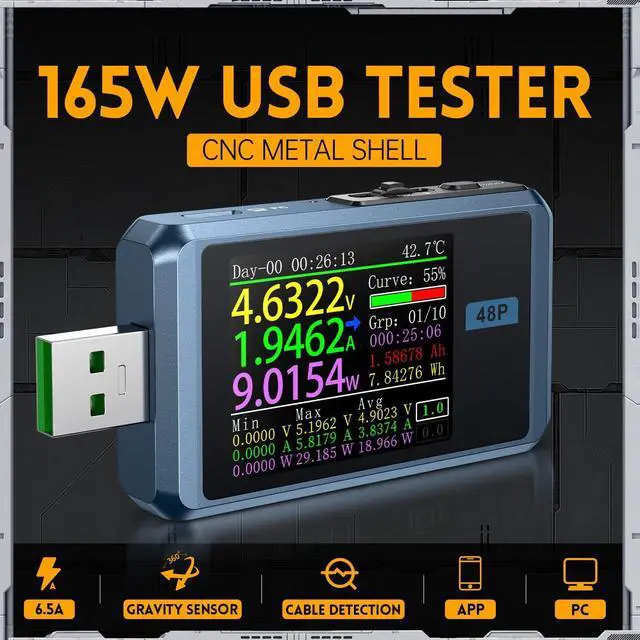

USB Tester 4-24V 6.5A LCD USB A&C Voltage Current Power Display Multimeter with App Software, Fast Charge Detection Trigger, PD2.0/PD3.0,QC2.0/QC3.0, CNC Metal Shell

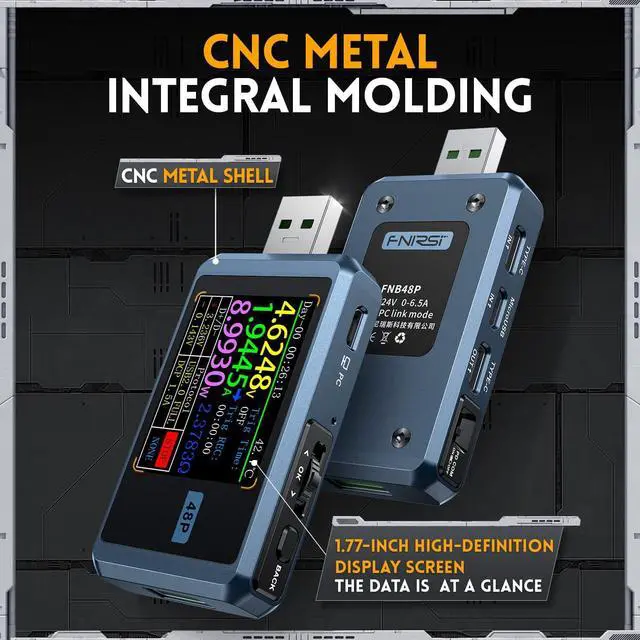

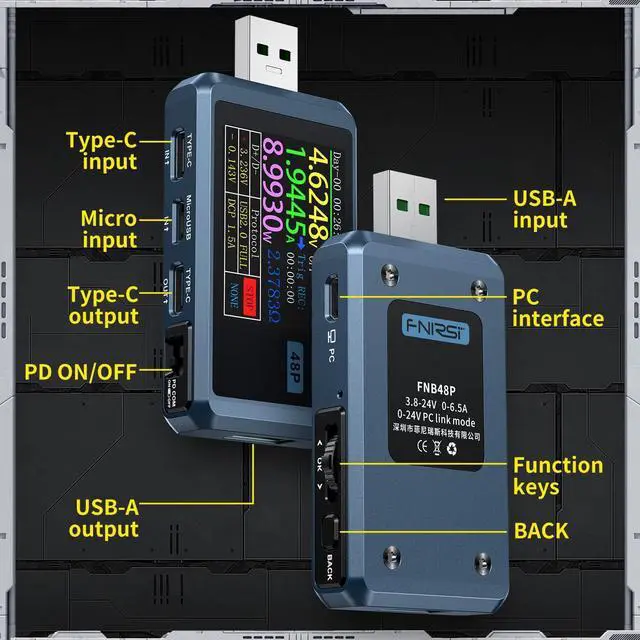

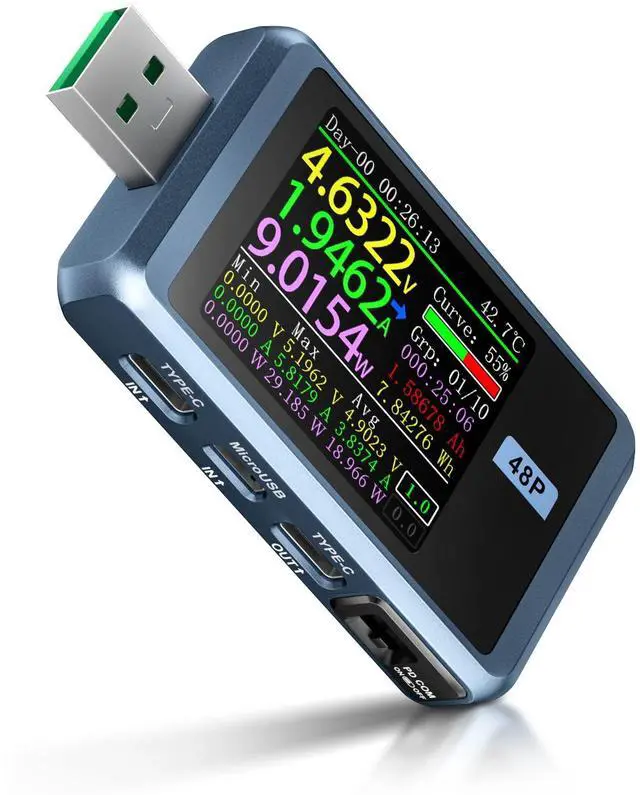

- Color Screen USB Tester FNB48P USB tester has a 1.77-inch full-color ultra-wide viewing angle TFT LCD display and APP software, integrated USB-A, Micro-USB, Type-C interface. Gravity sensor, automatically switch the display direction

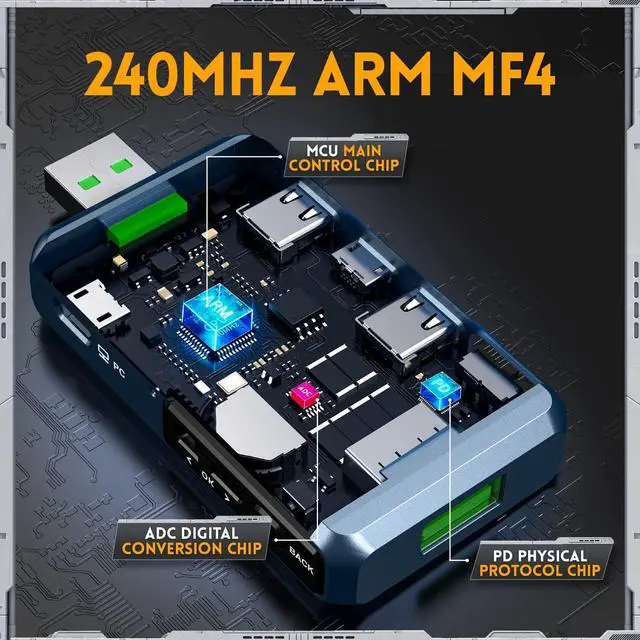

- Multifunction USB Digital TesterFNB48P uses external 16-bit ADC, PD protocol physical chip. It can monitor the voltage, current, power, resistance, capacity, temperature, D+/D- voltage etc, it can be used to test the fast charging protocol of chargers
- Fast Charge Protocol Trigger DetectionFNB48P supports trigger detection of various fast charging protocols, QC2.0/QC3.0 trigger, FCP/SCP trigger, AFC trigger, PD2.0/3.0 trigger, VOOC/WARP trigger, Super VOOC 1.0/2.0 trigger
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameter Detection and RecordingSix-digit display of voltage, current and power, the resolution is 0.00001 (V/A/W). 10 sets of switchable capacity, power and time statistics. 1 set of voltage and current curve records
Other detection functionsThe internal resistance measurement of the wire by the differential pressure method. E-Marker Cable chip reading. DASH Cable data reading. Record of startup time. Onboard temperature measurement. PD monitor. Analog DASH cable
Widely UseIt can be used to measure the power supply or power consumption such as USB interfaces, mobile phone chargers, and U disks. Support low waveform drawing, 2sps->100sps sampling rate. Support high ripple drawing up to 3.2M sps sampling rate
Other detection functionsThe internal resistance measurement of the wire by the differential pressure method. E-Marker Cable chip reading. DASH Cable data reading. Record of startup time. Onboard temperature measurement. PD monitor. Analog DASH cable
Widely UseIt can be used to measure the power supply or power consumption such as USB interfaces, mobile phone chargers, and U disks. Support low waveform drawing, 2sps->100sps sampling rate. Support high ripple drawing up to 3.2M sps sampling rate
