150W 20A Adjustable Constant Current Electronic Load 2.4inch TFT Color Display 4 Working Modes USB Lithium Battery Capacity Monitor Tester Discharge Meter
- This product is a direct current CNC electronic load, with a maximum power of 150W and a maximum load current of 20A. Support test the capacity of power battery.

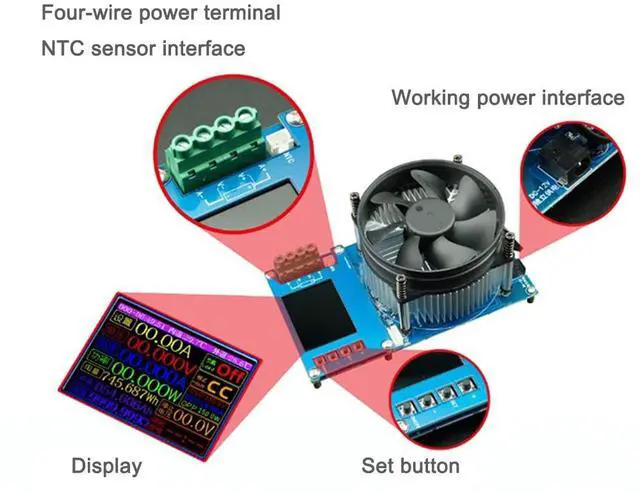

- 2.4inch TFT color screen, with voltage, current, power, electricity, capacity, internal resistance, load, operating mode, OVP, OCP, OPP, stop voltage, time limit discharge display function.
- It has four working modes design, constant current mode, constant voltage mode, constant power mode and constant resistance mode.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Voltage, current and power overrun protections can be set; stop discharge voltage and discharge time can be set.
Power supplying temperature can be monitored by an external NTC sensor.
Name: Electronic Load
Material: printed circuit board
Load type: CNC electronic load
Working voltage: 12VDC with 12 V, 1A power adapter
Load voltage: 0-150VDC
Load current: 0-20A
Load power: 0-150W (max. 60W above 120V)

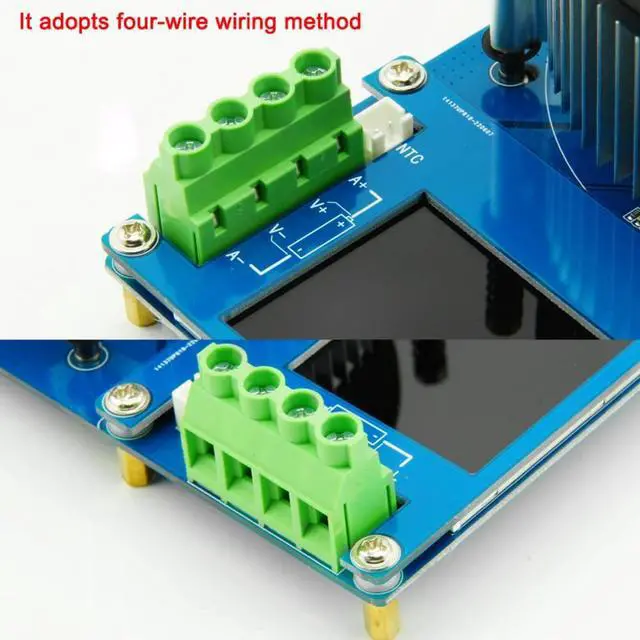

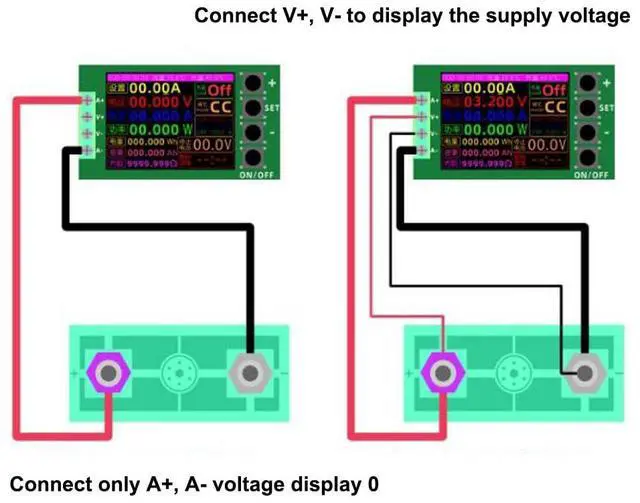

Wiring method: A+ V+ V- A- four-wire system, downward compatible with two-wire system
Maximum power measurement: 999.999W h
Maximum capacity measurement: 999.999A h
Cumulative timing range:
ddd:
hh:
mm: ss (days: hours: minutes: seconds)
Operating modes: four modes CC-constant current mode CV-constant voltage mode CP-constant power mode CR-constant resistance mode
Overvoltage protecting: supports up to 150V overvoltage protections
Overcurrent protecting: supports up to 20A overcurrent protections
Over-power protecting: supports up to 150W over-power protections
Limited voltage discharge: also called low voltage protections, support, default unlimited voltage discharge, set according to your needs
Time limit discharge: support
up to 99 hours: 59 minutes time limit discharge

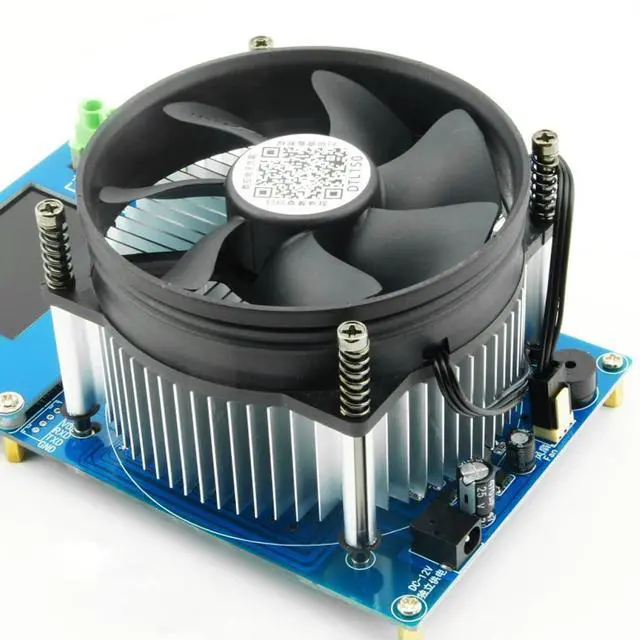

Heat sink: Alloy integrated silent heat sink, internal temperature 40°C or current 3A automatic operation
External temperature measurement: connect NTC 3950 10K 1% temperature sensor to measure and display temperature from 0-100°C
Chinese and English interface switching: supported
Zeroing of total data: supported
Voltage and current no-load nulling: supported
Voltage open calibration: supported
Current open calibration: Support
Screen brightness adjustment: Support
Screen hibernation standby setting: Support
PC software online: Not supported
Restore factory settings: Support
Package size: 195 * 105 * 135mm / 7.68 * 4.13 * 5.31 in
Package weight: 625g / 1.38 lb

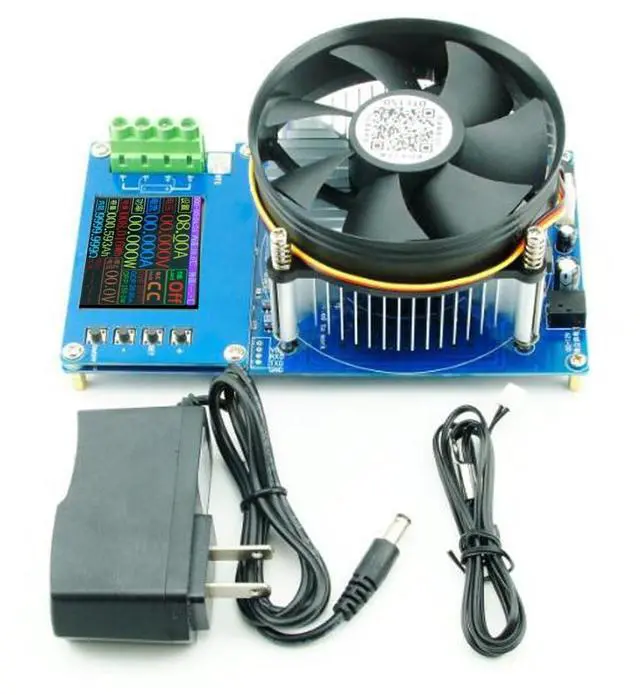

Packing List:
1 * Electronic Load
1 * Adapter
1 * NTC Sensor
Power supplying temperature can be monitored by an external NTC sensor.
Specifications
:Name: Electronic Load
Material: printed circuit board
Load type: CNC electronic load
Working voltage: 12VDC with 12 V, 1A power adapter
Load voltage: 0-150VDC
Load current: 0-20A
Load power: 0-150W (max. 60W above 120V)
Wiring method: A+ V+ V- A- four-wire system, downward compatible with two-wire system
Maximum power measurement: 999.999W h
Maximum capacity measurement: 999.999A h
Cumulative timing range:
ddd:
hh:
mm: ss (days: hours: minutes: seconds)
Operating modes: four modes CC-constant current mode CV-constant voltage mode CP-constant power mode CR-constant resistance mode
Overvoltage protecting: supports up to 150V overvoltage protections
Overcurrent protecting: supports up to 20A overcurrent protections
Over-power protecting: supports up to 150W over-power protections
Limited voltage discharge: also called low voltage protections, support, default unlimited voltage discharge, set according to your needs
Time limit discharge: support
up to 99 hours: 59 minutes time limit discharge
Heat sink: Alloy integrated silent heat sink, internal temperature 40°C or current 3A automatic operation
External temperature measurement: connect NTC 3950 10K 1% temperature sensor to measure and display temperature from 0-100°C
Chinese and English interface switching: supported
Zeroing of total data: supported
Voltage and current no-load nulling: supported
Voltage open calibration: supported
Current open calibration: Support
Screen brightness adjustment: Support
Screen hibernation standby setting: Support
PC software online: Not supported
Restore factory settings: Support
Package size: 195 * 105 * 135mm / 7.68 * 4.13 * 5.31 in
Package weight: 625g / 1.38 lb
Packing List:
1 * Electronic Load
1 * Adapter
1 * NTC Sensor
