USB Power Meter USB 3.1 Type-c Tester Digital Multimeter Current Tester Voltage Detector DC 29V 6A PD 2.0/3.0 QC 2.0/3.0/4.0 pps Trigge
- 0-29V 0-6A voltage & current measurement. 240*135 1.14IPS. 4.5 digits reading for voltage and current. 0.1% maximum gain error for both voltage and current. Capacity/Energy accumulator. PD(with PPS), QC2.0, QC3.0, QC4.0, Huawei SCP, SSCP, FCP, Samsung AFC, VOOC, Super VOOC 65W trigger for charger testing.

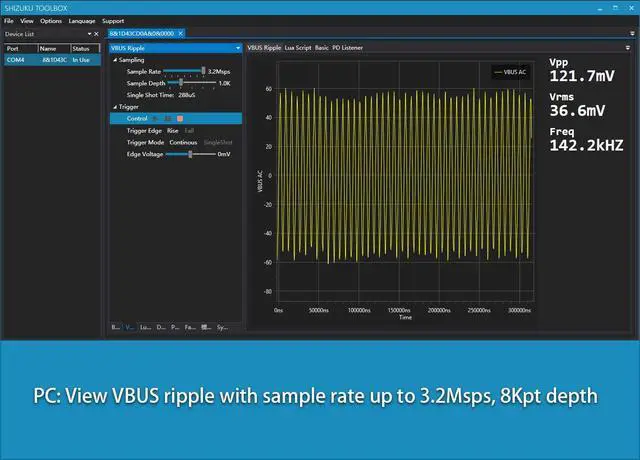

- Powerful PC software: Data logging up to 1000sps. VBUS ripple viewer(8Msps). PD listener for device diagnosis. Fast-charge trigger . All functionalities can be activated simultaneously for advanced test requirements.
- Lua Programmable: Lua interpreter integrated, provided with various APIs, detailed documentations (Look up at point 1). Make access to almost all hardware with your own program. Scripts can be set to run on boot. Internal 12Mbytes memory can be used to store scripts, and can be used as output storage of scripts (Standard file operation supported).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

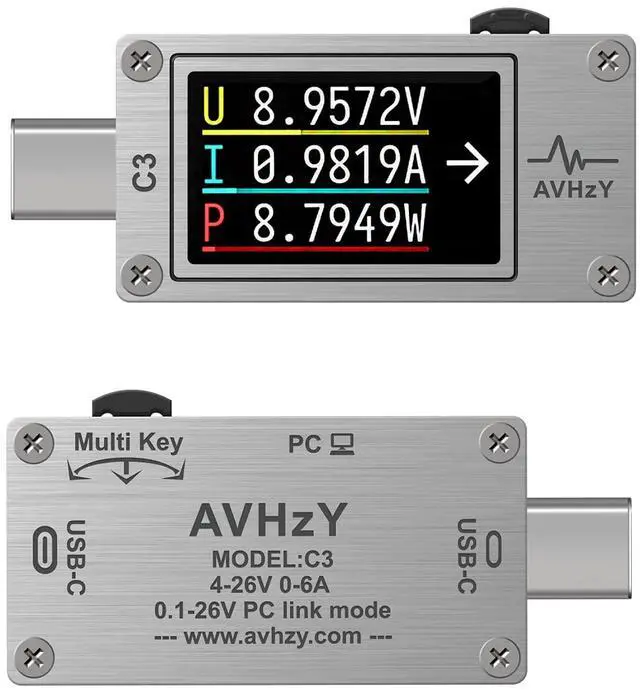

Main Control IC: Cortex-M4 200MHZ
Display: IPS 1.14 ' 240*135
Connector: Full 24-pin Type-C ports with USB 3.2 Gen4 10Gbps pass through.
Voltage Current Range: DC 4-26V( 0.1 -26V PC) 0- 6.8A
Resolution & Accuracy: 0.0001V 0.0001A 0.1 %+2d
E-mark reader: Support
Gravity sensor: Support
VBUS Osilloscope: 8Msps, 1mV resolution.

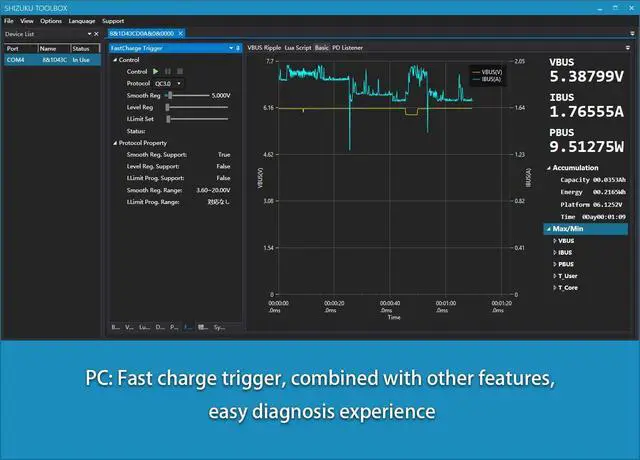

Fast-charge trigger for PD, PD PPS, QC 2.0 / 3.0, FCP, SCP, AFC, VOOC, SuperVOOC

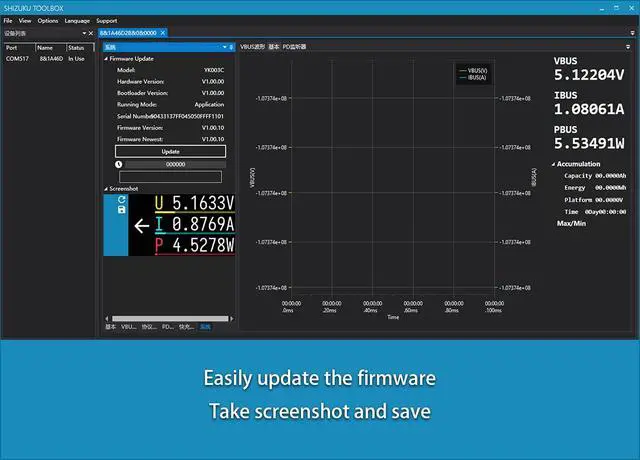

PC tool suite: Firmware upgrade, data logging up to 1000sps, VBUS ripple capturing up to 8Msps, PD listener for device diagnosis.
Display: IPS 1.14 ' 240*135
Connector: Full 24-pin Type-C ports with USB 3.2 Gen4 10Gbps pass through.
Voltage Current Range: DC 4-26V( 0.1 -26V PC) 0- 6.8A
Resolution & Accuracy: 0.0001V 0.0001A 0.1 %+2d
E-mark reader: Support
Gravity sensor: Support
VBUS Osilloscope: 8Msps, 1mV resolution.
Fast-charge trigger for PD, PD PPS, QC 2.0 / 3.0, FCP, SCP, AFC, VOOC, SuperVOOC
PC tool suite: Firmware upgrade, data logging up to 1000sps, VBUS ripple capturing up to 8Msps, PD listener for device diagnosis.
