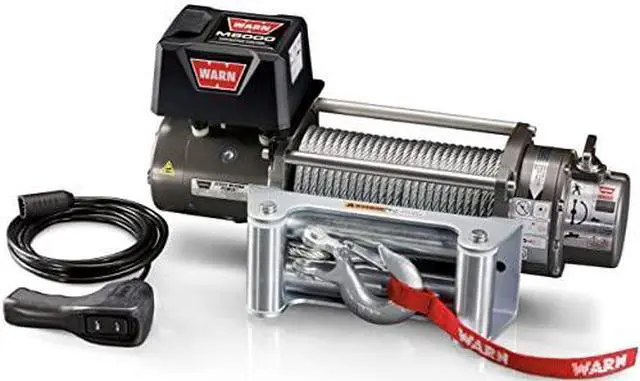

WARN 26502 M8000 Series Electric 12V Winch with Steel Cable Wire Rope: 5/16"" Diameter x 100 Length 4 Ton (8 000 lb) Pulling Capacity
- low-profile design and separate control box allows for a wide range of mounting options powers load in and out via 100 ft of 5/16 in wire rope;electrical controls: contactor efficient 3-stage planetary gear box and automatic direct drive cone brake system powerful 4.8 hp series wound motor with a 8 000 lb pull rating and sliding ring gear freespooling clutch electrical control box and hand-held remote with 12 ft (3.7m) lead Fit type: Vehicle Specific. Max Amp Draw-435 Amp Draw
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description The M8000 winch has been trusted by off-roaders for over twenty years. This 8 000 lb. capacity winch offers outstanding reliability and value. Its low-profile design allows for a variety of mounting options making it perfect for most trucks Jeeps and SUVs. It is a compact efficient and robust package that has a powerful 4.8 horsepower Series Wound motor and 3-stage planetary gear train. This winch includes 100-feet wire rope with a roller fairlead. Chip-resistant powder-coated finish. Limited lifetime warranty. From the Manufacturer Compact. Tough. An outstanding value.
Available with a roller or hawse fairlead and your choice of 80 or 100 of 5/16"" diameter wire rope the M8000 pulls a fast 8ft. per minute at rated load. The 4.8 hp Series Wound motor delivers big torque and power. Includes an all-weather remote control on a 12 ( 3.7 m) lead.
SPECIFICATIONS Rated Line Pull: 8000 lbs. (3630 kgs. )
single-line Motor: 12V 4.8 hp 24V 2.1 hp
Series WoundTM Remote Control: Remote switch 12 ( 3.7 m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 216:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring
Gear Brake: Automatic Direct Drive Cone Drum Diameter/Length: 2.5"" / 9.0"" ( 6.4 cm/23cm)
Weight: 74 lbs. (34 kgs. )
Wire Rope: 80 5/16"" diam. (24m 8mm diam. ) or 100 5/16"" diam. (30m 8mm diam. ) Fairlead for
PN 20910: Hawse Fairlead for
PN 26502 265022 265032: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge 72"" ( 1.83 m)
Finish: Argent
Gray Powder Coat Nuts/Bolts: PN 39625
Winch Dimensions: 21.04"" L. x 6.3"" D. x 7.6"" H. (534mm L. x 160m D. x 193mm H. )
Mounting Bolt Pattern: 10.0"" x 4.5"" (254mm x 114.3 mm)
Available with a roller or hawse fairlead and your choice of 80 or 100 of 5/16"" diameter wire rope the M8000 pulls a fast 8ft. per minute at rated load. The 4.8 hp Series Wound motor delivers big torque and power. Includes an all-weather remote control on a 12 ( 3.7 m) lead.
SPECIFICATIONS Rated Line Pull: 8000 lbs. (3630 kgs. )
single-line Motor: 12V 4.8 hp 24V 2.1 hp
Series WoundTM Remote Control: Remote switch 12 ( 3.7 m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 216:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring
Gear Brake: Automatic Direct Drive Cone Drum Diameter/Length: 2.5"" / 9.0"" ( 6.4 cm/23cm)
Weight: 74 lbs. (34 kgs. )
Wire Rope: 80 5/16"" diam. (24m 8mm diam. ) or 100 5/16"" diam. (30m 8mm diam. ) Fairlead for
PN 20910: Hawse Fairlead for
PN 26502 265022 265032: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge 72"" ( 1.83 m)
Finish: Argent
Gray Powder Coat Nuts/Bolts: PN 39625
Winch Dimensions: 21.04"" L. x 6.3"" D. x 7.6"" H. (534mm L. x 160m D. x 193mm H. )
Mounting Bolt Pattern: 10.0"" x 4.5"" (254mm x 114.3 mm)
